3.2 inch TFT LCD vertical screen/240*320 resolution/IPS/industrial grade/MCU interface/TFT-H032A3QVTST3N40
3.2 inch TFT LCD vertical screen/240*320 resolution/IPS/industrial grade/MCU interface/TFT-H032A3QVTST3N40
US$7.99
-
US$10.12
Add to wish list
Touch Panel
Quantity
+
Product details

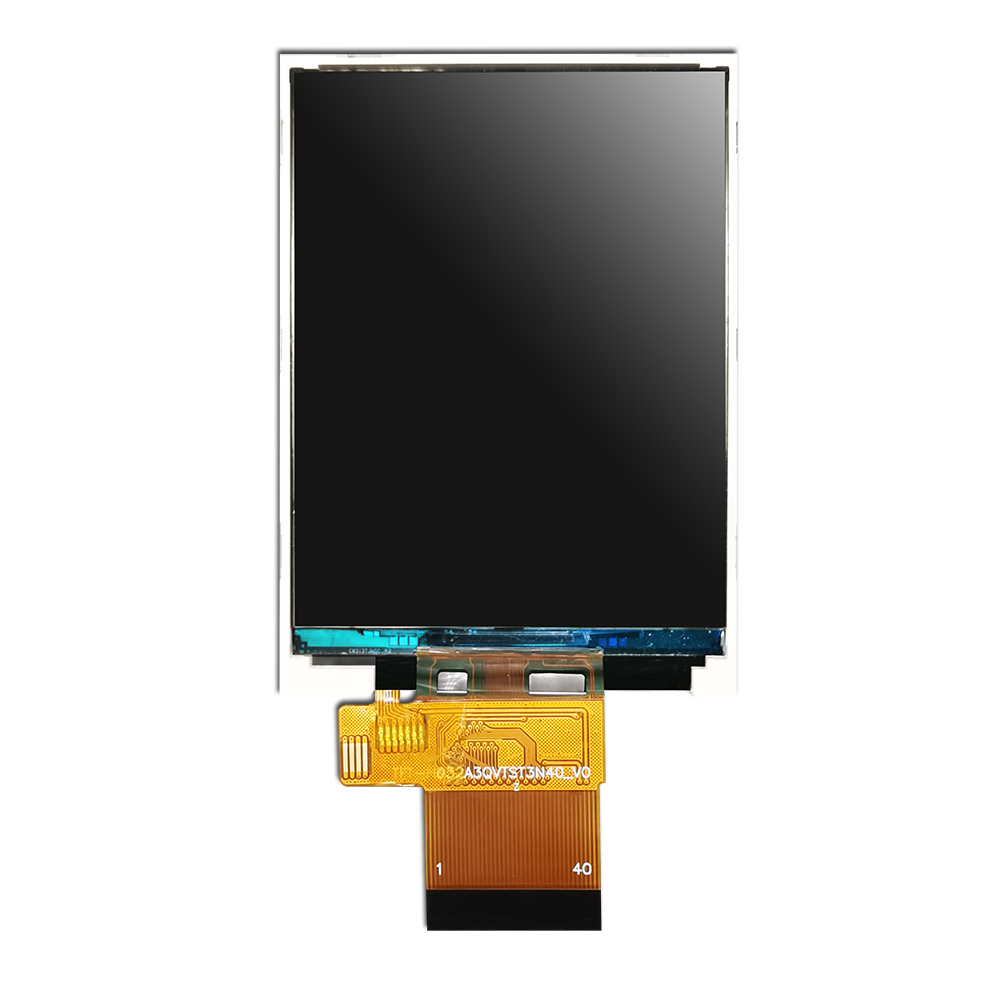

TFT-H032A3QVTST3N40 is an industrial-grade vertical display TFT LCD with a resolution of 240x320 pixels. Using 7789V driver IC, it can support MCU 8/16-bit compatible SPI interface. The typical brightness of the LCD screen is 350 nits, the viewing angle is the full viewing angle direction; the supply voltage (VCI) is 2.8V~3.3V, and the typical value is 2.8V. The working temperature is -20℃~+70℃, and the storage temperature is -30℃~+80℃. The products are used in various small smart devices, home appliances, monitors, etc.
Model : 3.2 inch TFT LCD vertical screen/240*320 resolution/IPS/industrial grade/MCU interface/TFT-H032A3QVTST3N40

Product type:TFT vertical screen

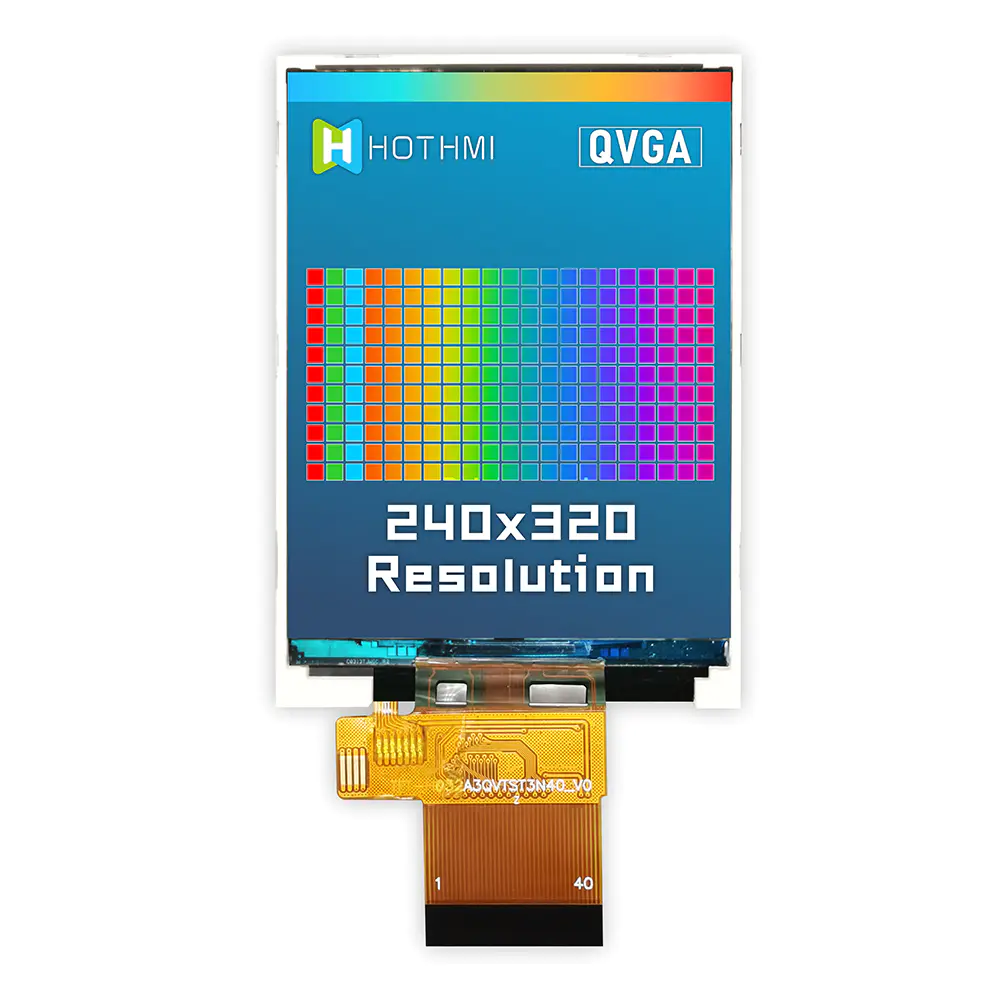

Show contents:240*320

Outline size(mm) :54.34*77.7*2.4

Size of View Window(mm):3.2"

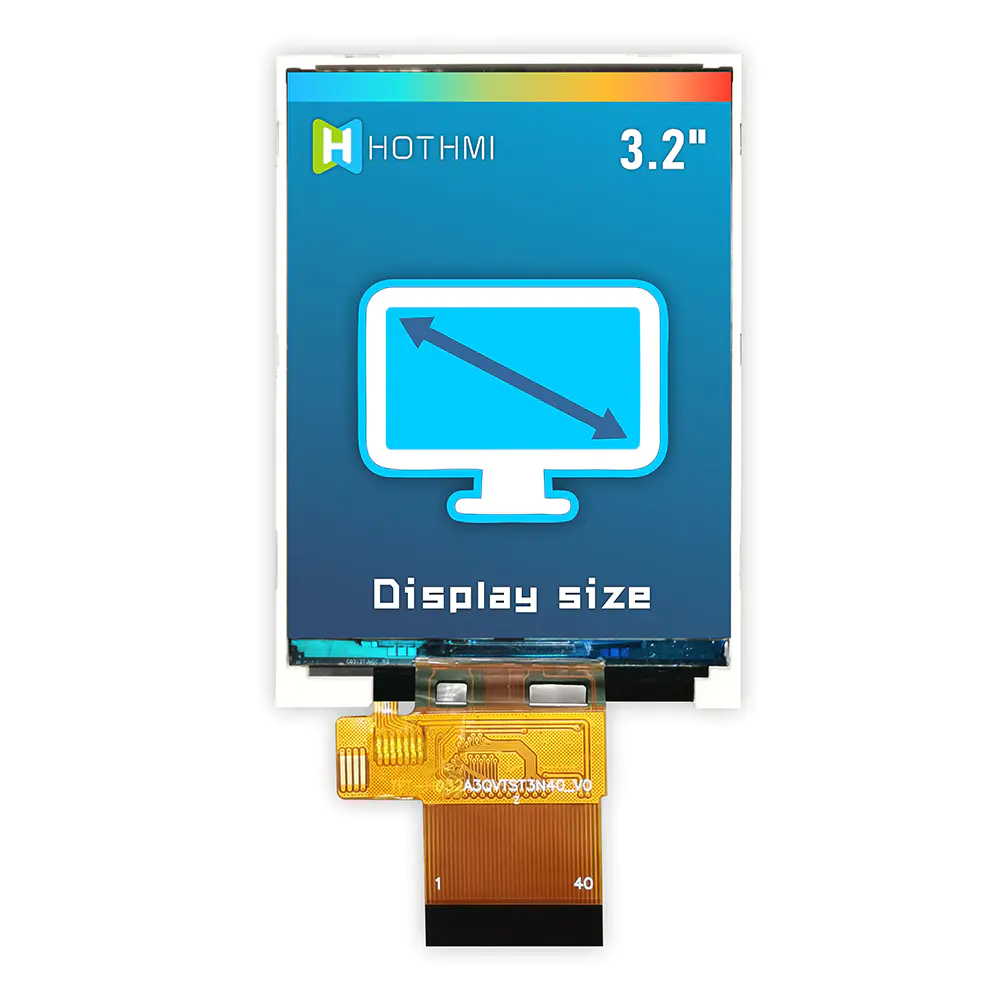

Display size(mm) :3.2"

Effective size(mm):48.6*64.8

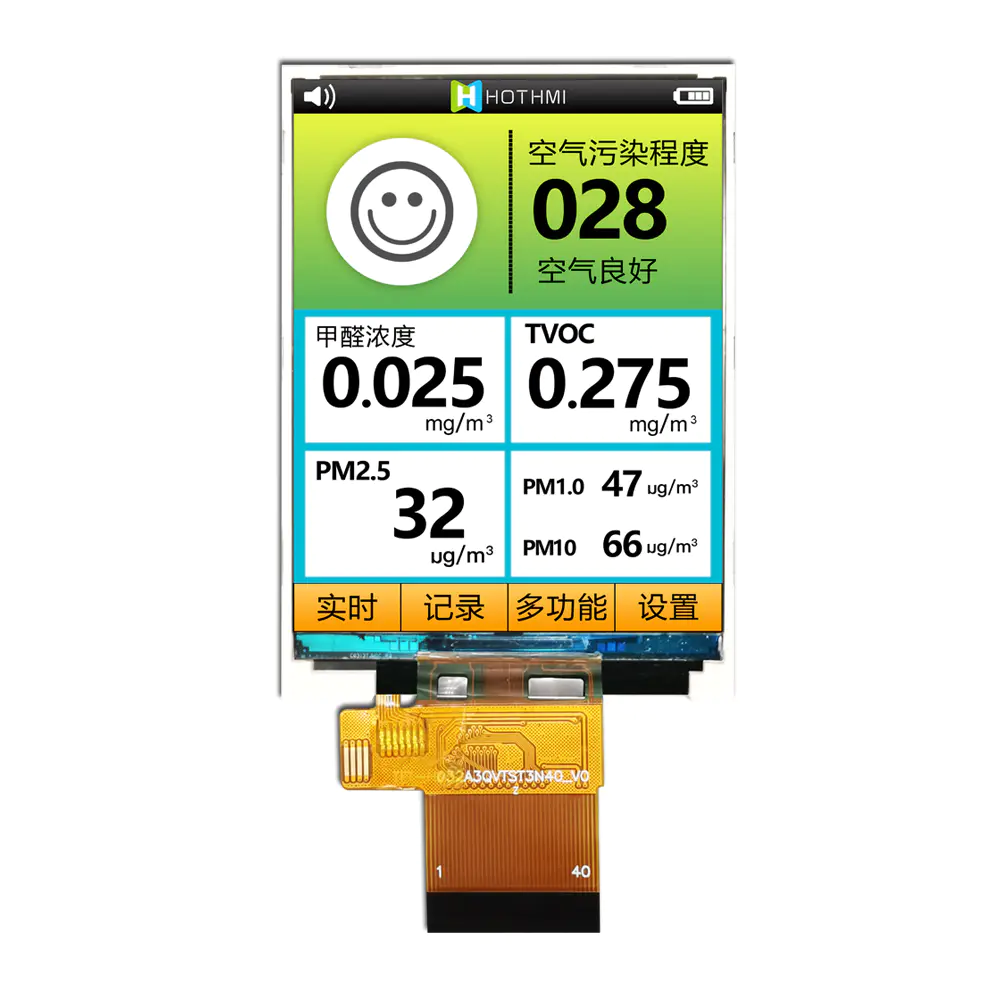

Product application:Smart devices such as monitors

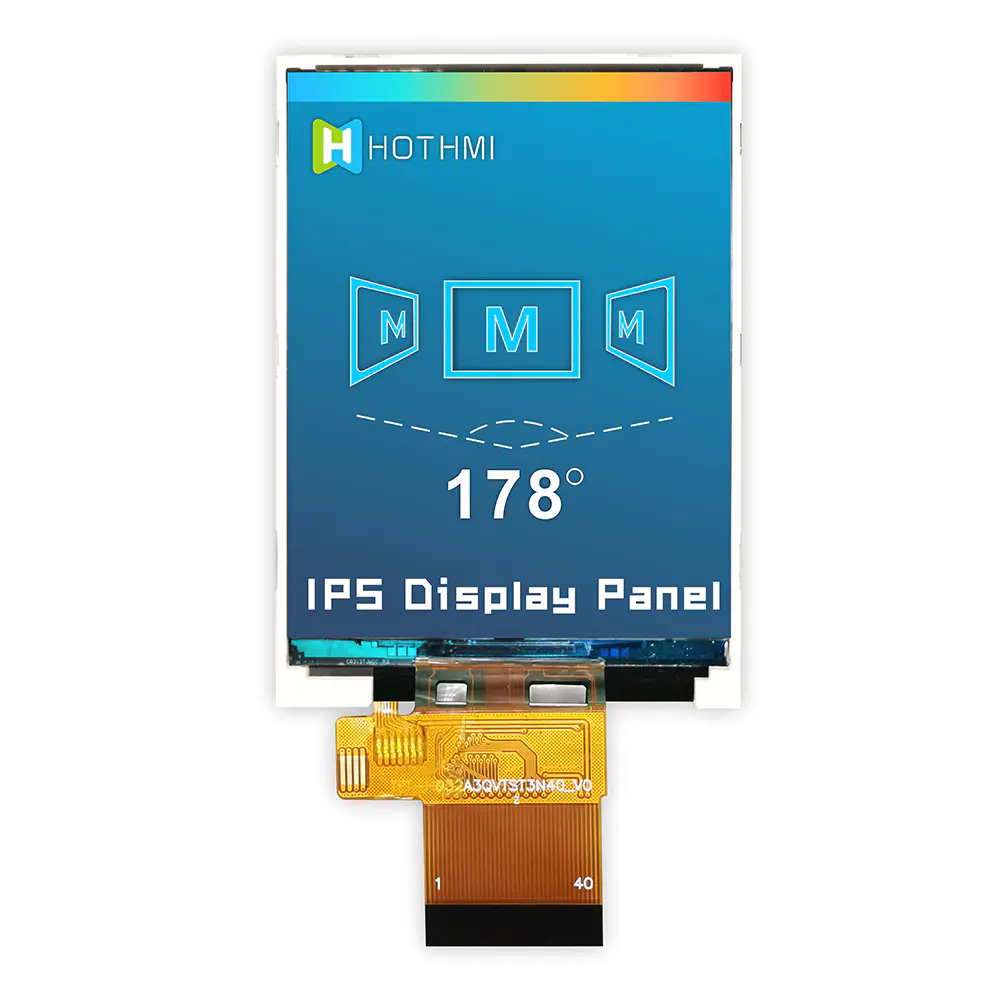

Visual angle:Full View

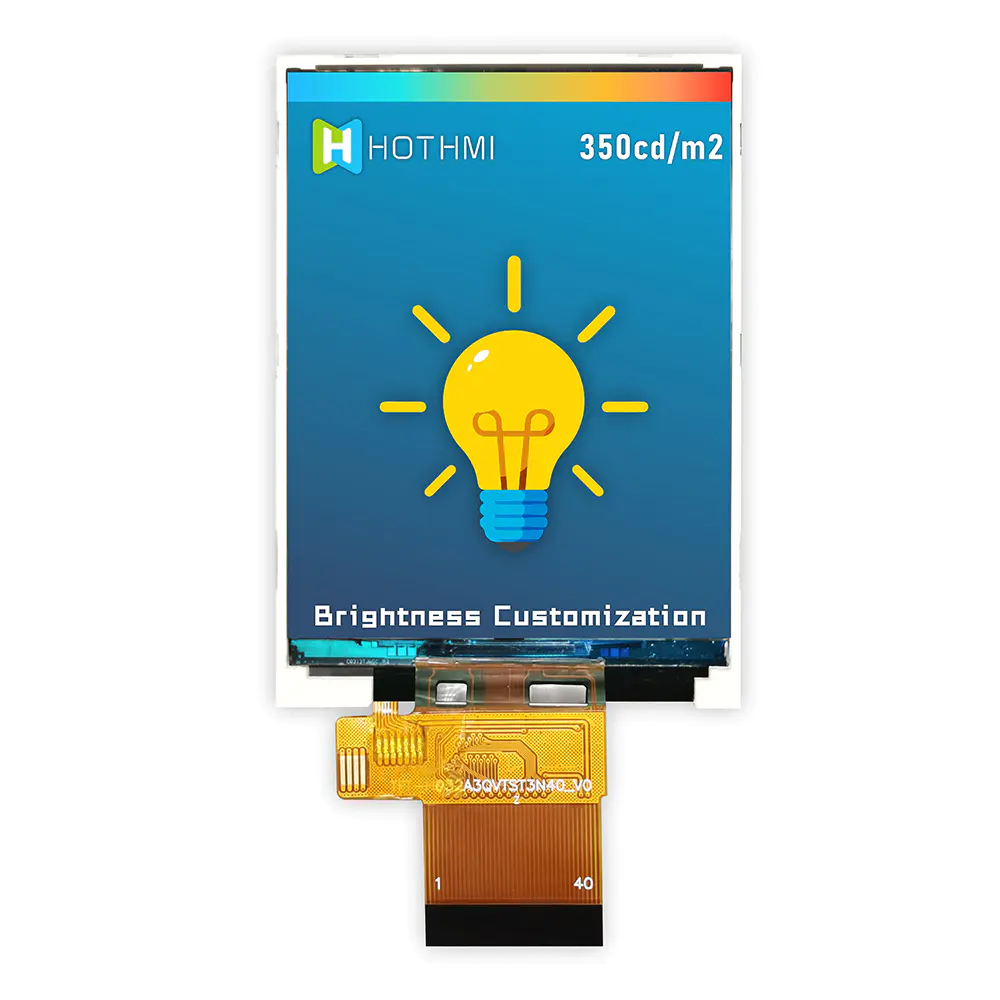

Backlight type or brightness:350cd/m2

Connection PIN Number:FPC-40PIN

Interface mode:MCU 8/16

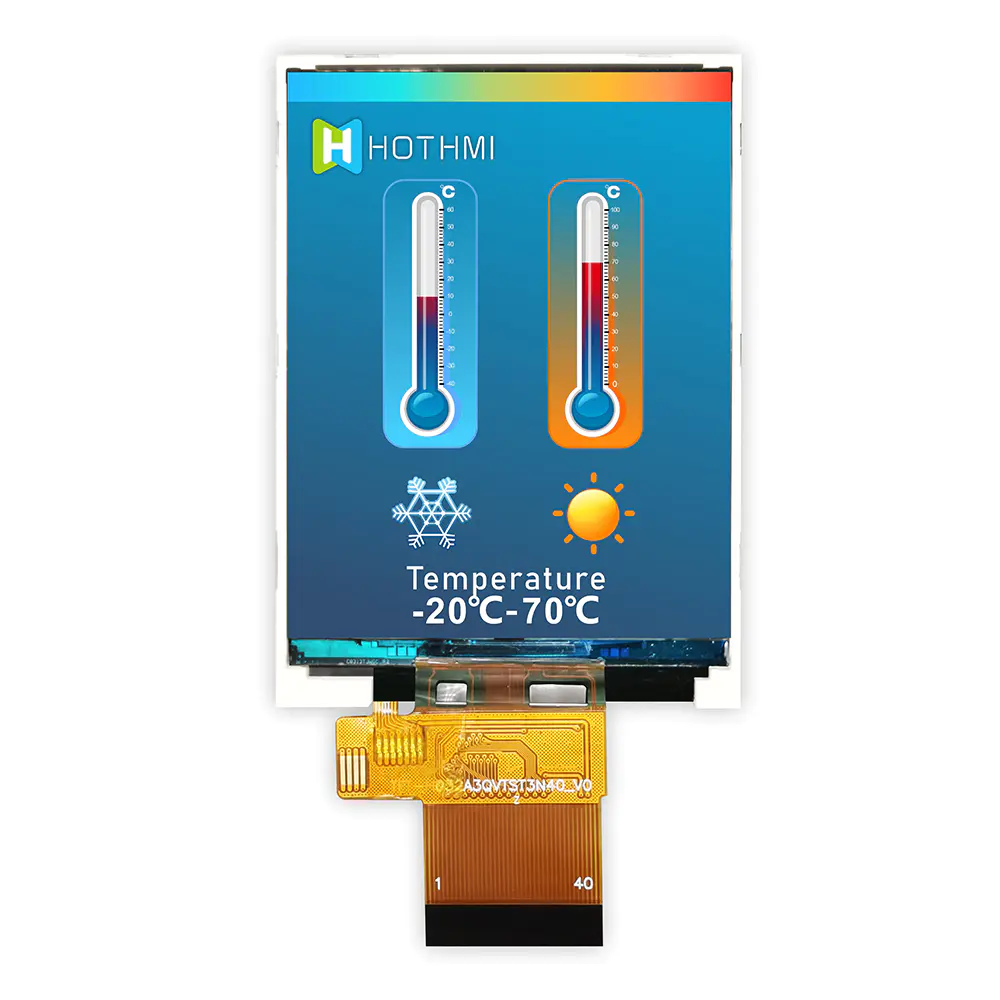

Working temperature:-20~70℃

Power supply voltage:2.8V

Driver chip model:ST7789V

CAD Drawings



without touch screen

with CTP touch screen
