3.0 inch TFT color screen /480*854 resolution /full viewing angle IPS process /MIPI interface /TFT-H030A2FWIST2N20

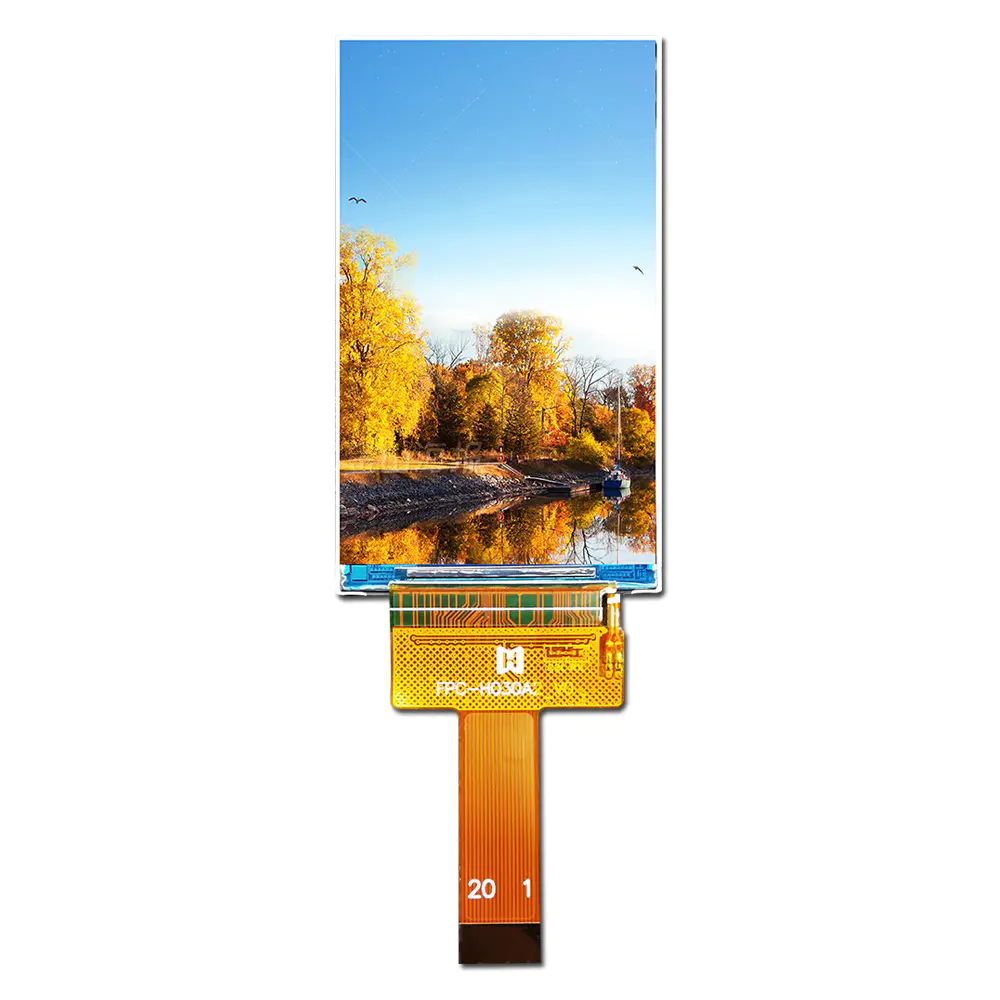

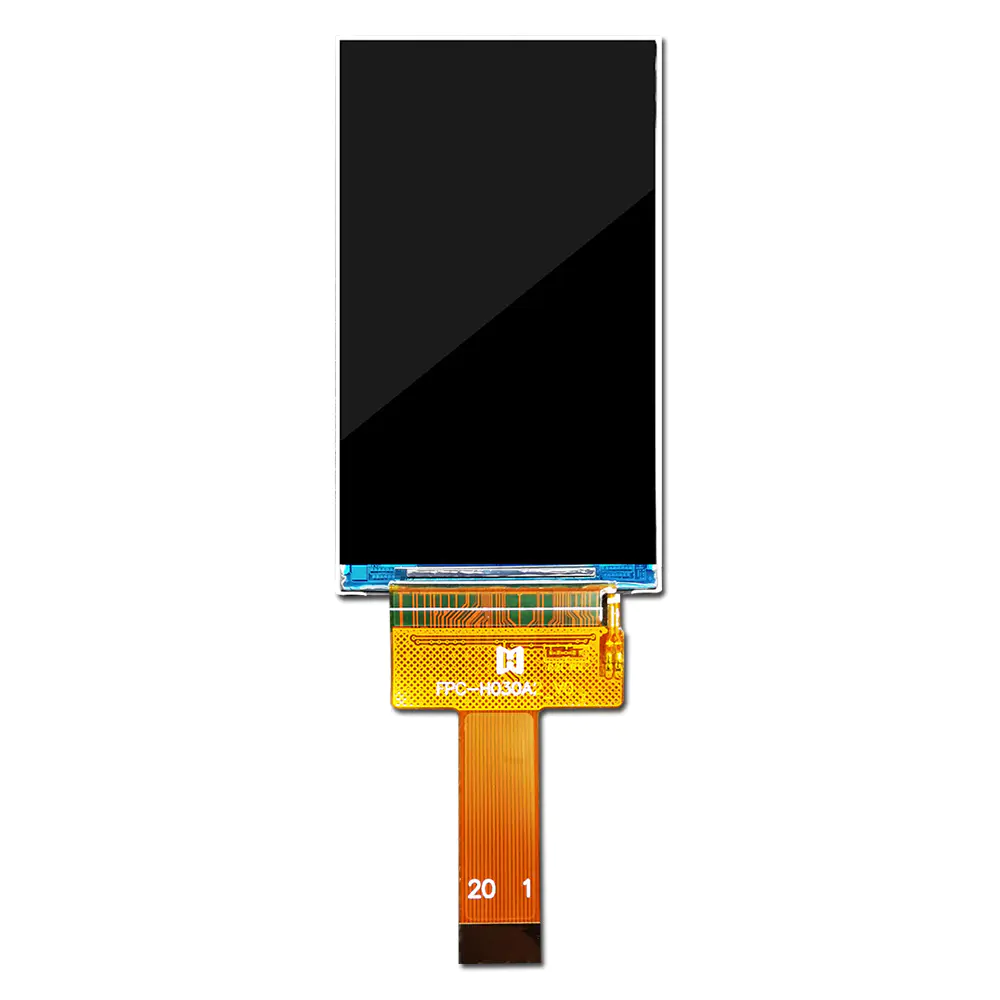

TFT-H030A2FWIST2N20 is a 3.0-inch full-color TFT LCD module with a resolution of 480x854 pixels and an aspect ratio of 1:1.75. The TFT module adopts ST7701S driver IC and supports MIPI interface. The TFT module with IPS panel has the advantage of wide viewing angle (left 80 degrees/right 80 degrees/
US$0
Add to wish list
Quantity
+
Product details

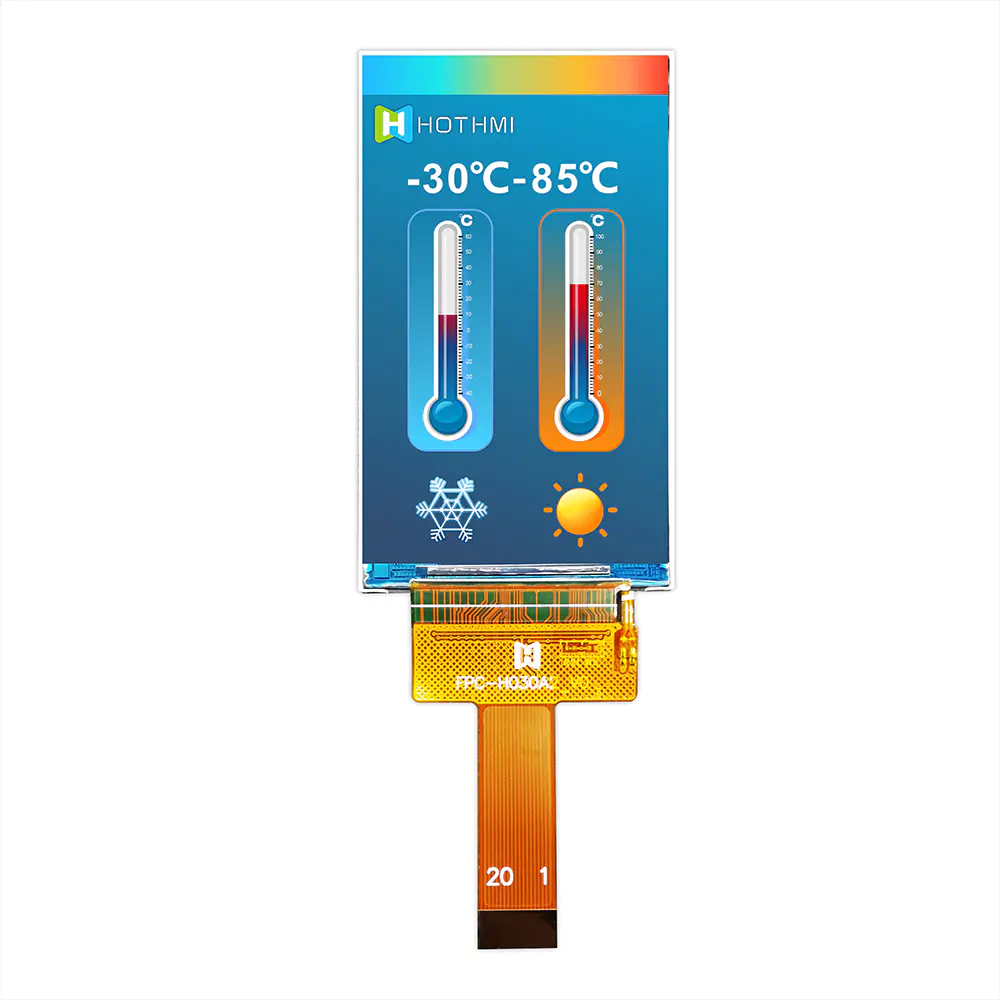

Product Description The TFT-H030A2FWIST2N20 is a 3.0-inch full-color TFT LCD module with a resolution of 480x854 pixels and an aspect ratio of 1:1.75. The TFT module adopts ST7701S driver IC and supports MIPI interface. The TFT module with IPS panel has the advantage of wide viewing angle (left 80 degrees/right 80 degrees/up 80 degrees/down 80 degrees), a typical contrast ratio of 800:1, and a module brightness of up to 200 nits (typical). The operating temperature range of the module is -30℃~+85℃, and the storage temperature range is -30℃~+85℃.

3.0 inch TFT color screen /480*854 resolution /full viewing angle IPS process /MIPI interface /TFT-H030A2FWIST2N20



Product type:TFT

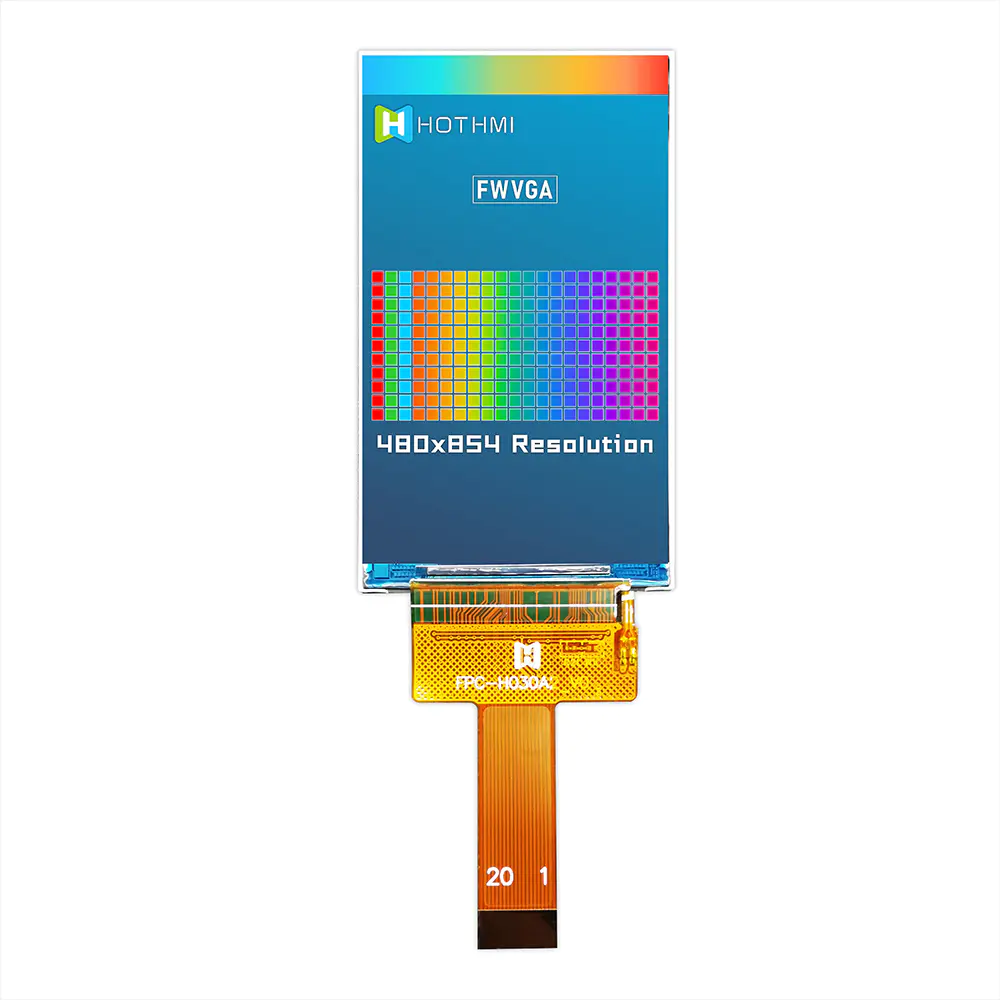

Show contents:480*854

Outline size(mm) :41.80* 73.97* 2.15

Size of View Window(mm):3.0"

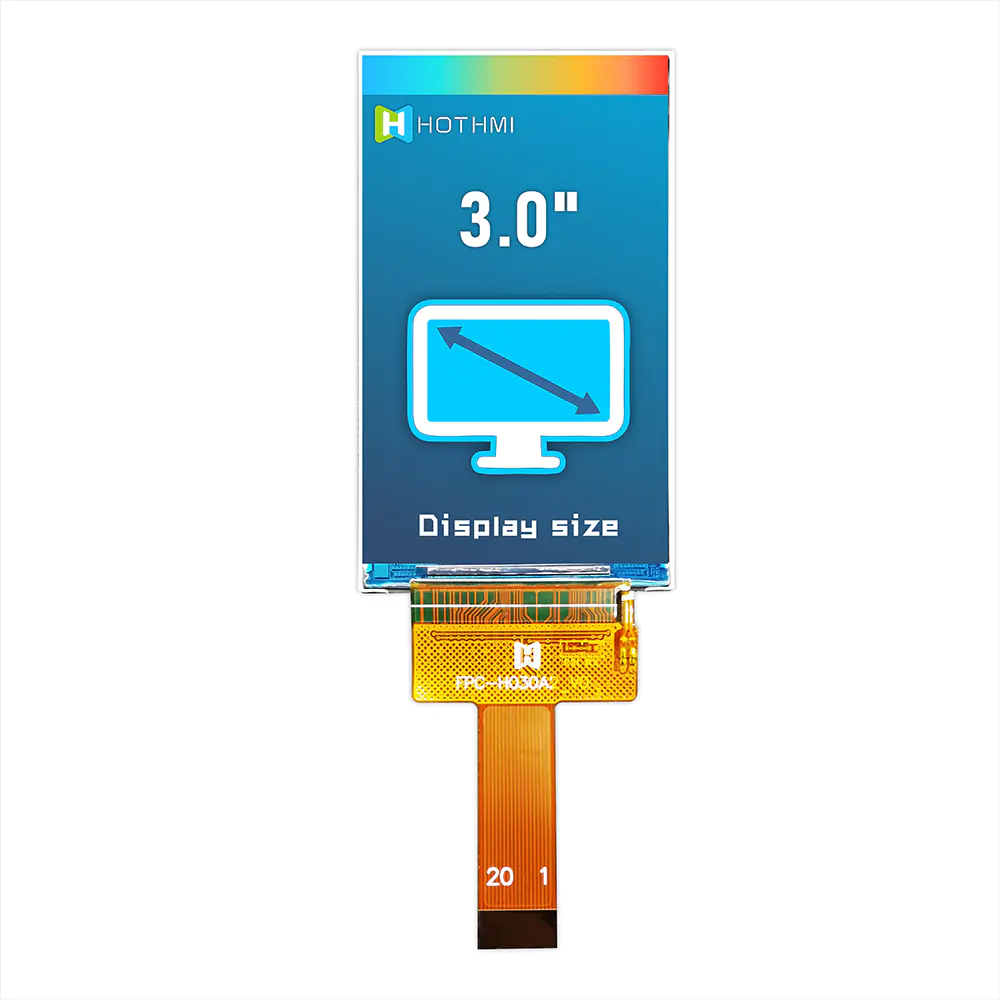

Display size(mm) :3.0"

Effective size(mm):36.72*65.28

Product application:Smart home appliances/industrial control/medical

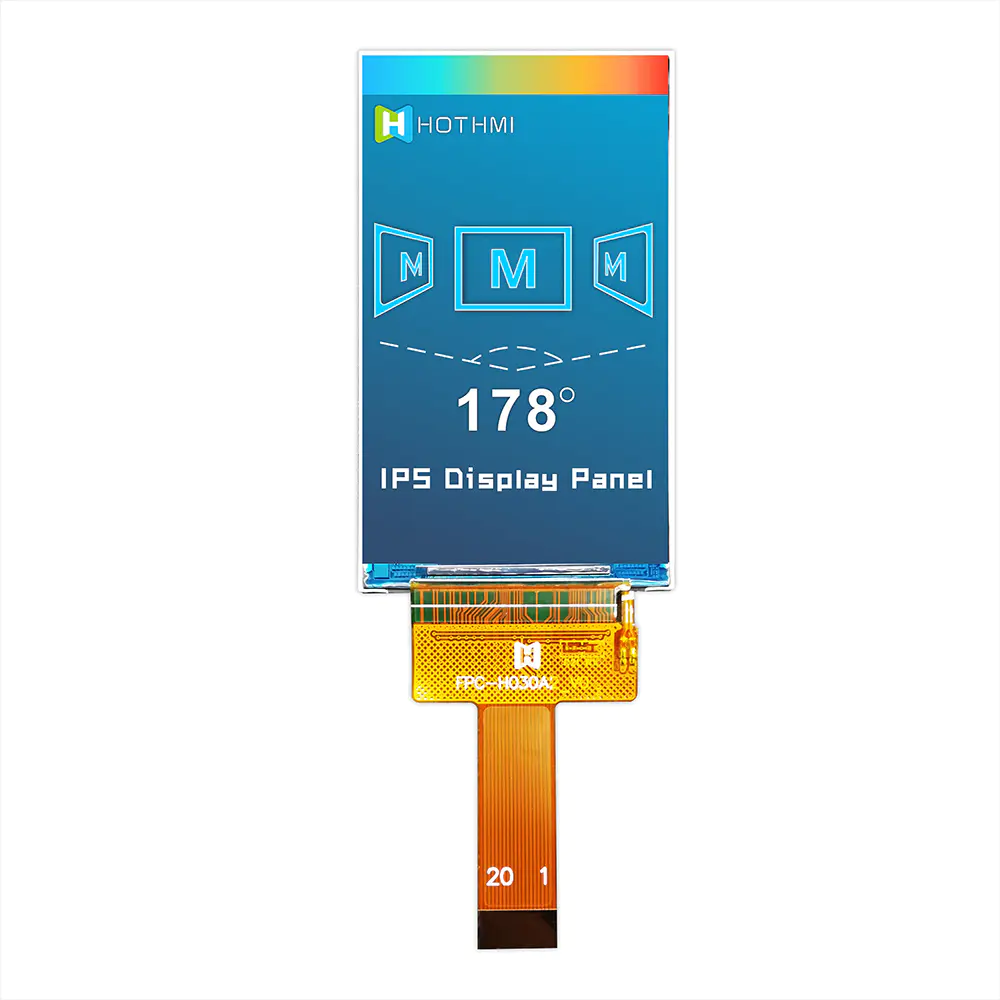

Visual angle:Full View(U80/D80/R80/L80)

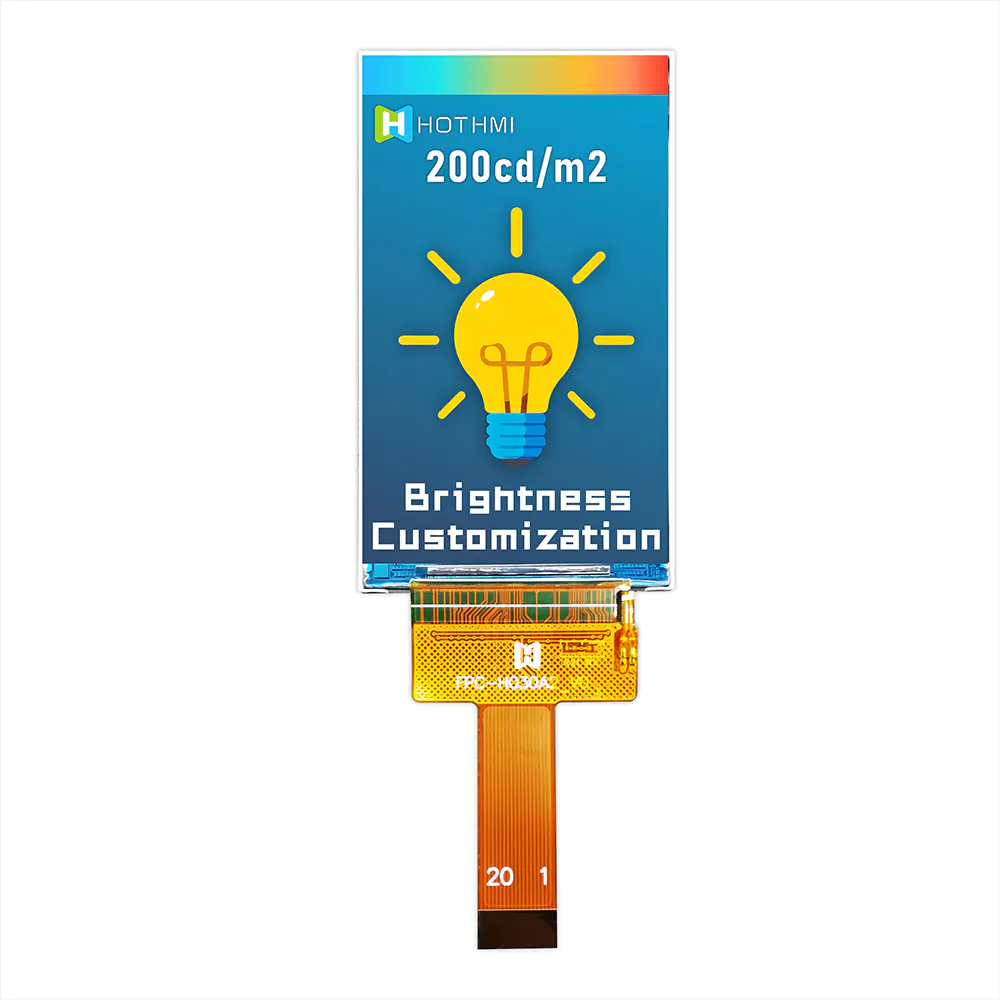

Backlight type or brightness:200cd/m2

Connection PIN Number:20PIN

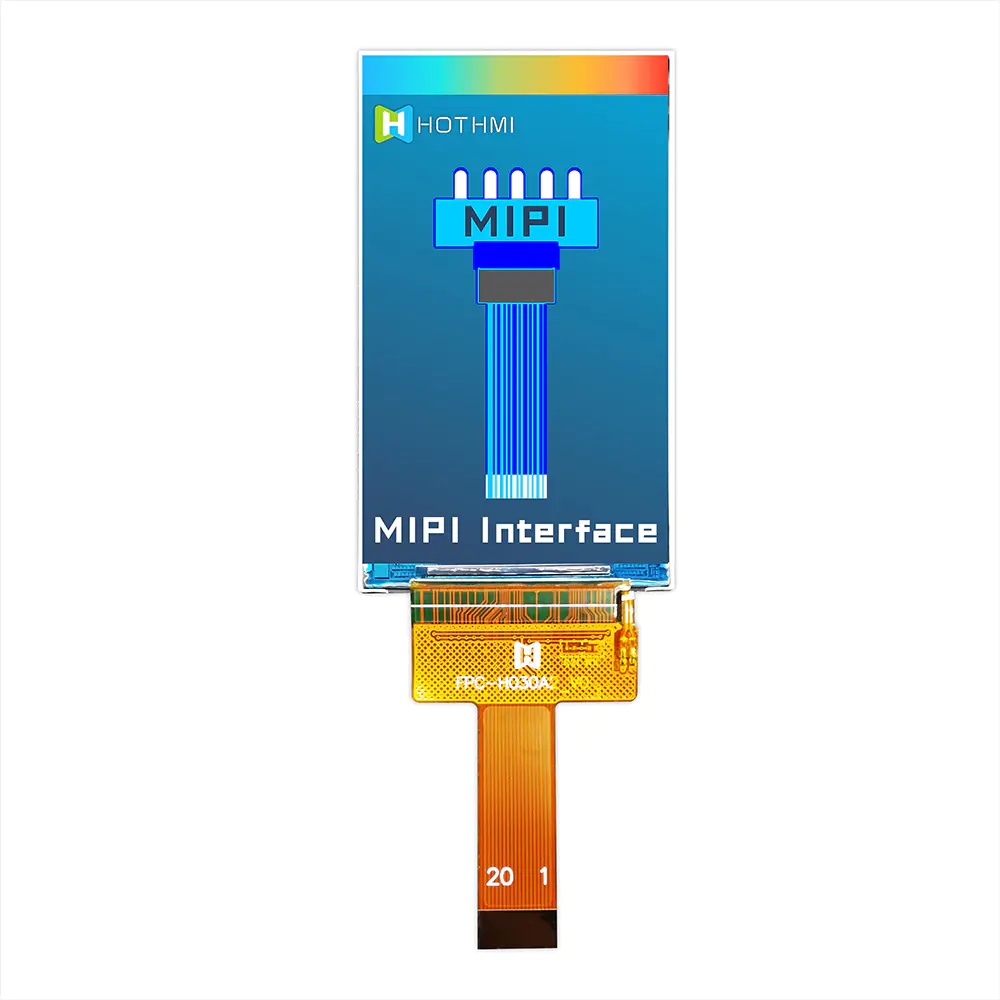

Interface mode:MIPI

Working temperature:-30~85℃

Power supply voltage:2.8V

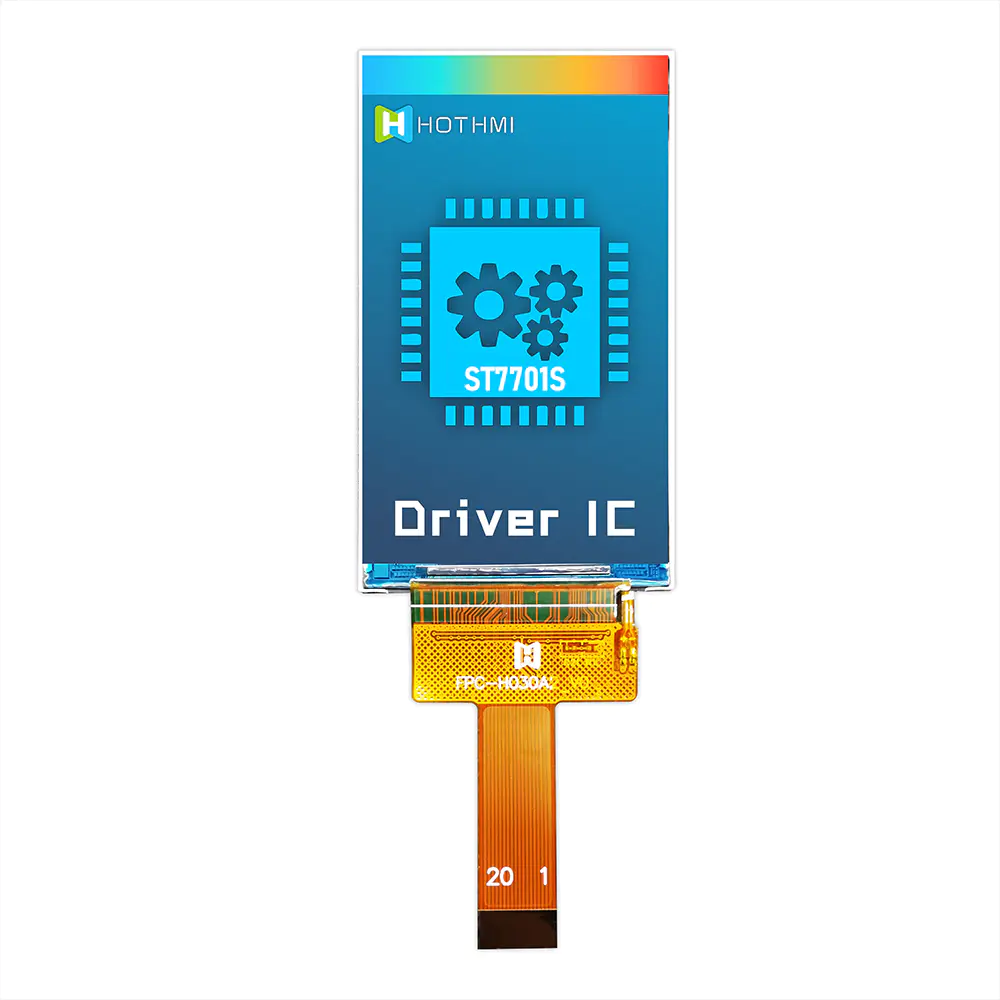

Driver chip model:ST7701S

DRAWING
