Product Description

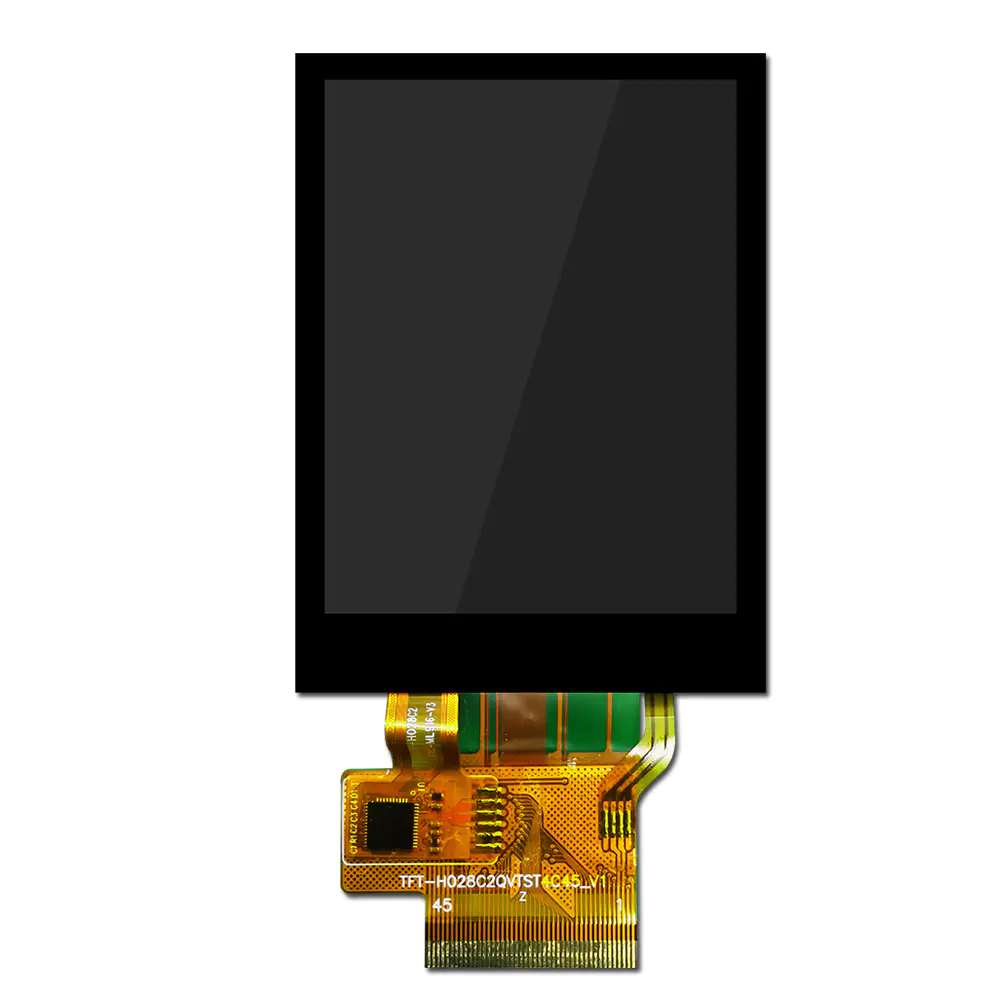

The TFT-H028C2QVTST2C45 is a 2.8-inch wide temperature IPS TFT-LCD display with projected capacitive touchscreen with a resolution of 240x320 pixels. The module has built-in ST7789V driver IC and supports SPI/RGB/MCU fully compatible interface. TFT-H028C2QVTST2C45 adopts IPS panel, which has the advantage of wider viewing angle, left: 80 / right: 80 / top: 80 / bottom: 80 degrees (typ.), contrast ratio 800:1 (typ.), brightness 280 nits (typ. value), glare panel, 16:9 aspect ratio. The touch screen has built-in FT6336U IC, which supports I2C interface and multi-touch function. The H028C2Q model has a projected capacitive touch panel (PCAP) but no touch panel option (TFT-H028C2QVTST3N45). The supply voltage (VCC) of the TFT-H028C2QVTST2C45 is 3.0V to 3.6V, with a typical value of 3.3V. It can work at temperatures from -20°C to +70°C and storage temperatures from -30°C to +80°C.

2.8 inch TFT color screen /240*320 resolution /12H White LED /RGB/SPI/MCU interface /TFT-H028C2QVTST2C45/used in handheld instruments

Product type: TFT vertical screen

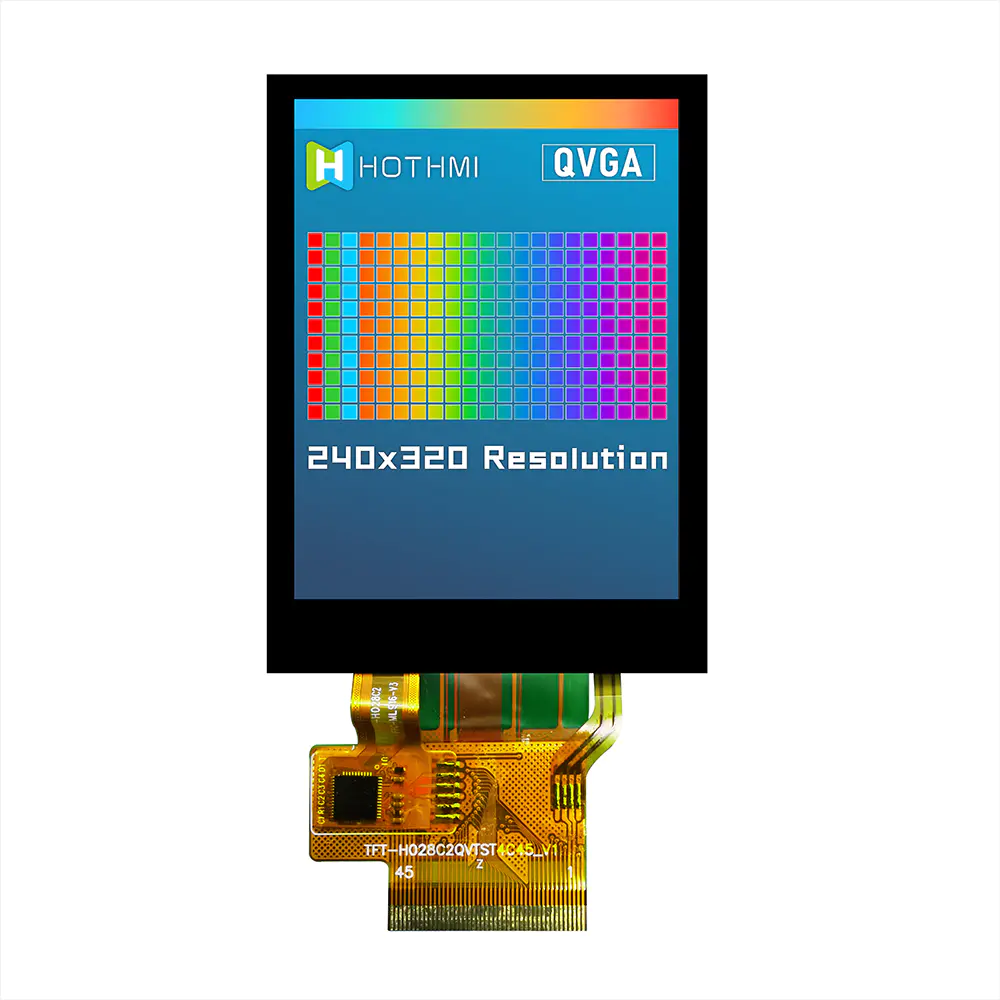

Display content: 240*320

Dimensions (mm): 50.00 * 69.20 * 3.70

Window size (mm): 2.8"

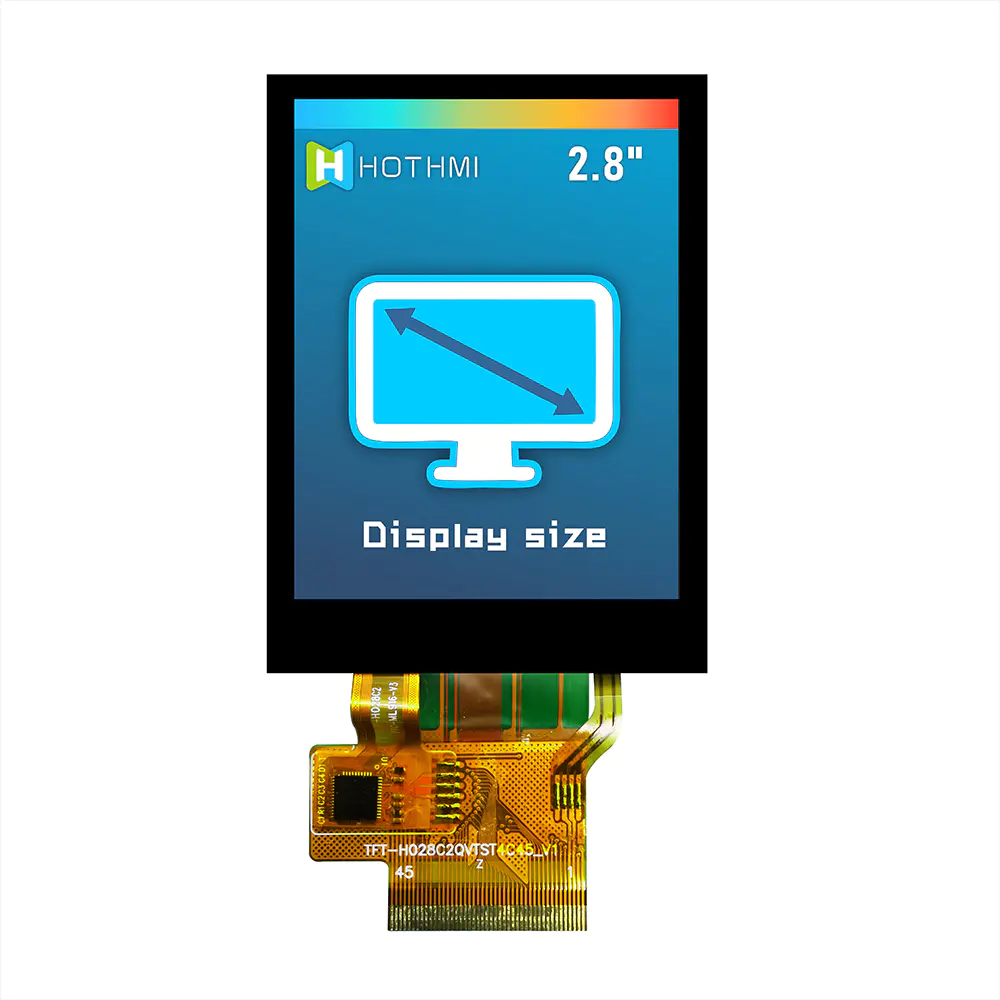

Display size (mm): 2.8"

Effective size (mm): 43.20 * 57.60

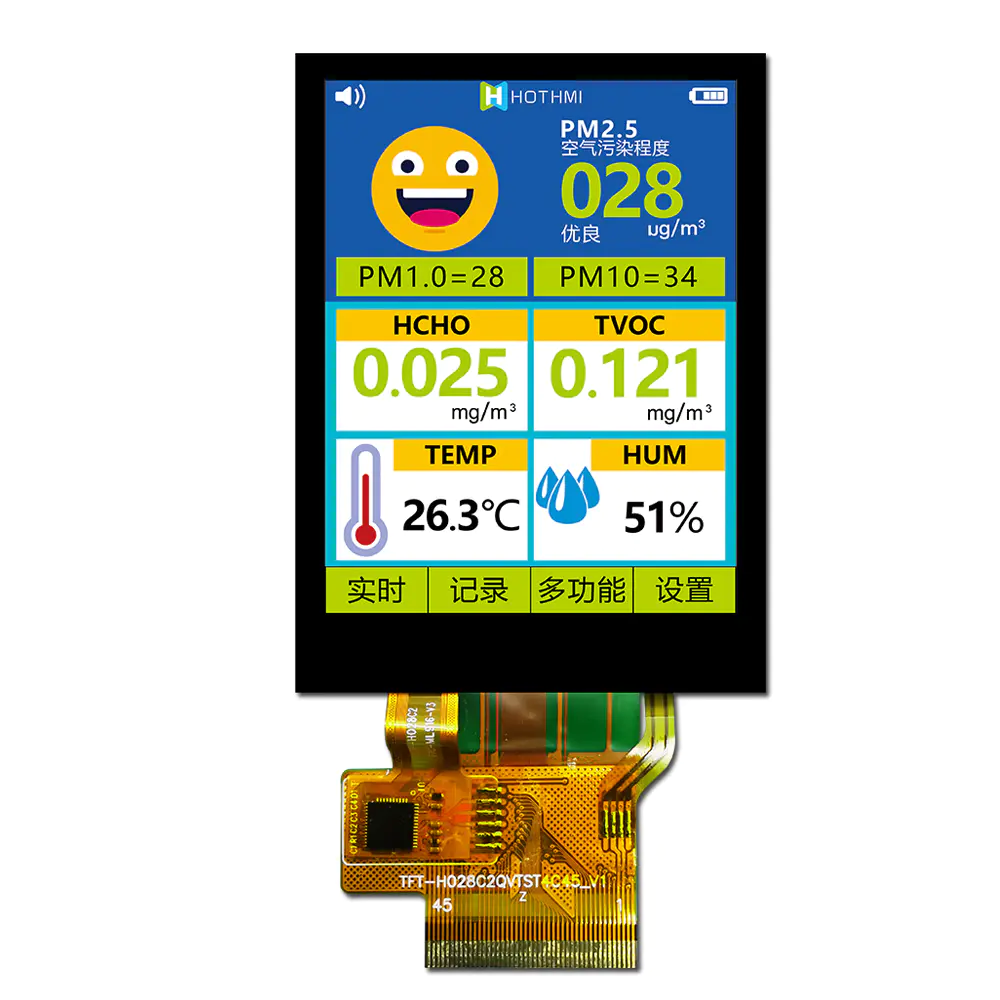

Product application: smart devices such as handheld instruments

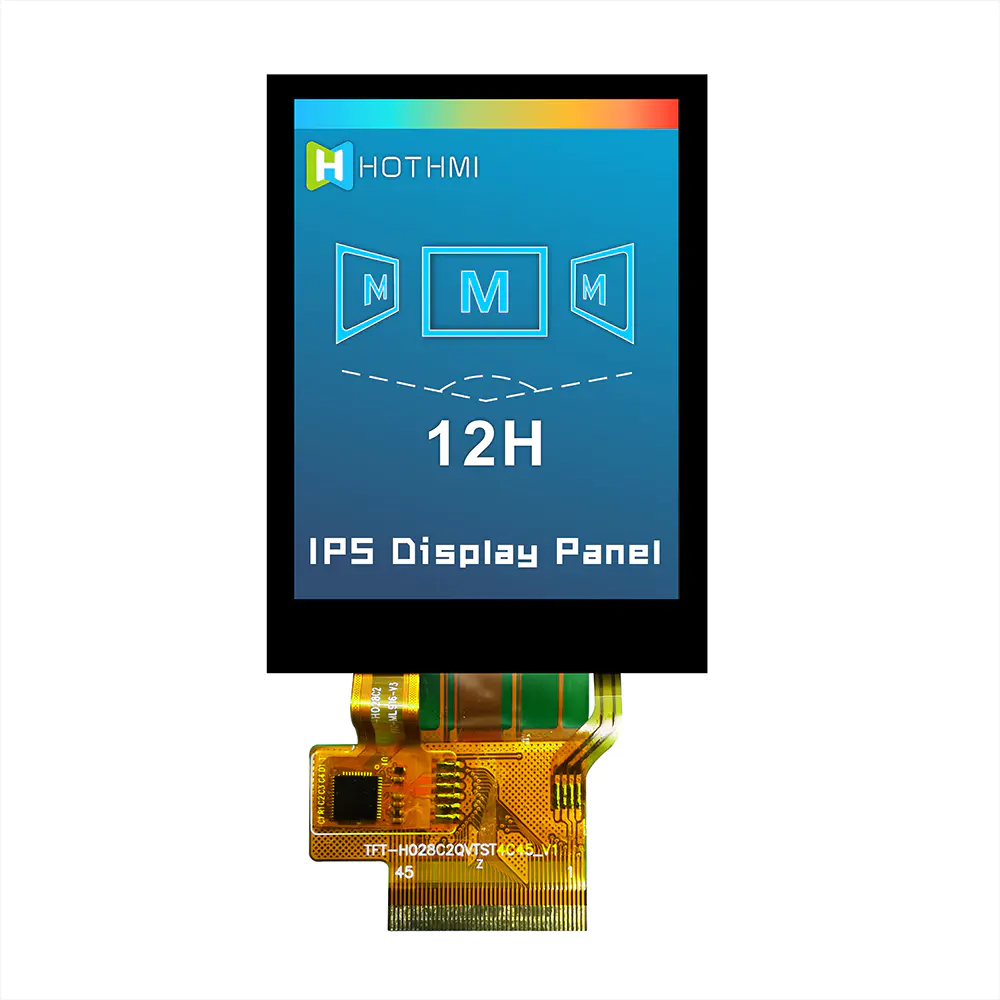

Viewing angle:12H O'CLOCK

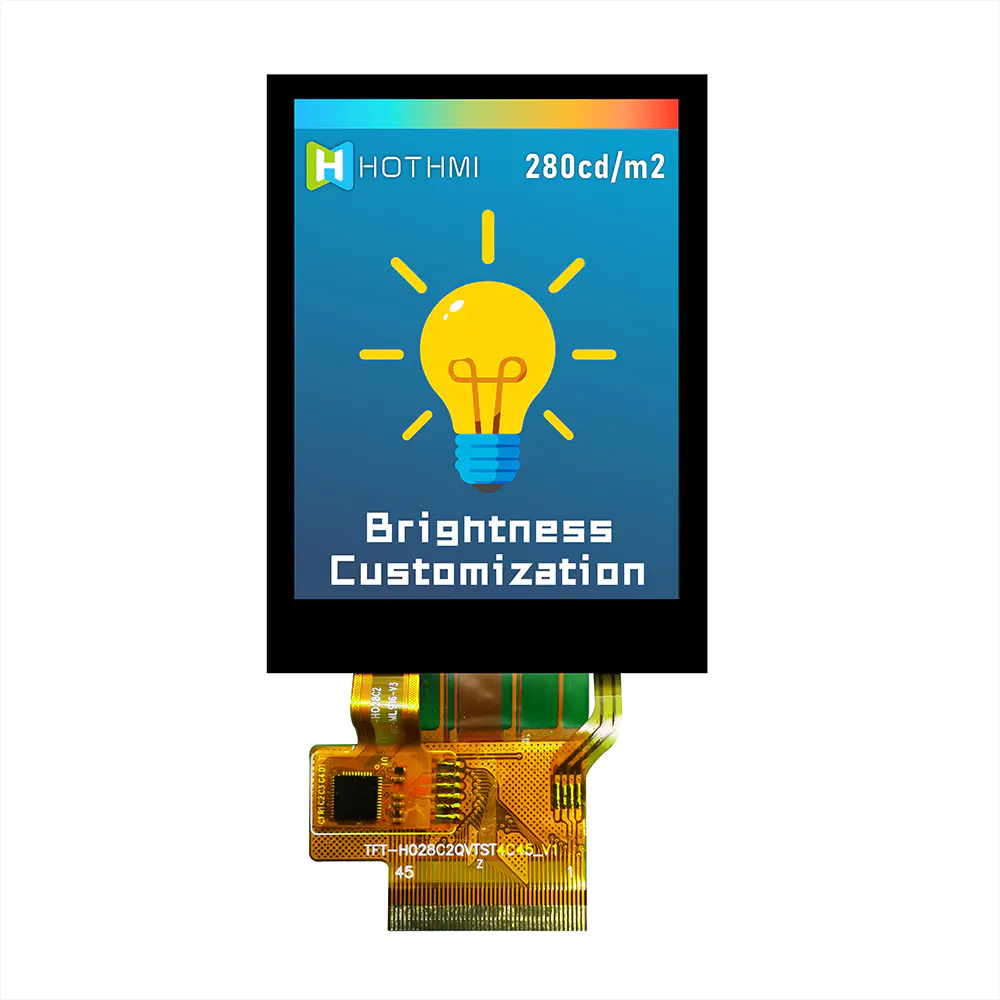

Backlight type or brightness: 280cd/m2

Number of connection PINs: FPC-45PIN

Interface: SPI/RGB/MCU

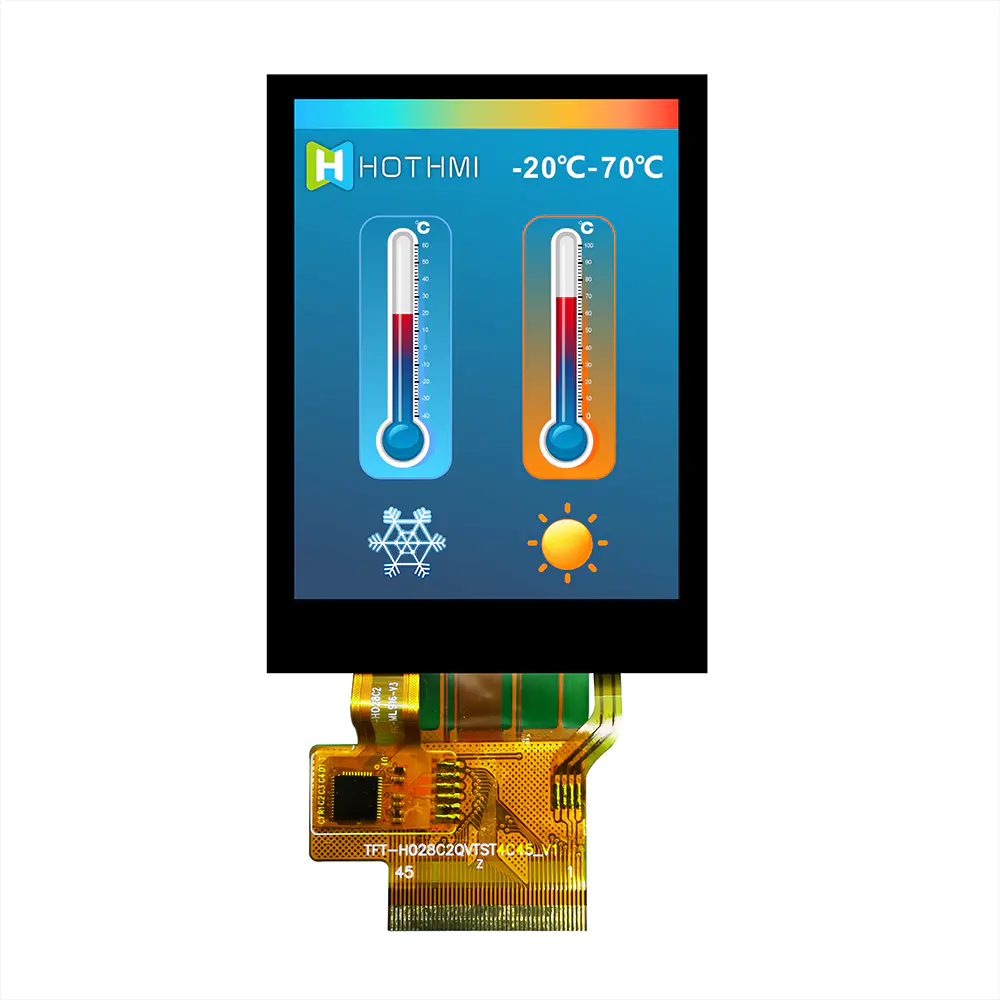

Working temperature: -20~70℃

Power supply voltage: 3.3V

Driver chip model: ST7789V

Touch driver IC:FT6336U

DRAWING
