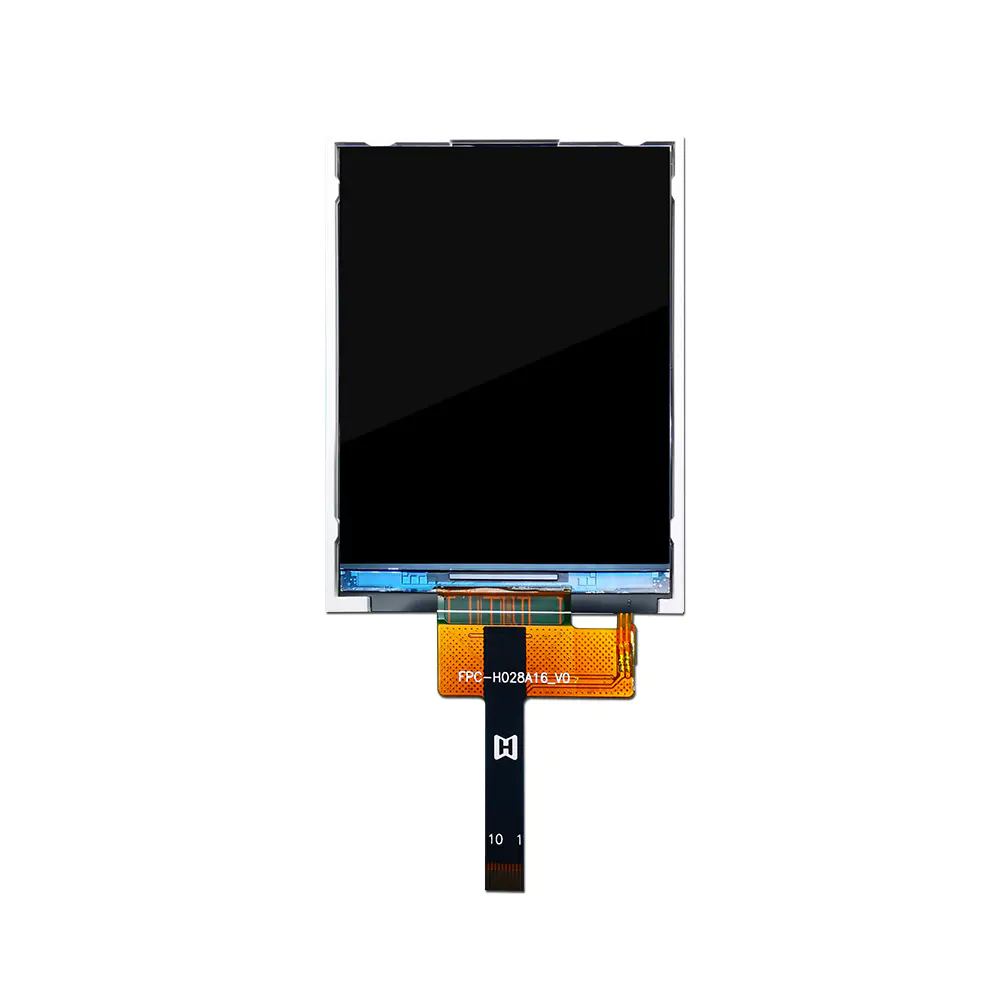

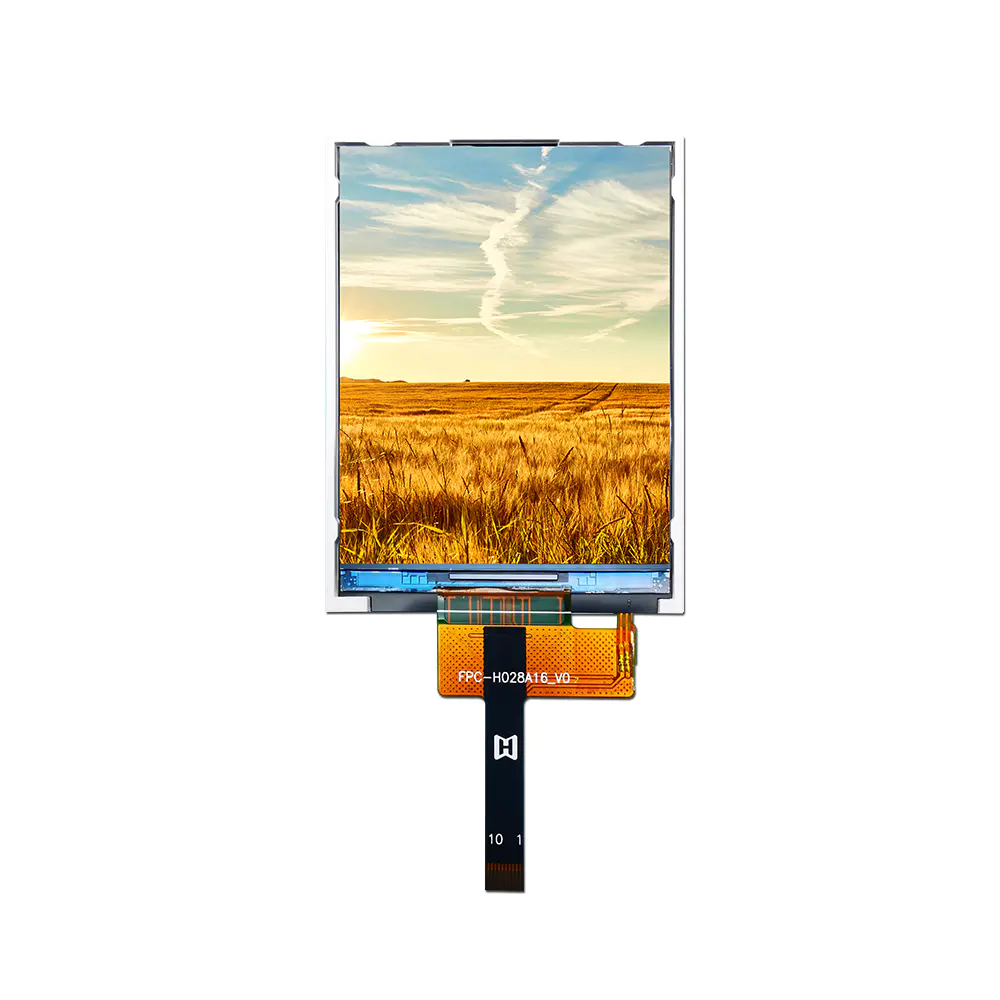

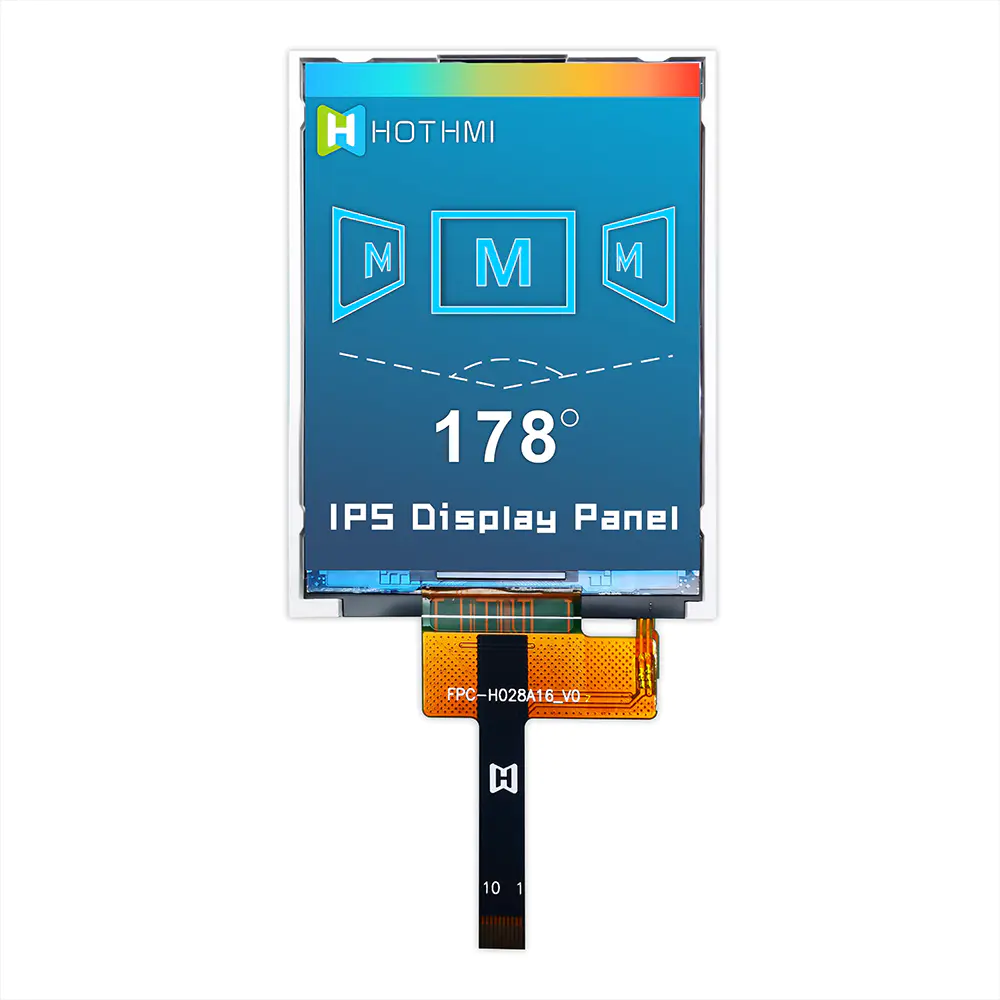

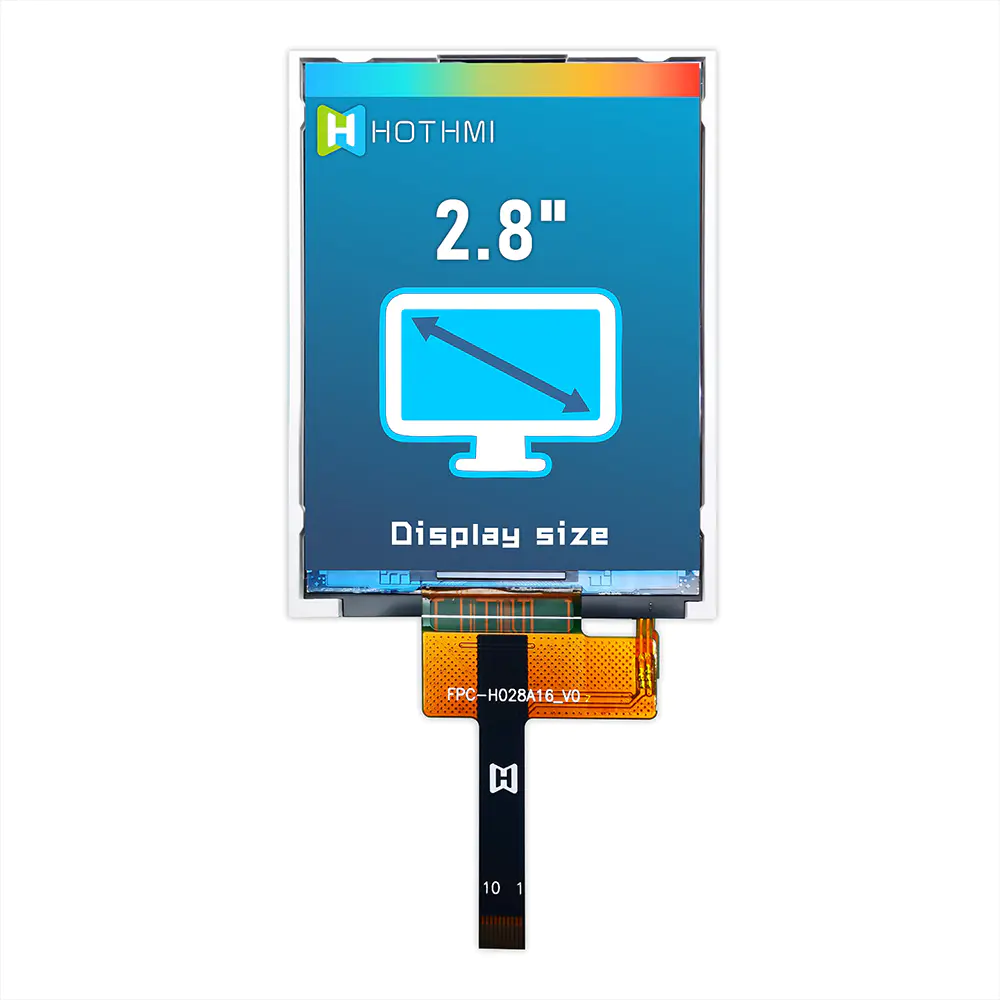

Tft-h028a16qvist5n10 is a 2.8-inch full-color TFT LCD module with a resolution of 240x320 pixels and an aspect ratio of 3:4. TFT module uses ST7789V driver IC, support MCU interface. The TFT module with IPS panel has the advantage of wide viewing Angle (left 80 degrees/right 80 degrees/upper 80 degrees/lower 80 degrees), typical contrast ratio is 800:1, and the module brightness is up to 500 nits (typical value). The operating temperature of the module ranges from -30 ° C to +80 ° C, and the storage temperature ranges from -30 ° C to +80 ° C.

2.8 inch TFT /240*320 resoliution/full viewing angle/SPI interface/TFT-H028A16QVIST5N10

Product type: TFT vertical screen

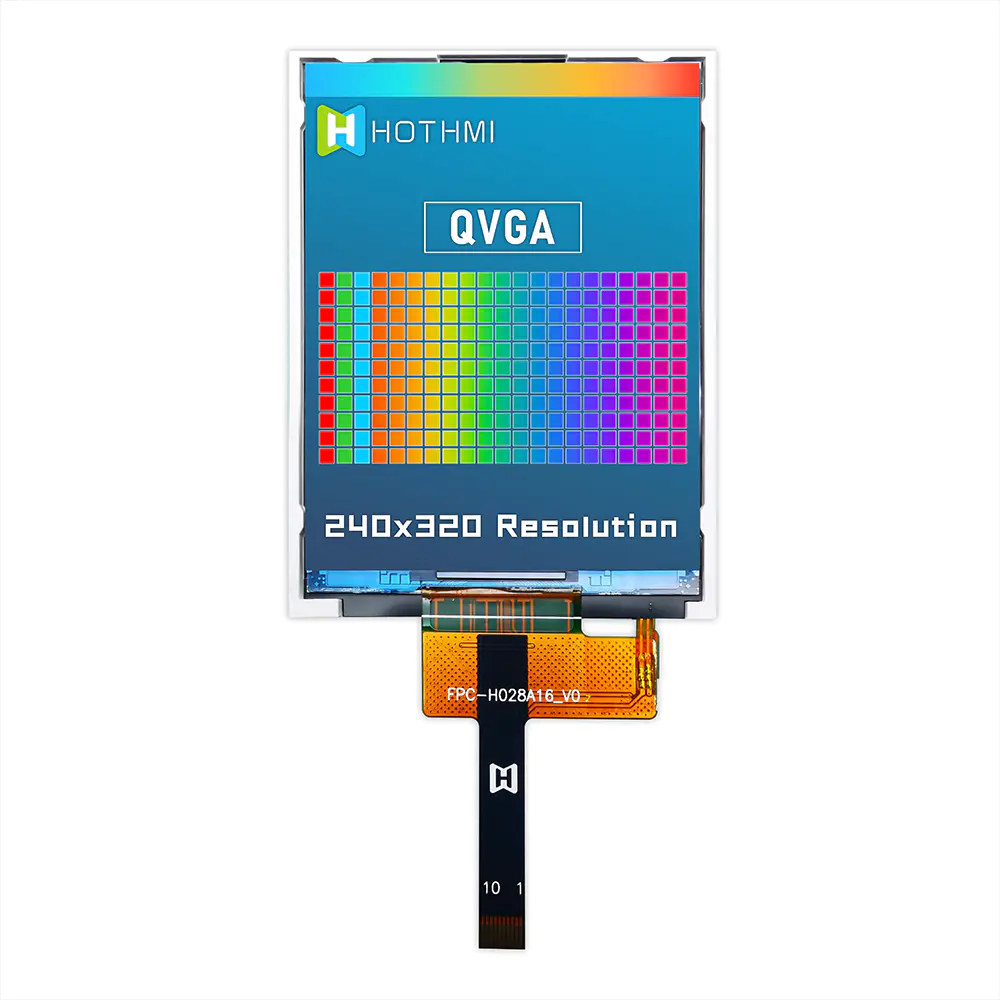

Display content: 240*320

Dimensions (mm): 50.0*69.20*2.3

Window size (mm): 2.80"

Display size (mm): 2.8"

Effective size (mm): 43.20*57.60

Product application: Handheld Instruments/Industrial Control/Medical/Home Appliances

Viewing angle:full O'CLOCK

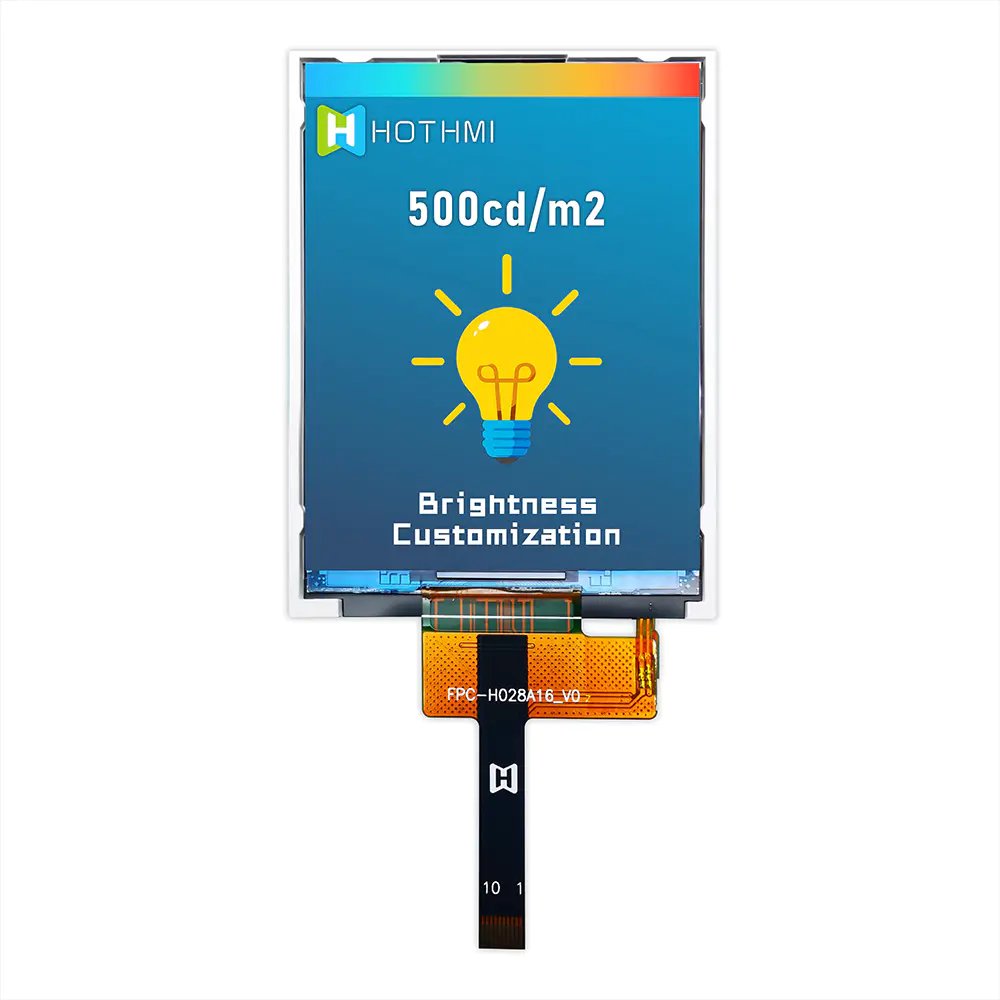

Backlight type or brightness: 500cd/m2

Number of connection PINs: FPC-10PIN

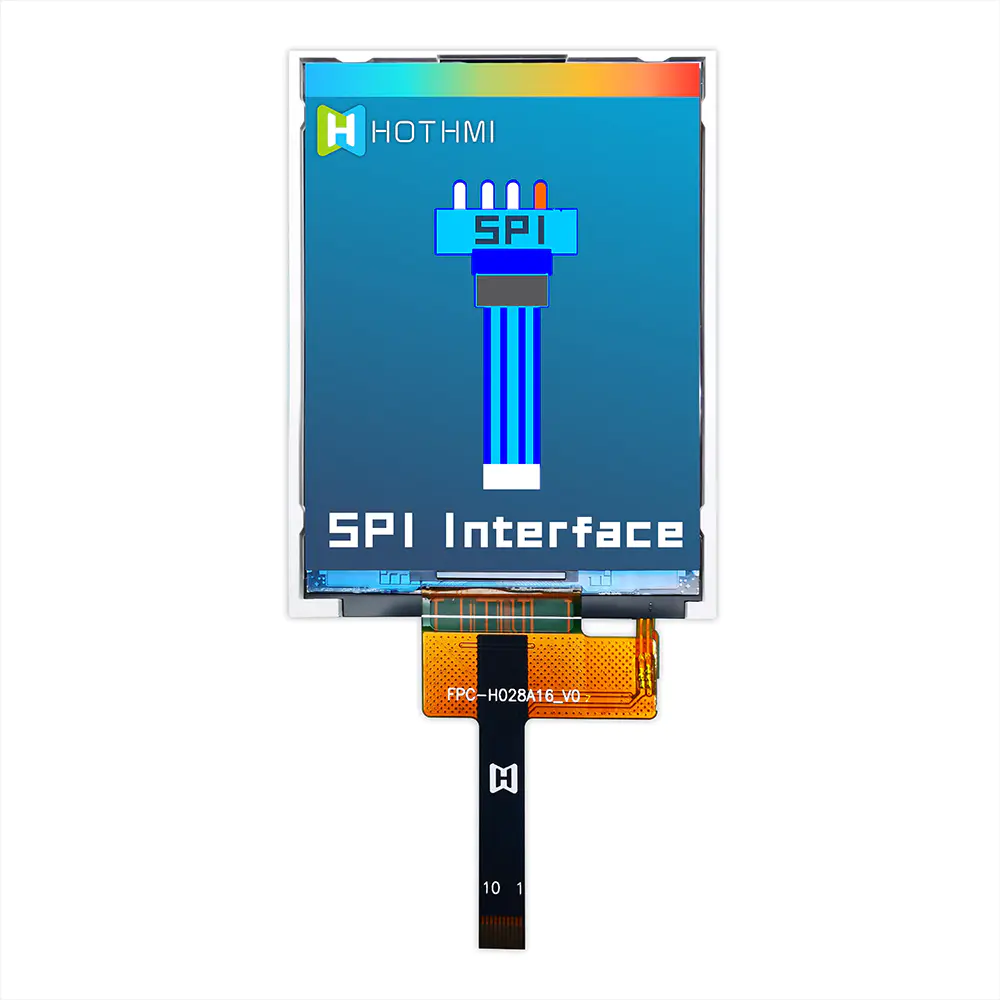

Interface: SPI-4L

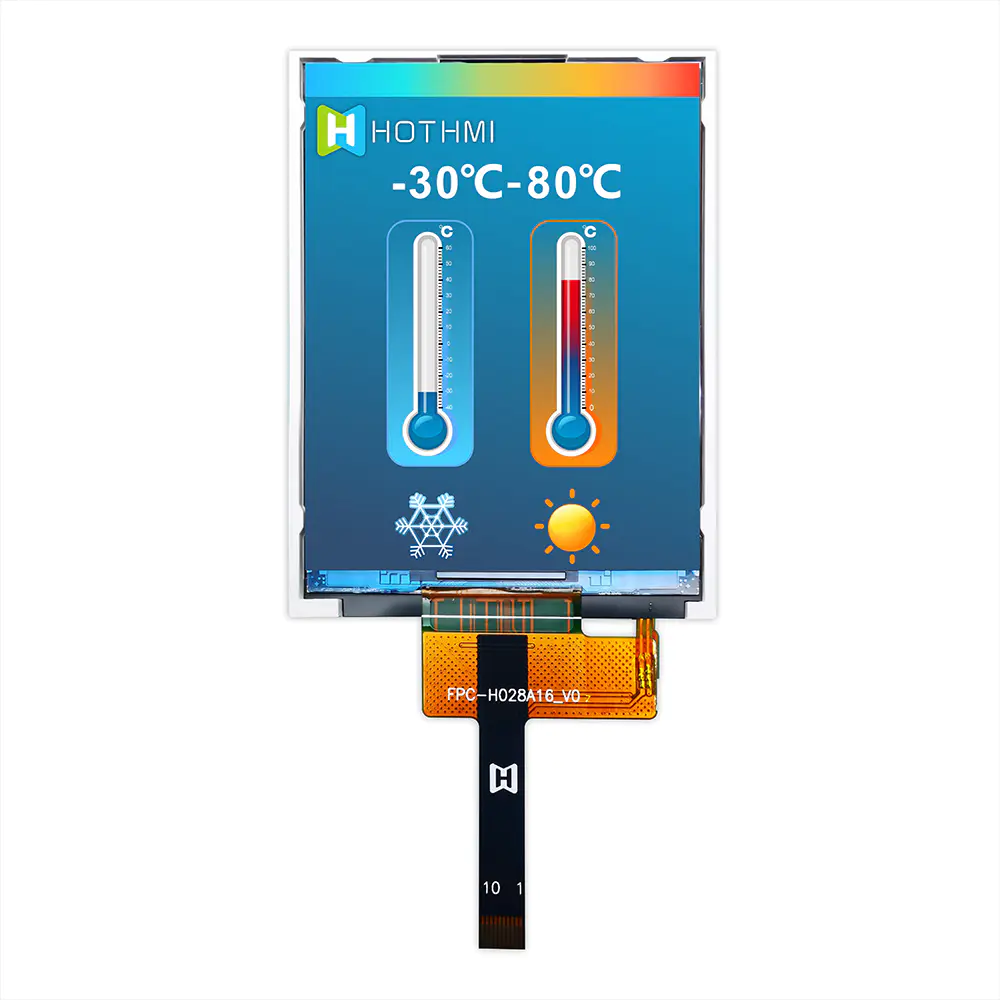

Working temperature: -30~80℃

Power supply voltage: 3.3V

Driver chip model: ST7789V

DRAWING
