2.8 inch TFT /240*320 resoliution/12H viewing angle/TFT-H028B9QVTST3N40
TFT-H028B9QVTST3N40 is a 2.8-inch TFT color LCD screen carefully designed by HOTLCD R&D team, 240*320 resolution, high image quality, wide viewing angle, 65K/262K true color, built-in ST7789V controller, support MCU interface, 40PIN external FPC can be connected Mainboard (optional connector), singl
$0
Add to wish list
Quantity
+
Product details

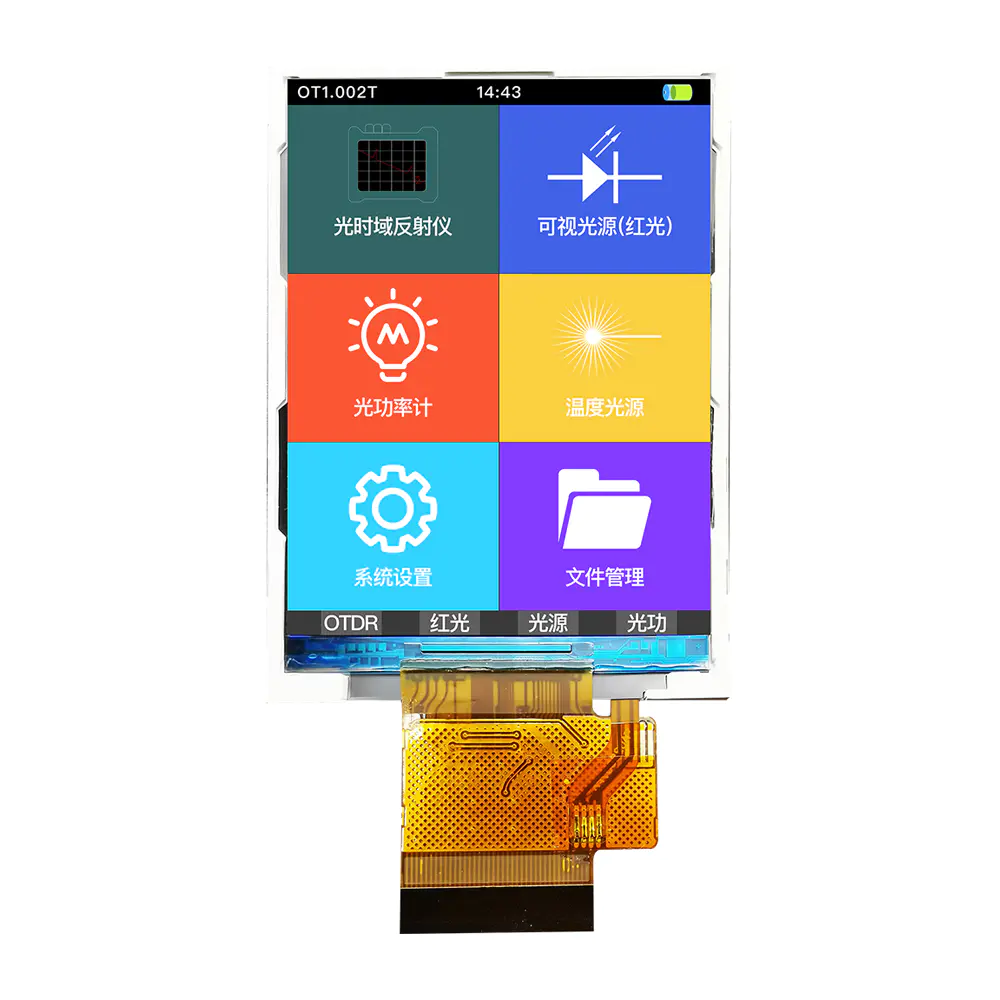

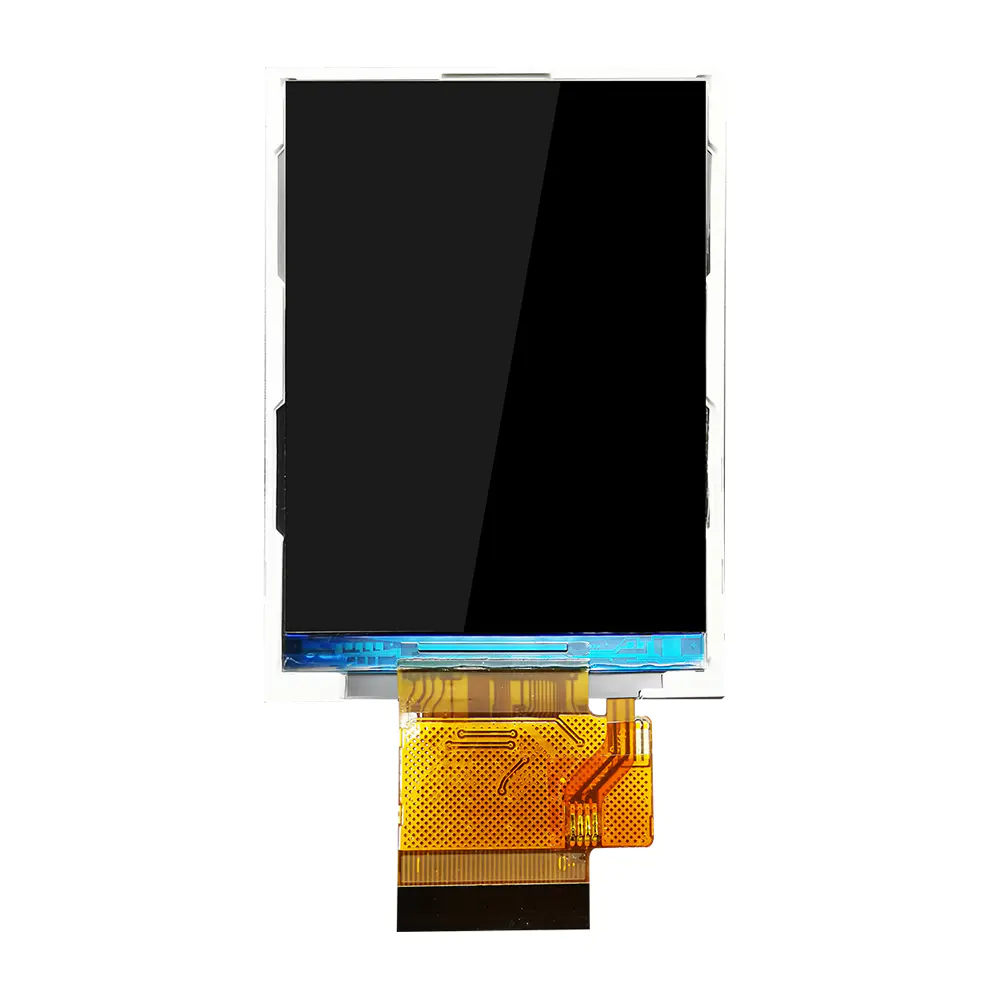

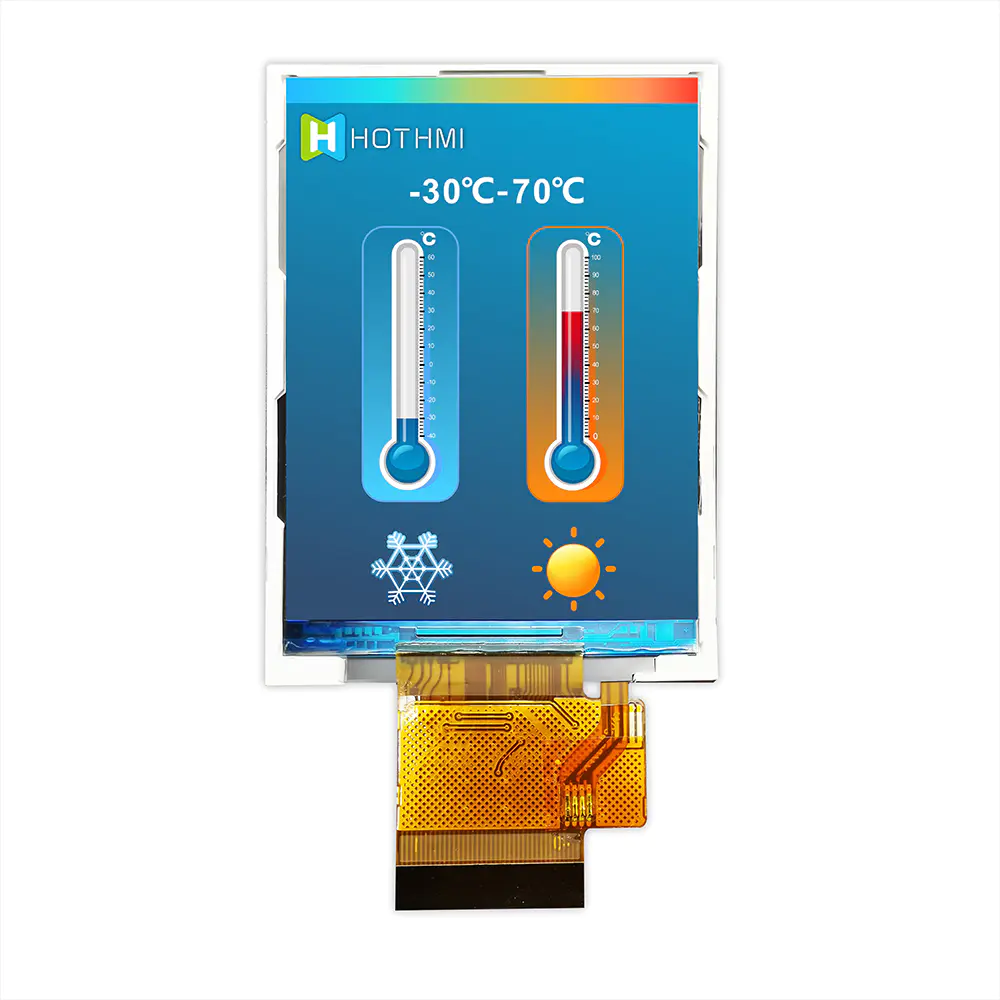

TFT-H028B9QVTST3N40 is a 2.8-inch TFT color LCD screen carefully designed by HOTLCD R&D team, 240*320 resolution, high image quality, wide viewing angle, 65K/262K true color, built-in ST7789V controller, support MCU interface, 40PIN external FPC can be connected Mainboard (optional connector), single power supply DC 2.8V power supply. The TFT module can be equipped with a touch screen and all materials are RoHS compliant. Widely used in various instruments, smart devices, analytical instruments, handheld instruments, driving recorders, etc.: 8051, PIC, AVR, ARDUINO, ARM, Raspberry Pi, etc.It can operate at temperatures from -20°C to +70°C and storage temperatures from -30°C to +80°C.

2.8 inch TFT /240*320 resoliution/12H viewing angle/TFT-H028B9QVTST3N40



Product type: TFT vertical screen

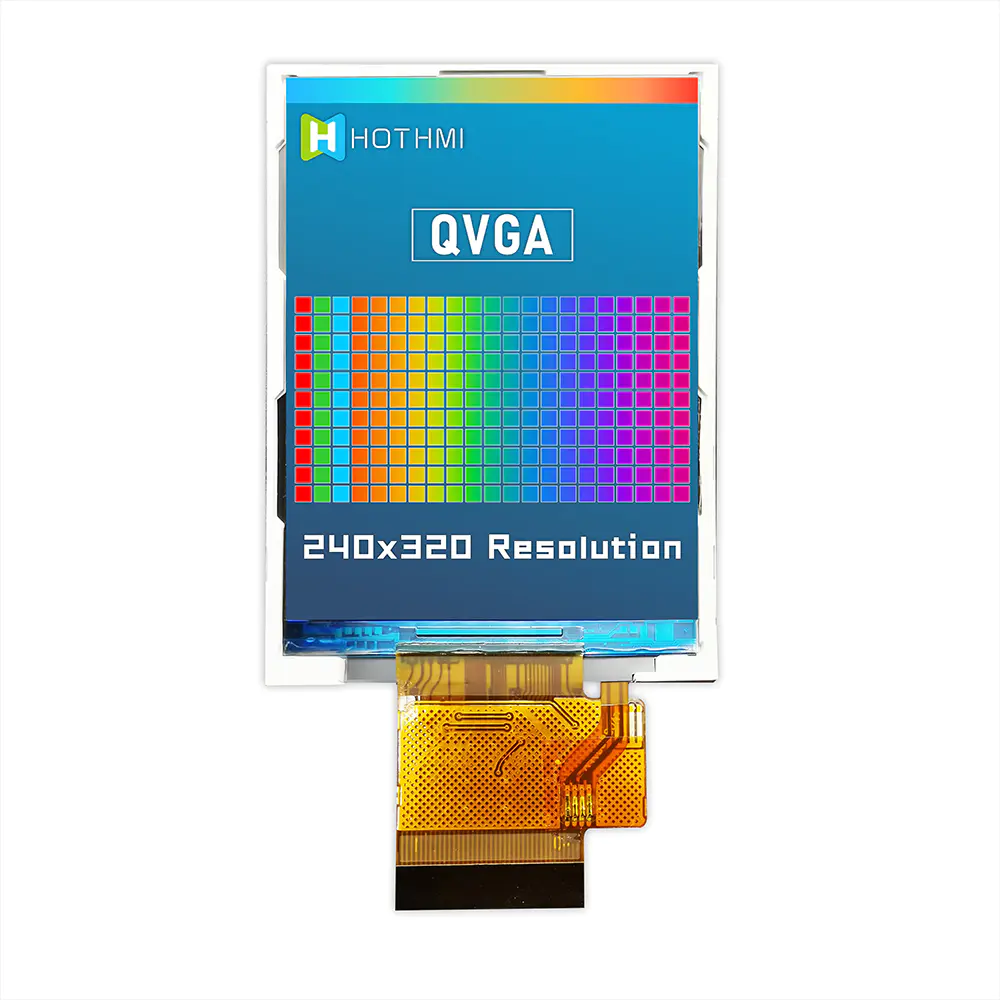

Display content: 240*320

Dimensions (mm): 50.00(H) * 69.20(V) * 2.50(D)

Window size (mm): 2.8"

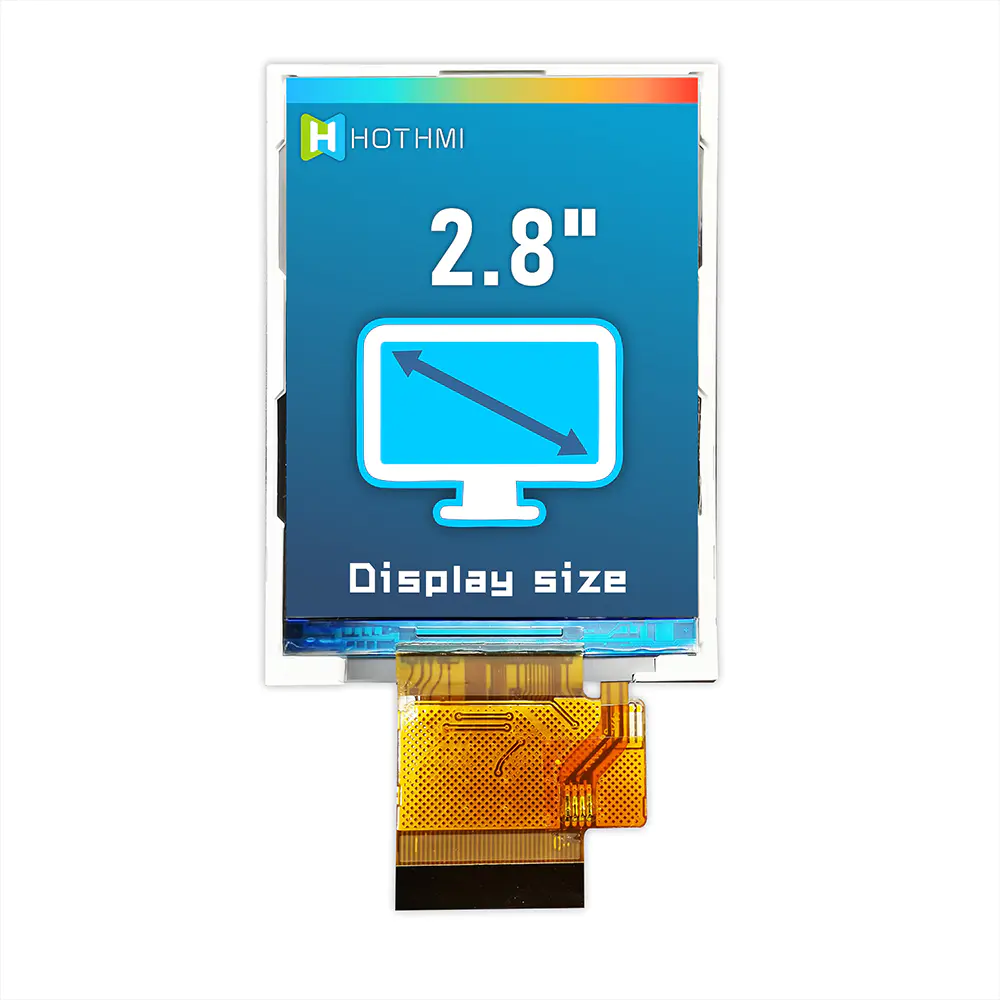

Display size (mm): 2.8"

Effective size (mm): 43.20(H) * 57.60(V)

Product application: Handheld Instruments/Industrial Control/Medical/Home Appliances

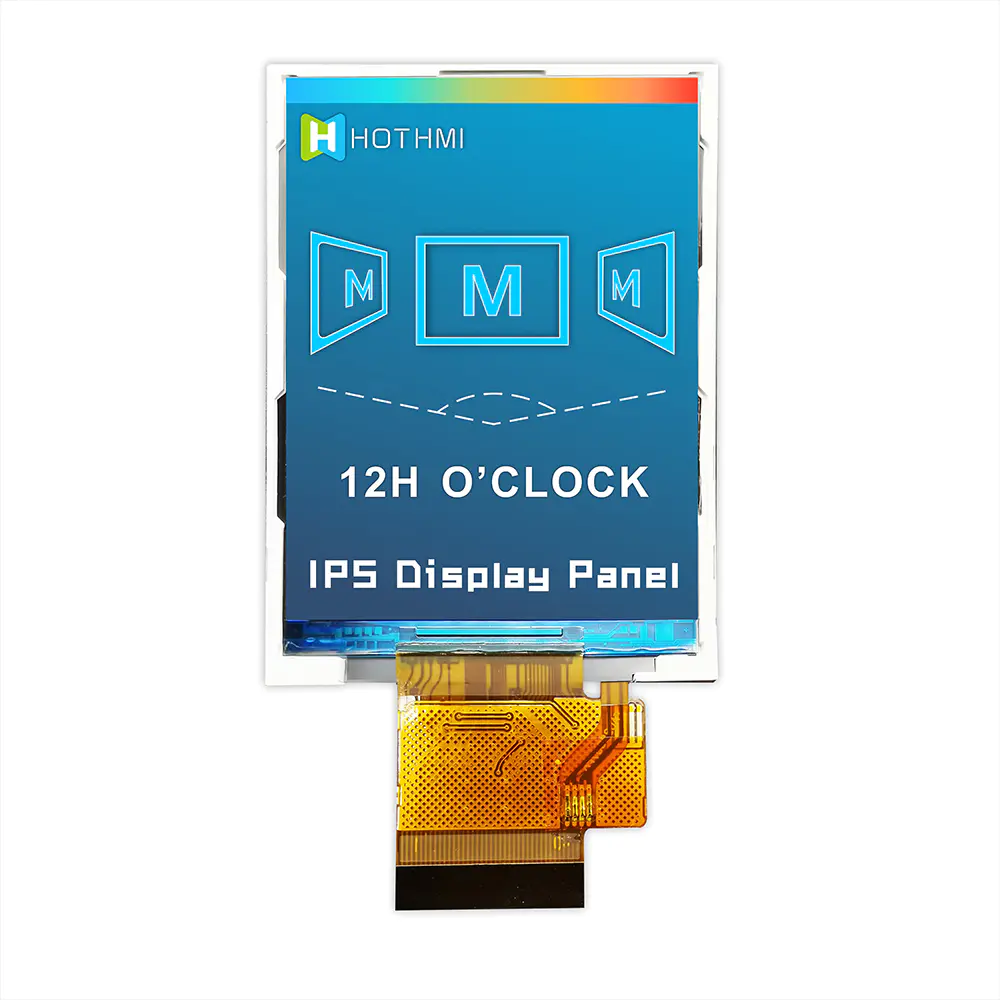

Viewing angle:12H O'CLOCK

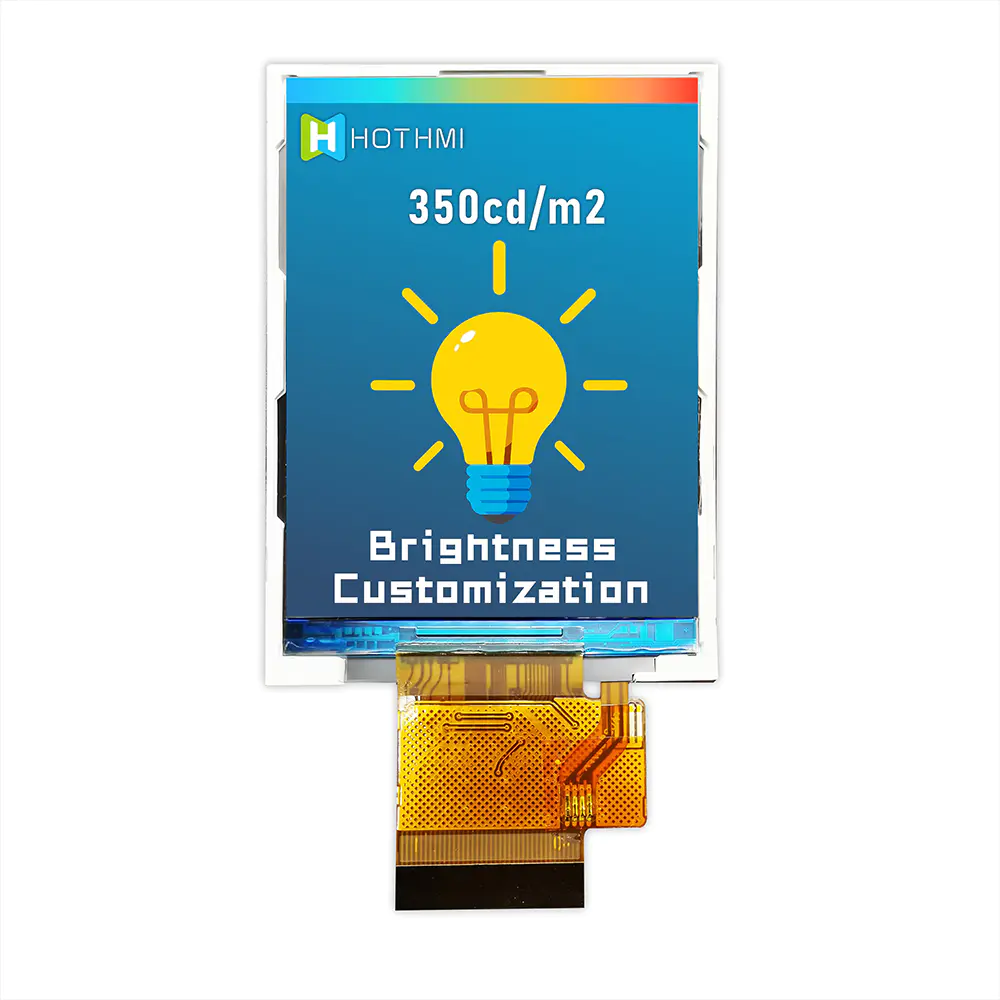

Backlight type or brightness: 350cd/m2

Number of connection PINs: FPC-40PIN

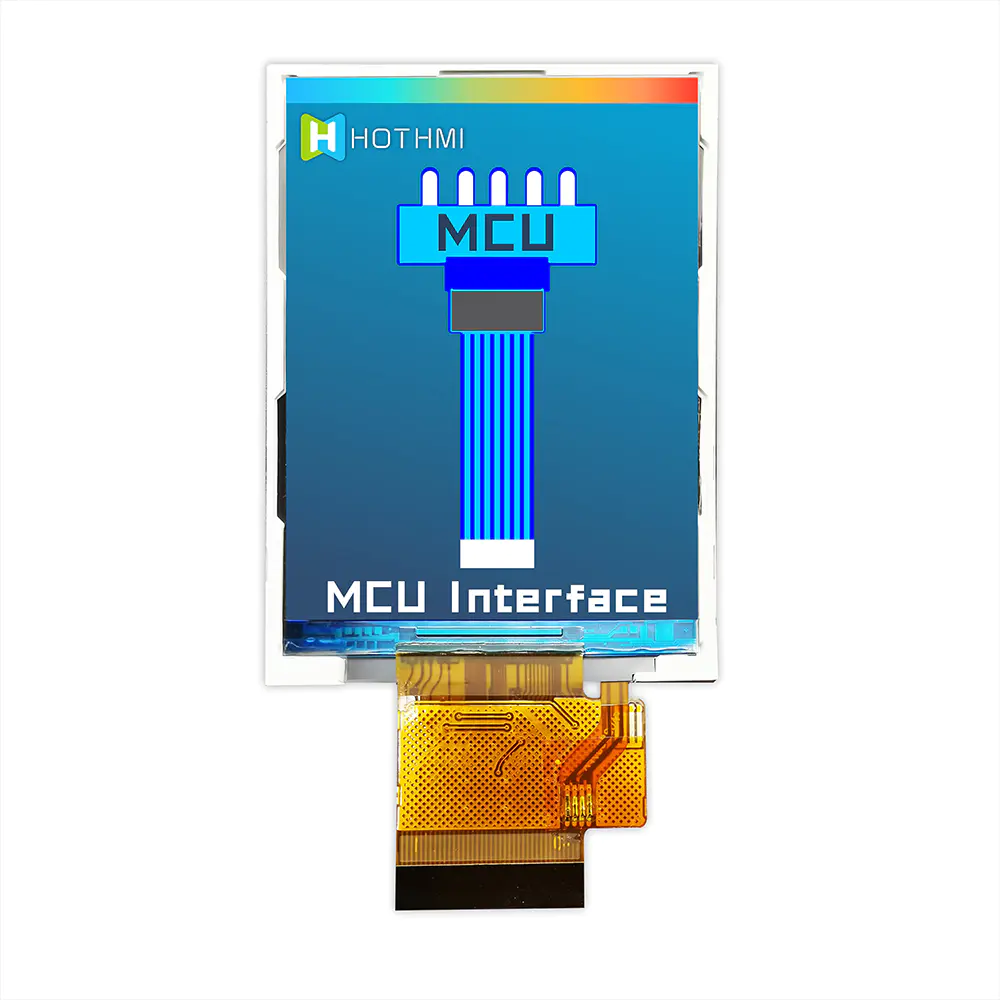

Interface: MCU

Working temperature: -30~70℃

Power supply voltage: 2.8V

Driver chip model: ST7789V

DRAWING
