$12.99
Add to wish list
Quantity
+
Product details

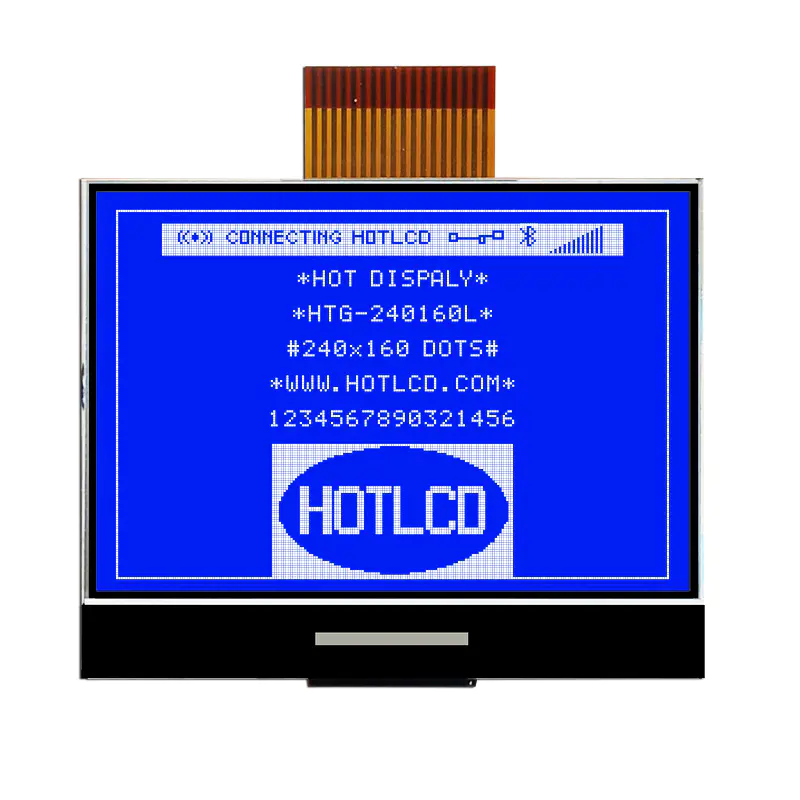

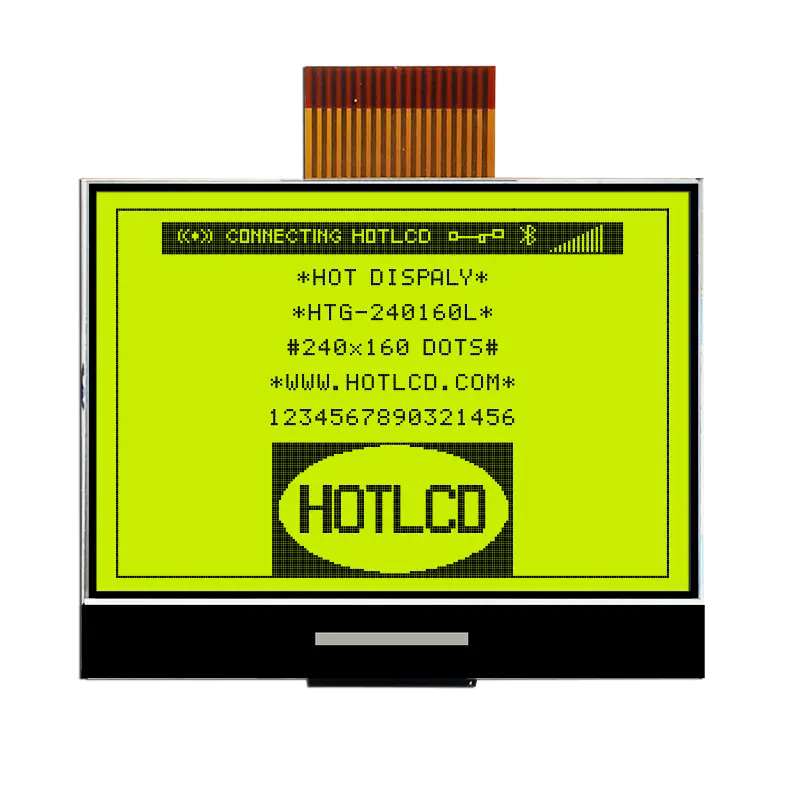

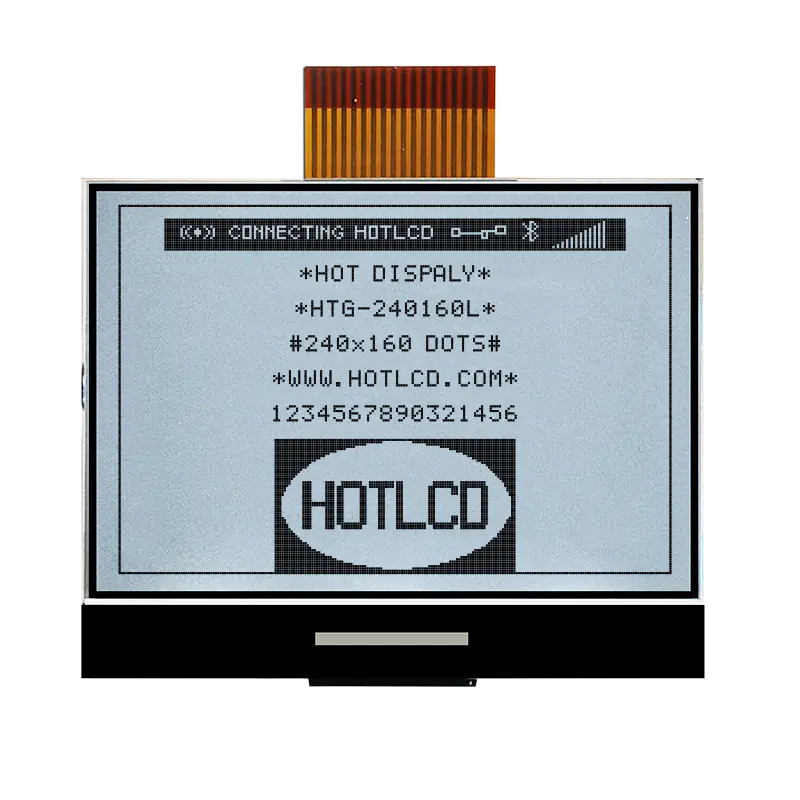

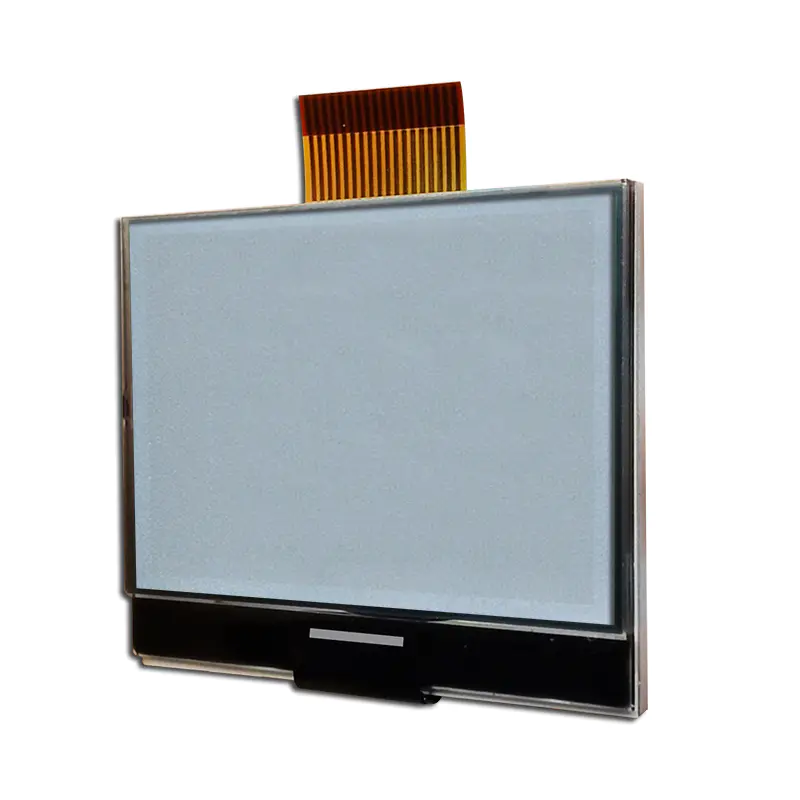

Model : 240*160 COG LCD Graphic/HTG240160L

Product type:COG

Show contents:240*160

Outline size(mm) :60.0*49.5*5.6

Size of View Window(mm):56.0*38.7

Display size(mm) :51.94*34.82

Point spacing(mm):0.216*0.216

Visual angle:6H

Backlight type or brightness:WHITE

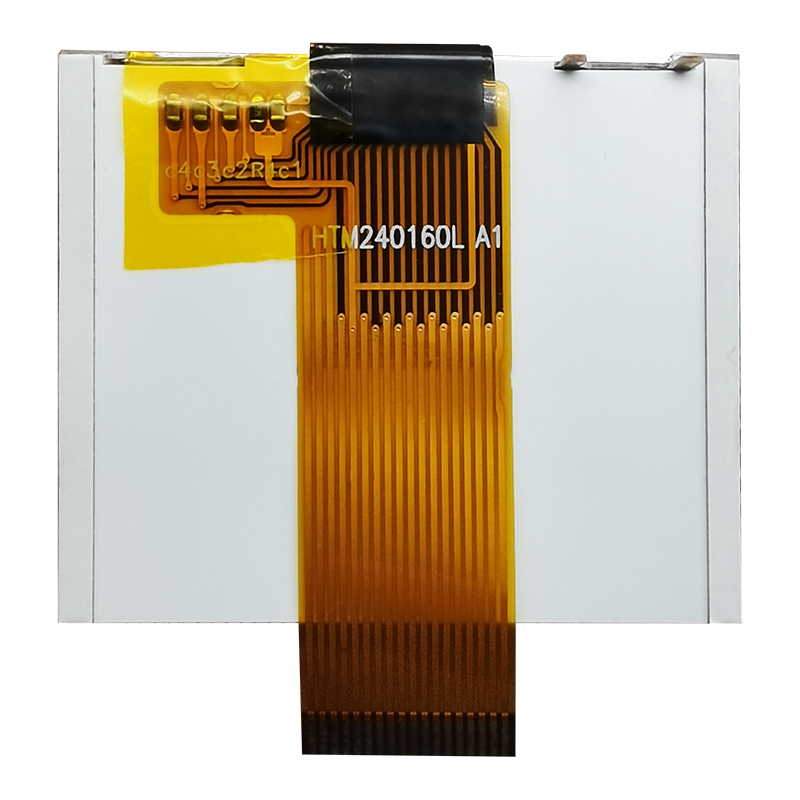

Connection PIN Number:FPC-18PIN

Interface mode:MCU/8bit

Working temperature:-20~70℃

Power supply voltage:3.3v

Driver chip model:UC1698

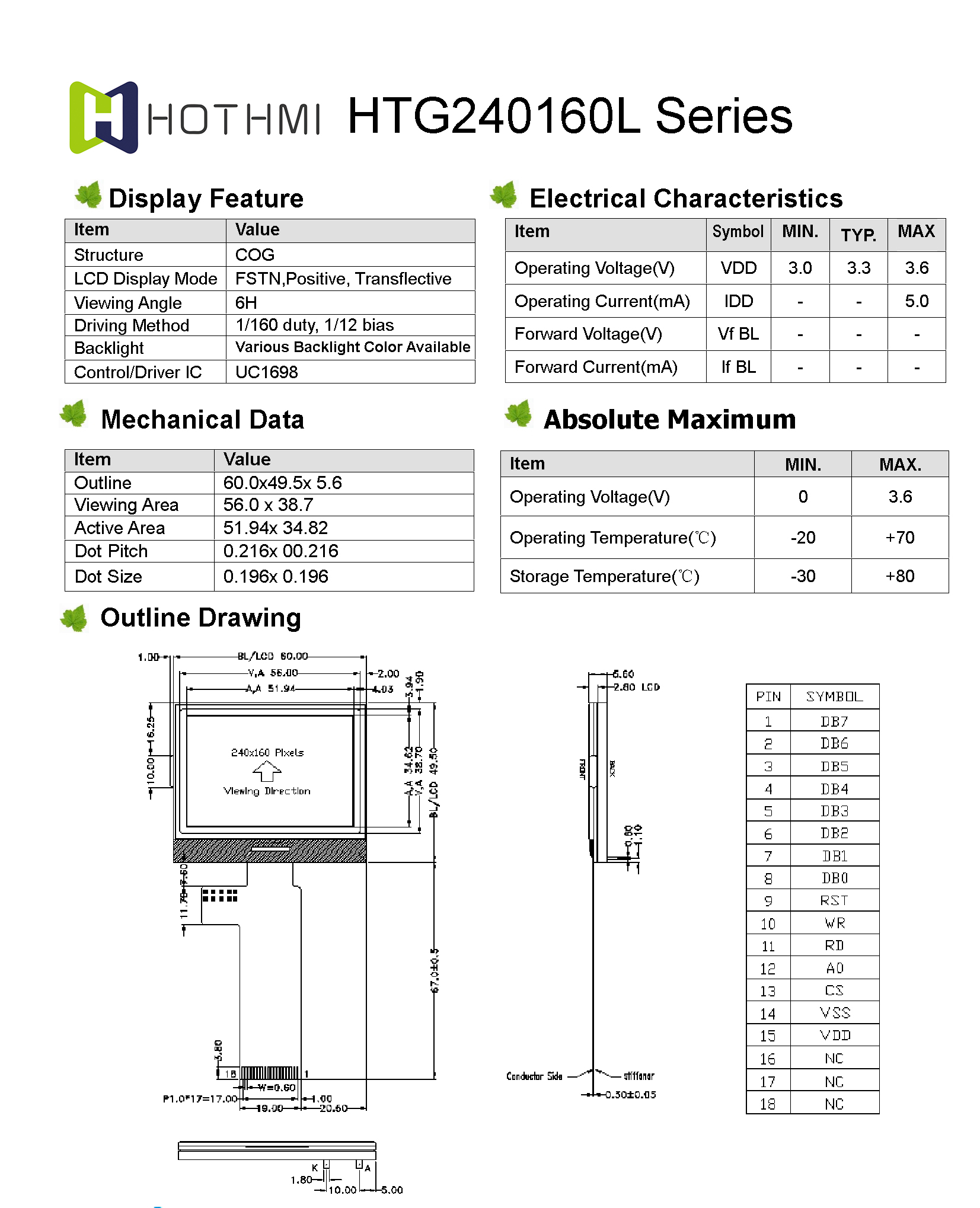

CAD Drawings
