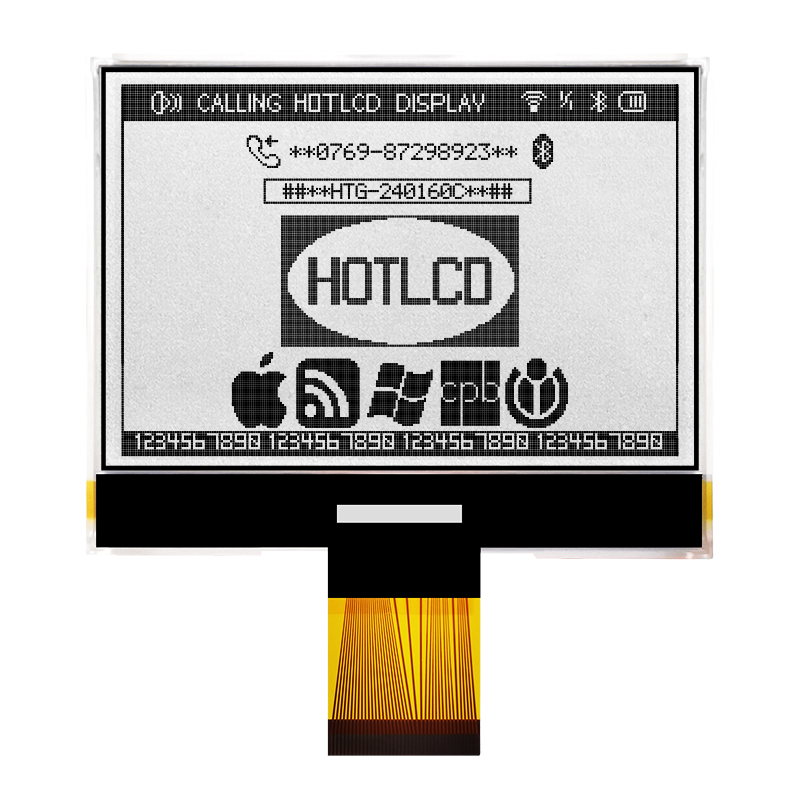

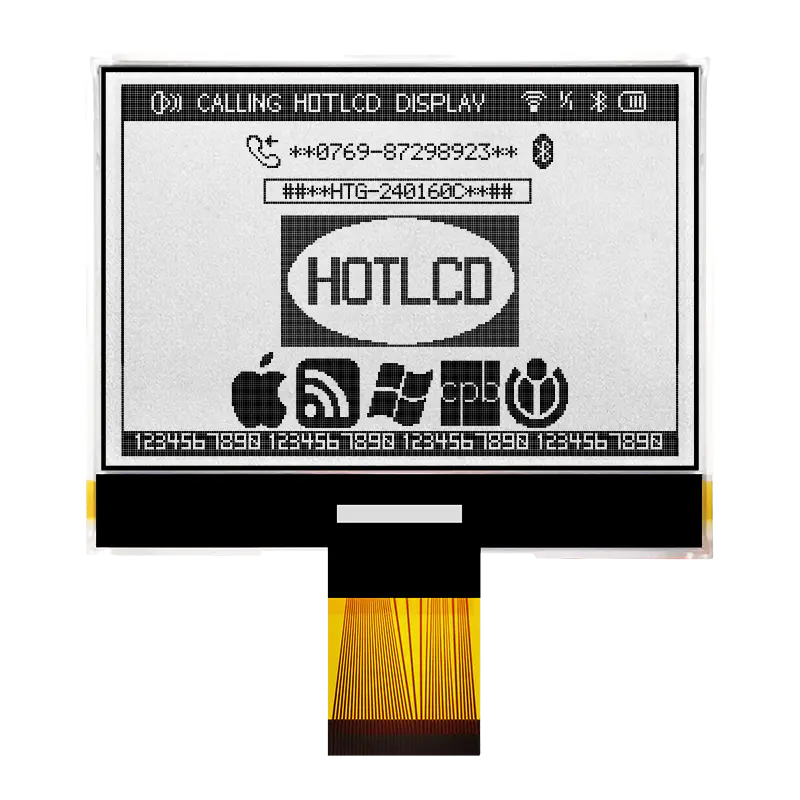

Product type：COG

Show contents：240*160

Outline size(mm) ：79.82*63.4*4.2

Size of View Window(mm)：73.42*48.0

Display size(mm) ：67.42*44.94

Point spacing(mm)：0.261*0.261

Visual angle：6H

Backlight type or brightness：WHITE

Connection PIN Number：FPC-40PIN

Interface mode：MCU/8bit

Working temperature：-20~70℃

Power supply voltage：3.3v

Driver chip model：ST7529

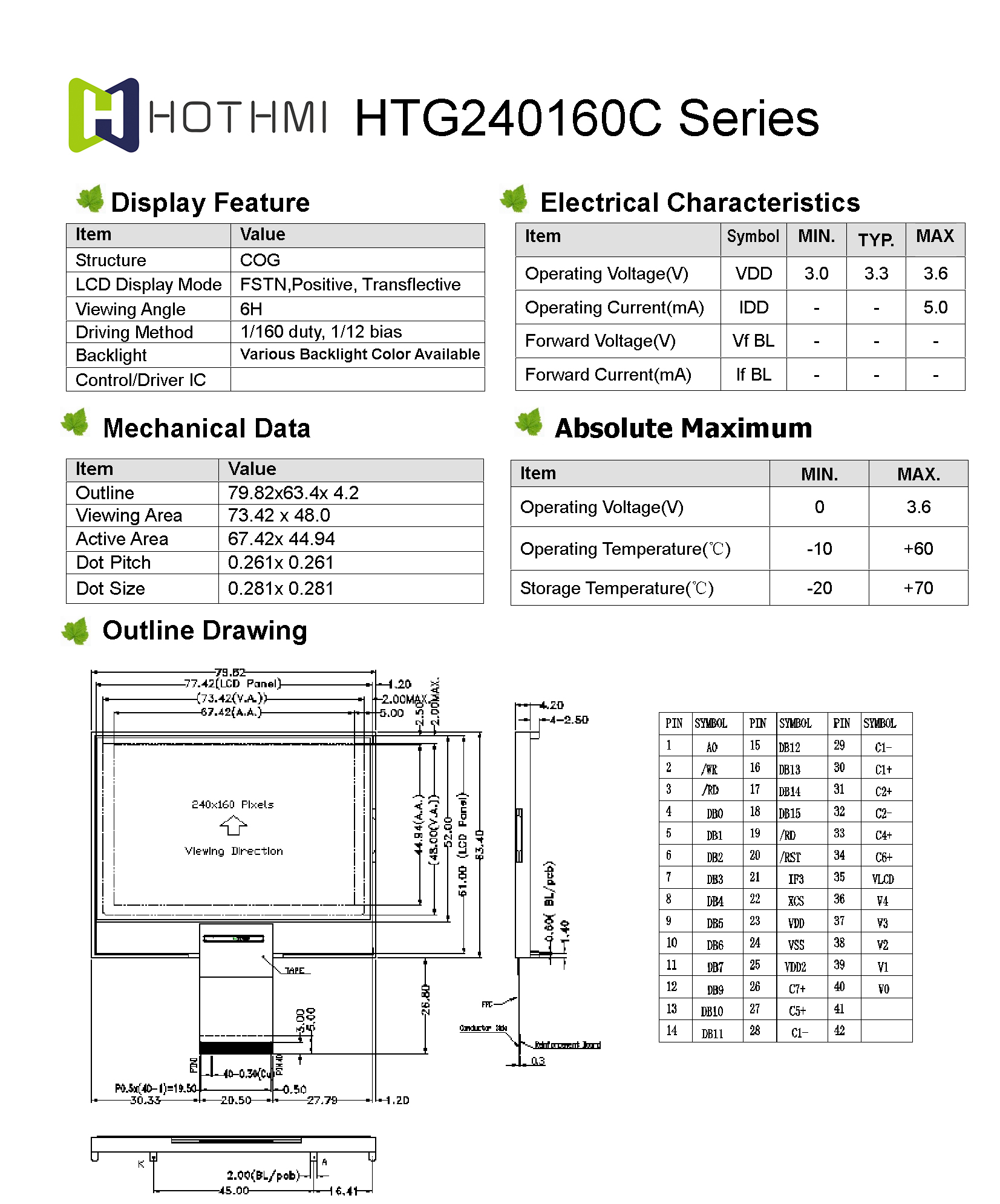

CAD Drawings:
