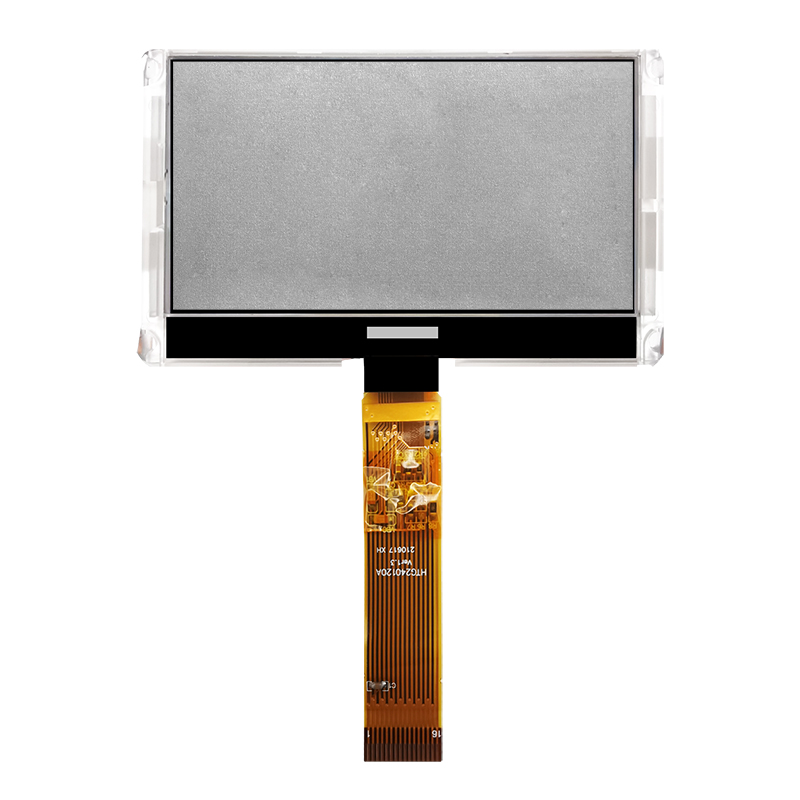

Product type：COG

Show contents：240*120

Outline size(mm) ：84.0*50.0*6.0

Size of View Window(mm)：72.0*37.0

Display size(mm) ：67.17*33.57

Point spacing(mm)：0.28*0.28

Visual angle：6H

Backlight type or brightness：WHITE

Connection PIN Number：FPC-16PIN

Interface mode：MCU/8bit

Working temperature：-20~70℃

Power supply voltage：3.3v

Driver chip model：UC1608

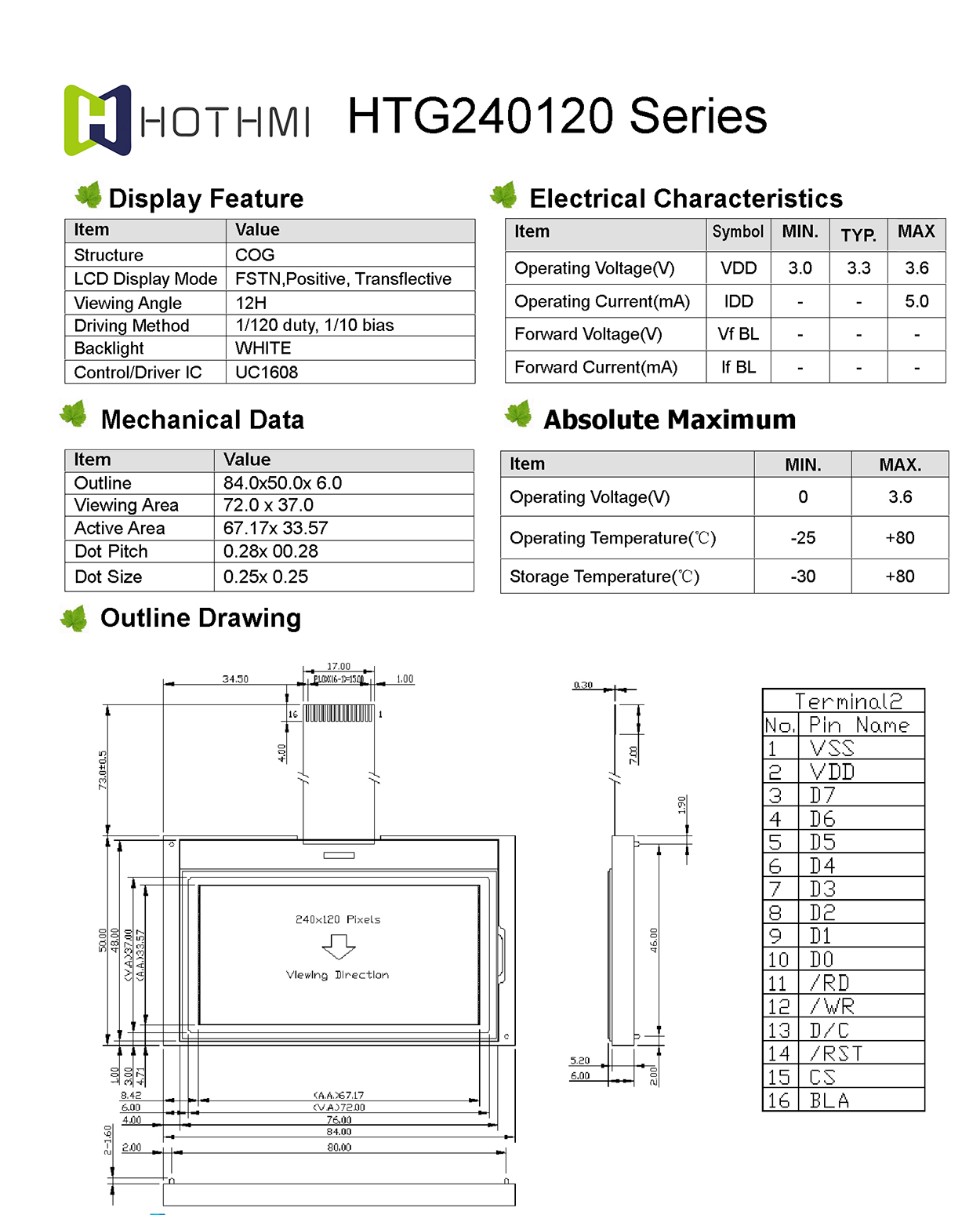

CAD Drawings:
