2.4 inch TFT/Full view/MIPI Interface/240*320 resolution/TFT-H024A9QVIFT8N20
2.4 inch TFT/Full view/MIPI Interface/240*320 resolution/TFT-H024A9QVIFT8N20
$6.14
Add to wish list
Quantity
+
Product details
Model : 2.4 inch TFT/Full view/MIPI Interface/240*320 resolution/TFT-H024A9QVIFT8N20

Product type:TFT

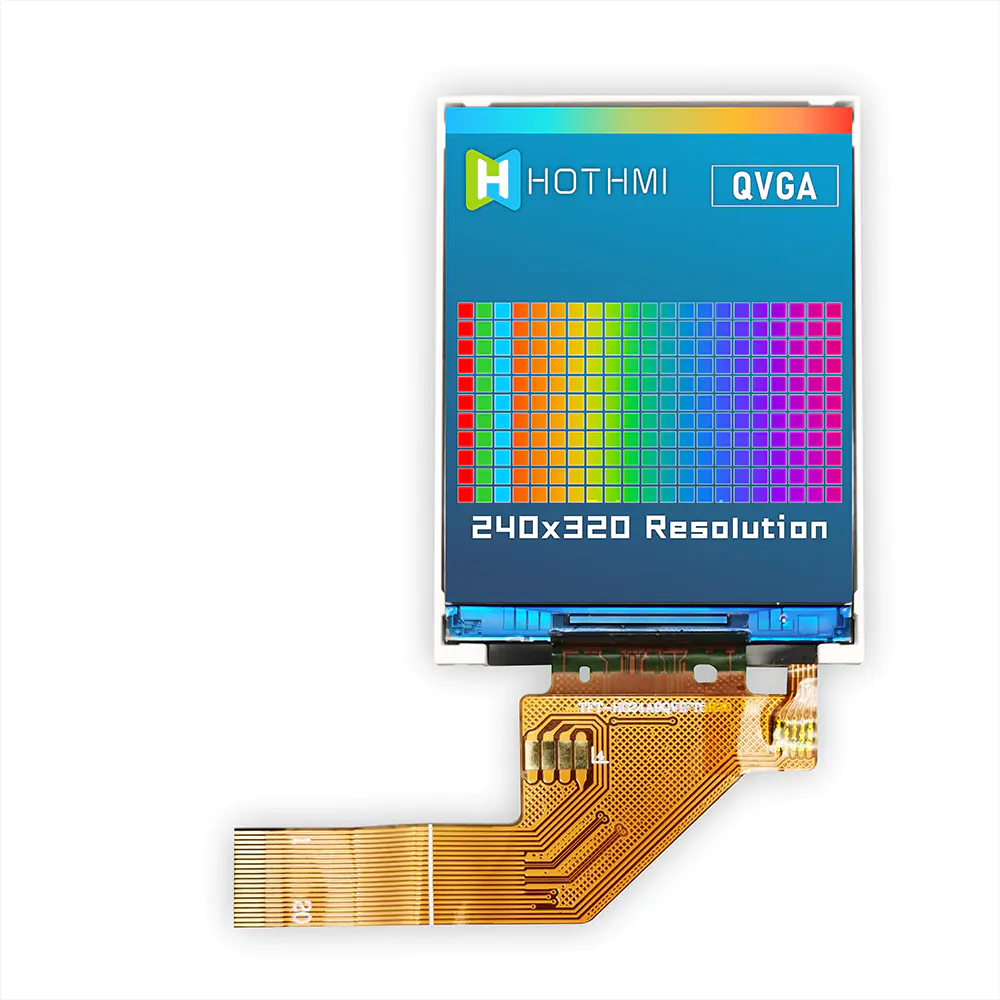

Show contents:240*320

Outline size(mm) :42.52*59.86*2.20

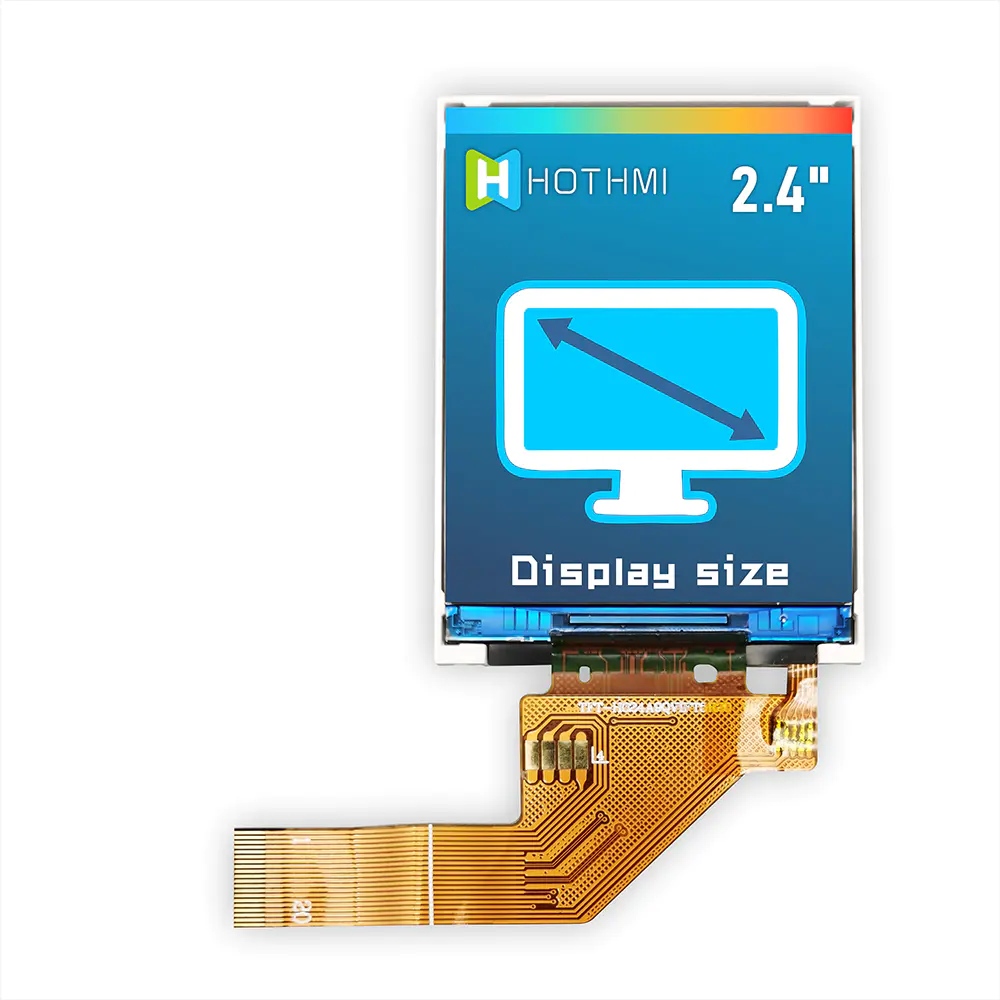

Size of View Window(mm):2.4"

Display size(mm) :2.4"

Effective size(mm):36.72*48.96

Product application:Instrumentation

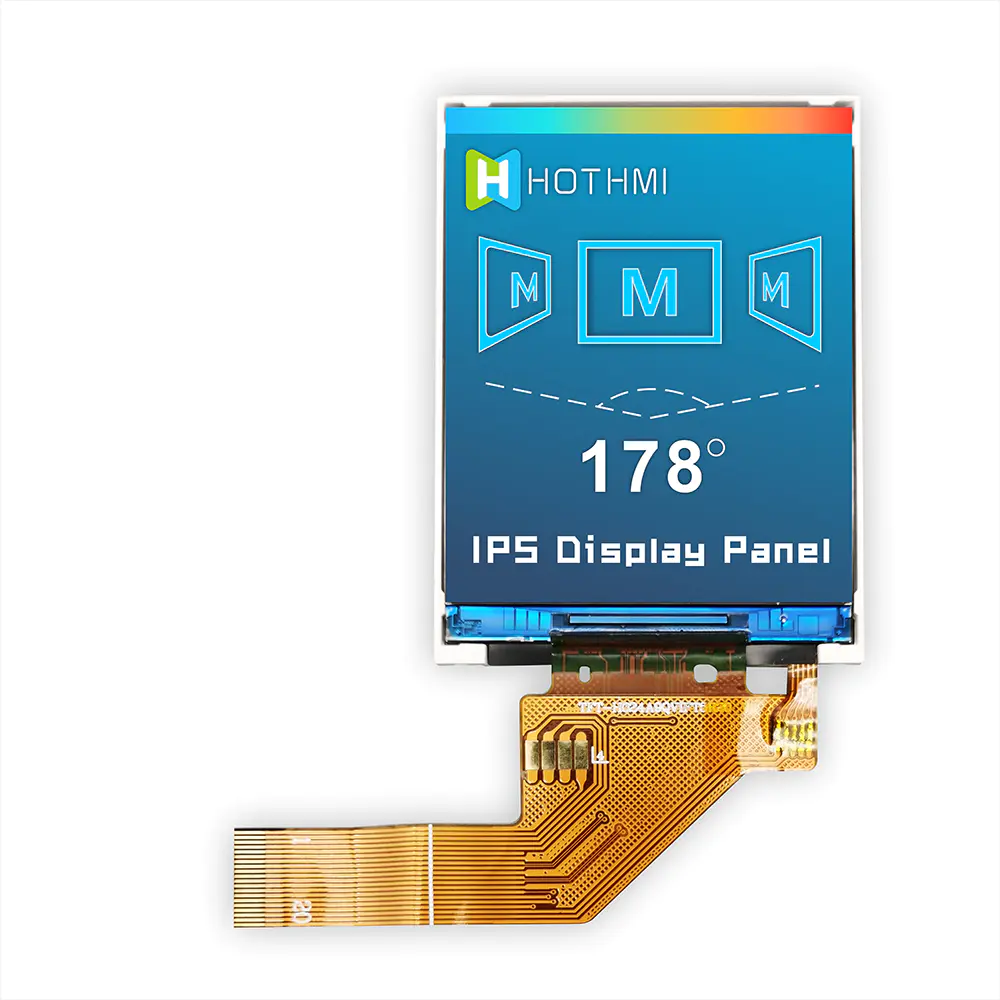

Visual angle:Full View

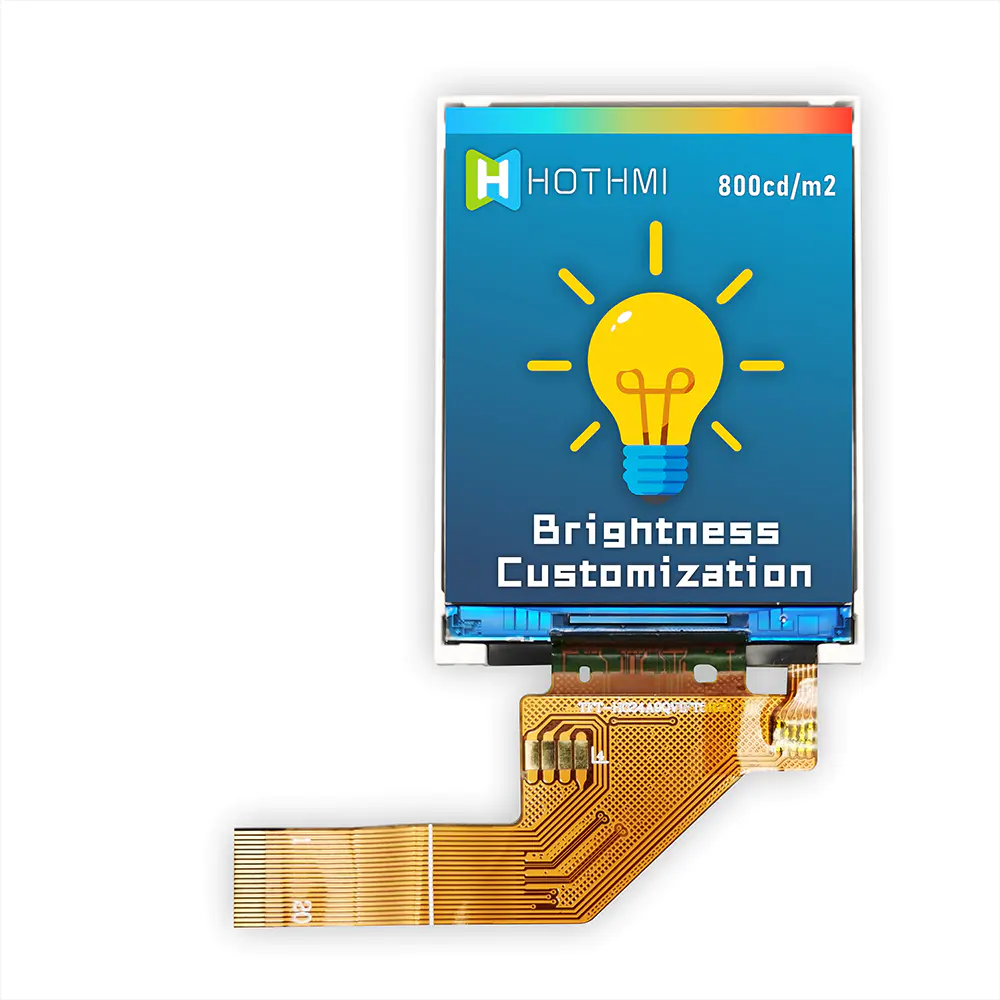

Backlight type or brightness:800cd/m2

Connection PIN Number:FPC-20PIN

Interface mode:MIPI

Special instructions:Can be equipped with RTP

Working temperature:-20~70℃

Power supply voltage:3.2v
Deiver chip model:JD9852



CAD Drawings

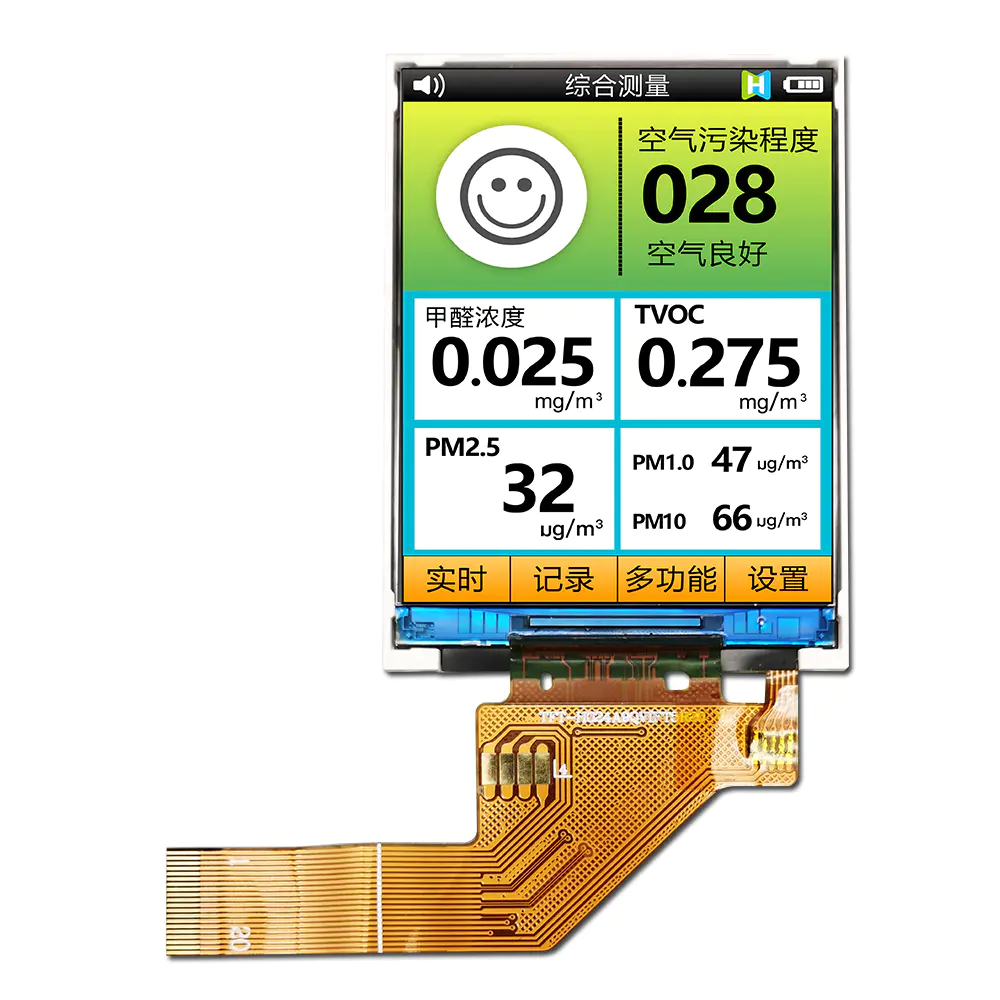

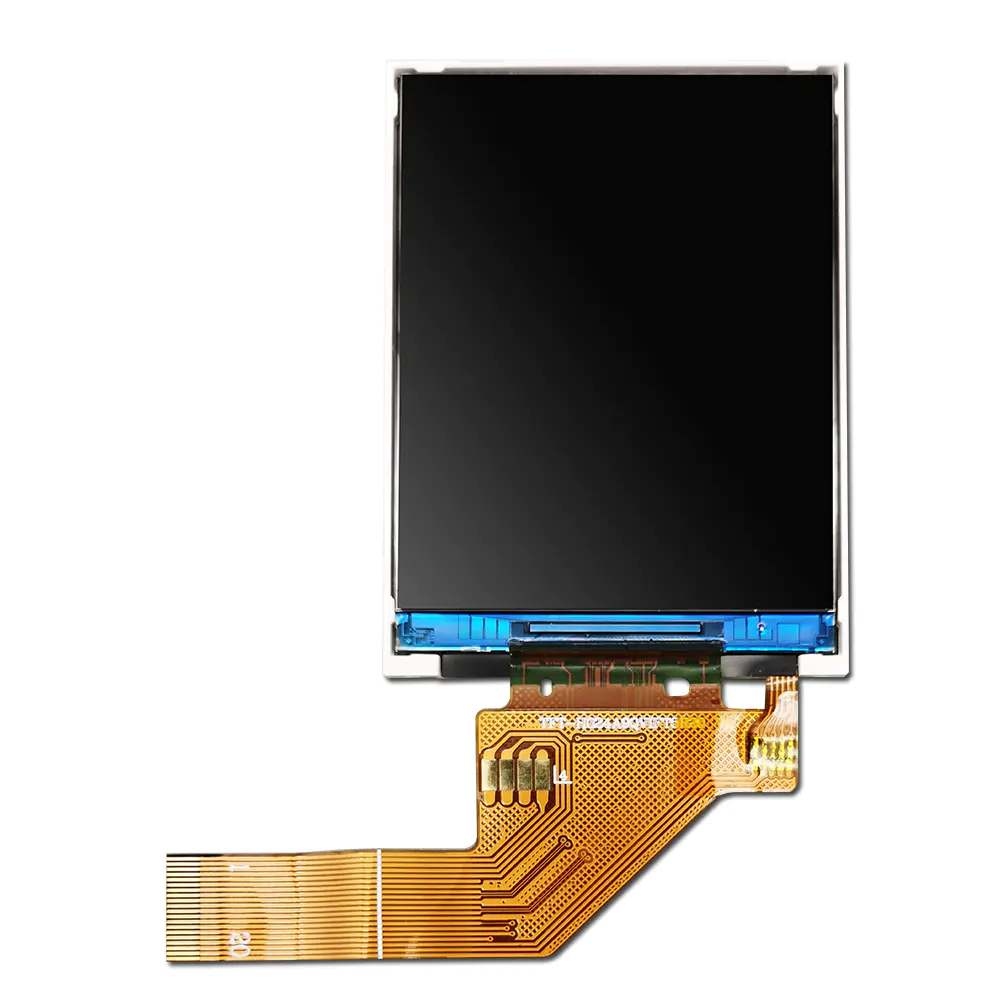

TFT-H024A9QVIFT8N20 is a 2.4-inch TFT color LCD module with 240*320 resolution, which is carefully designed by HOTDISPLAY,65K / 262K true color, built-in JD9852 controller, high picture quality, wide viewing angle, support MIPI interface, infinite peripheral circuit, only 20pinfpc connection (optional connector), 2.8V voltage. All materials meet the ROHS standard of environmental protection requirements. This module can be equipped with touch screen, which is widely used in various instruments, intelligent equipment, analytical instruments, hand-held instruments, driving recorder, etc. it is suitable for a variety of single-chip development platforms, such as 8051, PIC, AVR, Arduino, arm and Raspberry PI.
