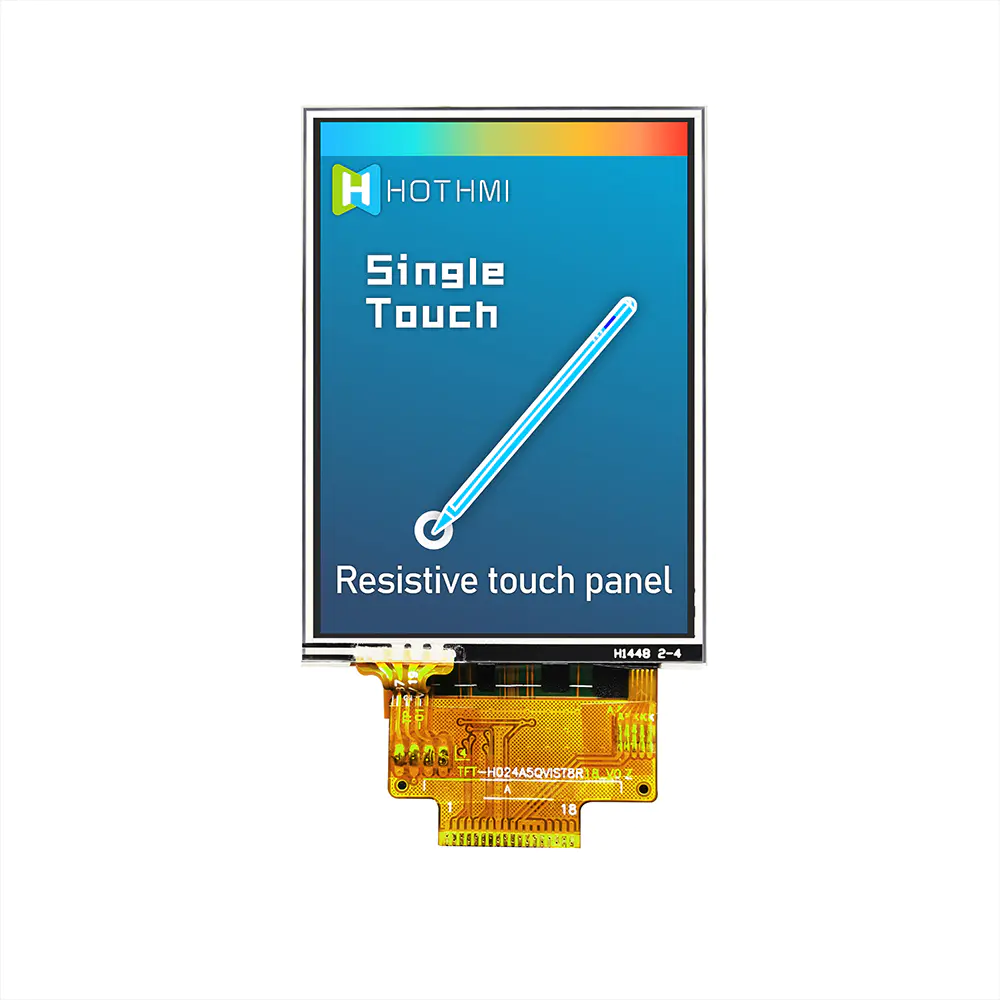

Tft-h024a5qvist8r18 is an industrial-grade portrait display TFT LCD LCD screen with a resolution of 240x320 pixels. Use ST7789V driver IC, with RTP resistance touch screen. Supports SPI-4L bit-compatible SPI interfaces. The typical LCD brightness is 800 nits and the typical view is full view. The power supply voltage (VCI) is 2.8V to 3.3V, and the typical value is 2.8V. The operating temperature ranges from -20 ° C to +70 ° C, and the storage temperature ranges from -30 ° C to +80 ° C.

2.4-inch TFT LCD/handheld collector display /240*320 resolution/industrial grade/with RTP resistor touch /SPI interface /TFT-H024A5QVIST8R18

Product type: TFT vertical screen

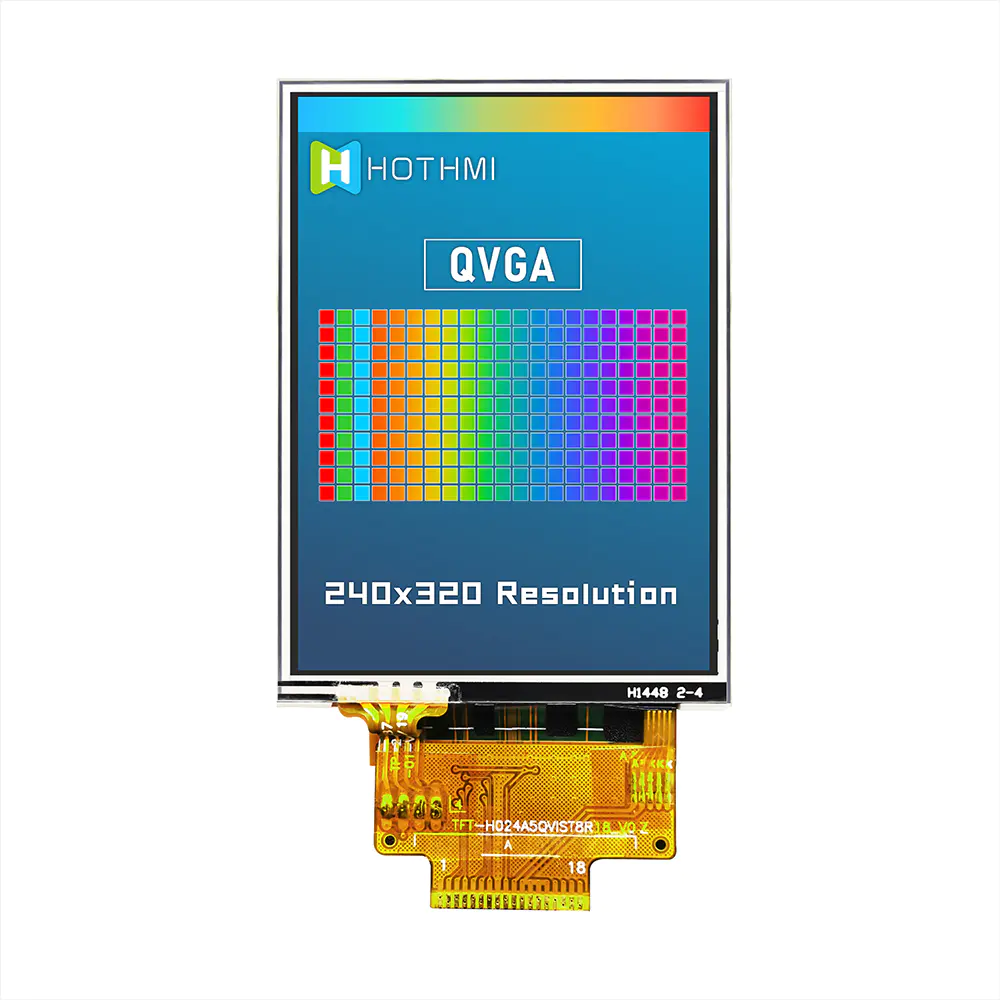

Display content: 240*320

Dimensions (mm): 42.52*59.86*3.40

Window size (mm): 2.4"

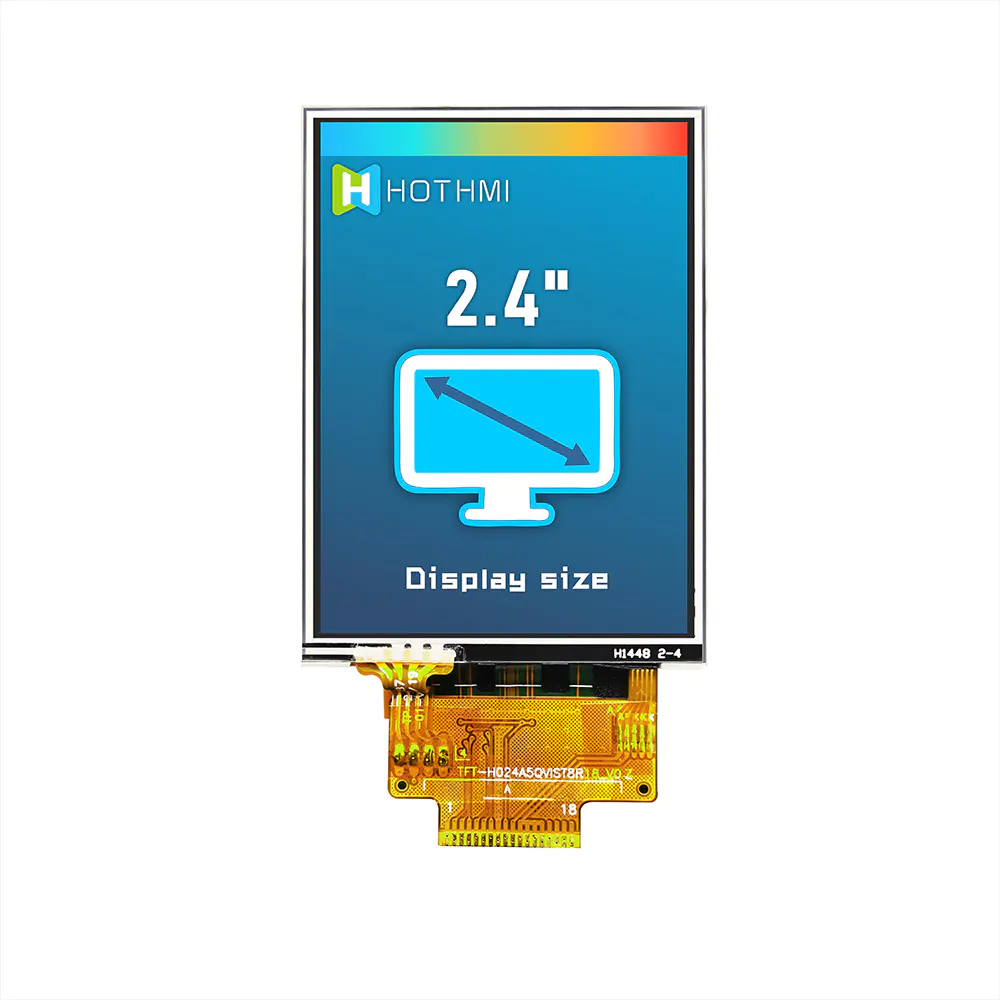

Display size (mm): 2.4"

Effective size (mm):  36.72*48.96

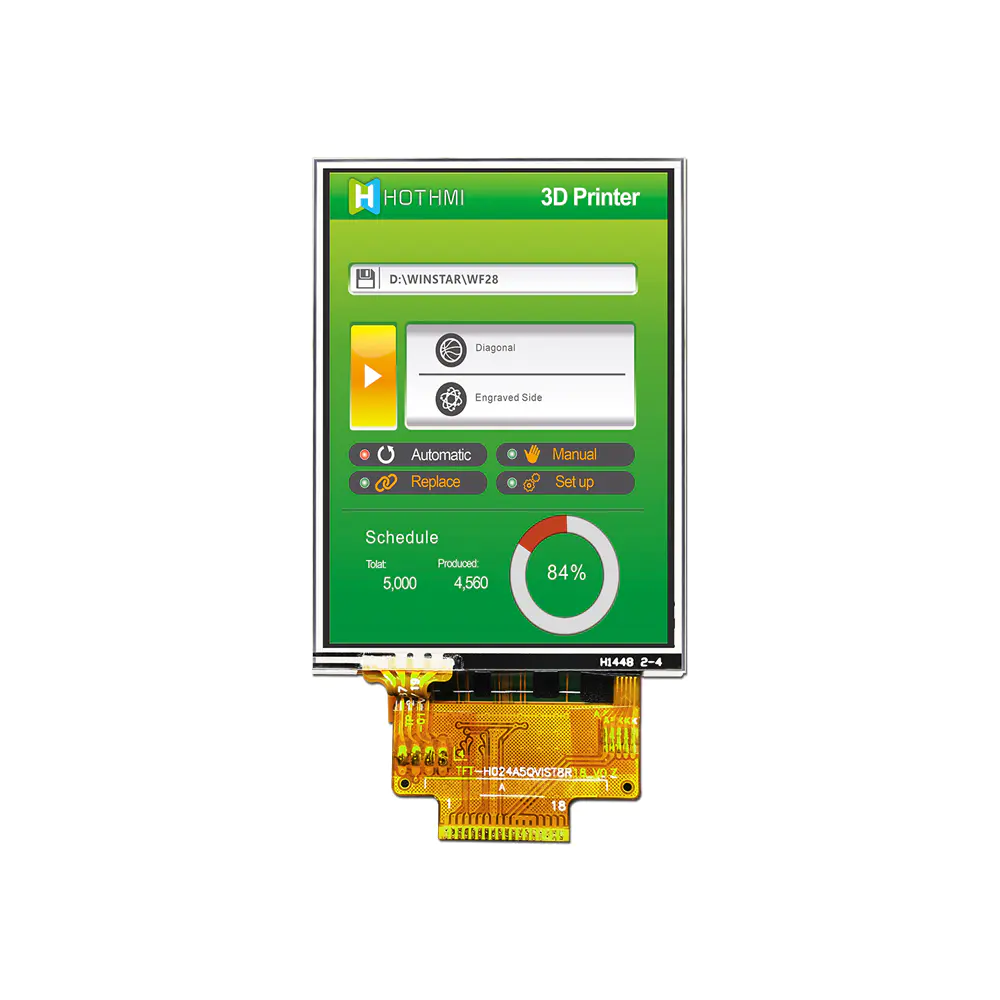

Product application: Handheld Instruments/Industrial Control/Medical/Home Appliances

Viewing angle:full O'CLOCK

Backlight type or brightness: 500cd/m2

Number of connection PINs: FPC-18PIN

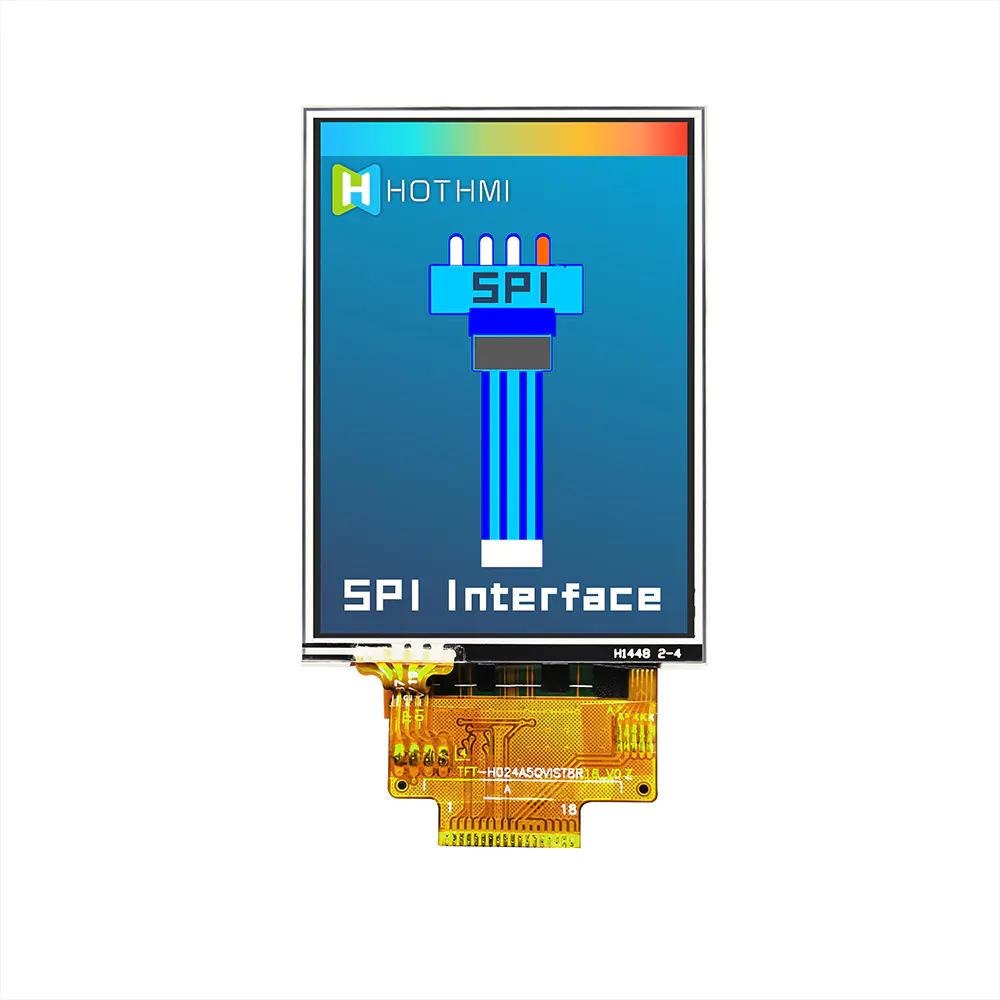

Interface:SPI

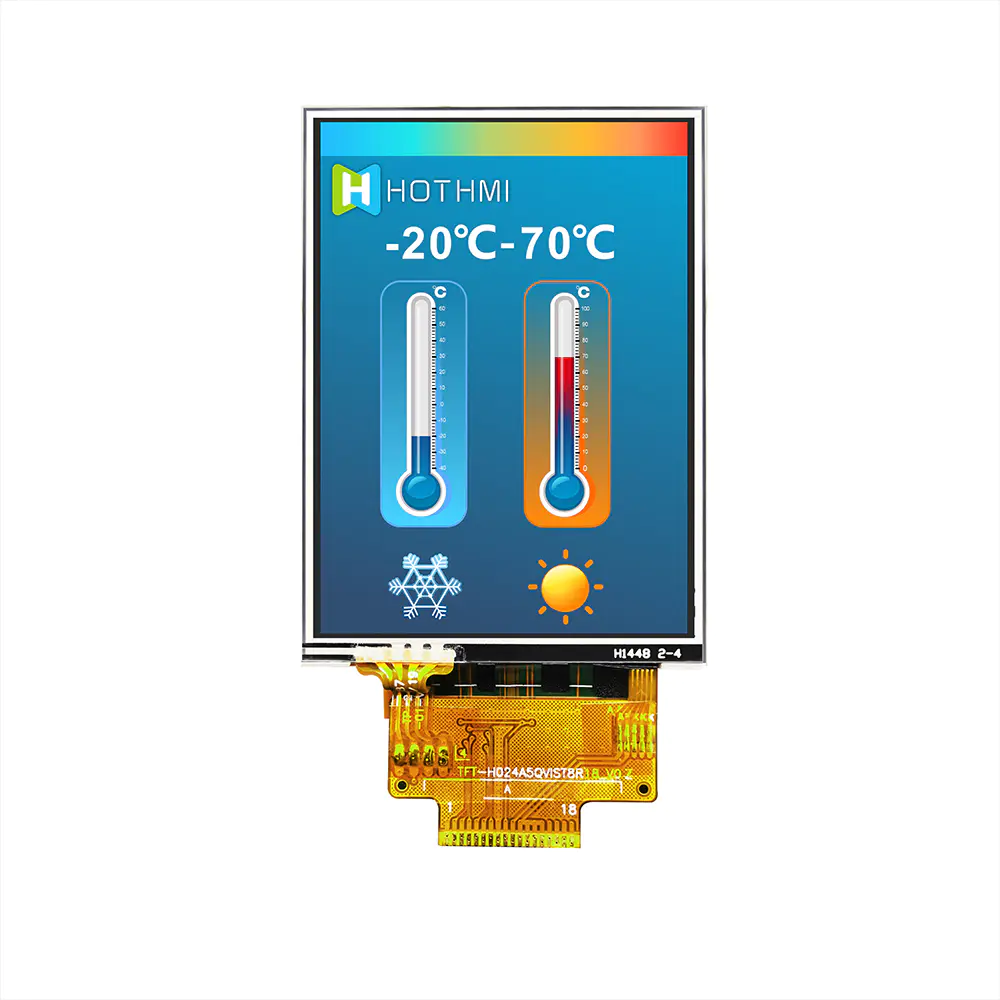

Working temperature: -20~70℃

Power supply voltage: 2.8V

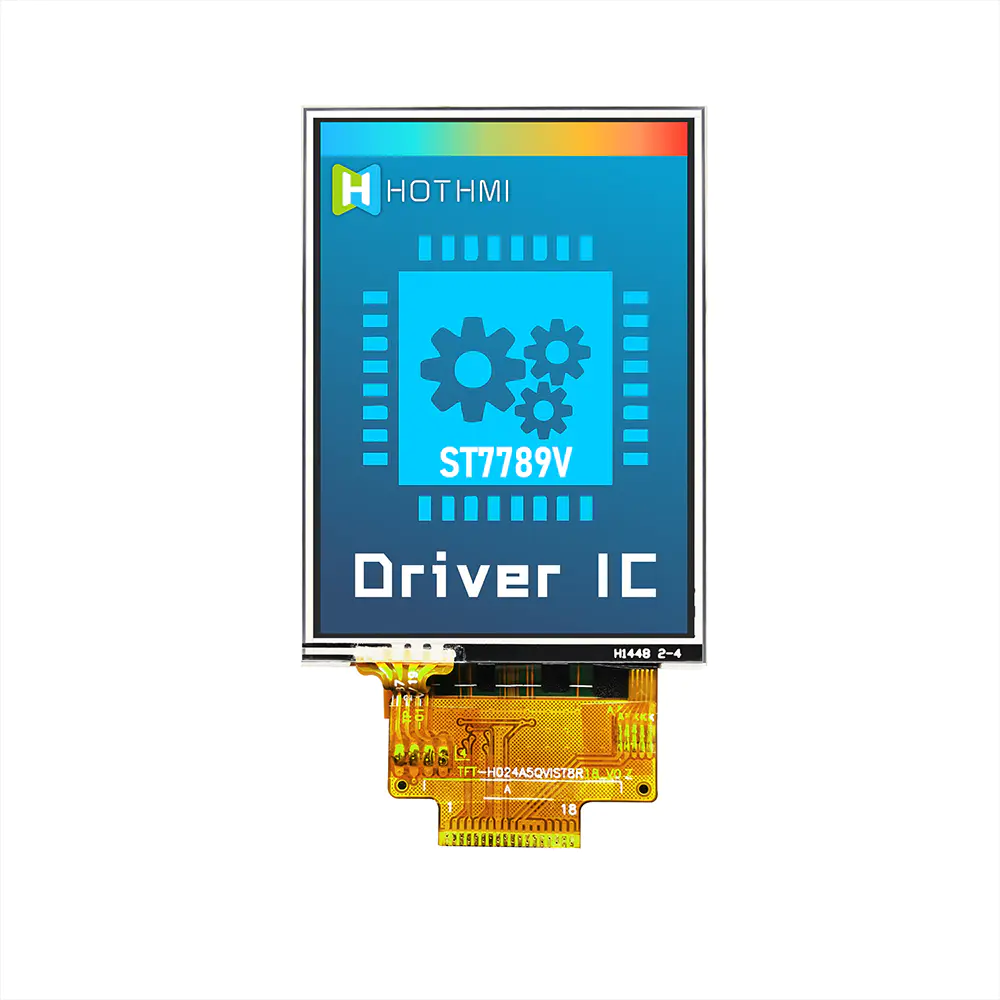

Driver chip model: ST7789V

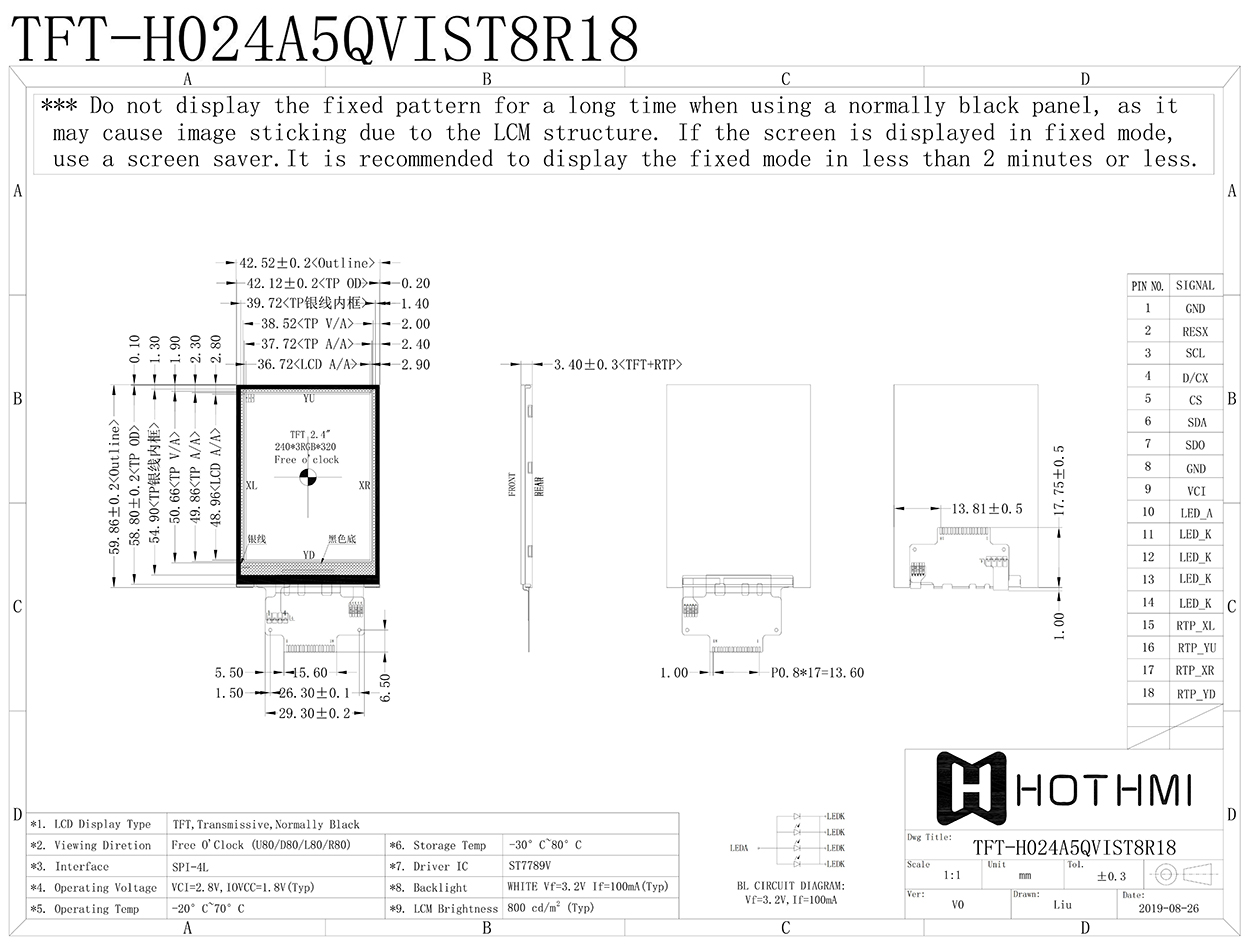

DRAWING
