2.4 inch TFT /480*640 resolution/Full view/RGB interface/TFT-H024A13VGIST5N40
Model : 2.4 inch TFT /480*640 resolution/Full view/RGB interface/TFT-H024A13VGIST5N40
$6.42
Add to wish list
Quantity
+
Product details

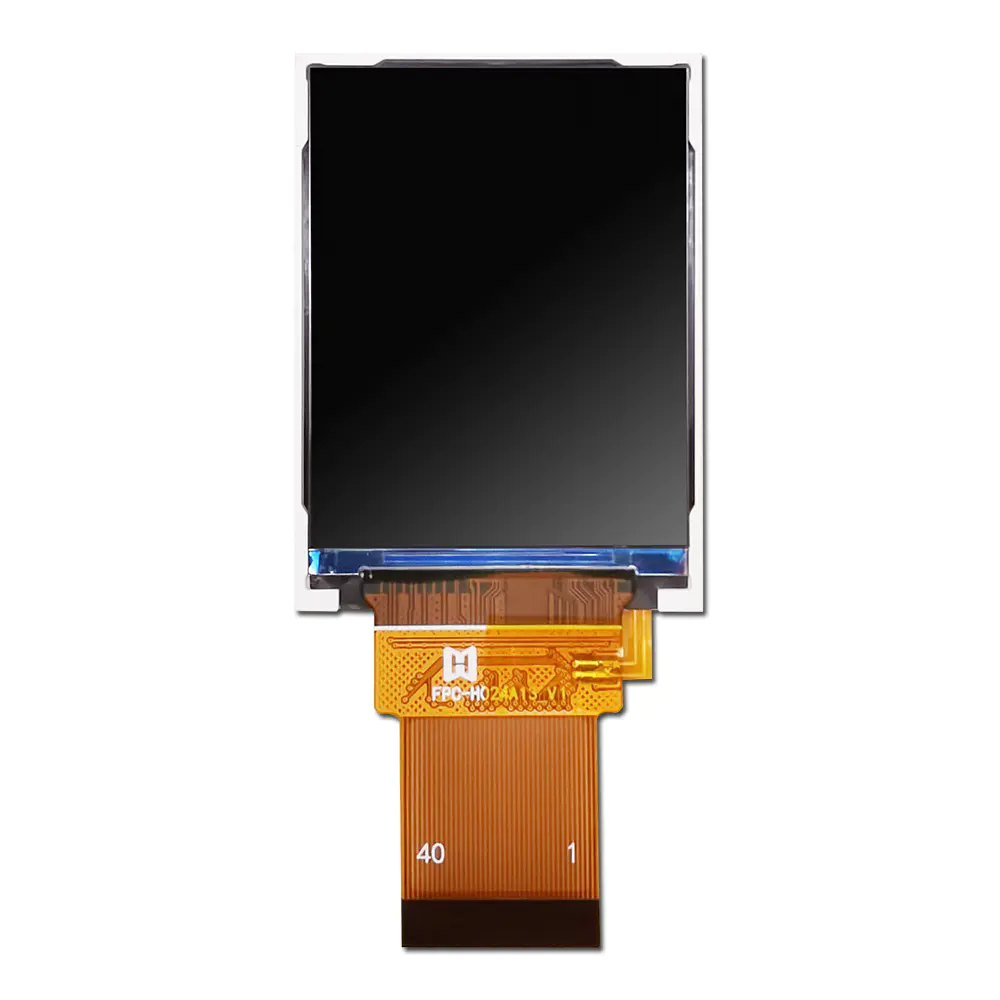

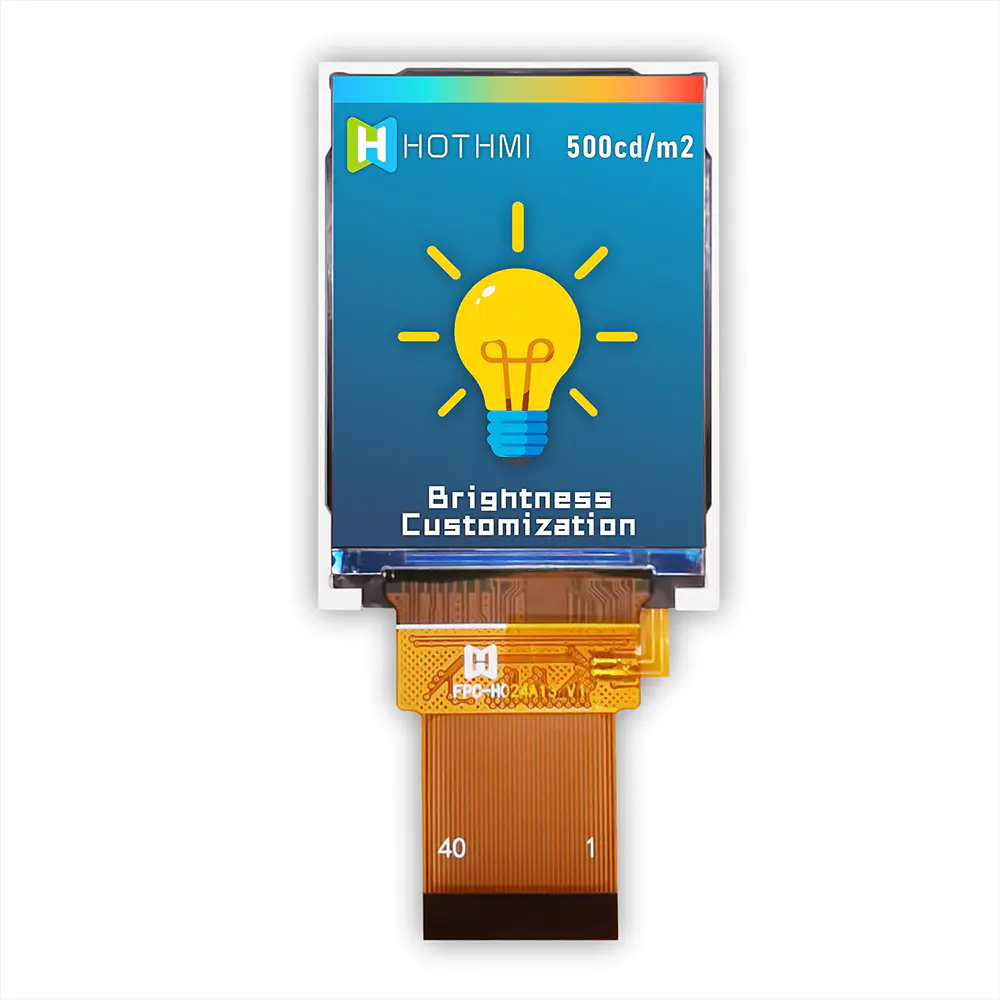

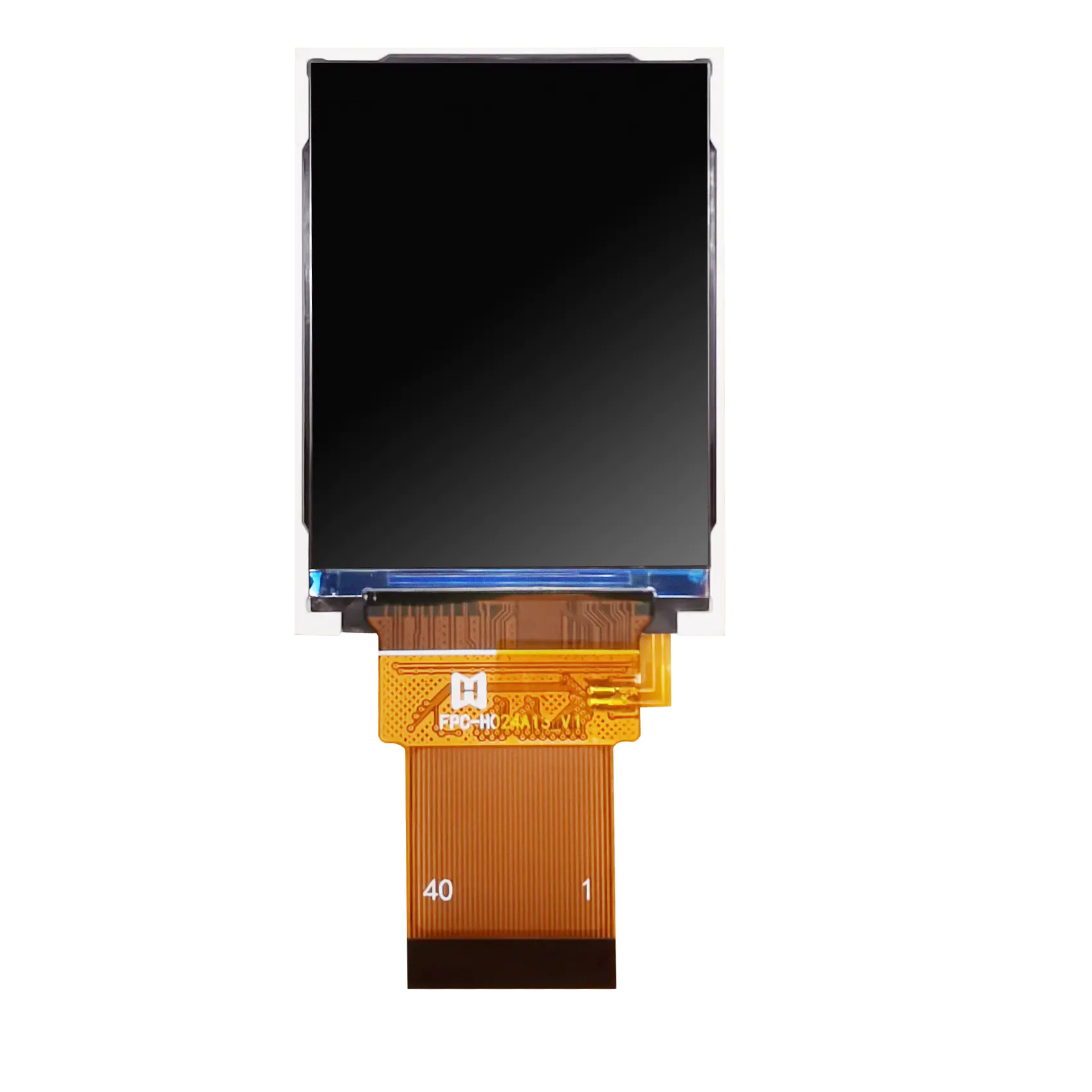

TFT-H024A13VGIST5N40 is a 2.4-inch TFT color LCD screen carefully designed by the HOTLCD R&D team, 480*640 resolution, high image quality, wide viewing angle, 16.7M high-definition color, brightness set to 500cd/m2, built-in ST7701S controller, support RGB interface , No peripheral circuit, 20PIN plug-in FPC can be connected to the main board (optional connector), single power supply DC 3.3V power supply. The TFT module can be equipped with a touch screen and all materials are RoHS compliant. Widely used in various instruments, smart devices, analytical instruments, handheld instruments, driving recorders, etc.: 8051, PIC, AVR, ARDUINO, ARM, Raspberry Pi, etc.
Model : 2.4 inch TFT /480*640 resolution/Full view/RGB interface/TFT-H024A13VGIST5N40

Product type:TFT

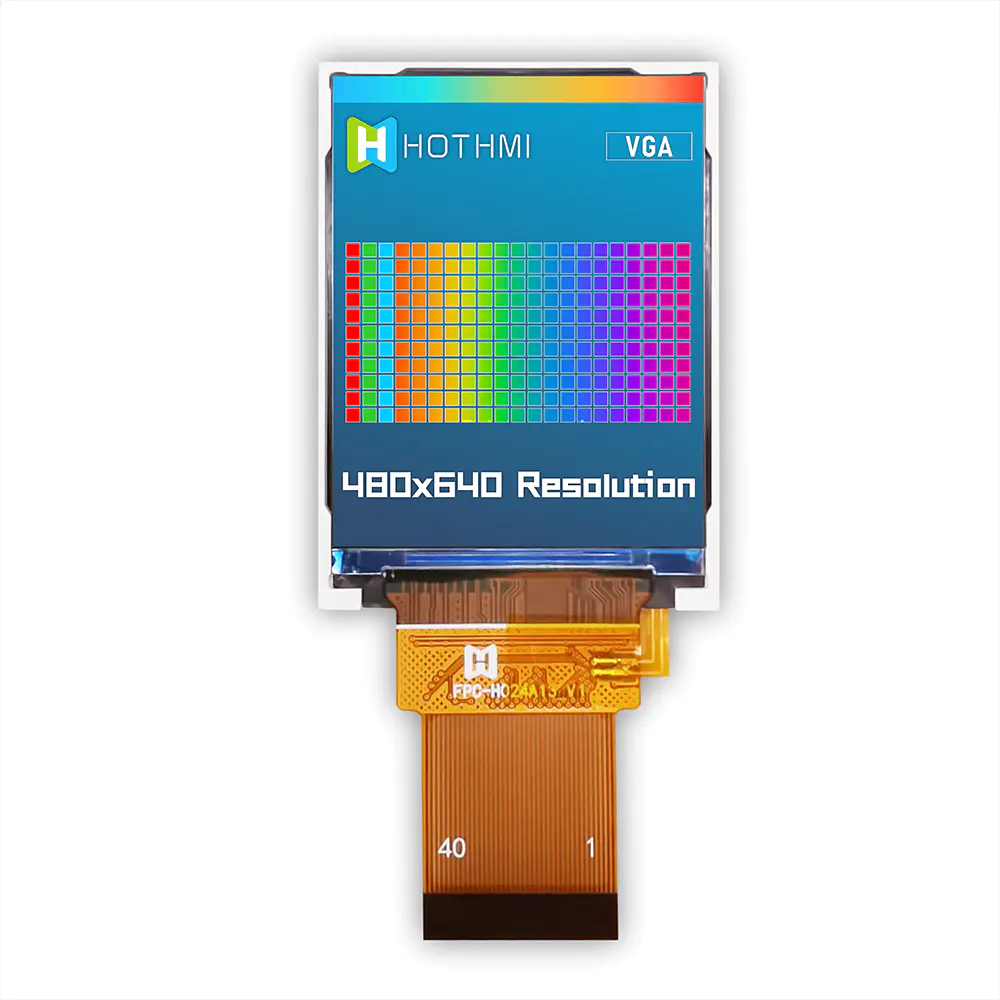

Show contents:480*640

Outline size(mm) :42.72*60.26*2.24

Size of View Window(mm):2.4"

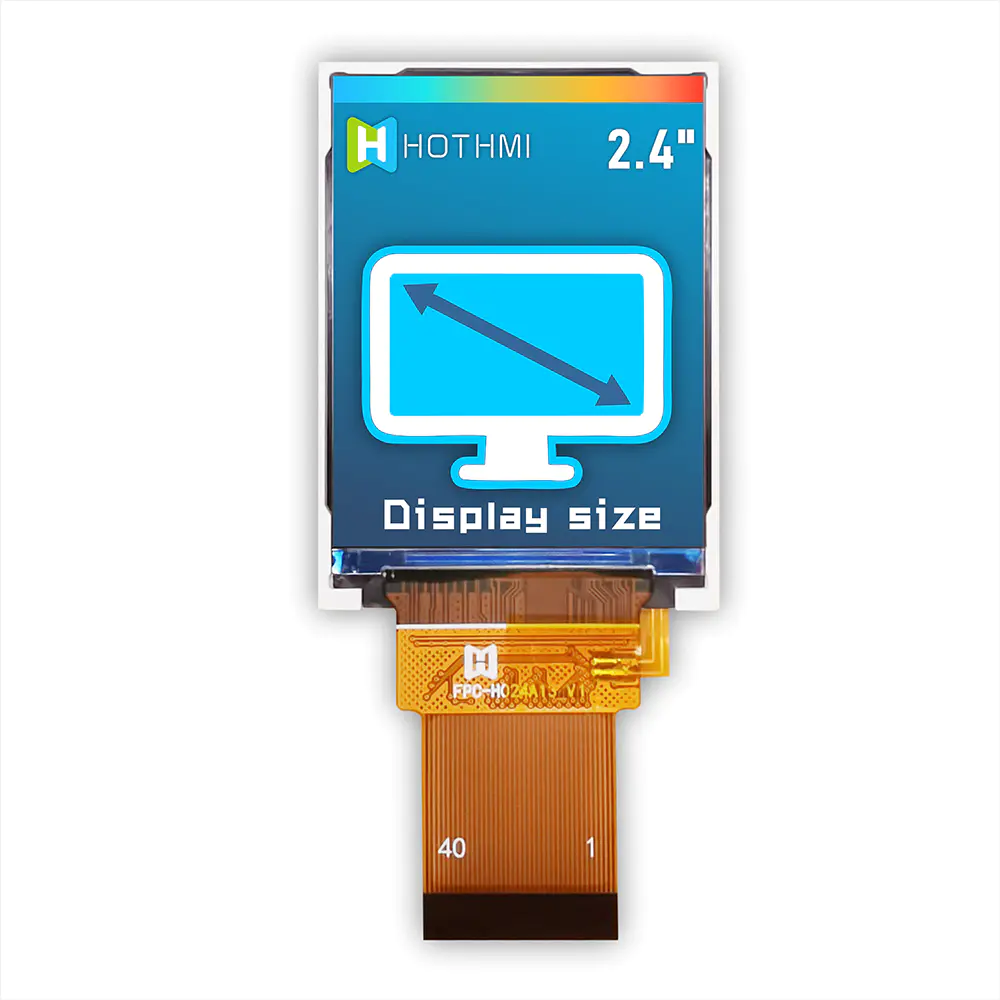

Display size(mm) :2.4"

Effective size(mm):36*72*48.96

Product application:Instrumentation

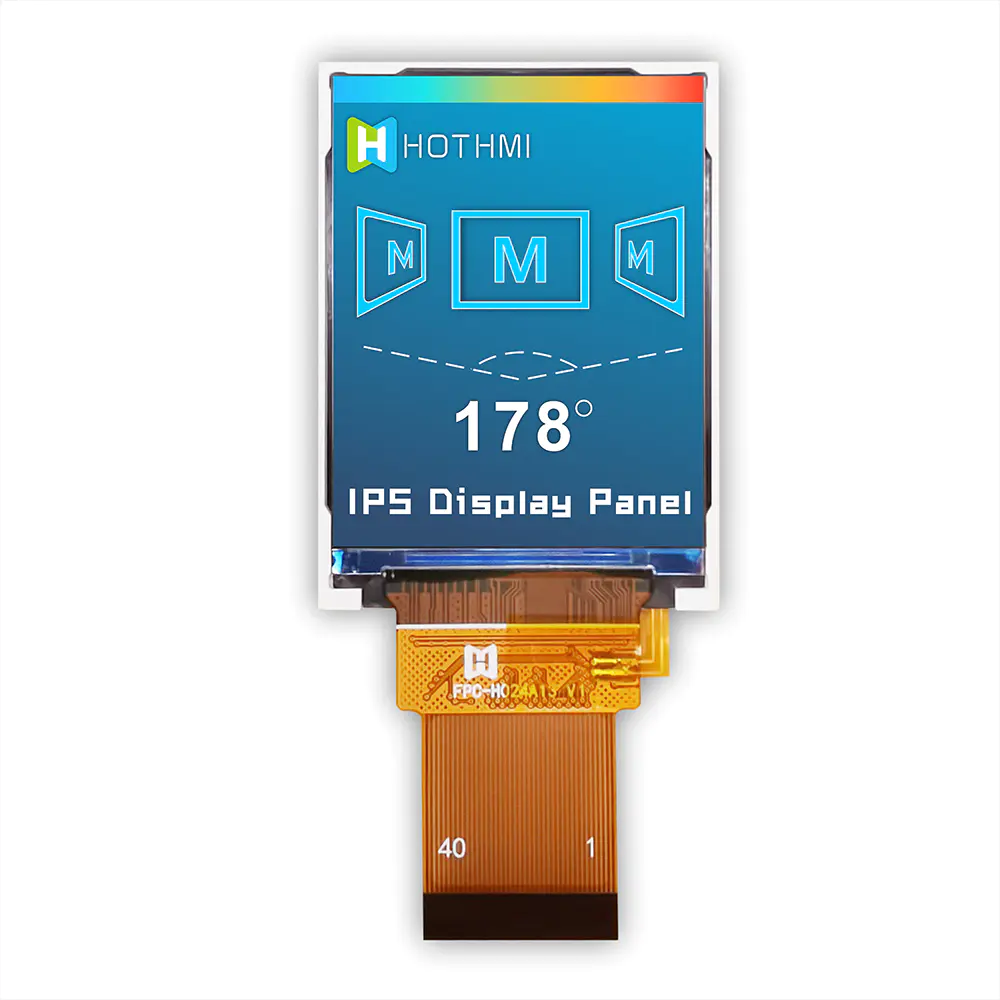

Visual angle:Full View

Backlight type or brightness:500cd/m2

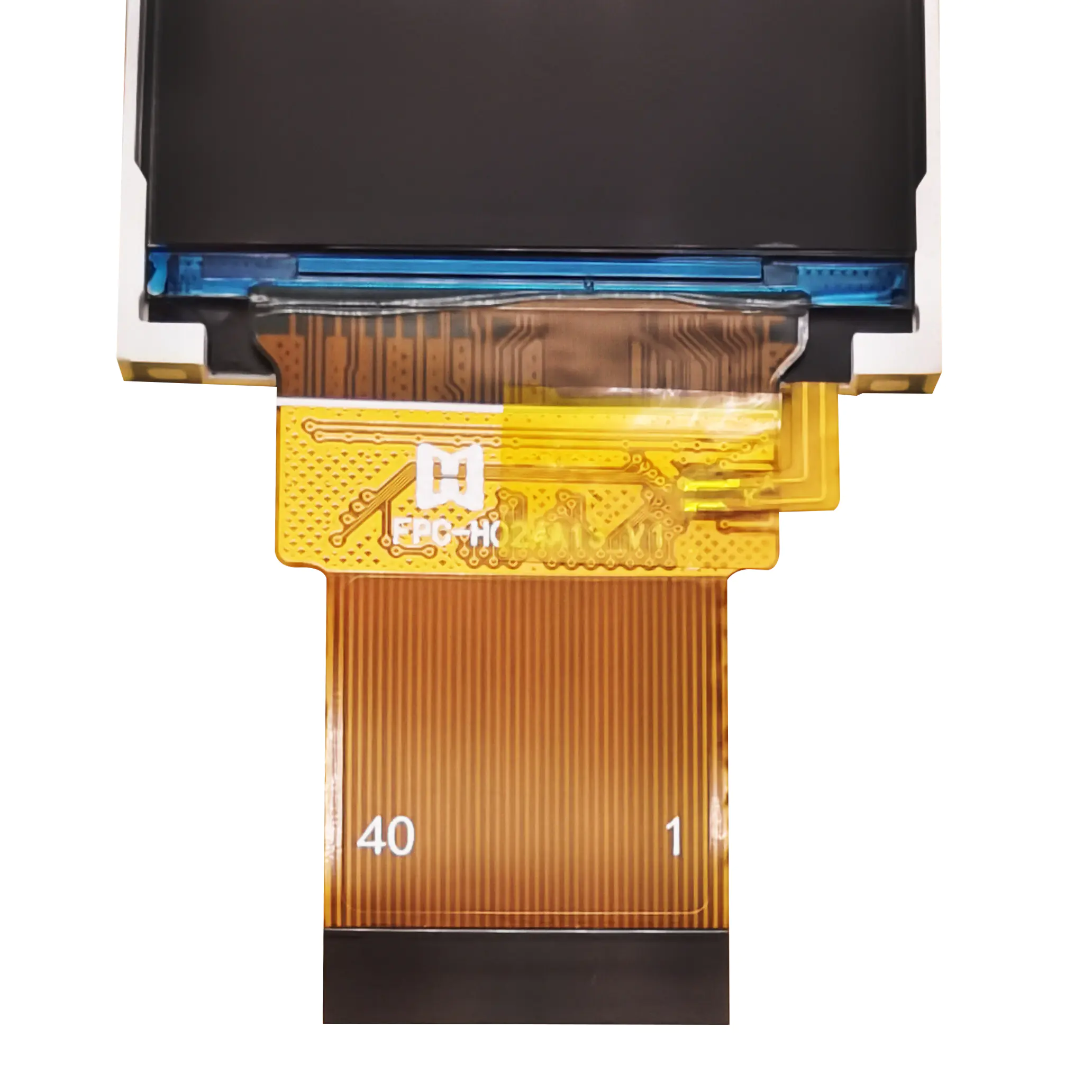

Connection PIN Number:FPC-40PIN

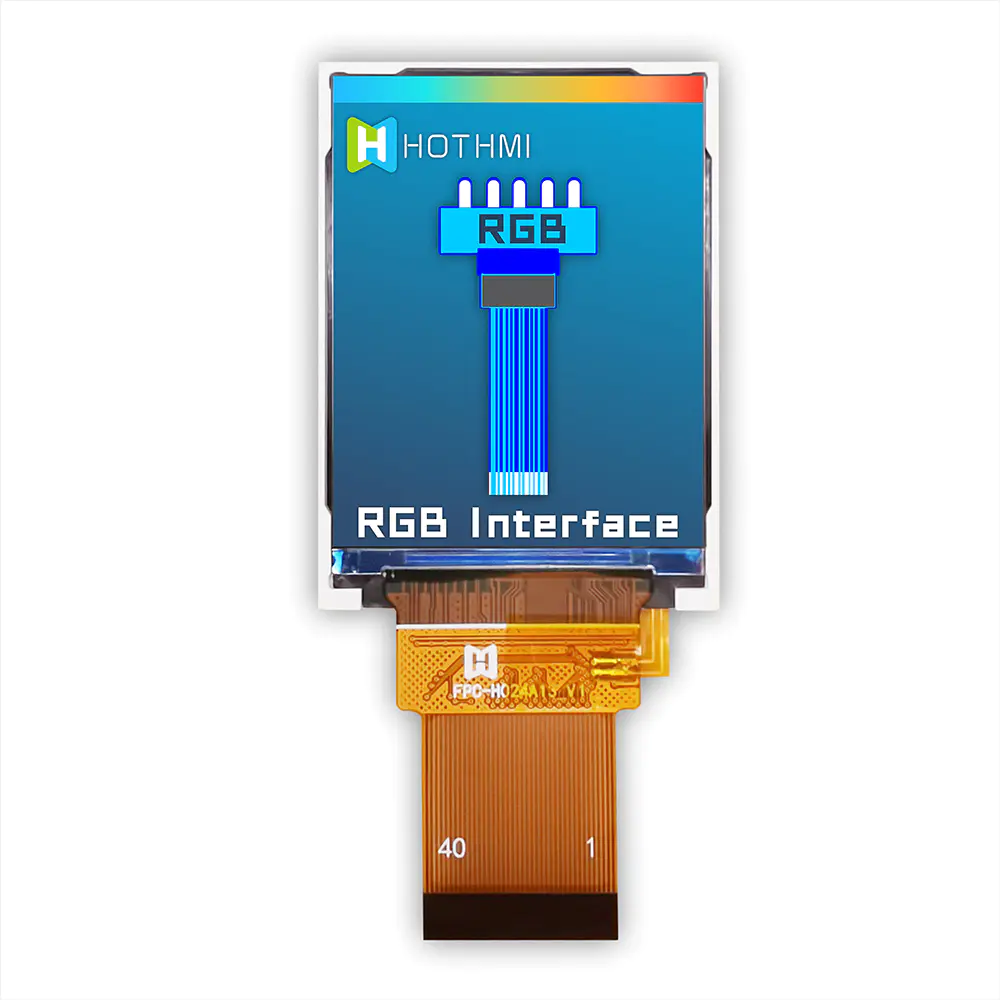

Interface mode:RGB +9b_3SPI

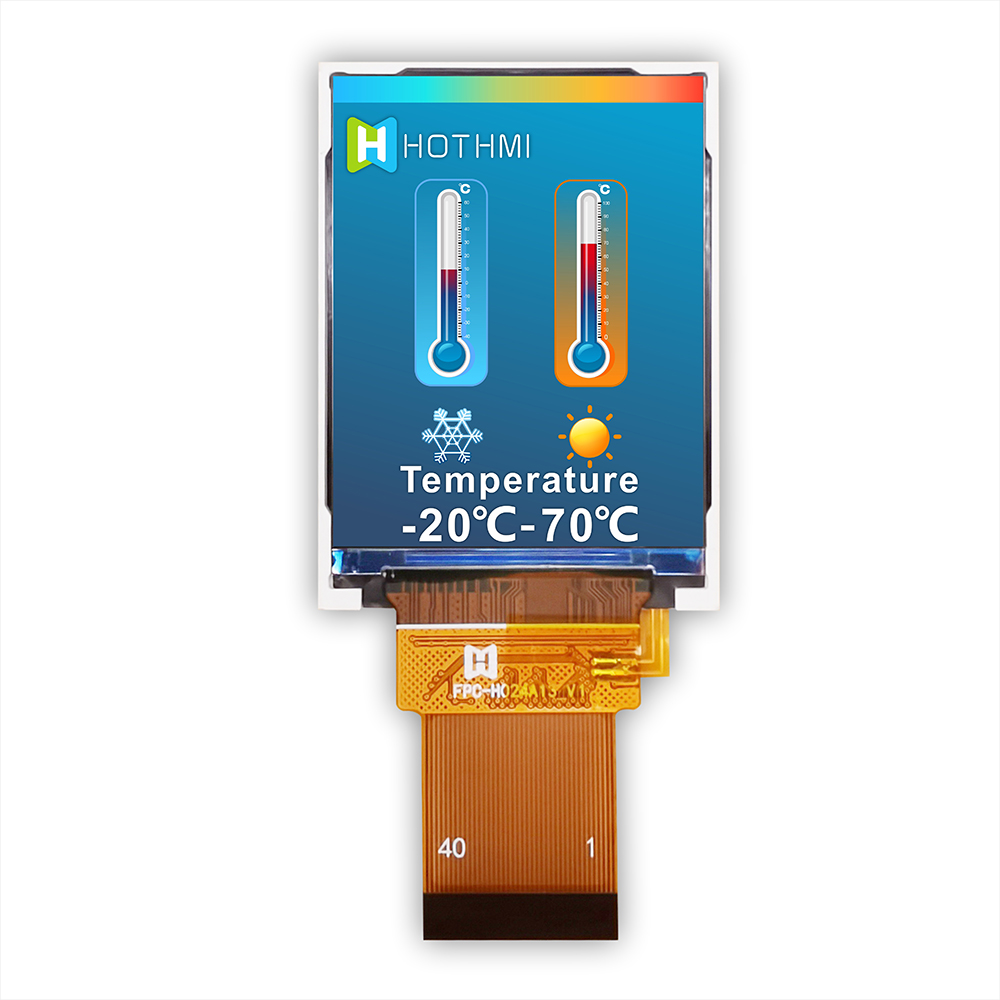

Working temperature:-20~70℃

Power supply voltage:3.3V

Driver chip model:ST7701S

CAD Drawings
