2.4 inch TFT /240*320 resoliution/highlight/Full View/MCU SPI interface/TFT-H024B11QVIST8N41
US$6.99
Add to wish list
Quantity
+
Product details

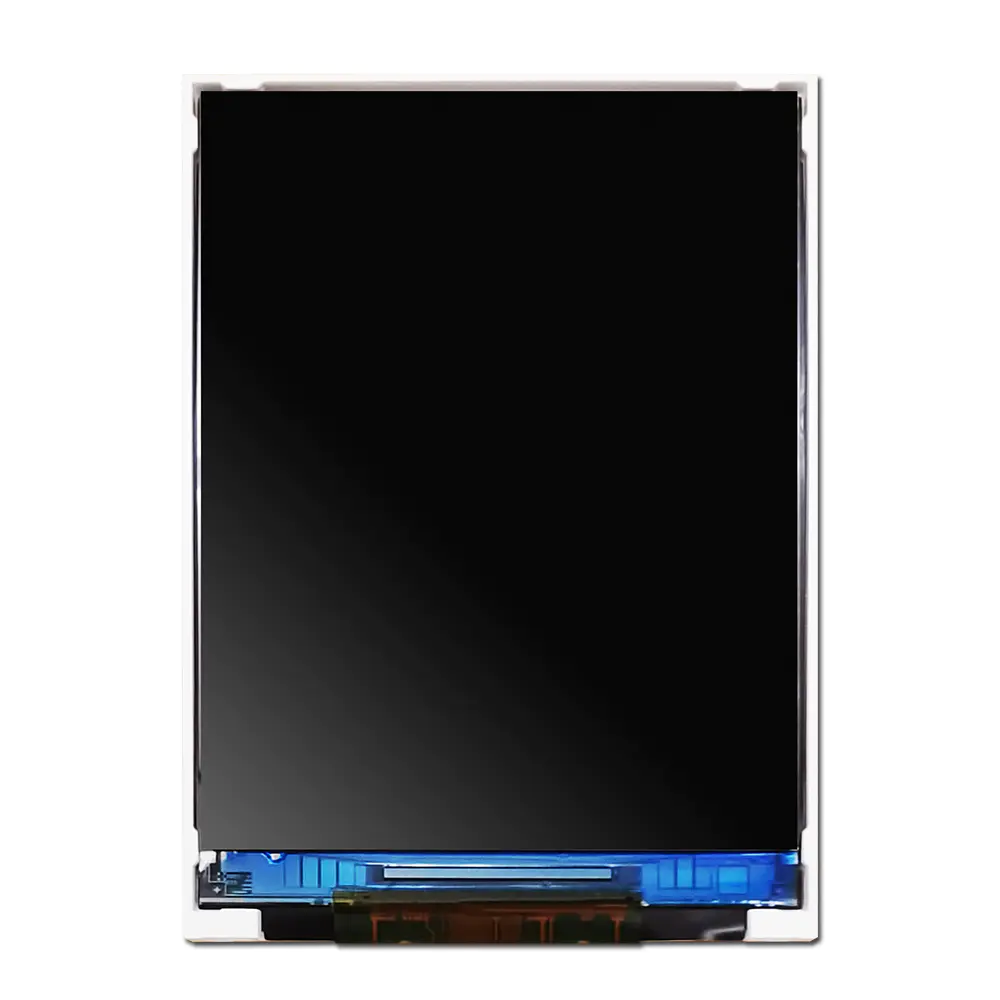

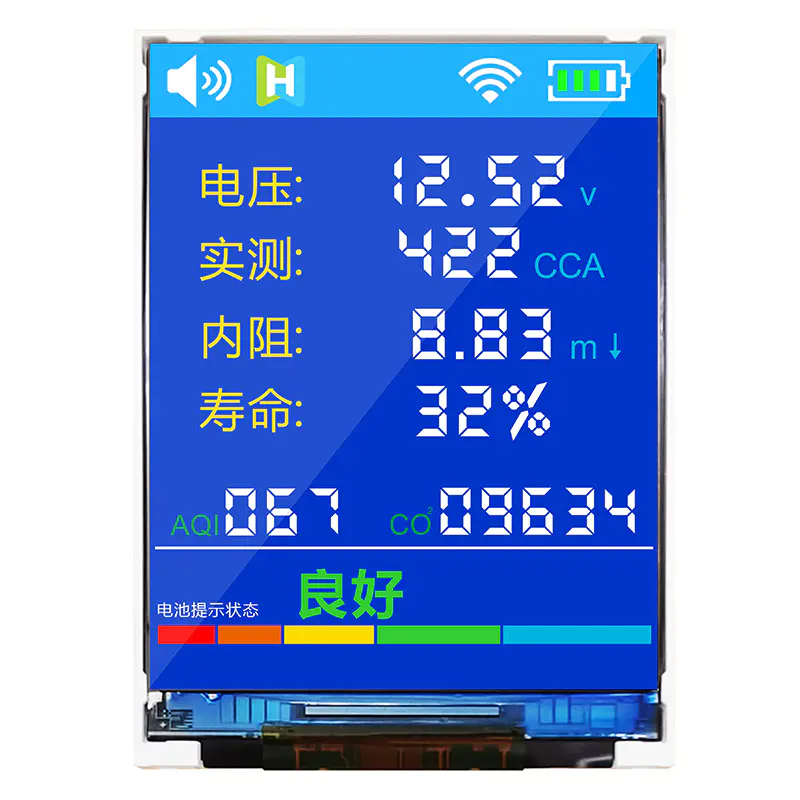

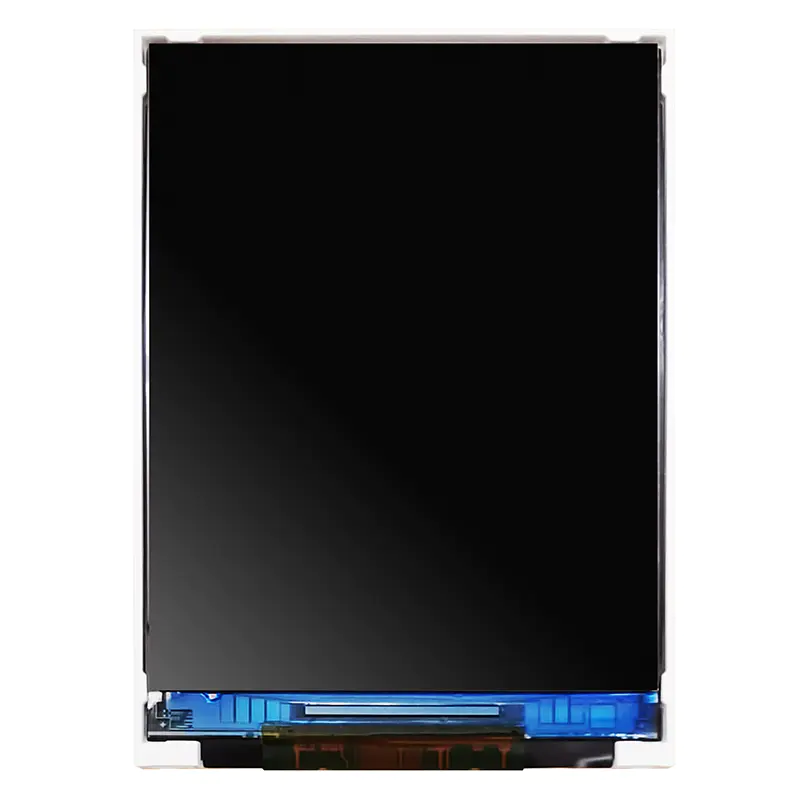

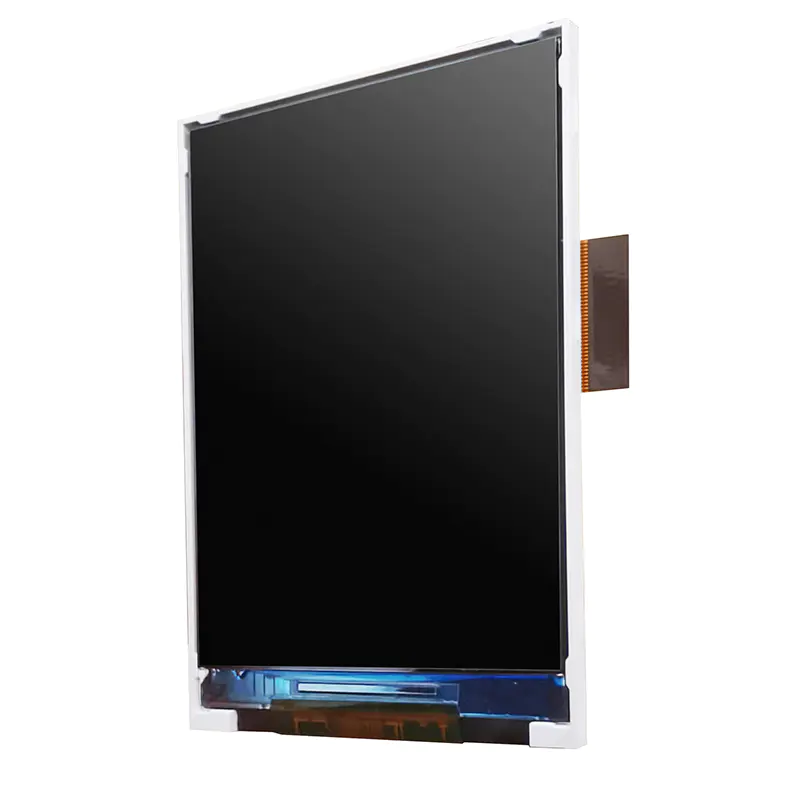

TFT-H024B11QVIST8N41 is a 2.4-inch TFT color LCD screen carefully designed by HOTLCD R&D team, 240*320 resolution, high image quality, wide viewing angle, 65K/262K true color, built-in ST7789V controller, support MCU 8/9 /16/18 interface and 3-wire SPI, 4-wire SPI serial interface, no need for peripheral circuits, 41PIN plug-in FPC can be connected to the main board (optional connector), single power supply DC2.8V power supply. This TFT module can be equipped with a touch screen, and all materials comply with the RoHS standard of environmental protection requirements. It is widely used in various instruments, smart devices, analytical instruments, hand-held instruments, driving recorders, etc. : 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi, etc.
Model : 2.4 inch TFT /240*320 resoliution/highlight/Full View/MCU SPI interface/TFT-H024B11QVIST8N41

Product type:TFT

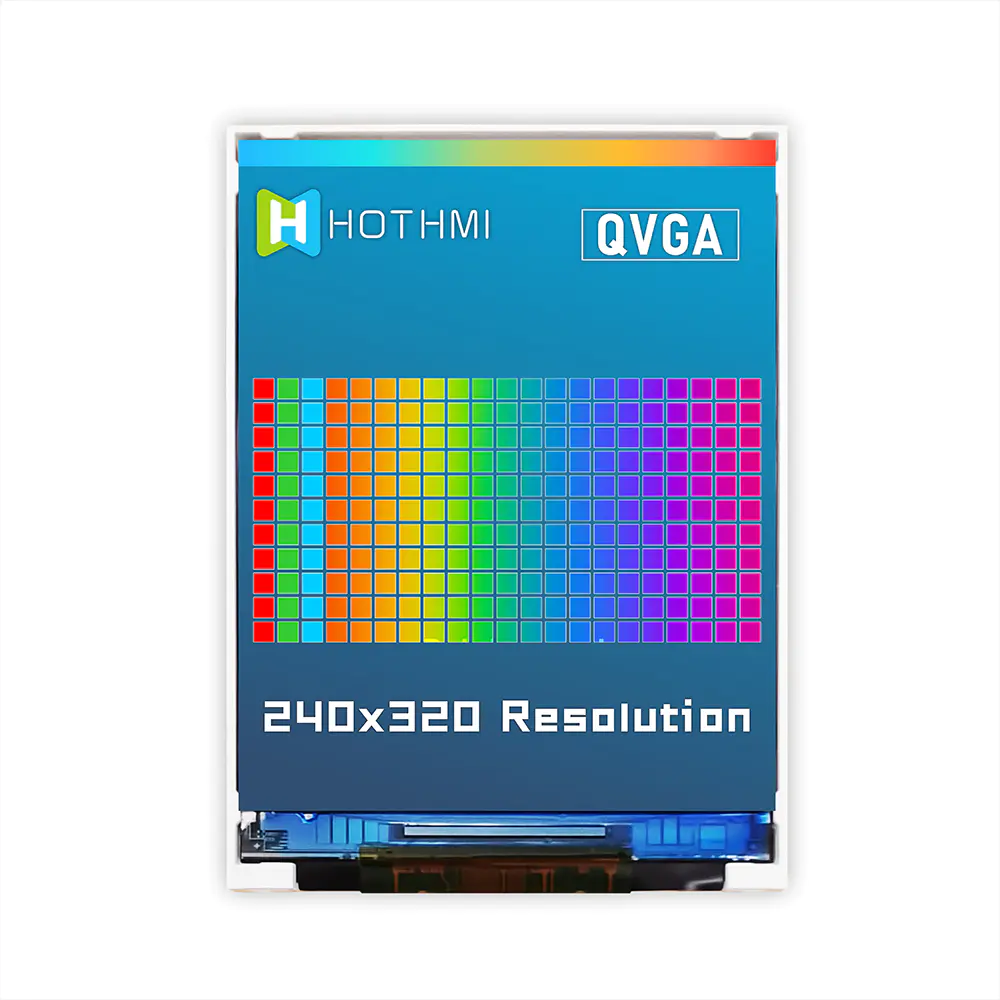

Show contents:240*320

Outline size(mm) :42.52*59.86*2.20

Size of View Window(mm):2.4"

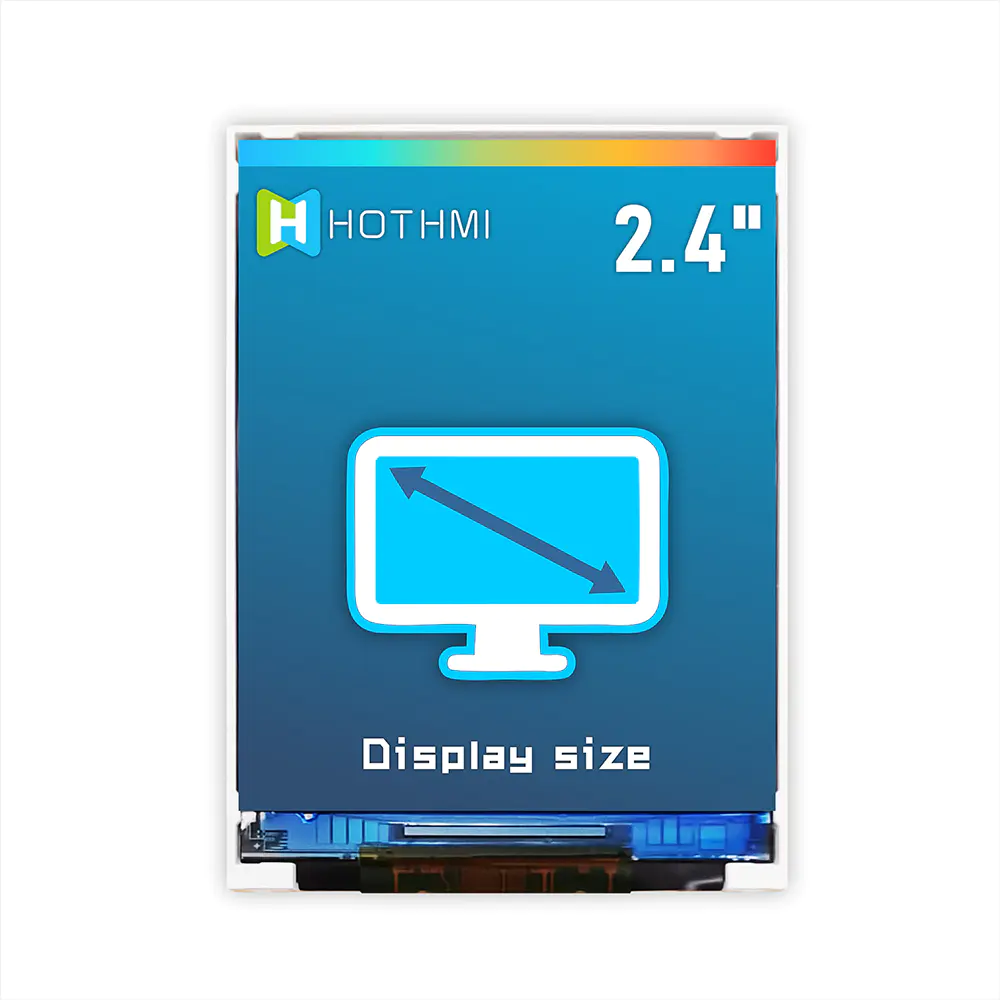

Display size(mm) :2.4"

Effective size(mm):36.72*48.96

Product application:Instrumentation

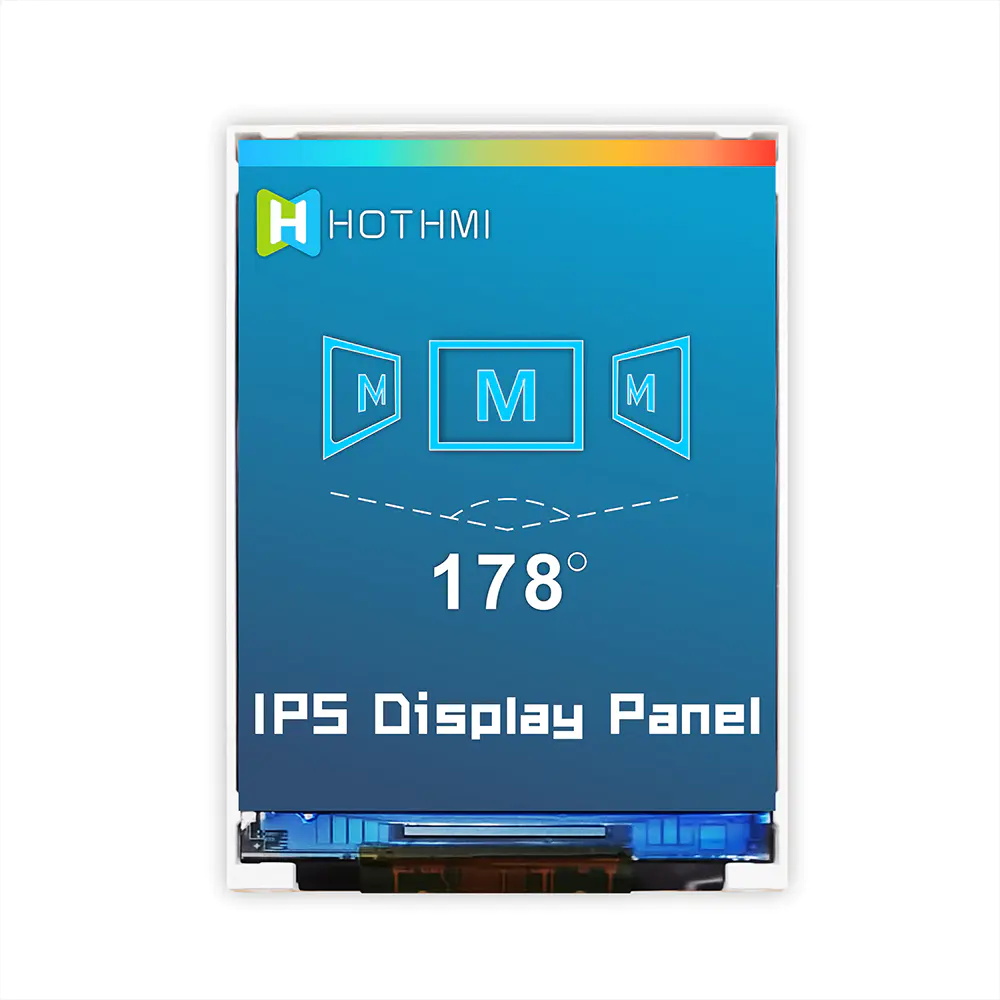

Visual angle:Full View

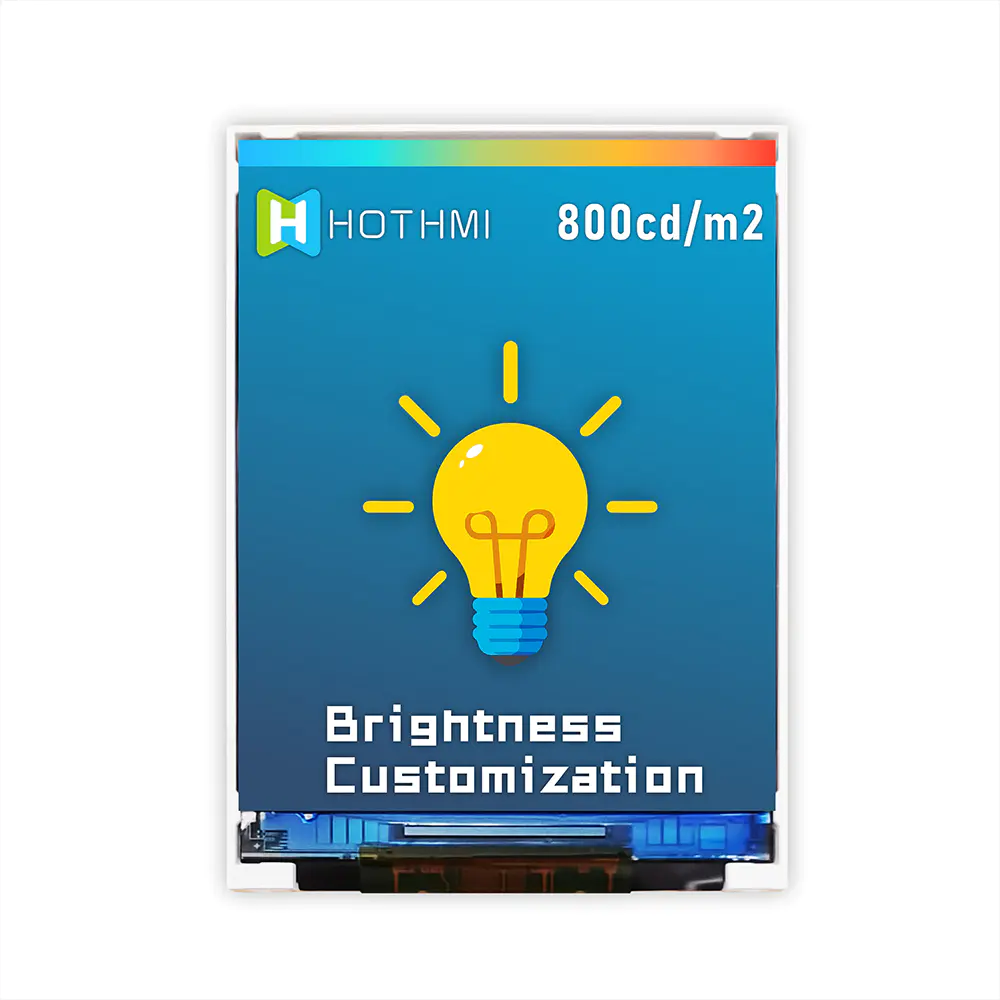

Backlight type or brightness:800cd/m2

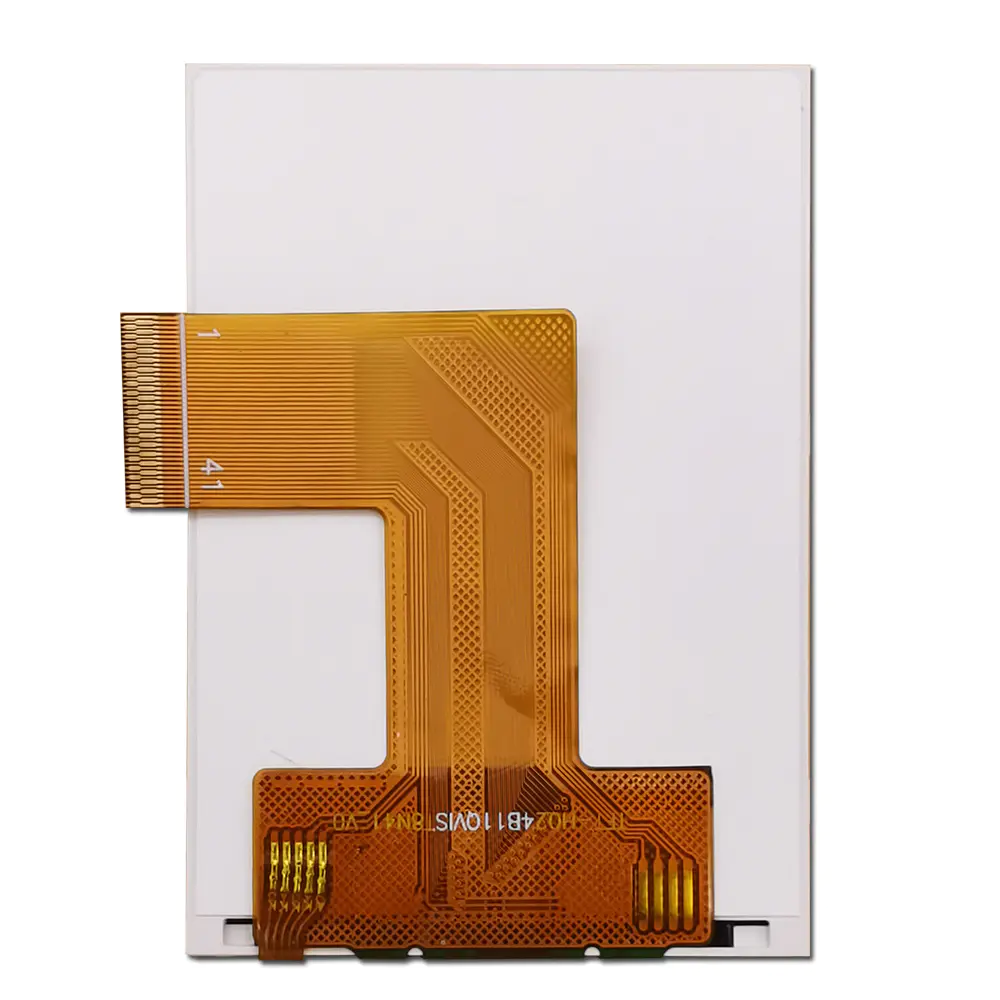

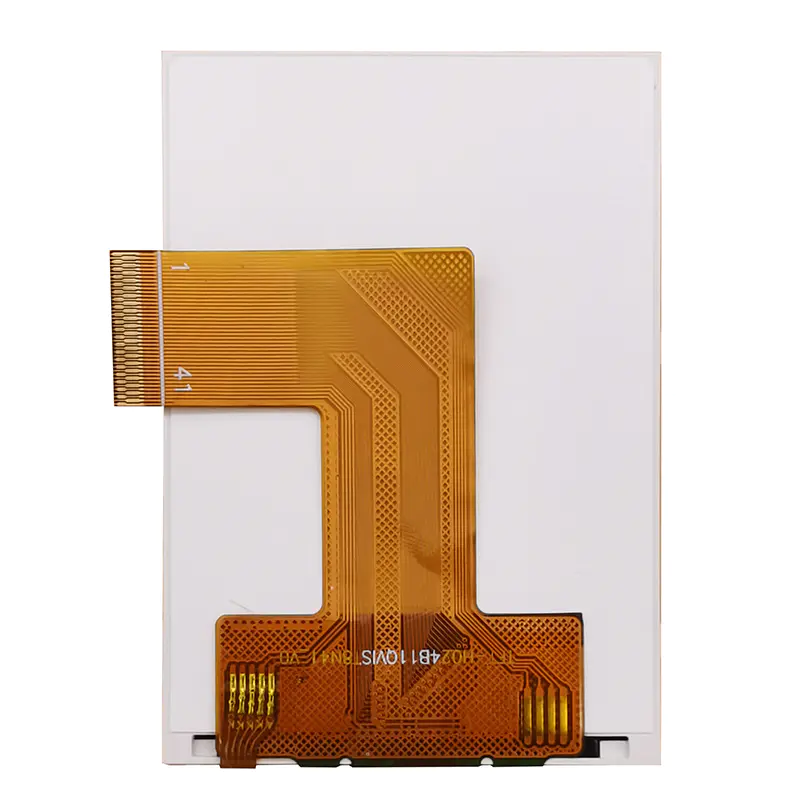

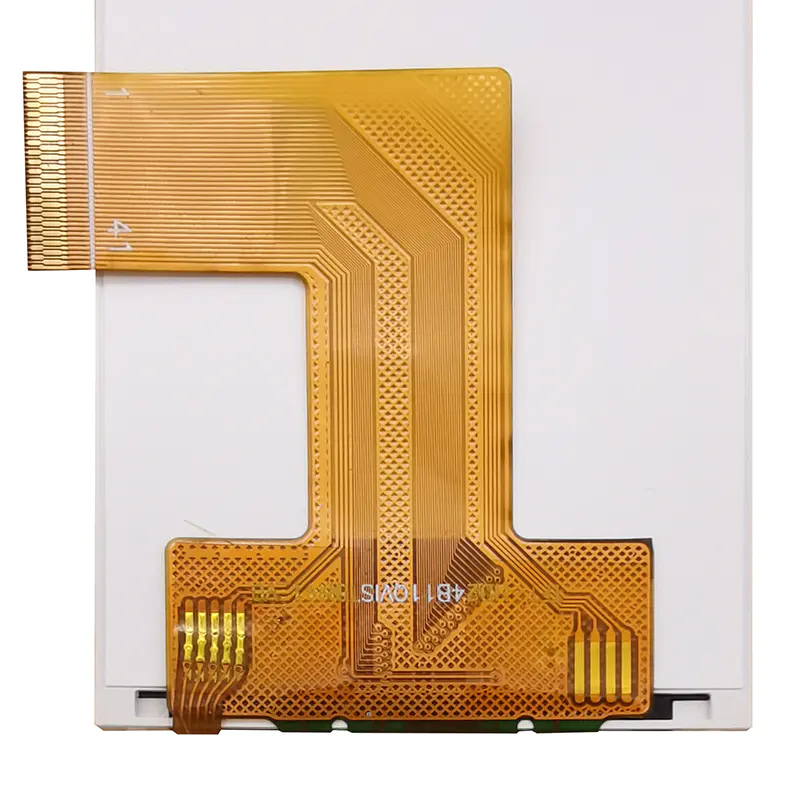

Connection PIN Number:FPC-41PIN

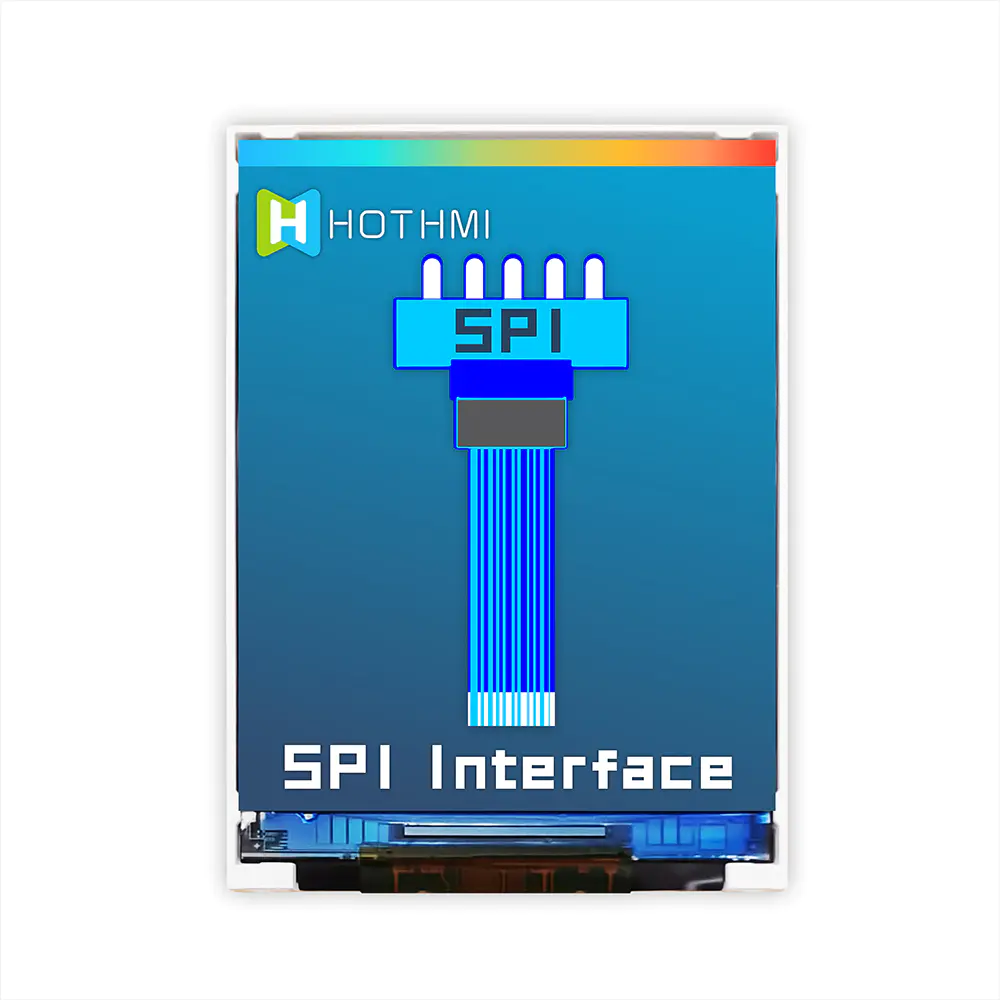

Interface mode:MCU ,SPI

Special instructions:MCU 8/9/16/18 ,SPI 3L/4L

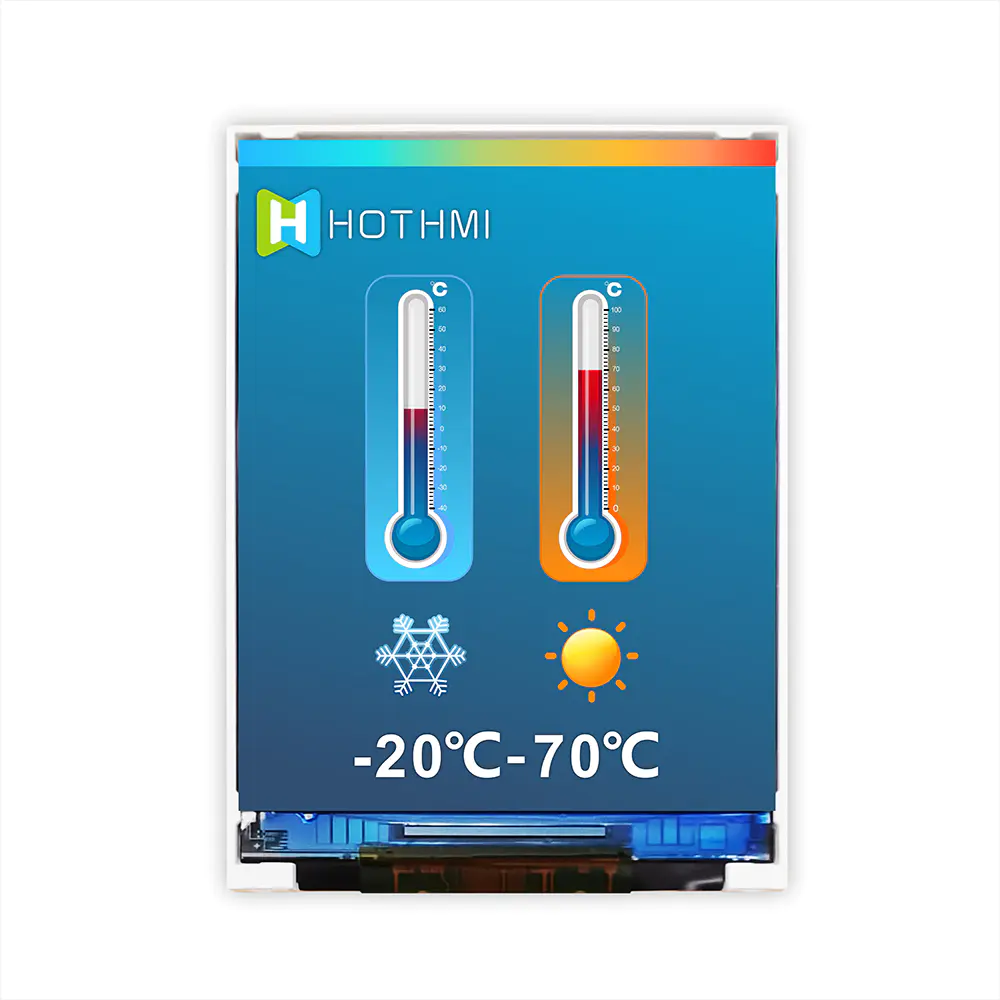

Working temperature:-20~70℃

Power supply voltage:3.2V

Driver chip model:ST7789V

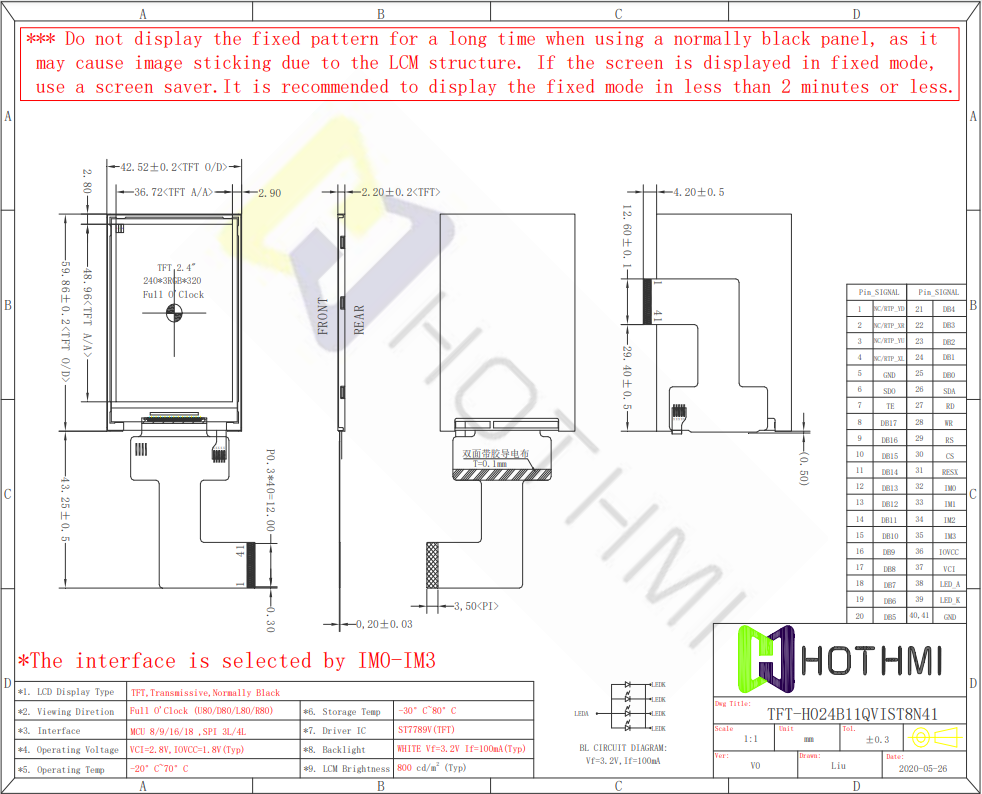

CAD Drawings
