2.4 inch TFT /240*320 resoliution/full view/MIPI Interface/TFT-H024B12QVIFT8N15
2.4 inch TFT /240*320 resoliution/full view/MIPI Interface/TFT-H024B12QVIFT8N15
$6.14
Add to wish list
Quantity
+
Product details

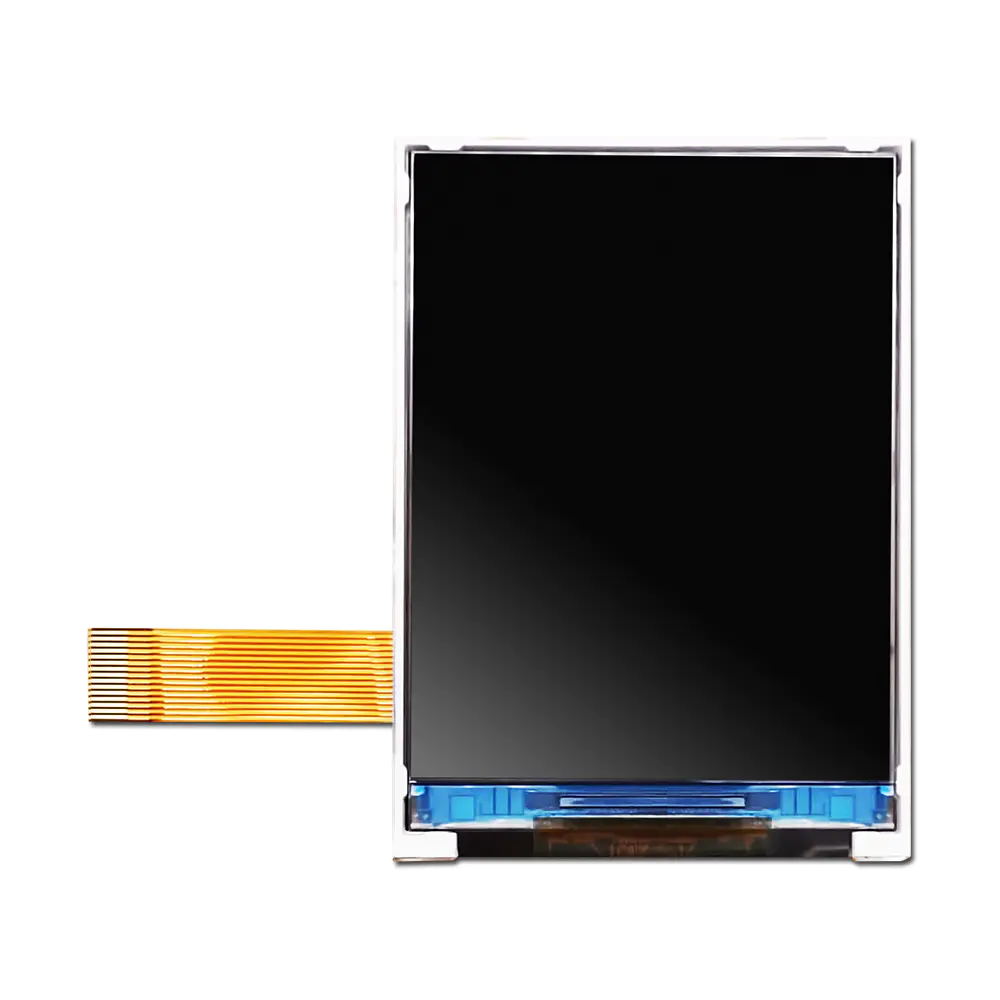

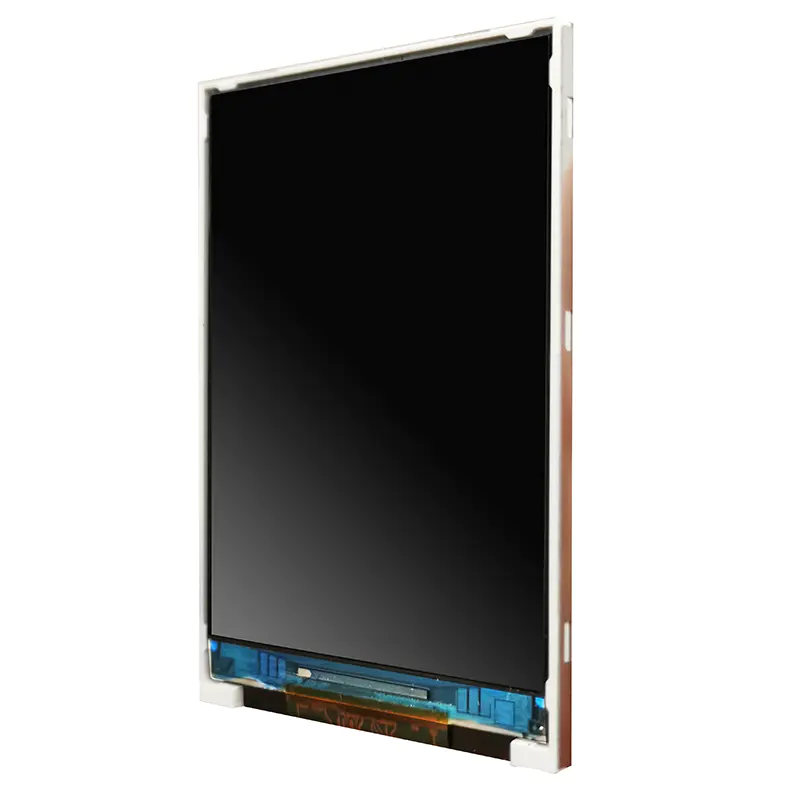

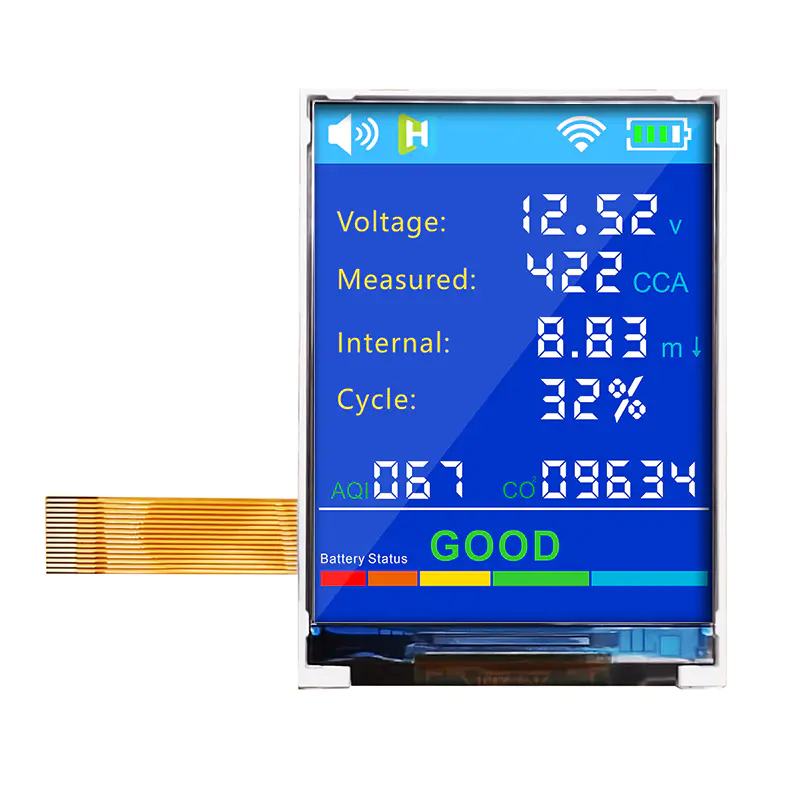

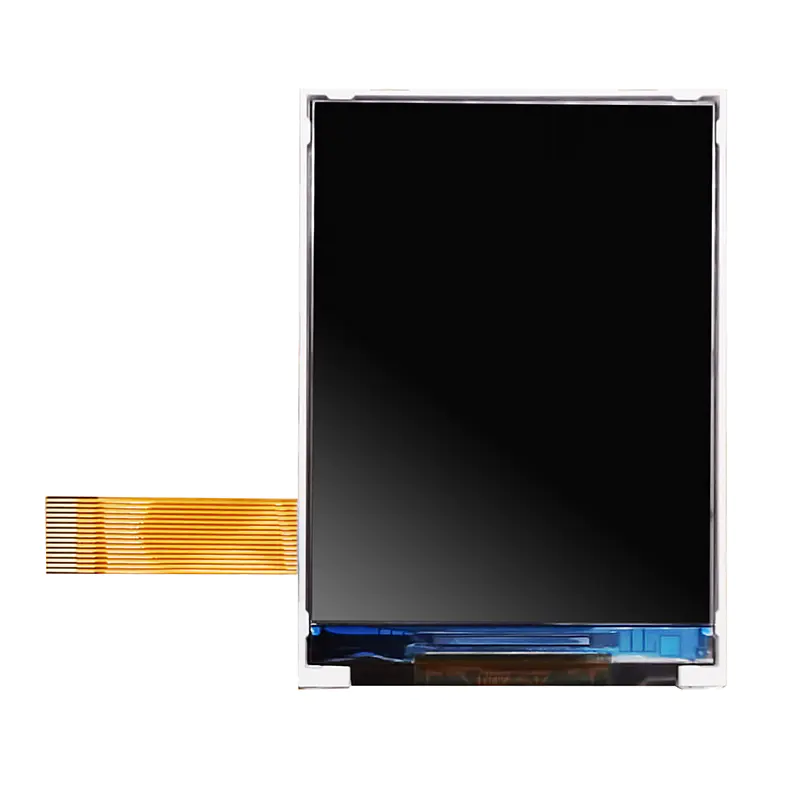

TFT-H024B12QVIFT8N15 is a 2.4-inch TFT color LCD screen carefully designed by the HOTLCD R&D team, 240*320 resolution, high image quality, wide viewing angle, 65K/262K true color, built-in JD9852 controller, support MIPI interface, no peripheral circuit required, 15PIN The plug-in FPC can be connected to the motherboard (optional connector), and the single power supply DC 3.2V power supply. The TFT module can be equipped with a touch screen, and all materials are RoHS compliant. Widely used in various instruments, smart devices, analytical instruments, handheld instruments, driving recorders, etc.: 8051, PIC, AVR, ARDUINO, ARM, Raspberry Pi, etc.
2.4 inch TFT /240*320 resoliution/full view/MIPI Interface/TFT-H024B12QVIFT8N15, TFT LCD, COG LCD, Shenzhen LCM, Shenzhen LCD, LCM, OLED, LCD Graphic,LCD Chip-on-Glass, backlight, LCD Character, hotdisplay, HOTLCD, COG, MONO TFT
Model : 2.4 inch TFT /240*320 resoliution/full view/MIPI Interface/TFT-H024B12QVIFT8N15

Product type:TFT

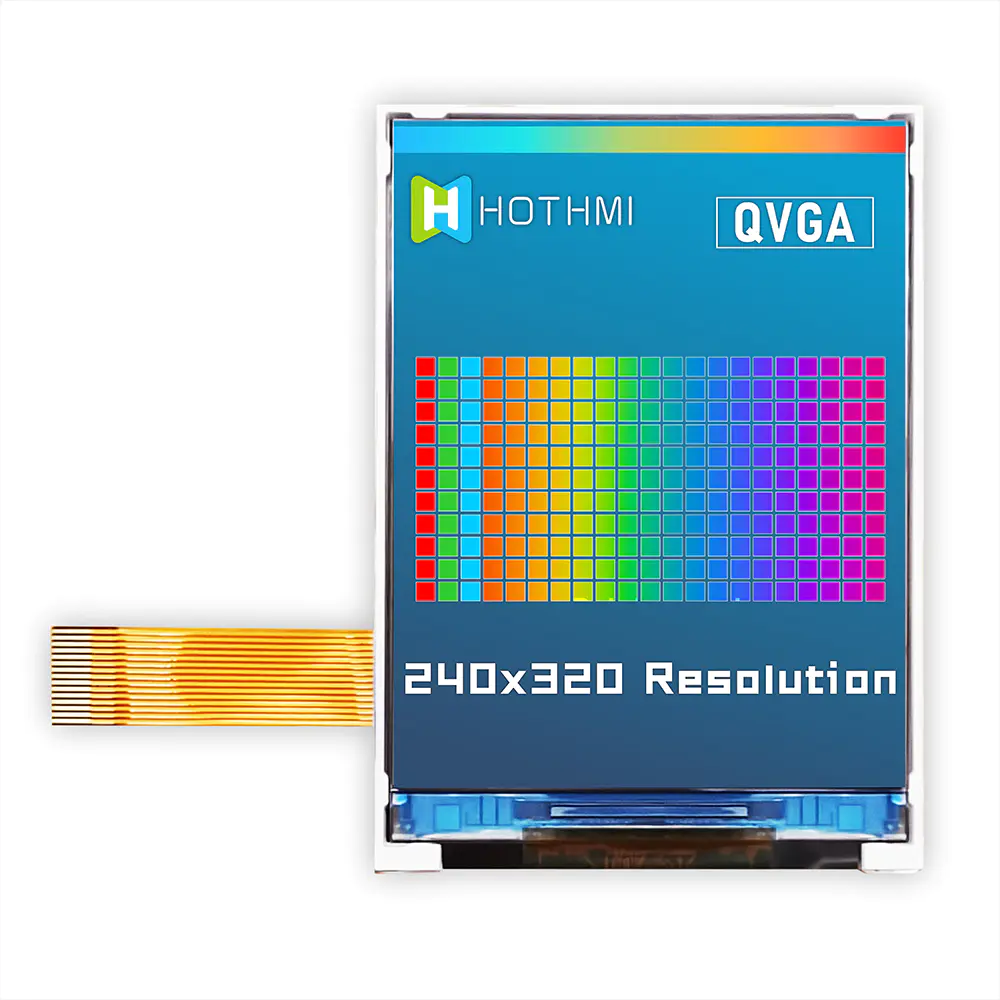

Show contents:240*320

Outline size(mm) :42.52*59.86*2.20

Size of View Window(mm):2.4"

Display size(mm) :2.4"

Effective size(mm):36.72*48.96

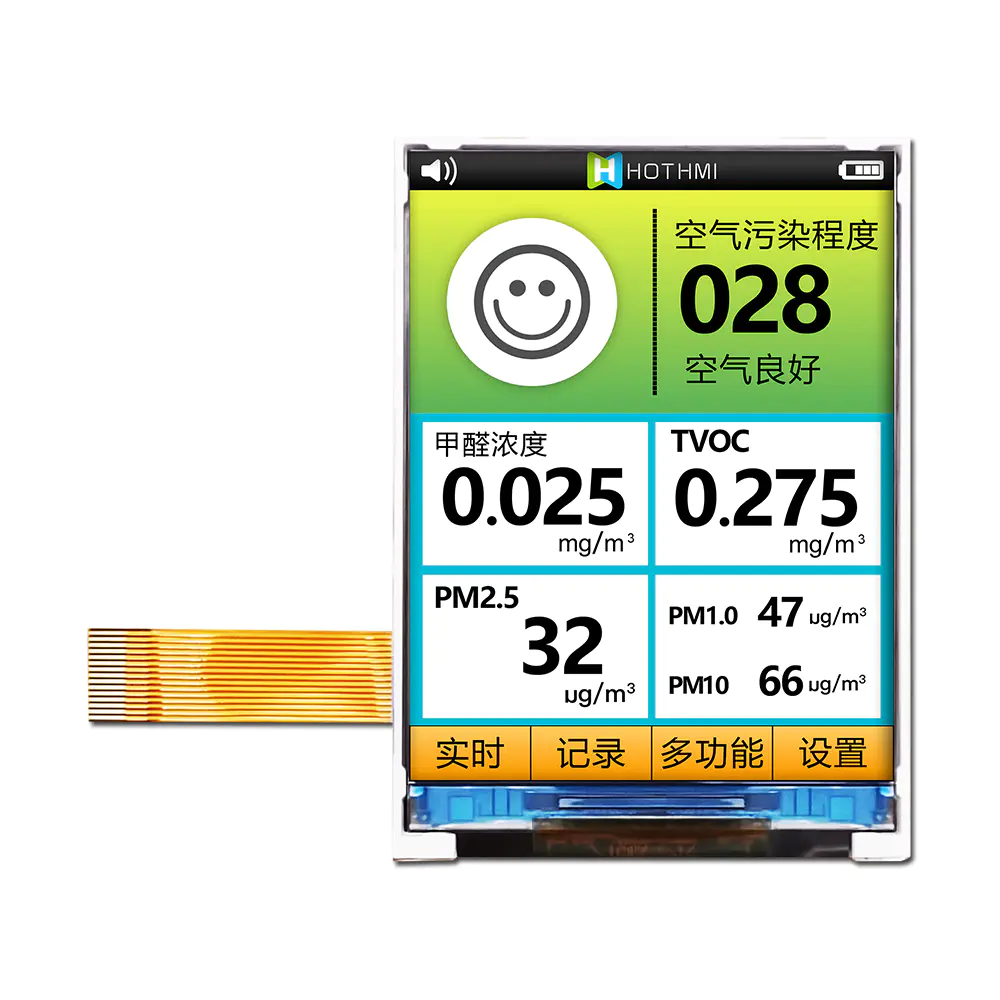

Product application:Instruments and apparatus

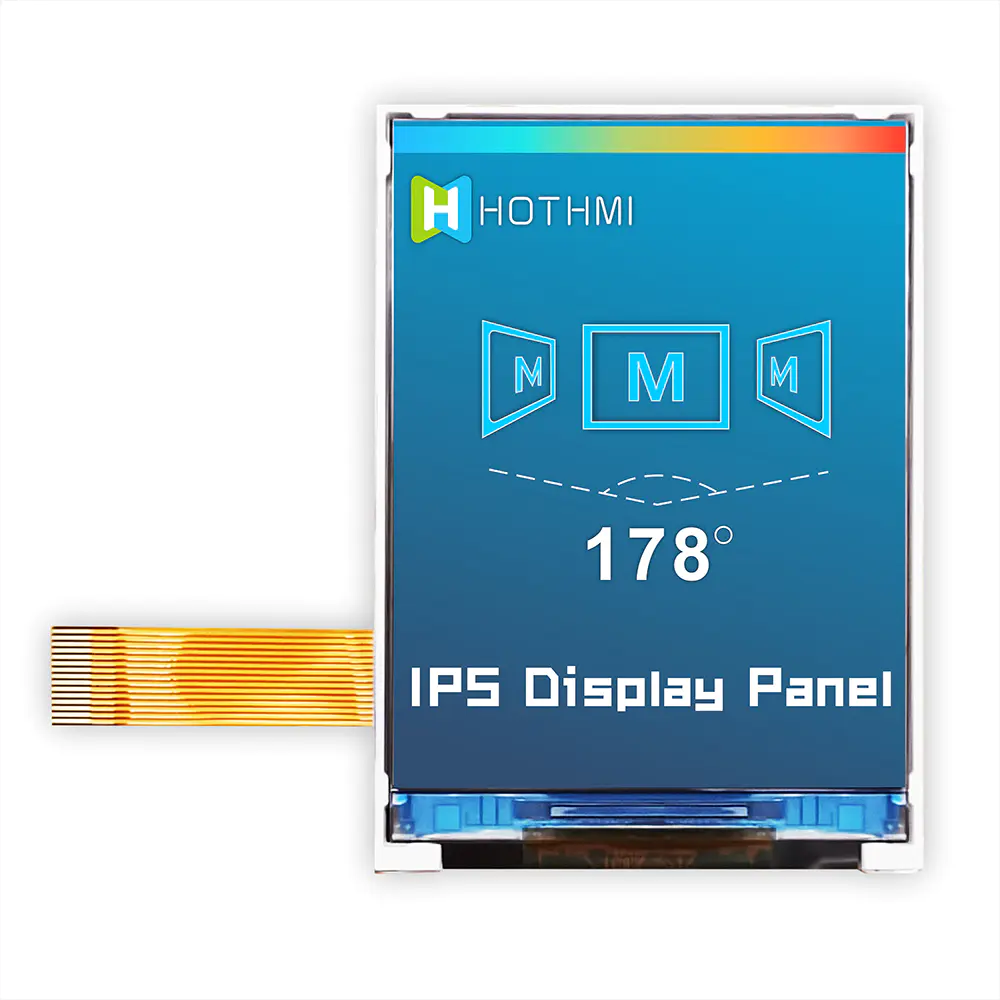

Visual angle:Full View

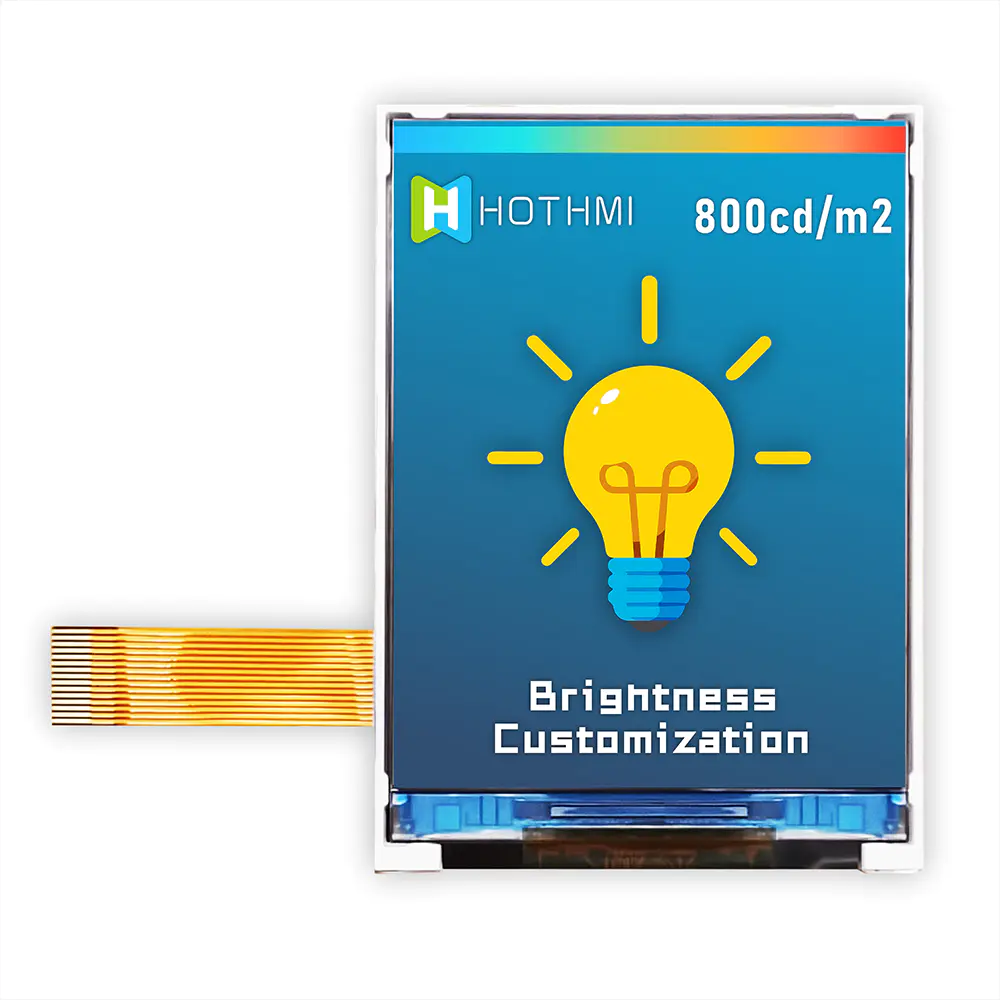

Backlight type or brightness:800cd/m2

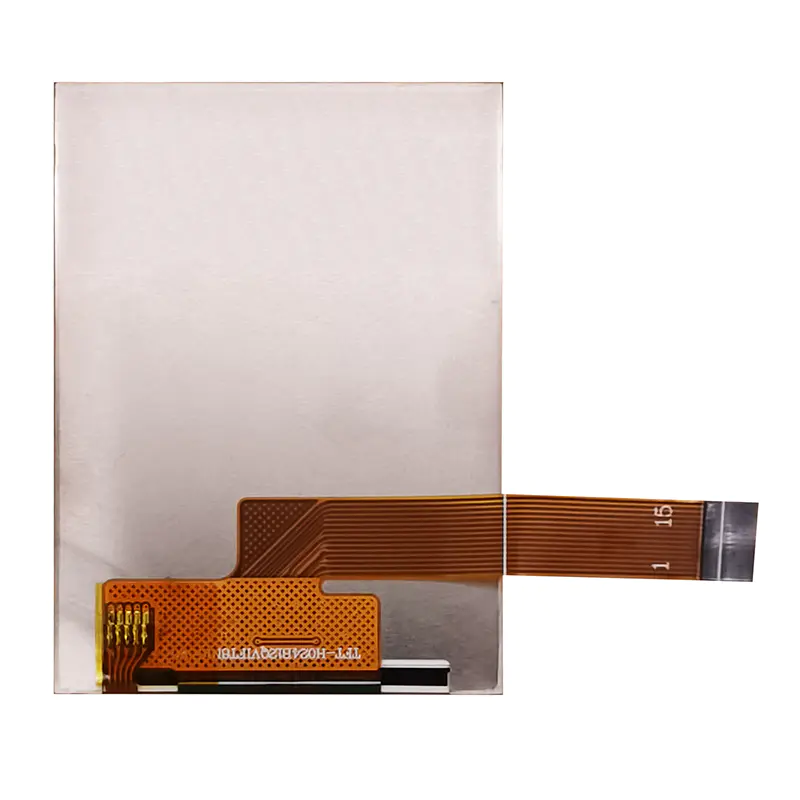

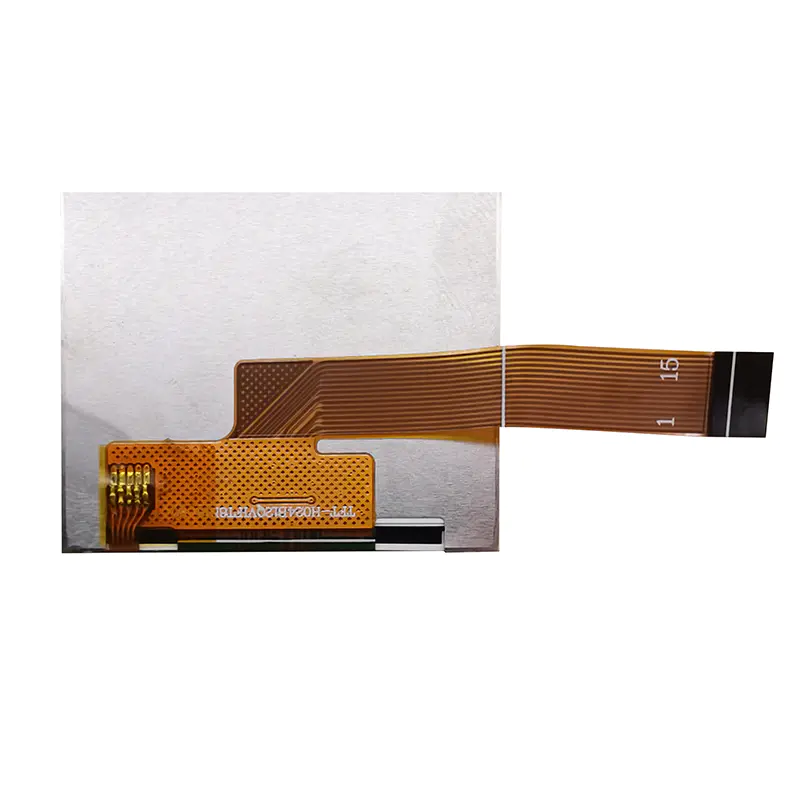

Connection PIN Number:FPC-15PIN

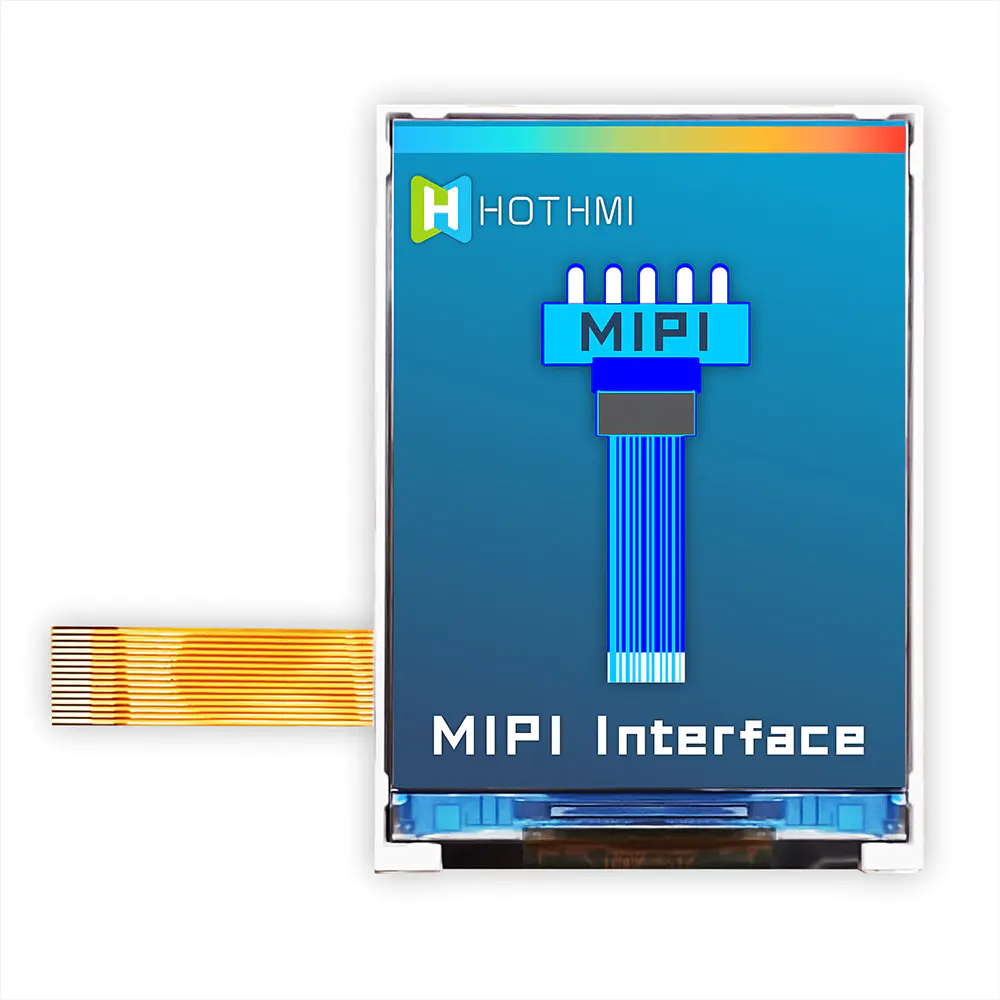

Interface mode:MIPI

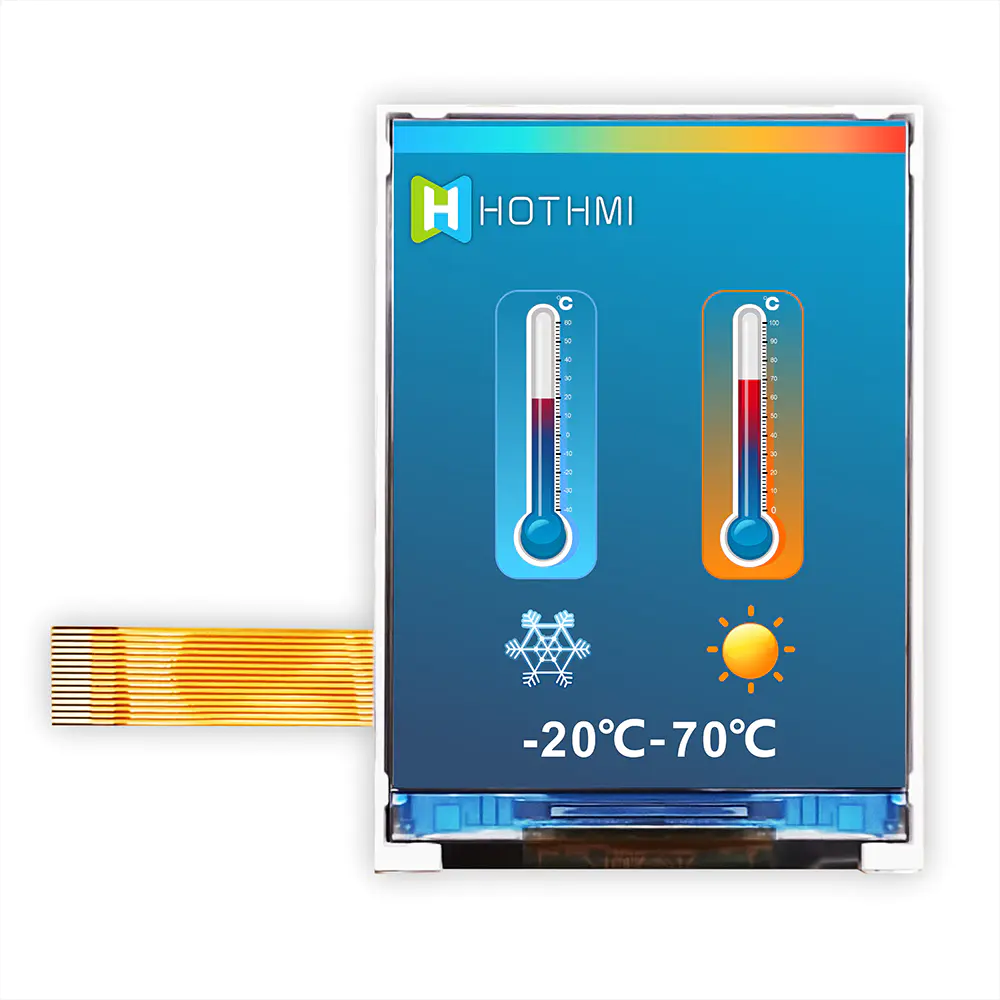

Working temperature:-20~70℃

Power supply voltage:3.3V

Driver chip model:JD9852

CAD Drawings
