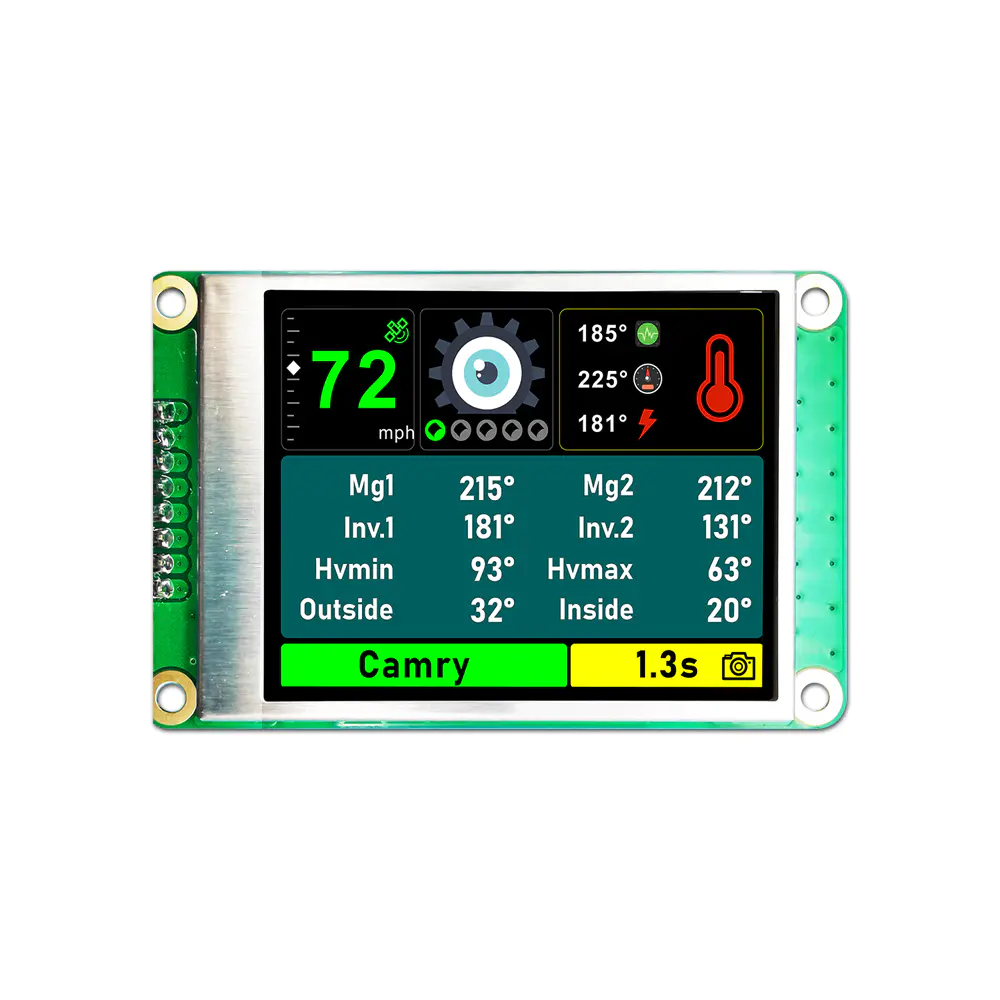

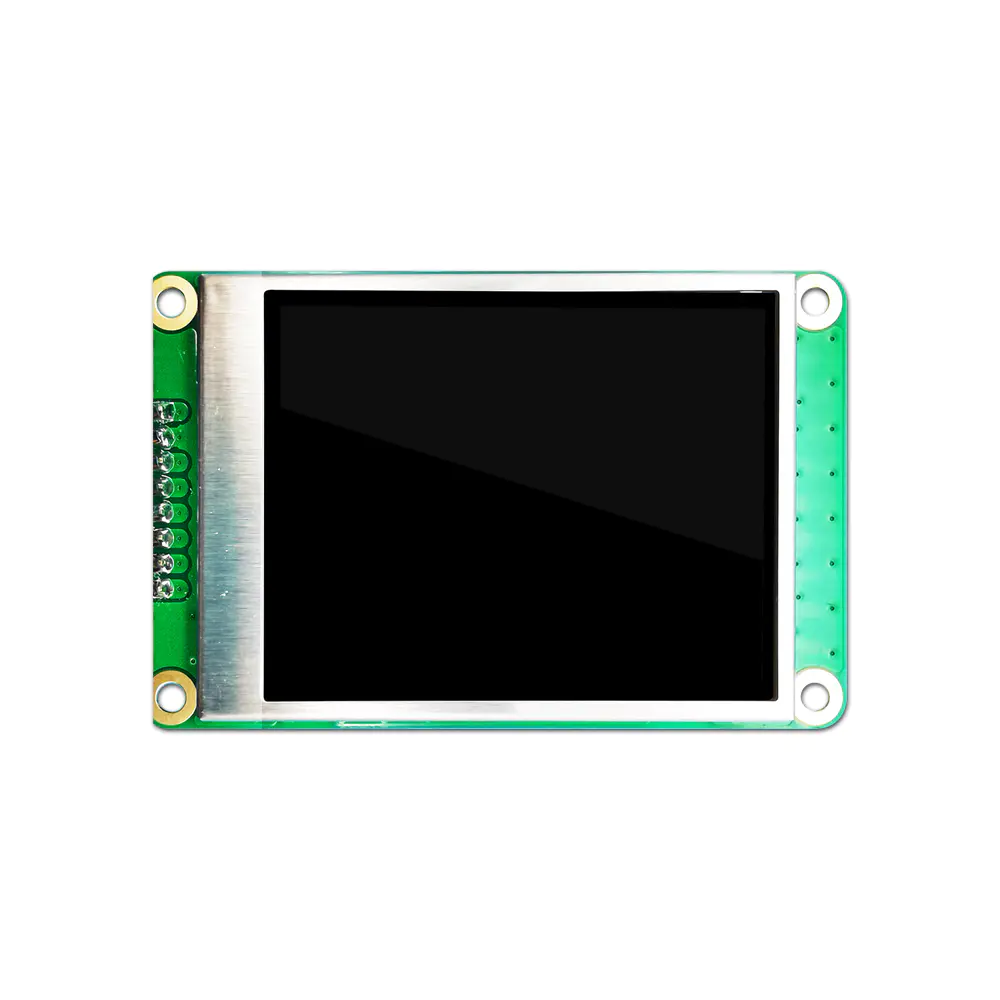

HTM-TFT024A16-SPI is a 2.4-inch TFT color LCD panel display screen carefully designed by HOTLCD R&D team, 240*320 resolution, high image quality, wide viewing angle, 65K/262K true color, built-in ST7789V controller, support MCU SPI-4L interface , 8PIN plug-in FPC can be connected to the motherboard (optional connector), single power supply DC 3.3V power supply. The TFT module can be equipped with a touch screen and all materials are RoHS compliant. Widely used in various instruments, smart devices, analytical instruments, handheld instruments, driving recorders, etc.: 8051, PIC, AVR, ARDUINO, ARM, Raspberry Pi, etc.

2.4 inch TFT /240*320 resoliution/Full viewing angle/HTM-TFT024A16-SPI

Product type: TFT vertical screen

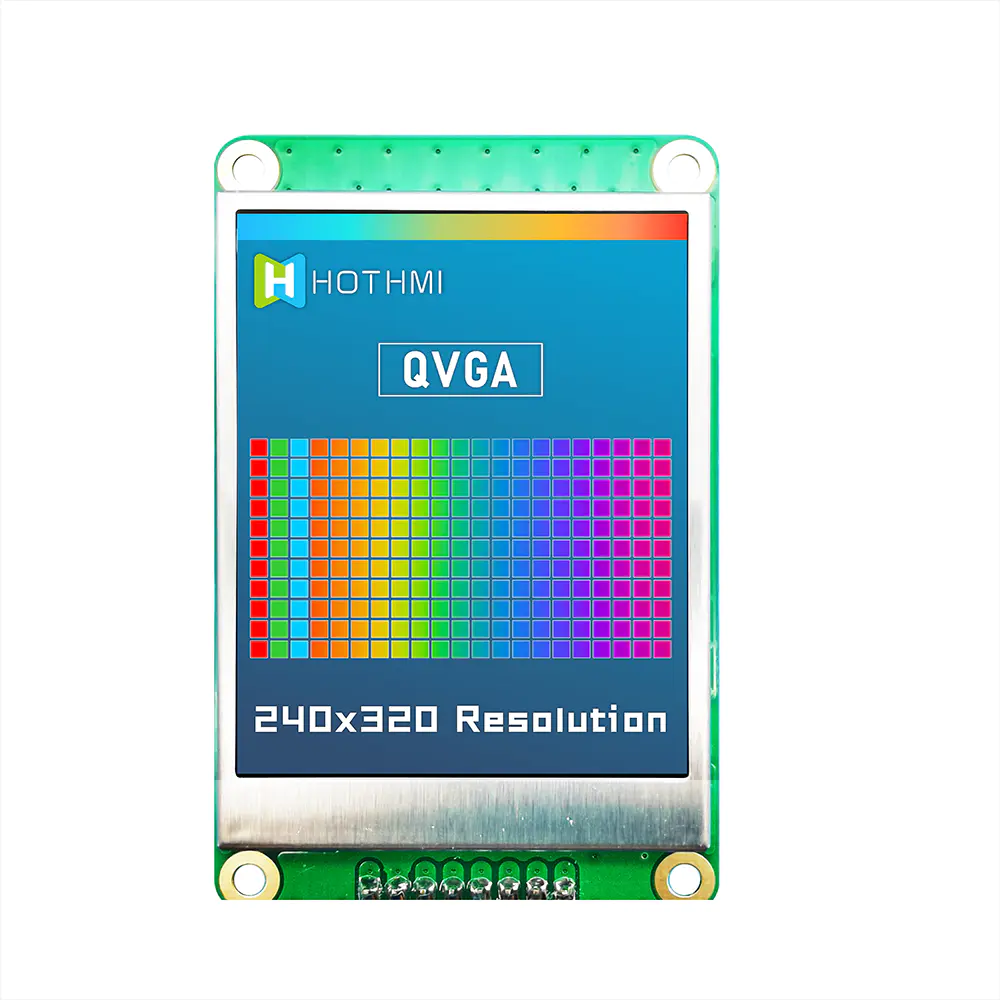

Display content: 240*320

Dimensions (mm): 73.35(H) ×46.07(V)× 4.95(D)

Window size (mm): 2.4"

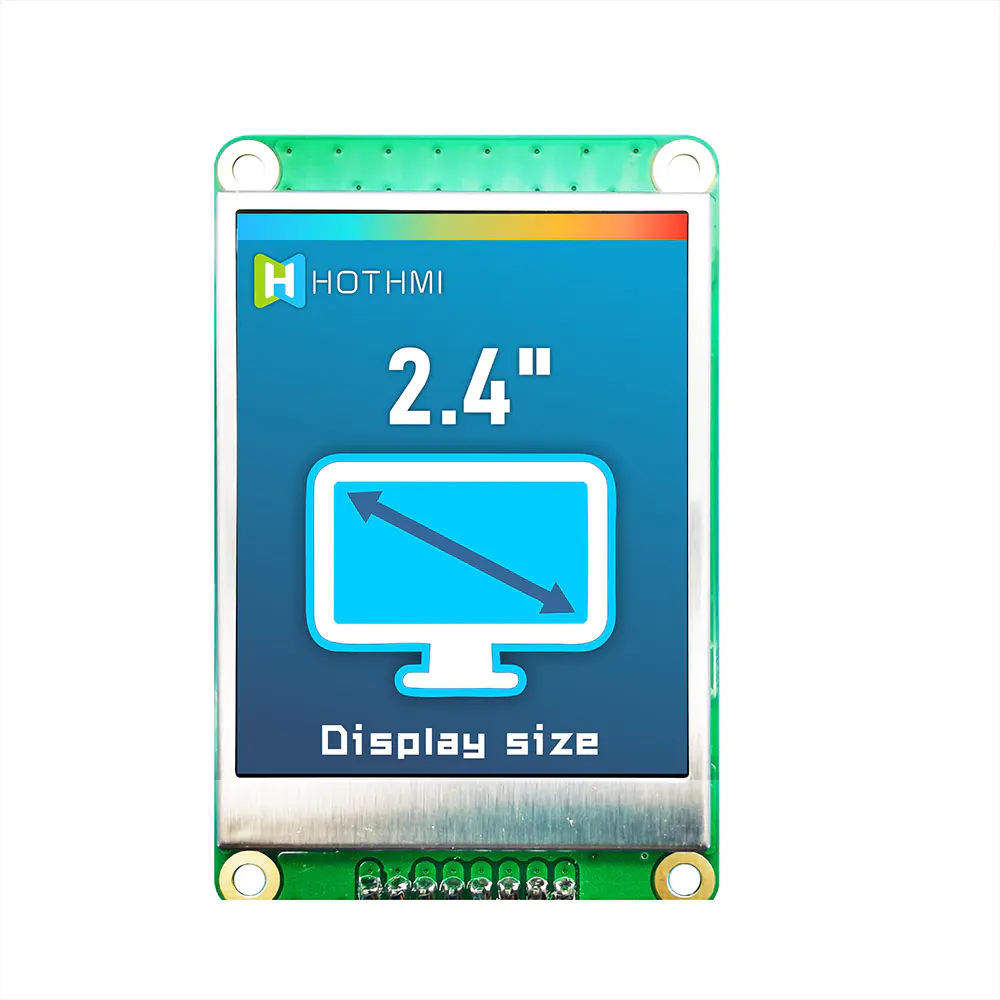

Display size (mm): 2.4"

Effective size (mm): 49.96(H) *37.72(V)

Product application: Handheld Instruments/Industrial Control/Medical/Home Appliances

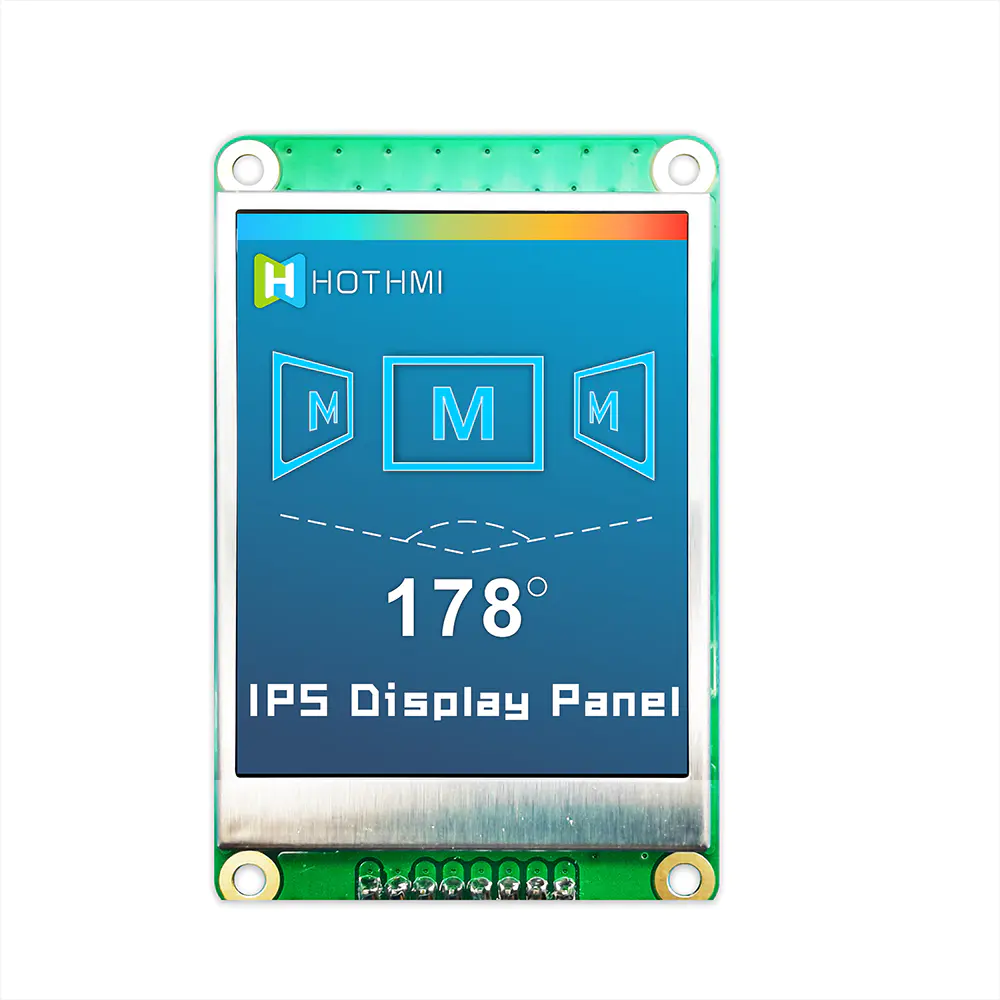

Viewing angle:FULL O'CLOCK

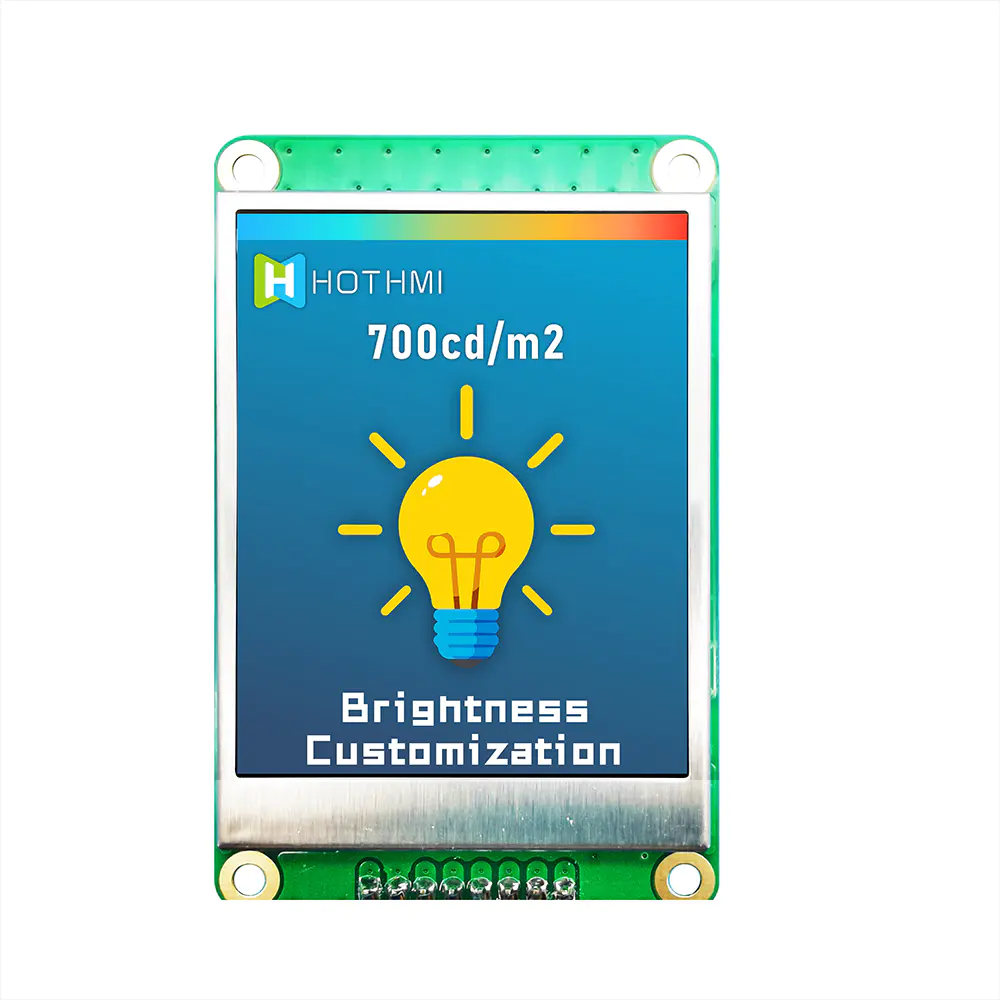

Backlight type or brightness: 700cd/m2

Number of connection PINs: FPC-8PIN

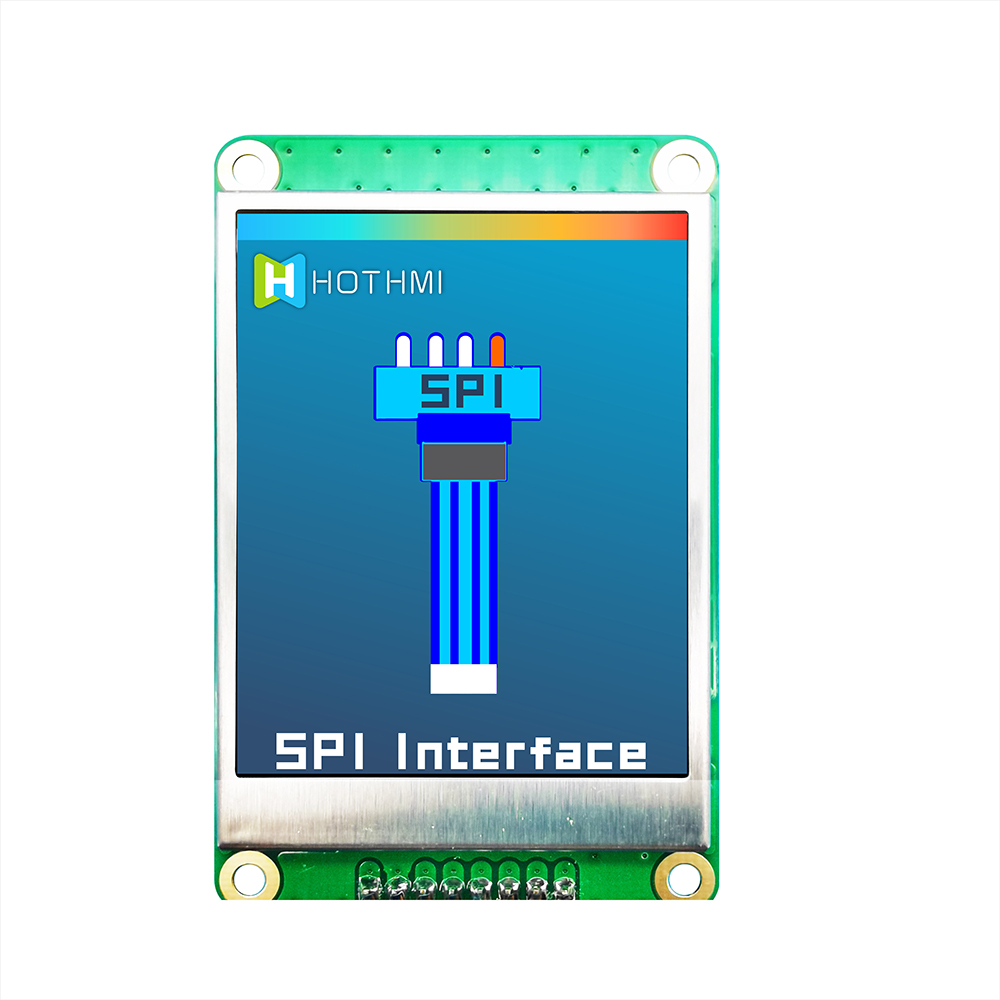

Interface: MCU SPI-4L

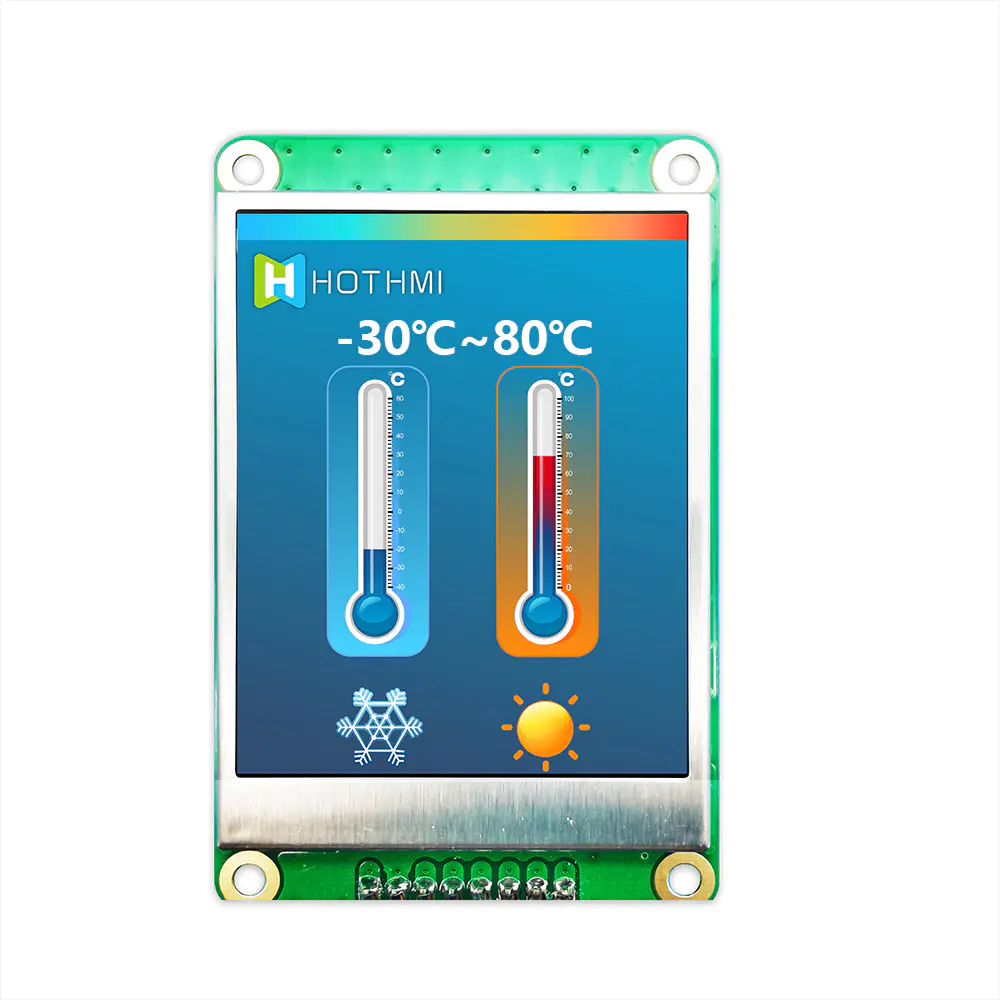

Working temperature: -30~80℃

Power supply voltage: 3.3V

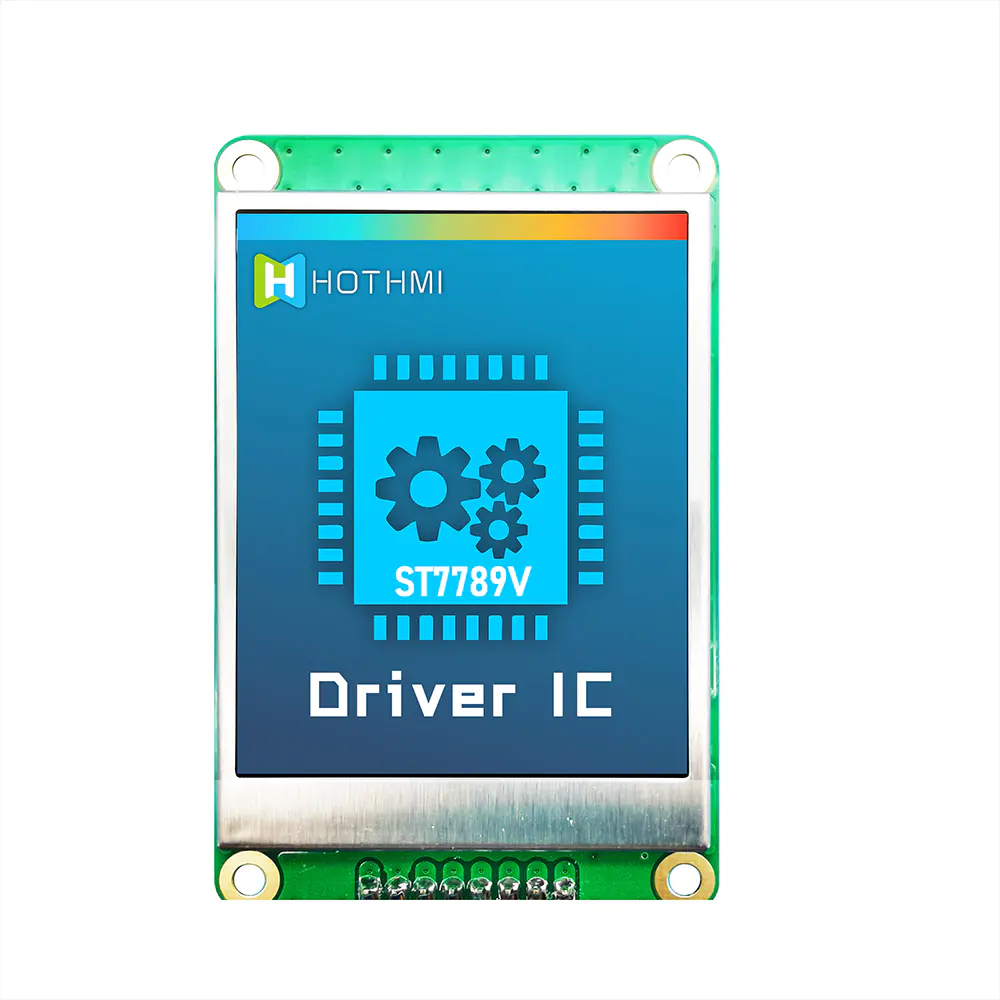

Driver chip model: ST7789V

DRAWING
