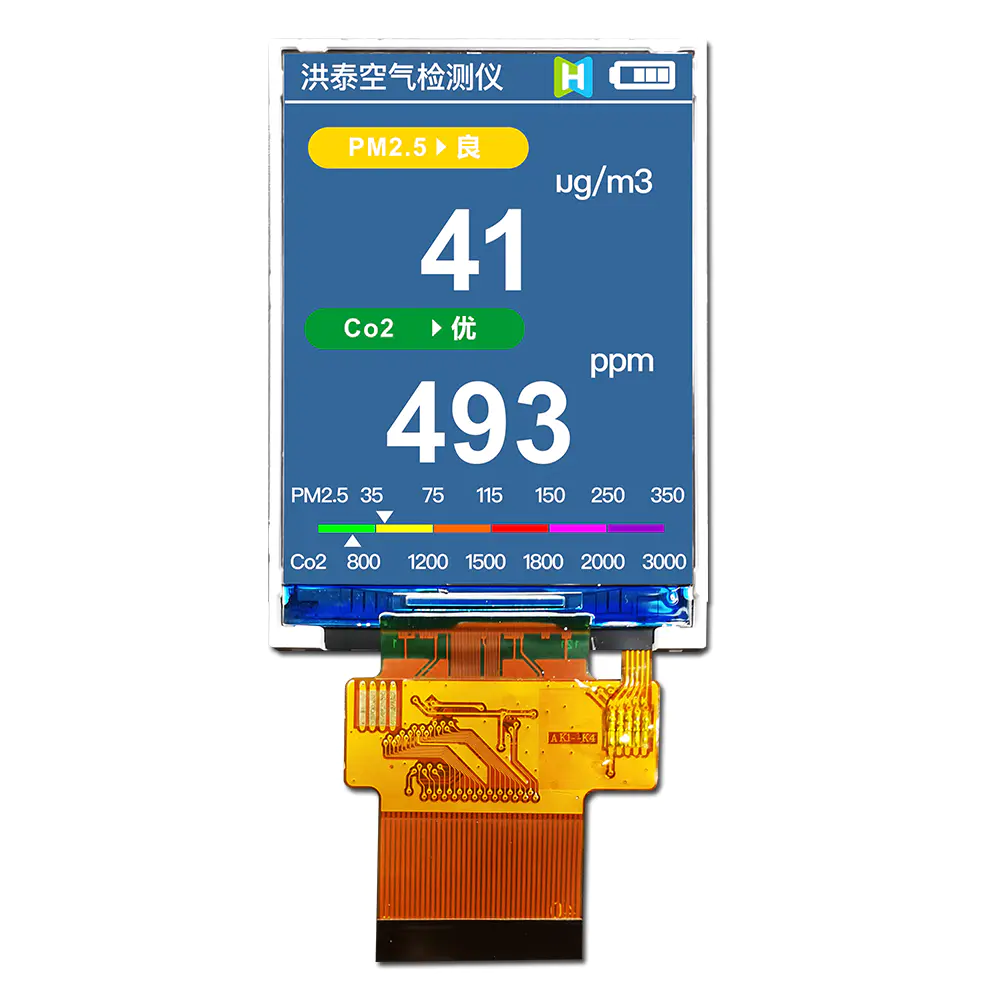

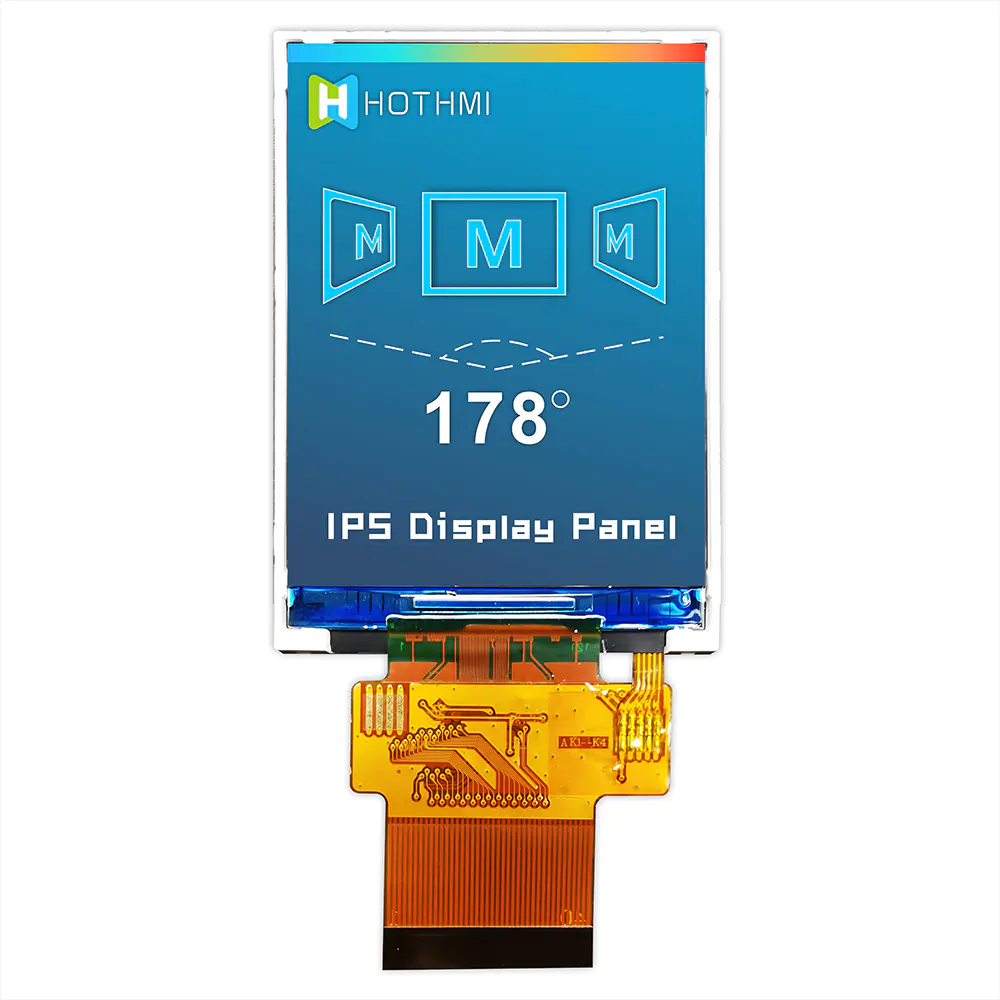

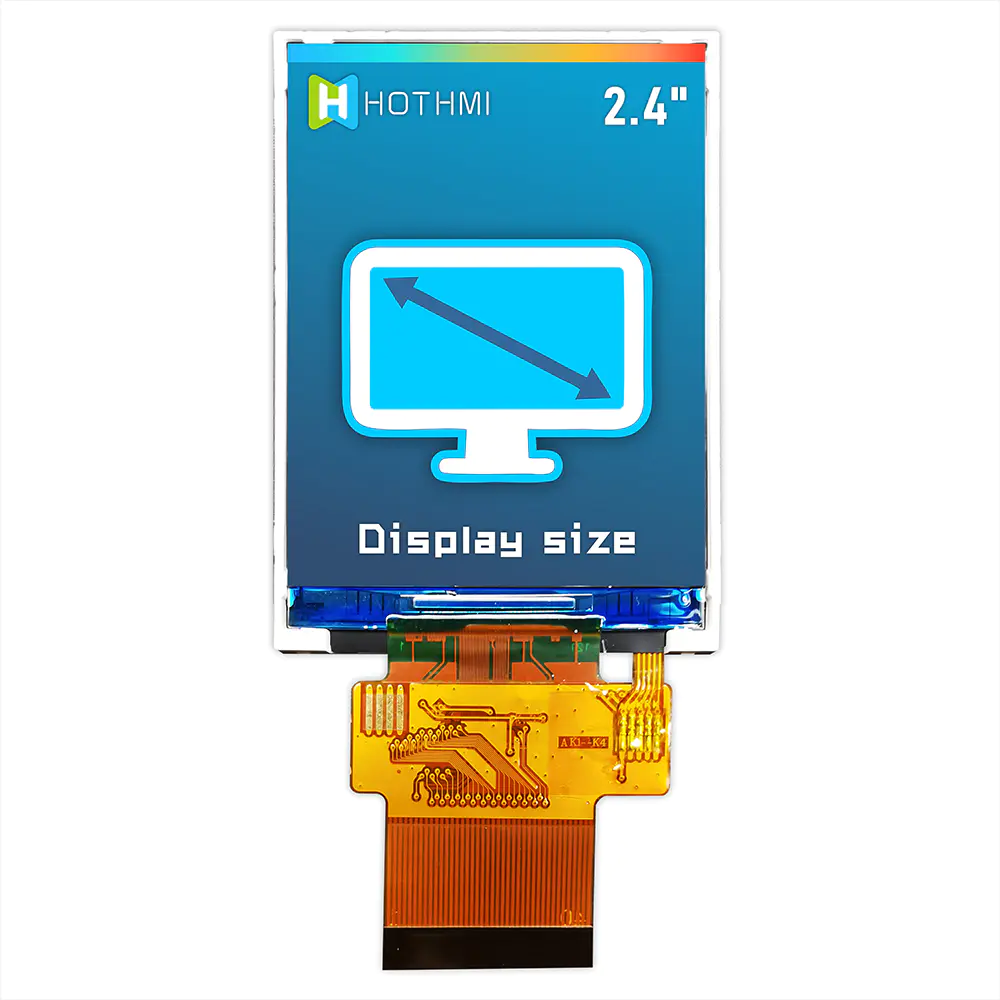

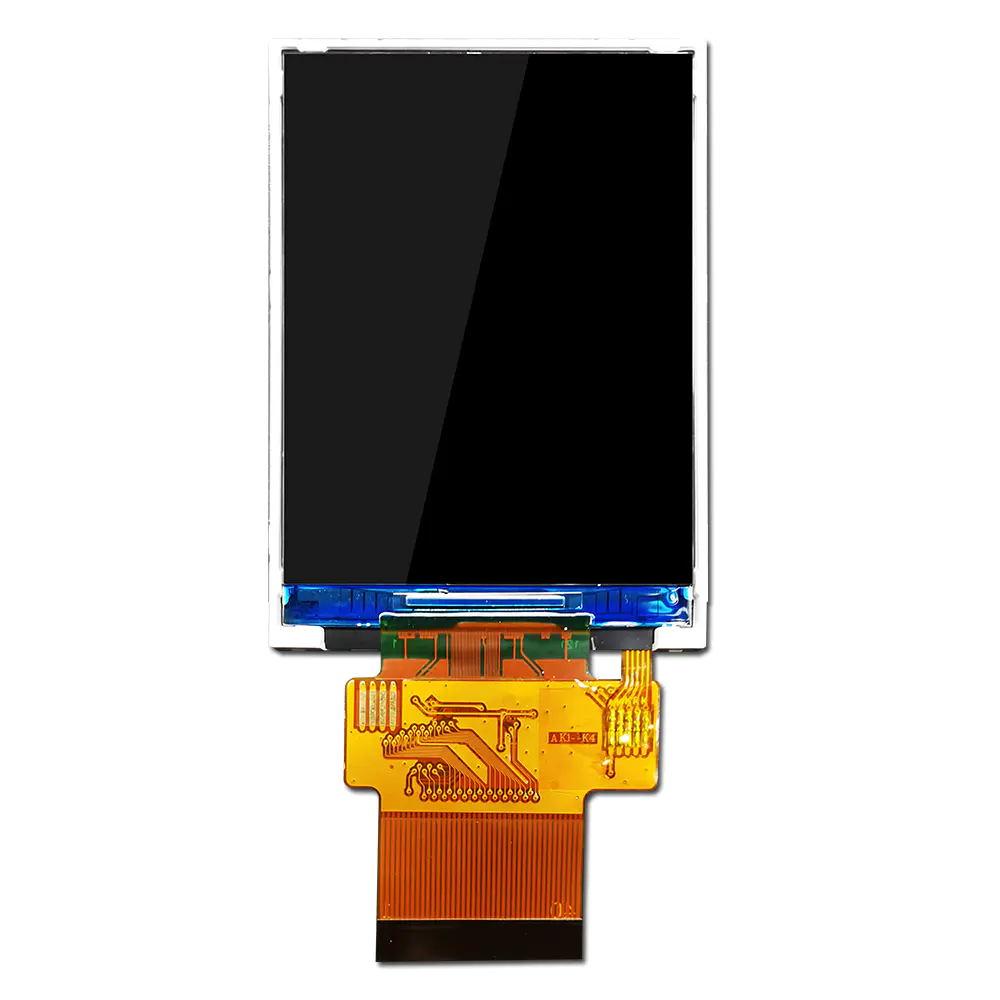

Product Description The TFT-H024A1QVIST8N40 is a 2.4-inch wide temperature IPS TFT-LCD display with a projected capacitive touchscreen with a resolution of 240x320 pixels. The module has built-in ST7789V driver IC and supports MCU interface. TFT-H024A1QVIST8N40 adopts IPS panel, which has the advantage of wider viewing angle, left: 80 / right: 80 / top: 80 / bottom: 80 degrees (typical), contrast ratio 800:1 (typical), brightness 1500 nits (typical) value), glare panel, 16:9 aspect ratio. The touch screen has built-in FT6236U IC, which supports I2C interface and multi-touch function. The H024A1 model has a projected capacitive touch panel (PCAP) but no touch panel option (TFT-H024A1QVIST8N40). The supply voltage (VCC) of the TFT-H024A1QVIST8N40 is 3.0V to 3.6V, with a typical value of 3.3V. It can work at temperatures from -30°C to +80°C and storage temperatures from -30°C to +80°C.

Model : 2.4 inch TFT LCD vertical screen/240*320 resolution/IPS/industrial grade/MCU interface/TFT-H024A1QVIST8N40

Product type：TFT vertical screen

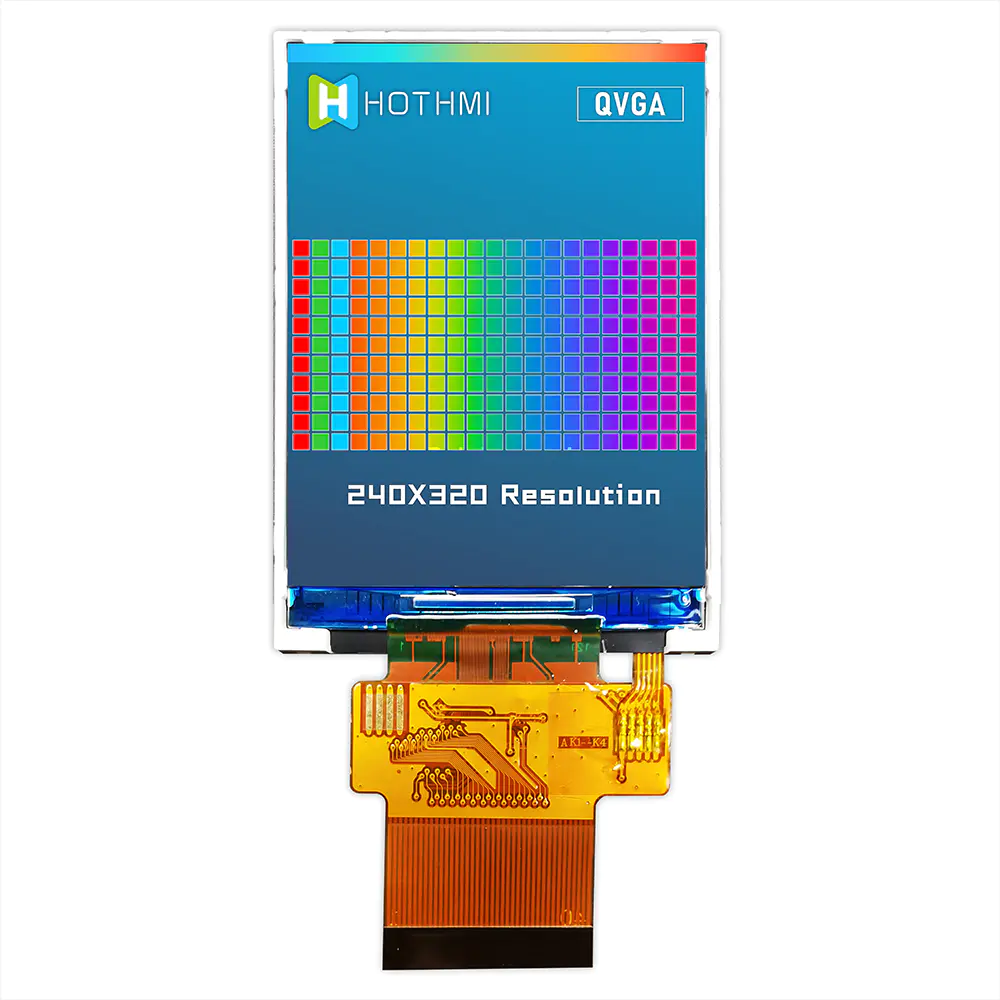

Show contents：240*320

Outline size(mm) ：42.72* 60.26 * 3.20

Size of View Window(mm)：2.4"

Display size(mm) ：2.4"

Effective size(mm)：36.72*48.96

Product application：Smart devices such as monitors

Visual angle：Full View

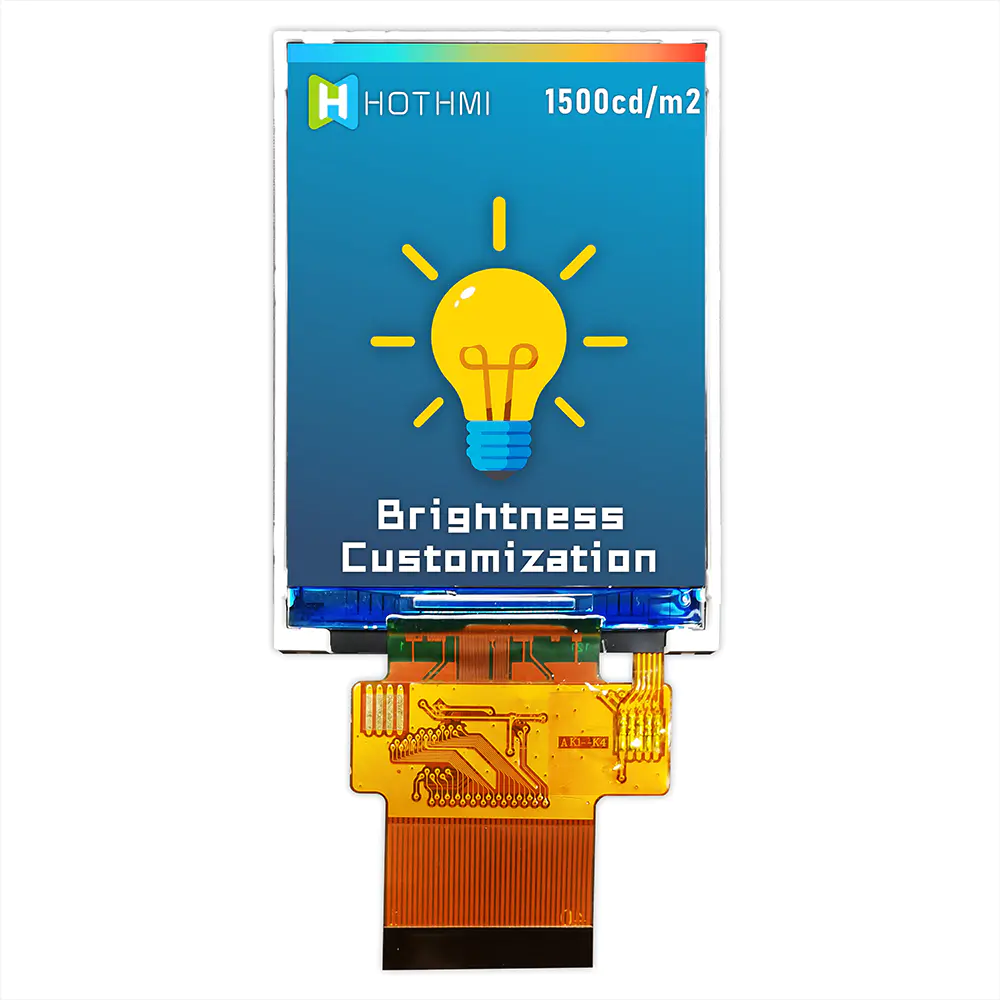

Backlight type or brightness：1500cd/m2

Connection PIN Number：FPC-40PIN

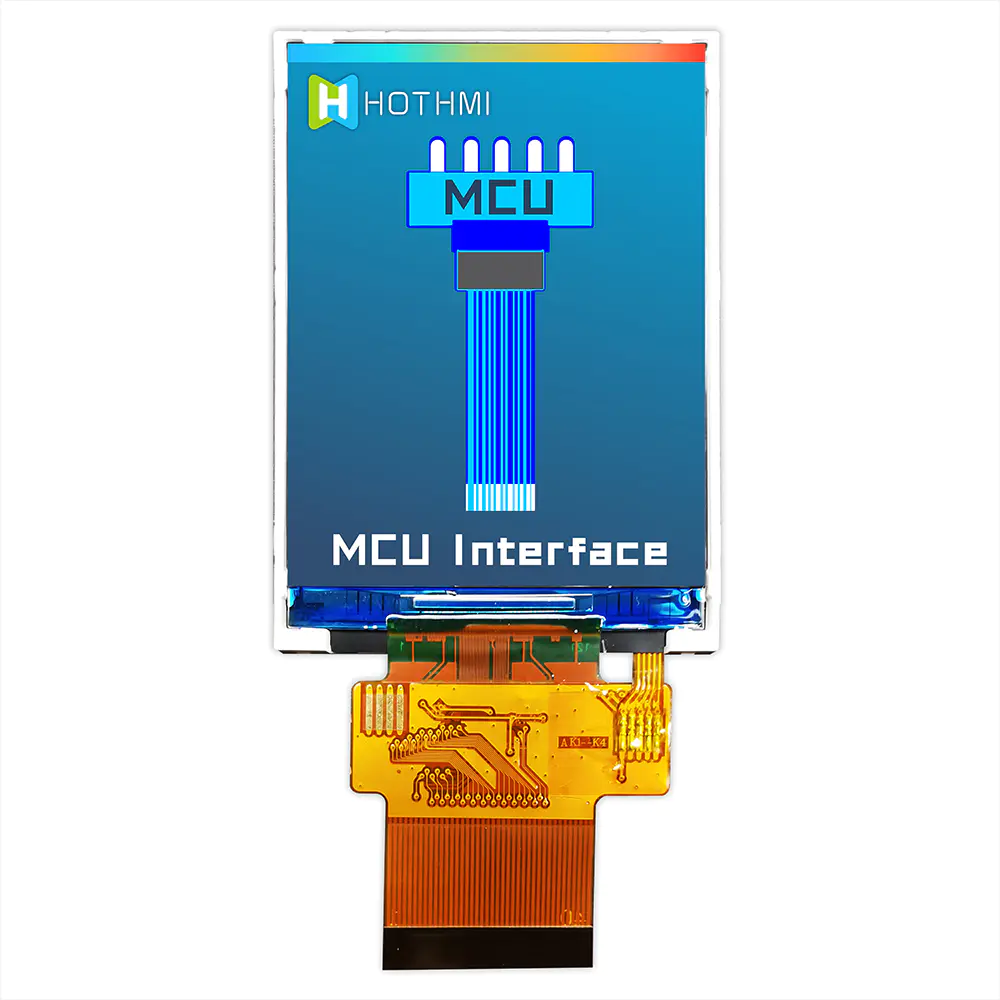

Interface mode：MCU

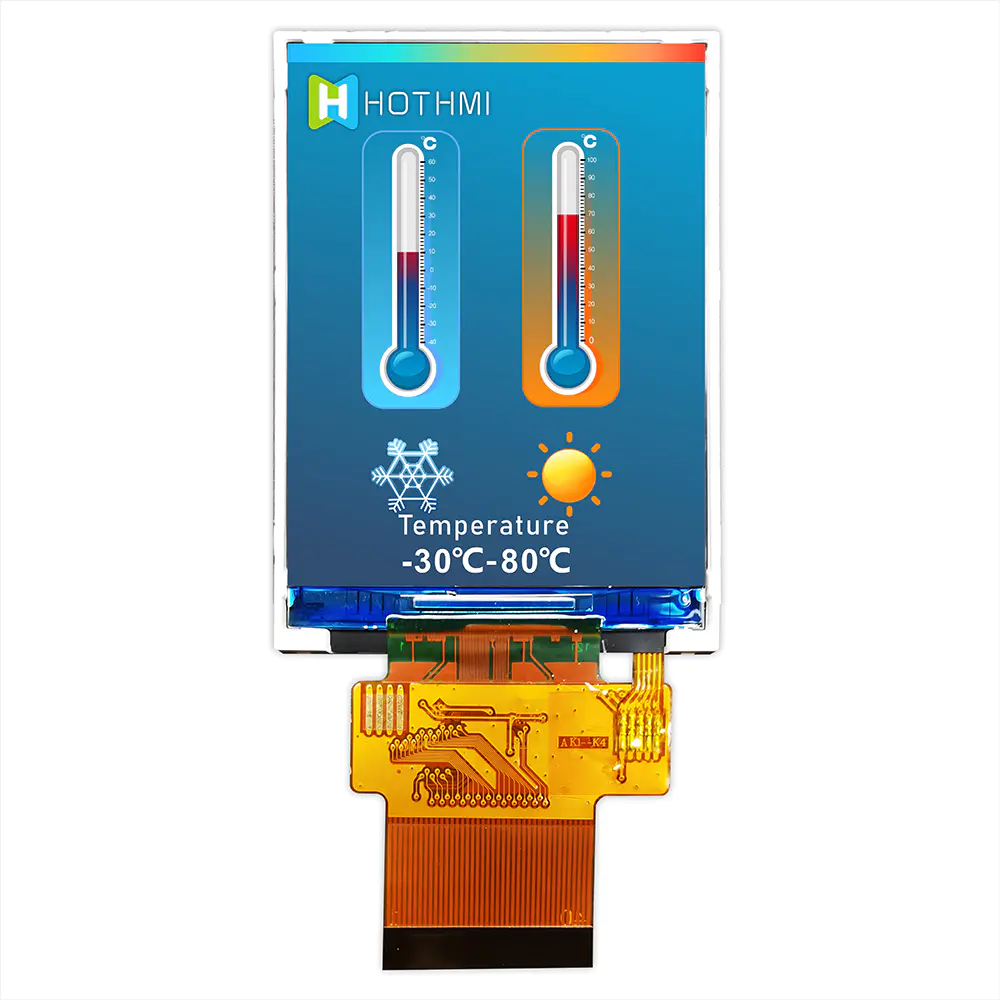

Working temperature：-30~80℃

Power supply voltage：3.3V

Driver chip model：ST7789V

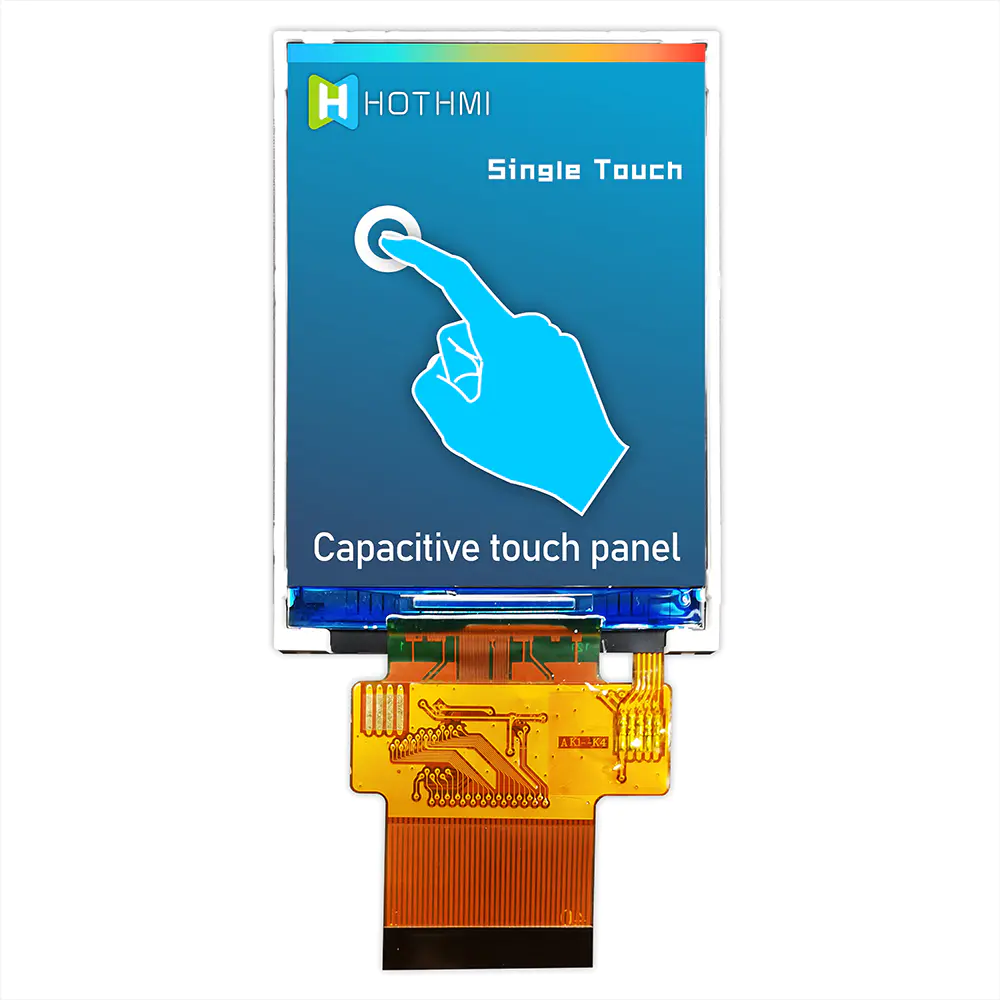

Touch driver IC：FT6236U

DRAWING
