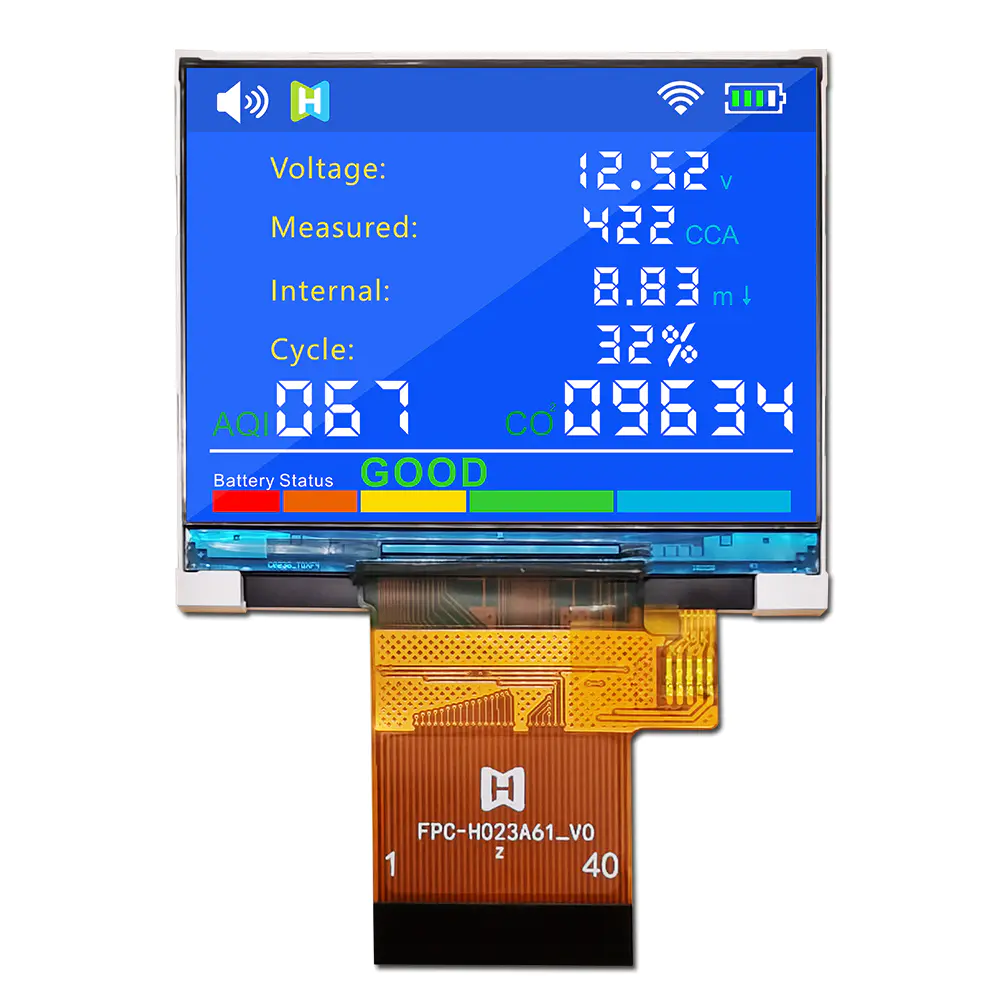

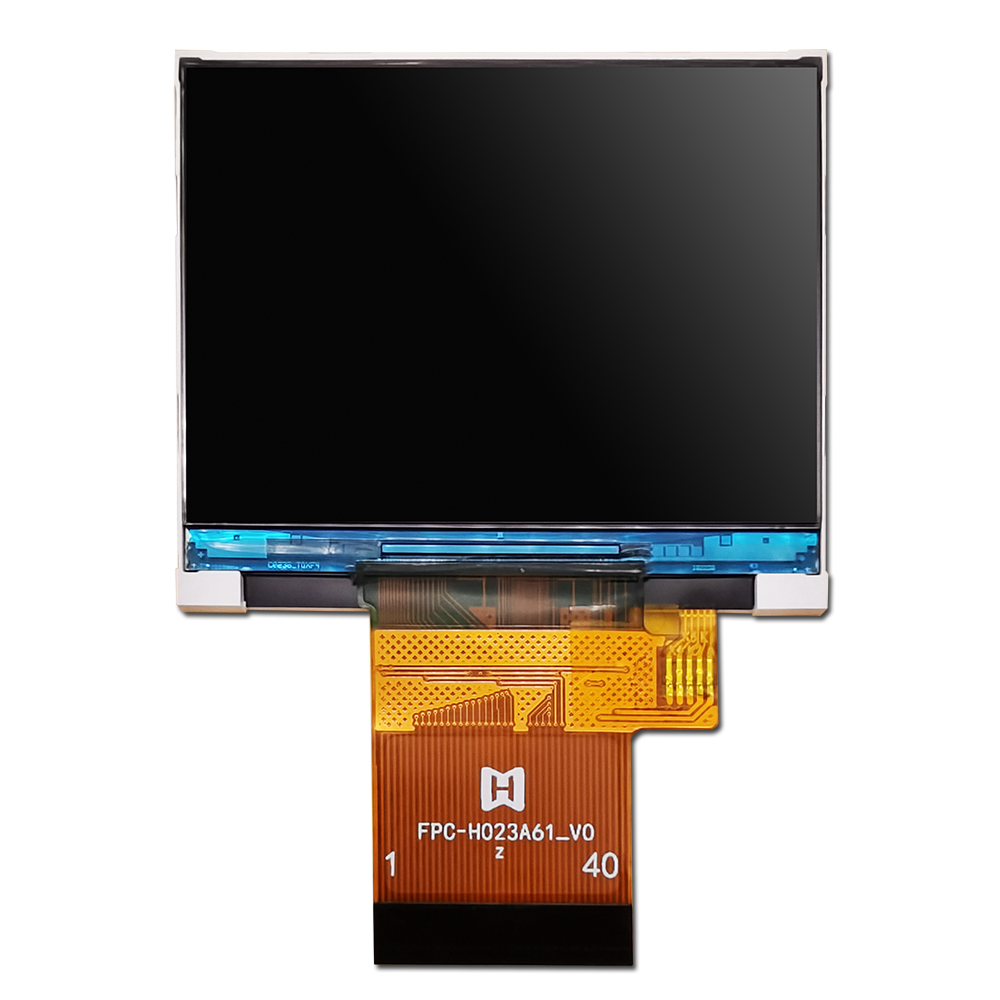

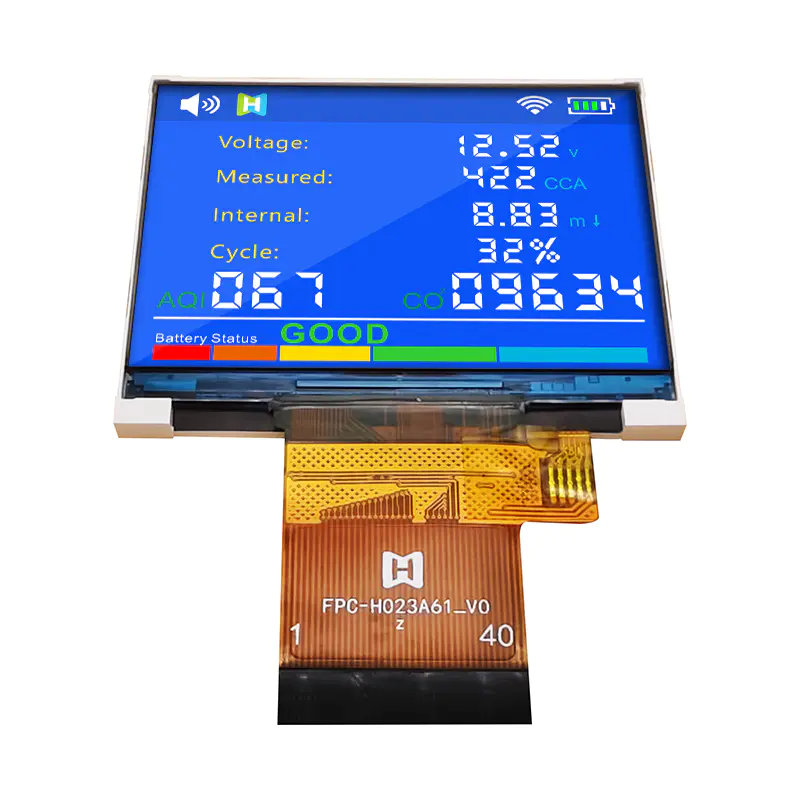

2.3 inch TFT horizontal screen /320*240 resolution/TN/8080 MCU 8/16-Bitinterface/TFT-H023A61LQTIL2N40
2.3 inch TFT horizontal screen /320*240 resolution/TN/8080 MCU 8/16-Bitinterface/TFT-H023A61LQTIL2N40
$7.65
Add to wish list
Quantity
+
Product details
Model : 2.3 inch TFT horizontal screen /320*240 resolution/TN/8080 MCU 8/16-Bitinterface/TFT-H023A61LQTIL2N40

Product type:TFT horizontal screen

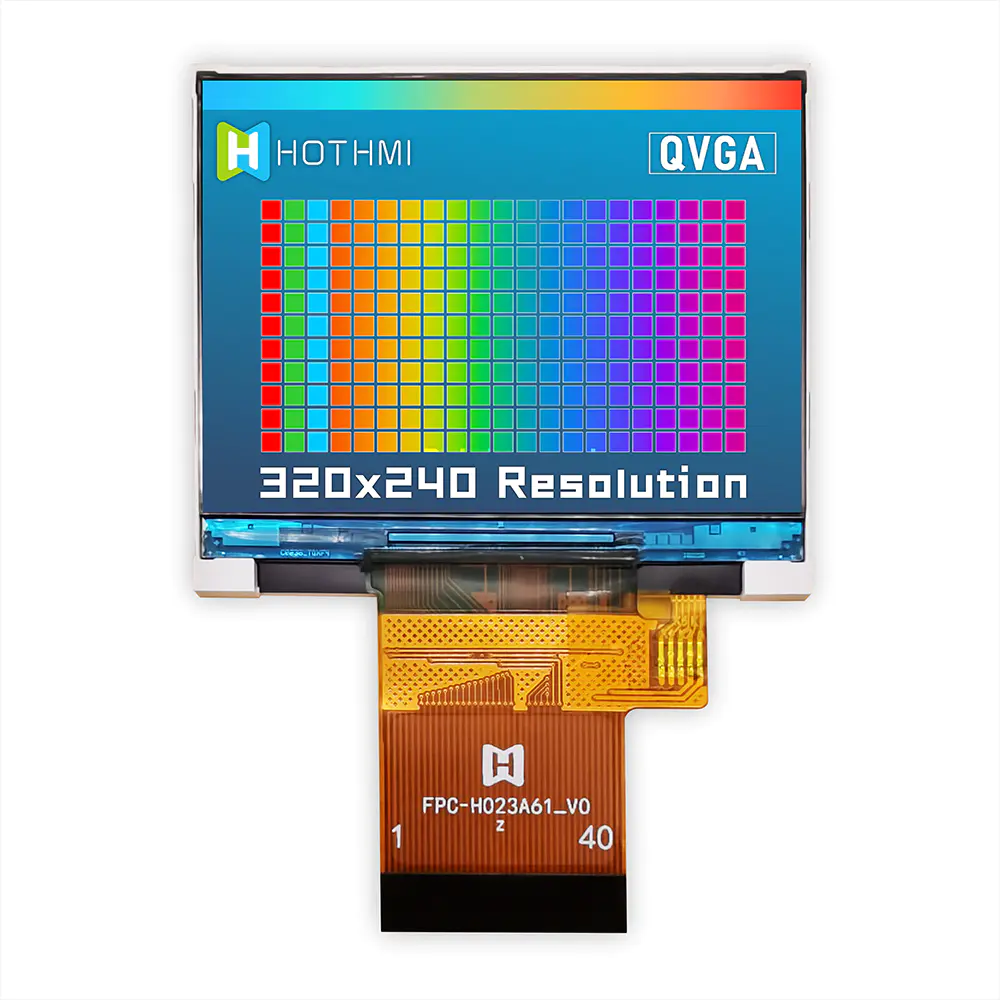

Show contents:320*240

Outline size(mm) :51.00*45.8*2.5

Size of View Window(mm):2.3"

Display size(mm) :2.3"

Effective size(mm):46.75*35.06

Product application:Instrumentation

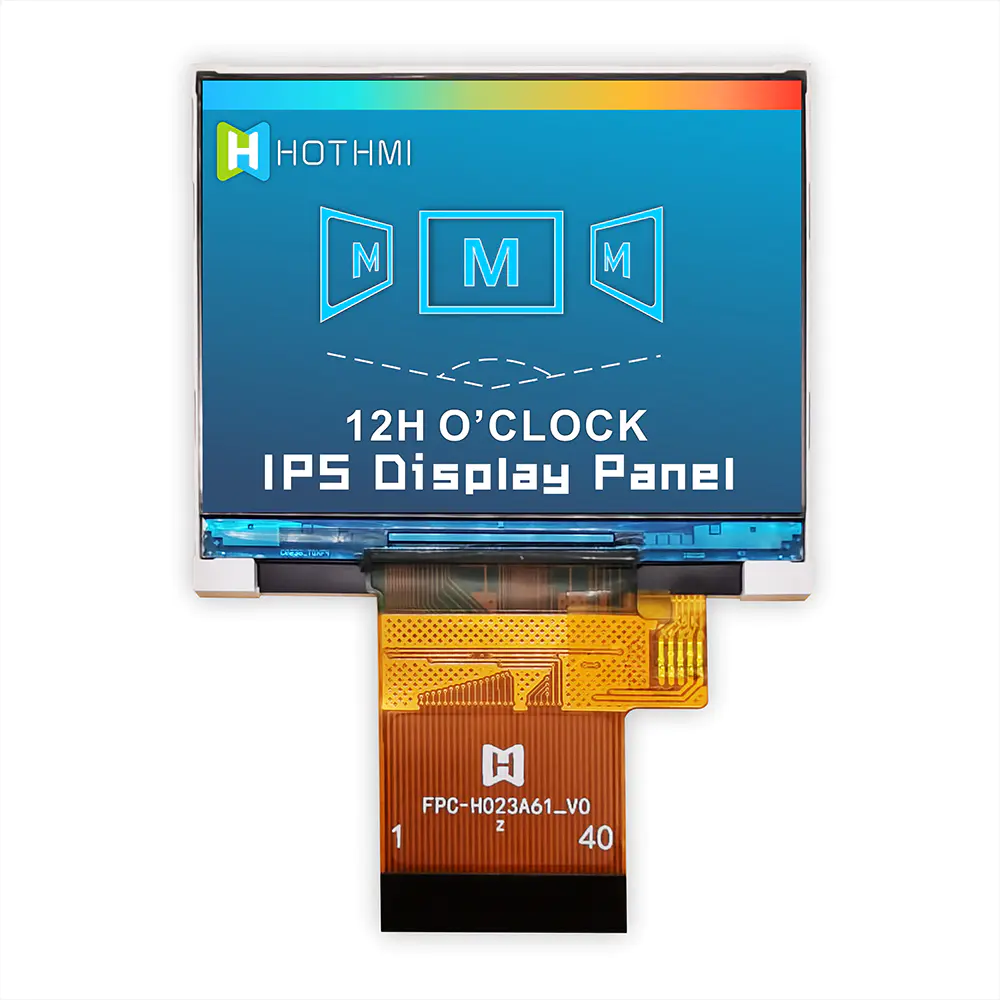

Visual angle:12H

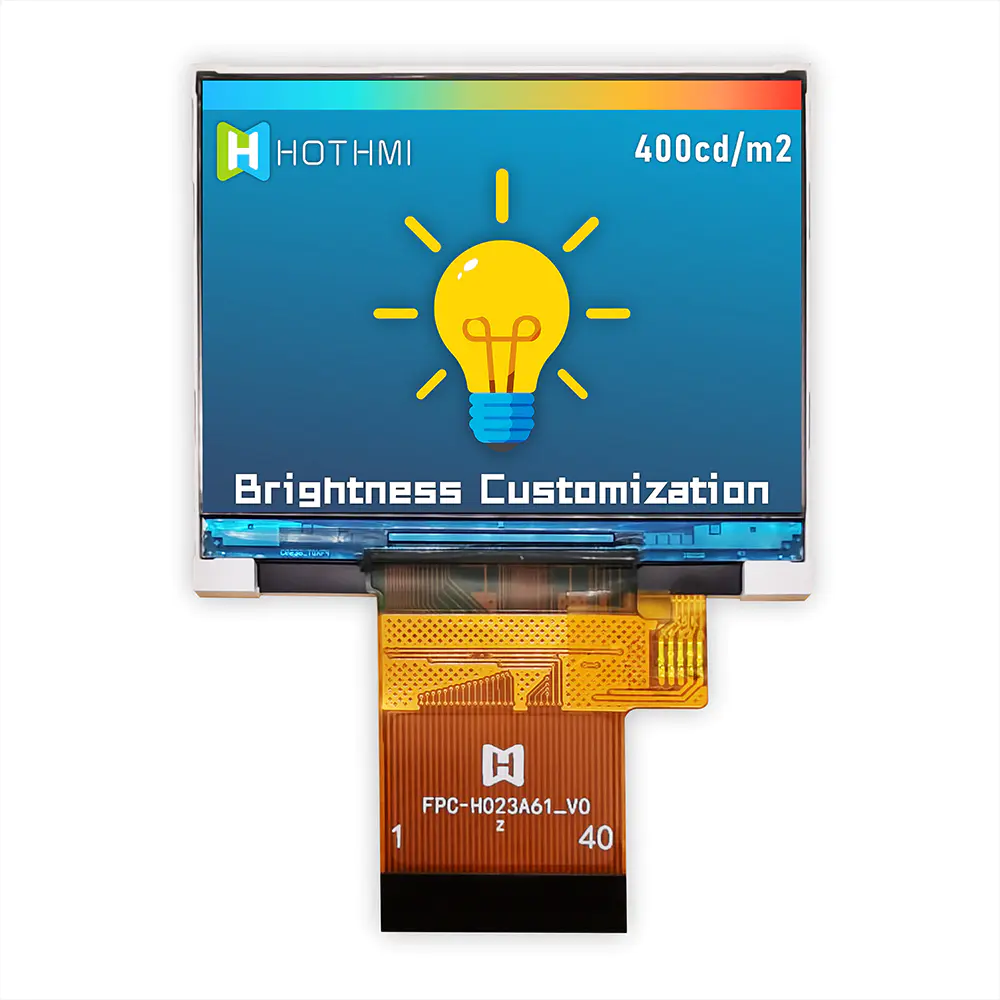

Backlight type or brightness:400cd/m2

Connection PIN Number:FPC-40PIN

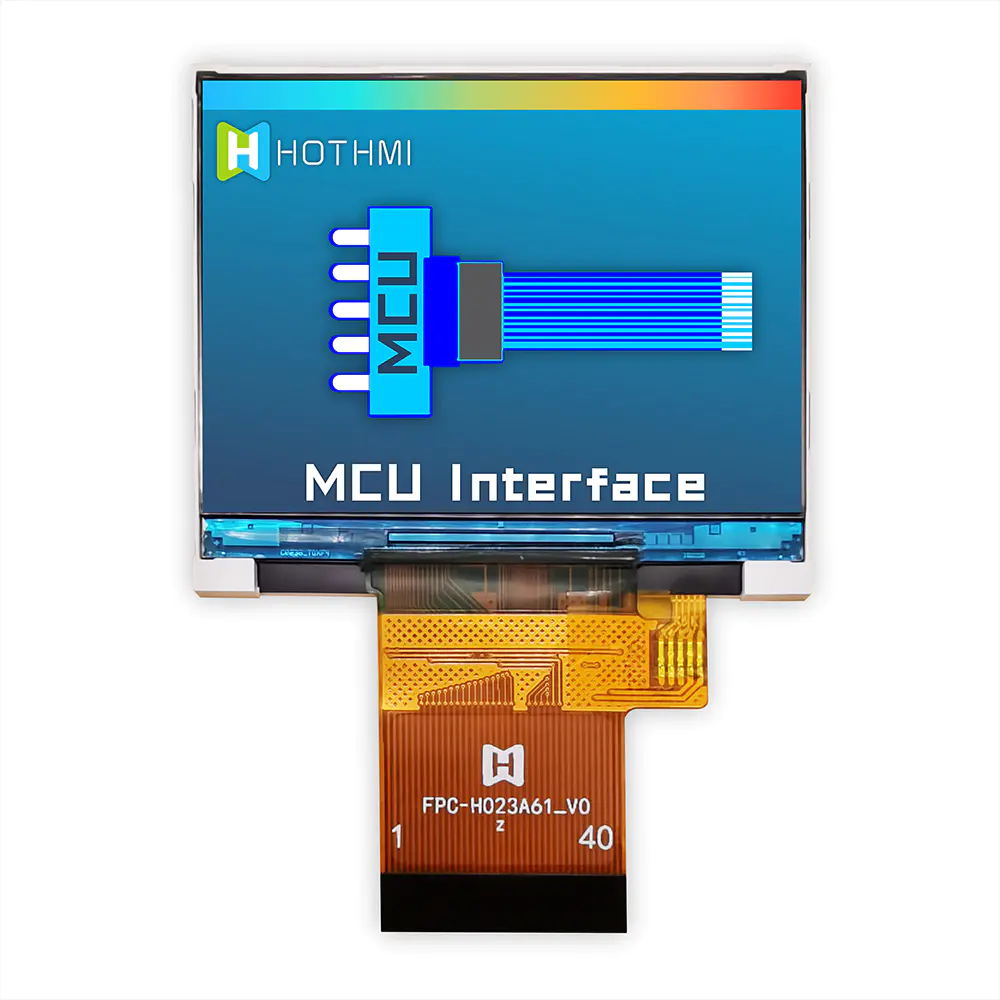

Interface mode:8080 MCU 8/16-Bit

Working temperature:-20~70℃

Power supply voltage:2.8V

Driver chip model:ILI9342C

CAD Drawings
TFT-H023A61LQTIL2N40is an industrial-grade horizontal display TFT LCD with a resolution of 320*240 pixels, a typical brightness of 400 nits, a viewing angle of 12H, and a supply voltage (VCI) of 2.8V~3.2V , the typical value is 2.8V. The working temperature is -20℃~+70℃, and the storage temperature is -30℃~+80℃. The products are used in various small smart devices, home appliances, monitors, etc.image.png
