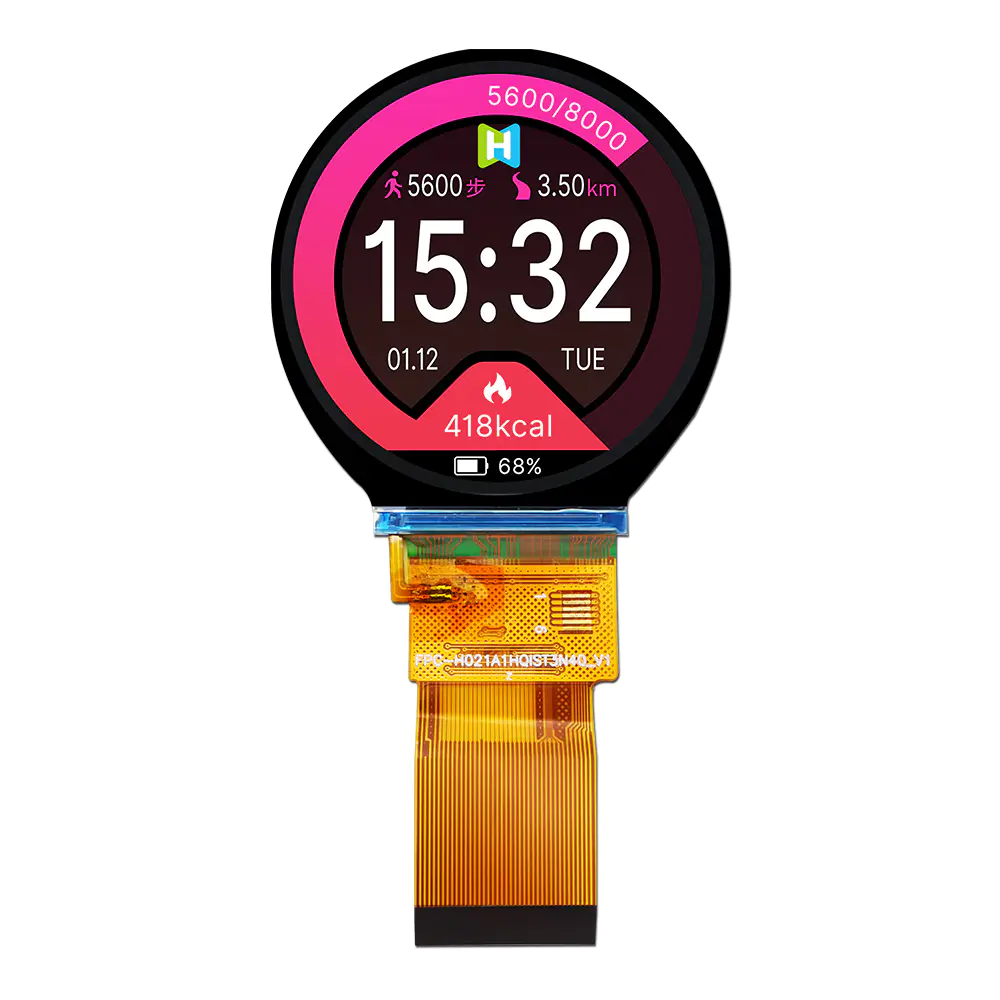

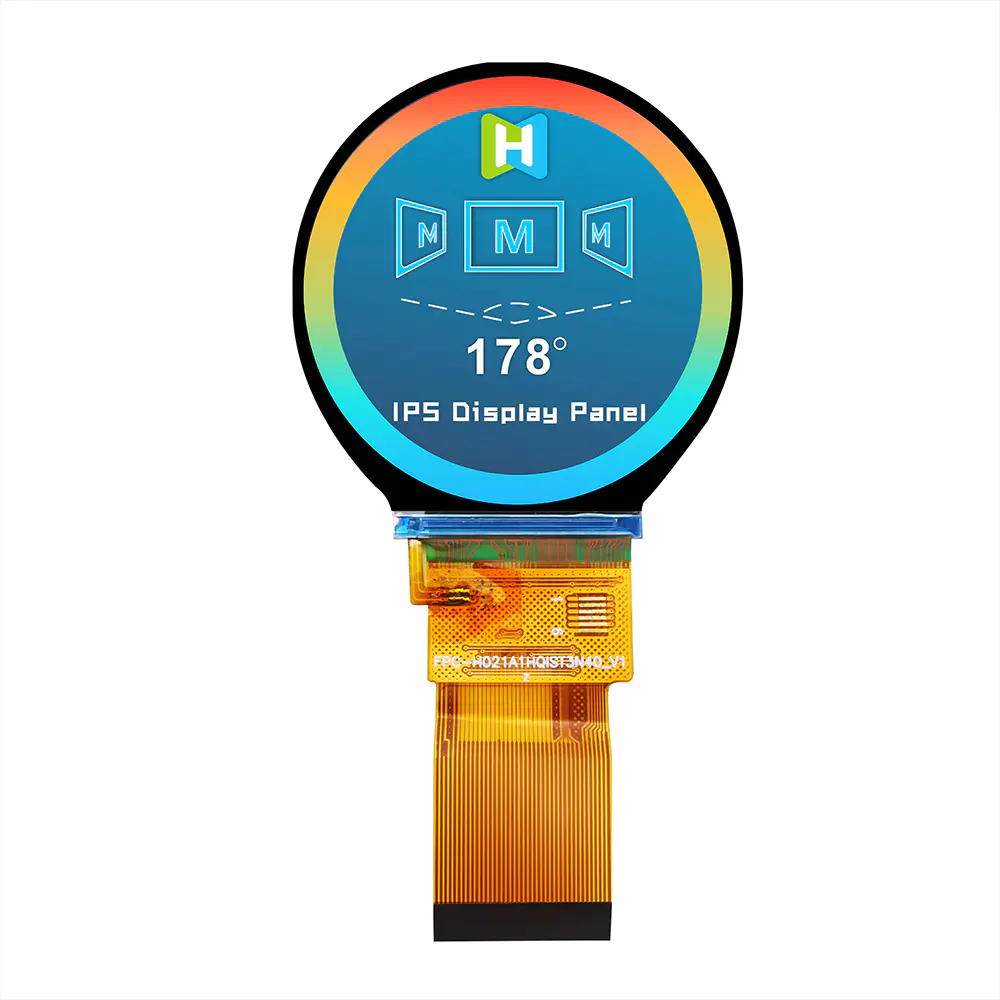

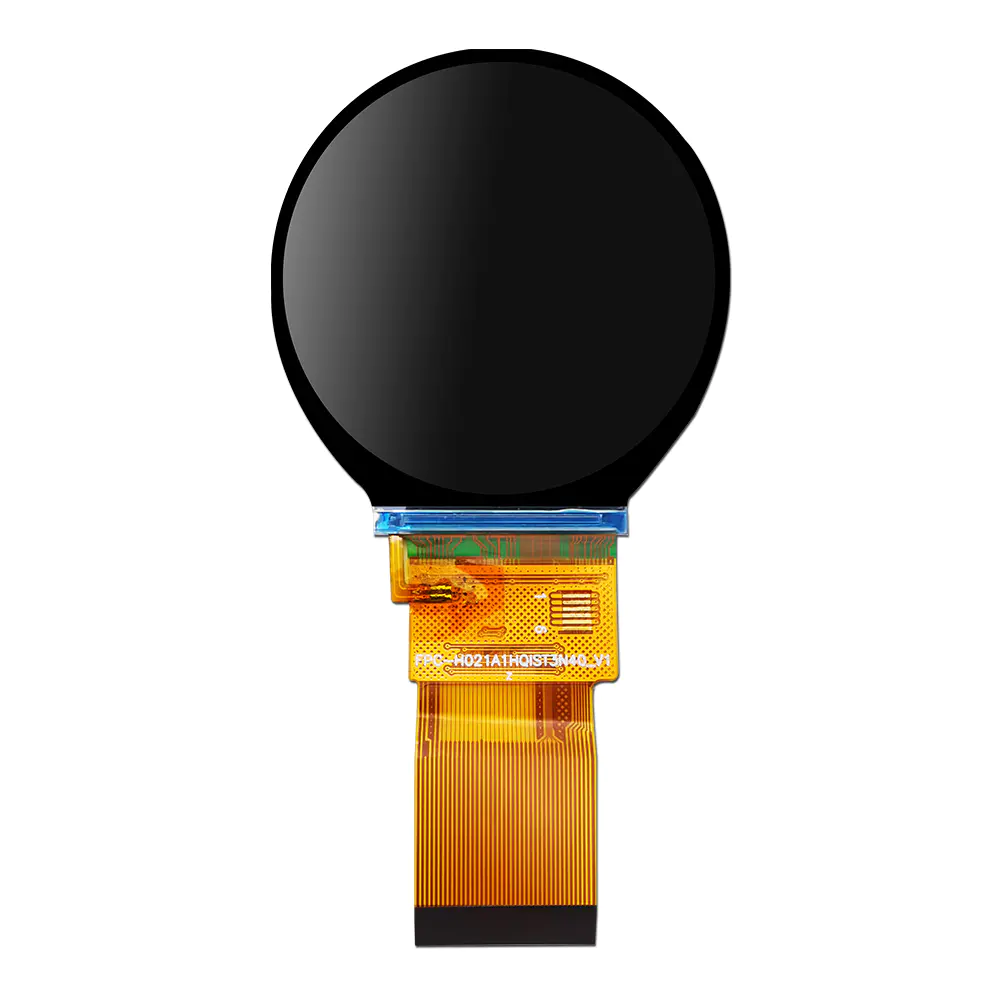

Product Description The TFT-H021A1HQIST5N40 is a 2.1-inch full-color TFT LCD module with a resolution of 480x480 pixels and a 1:1 aspect ratio. The TFT module adopts ST7701S driver IC and supports RGB/SPI interface. The TFT module with IPS panel has the advantage of wide viewing angle (left 80 degrees/right 80 degrees/up 80 degrees/down 80 degrees), a typical contrast ratio of 800:1, and a module brightness of up to 550 nits (typical). The working temperature range of the module is -20℃~+70℃, and the storage temperature range is -30℃~+80℃.

2.1 inch TFT color screen /480*480 resolution /full viewing angle IPS process /RGB-SPI interface /TFT-H021A1HQIST5N40

Product type: TFT vertical screen

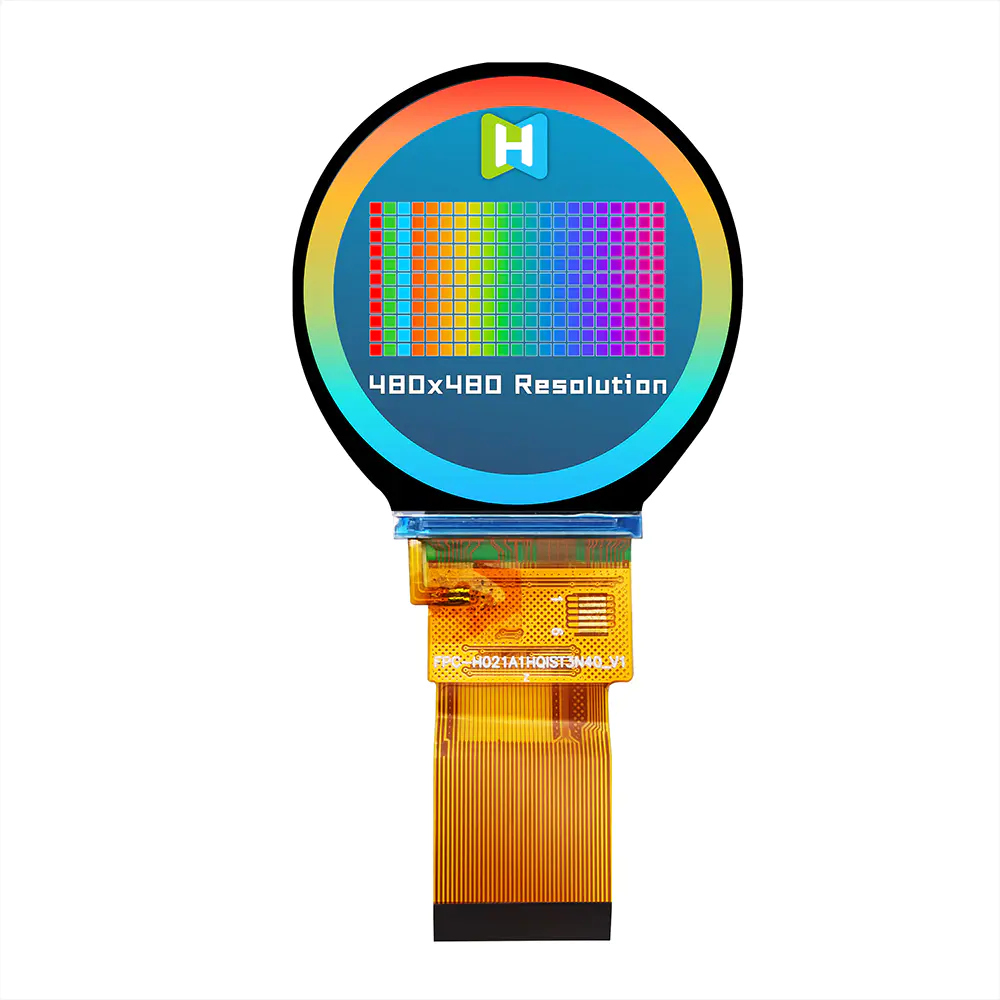

Display content: 480*480

Dimensions (mm): 56.18*59.71*2.26

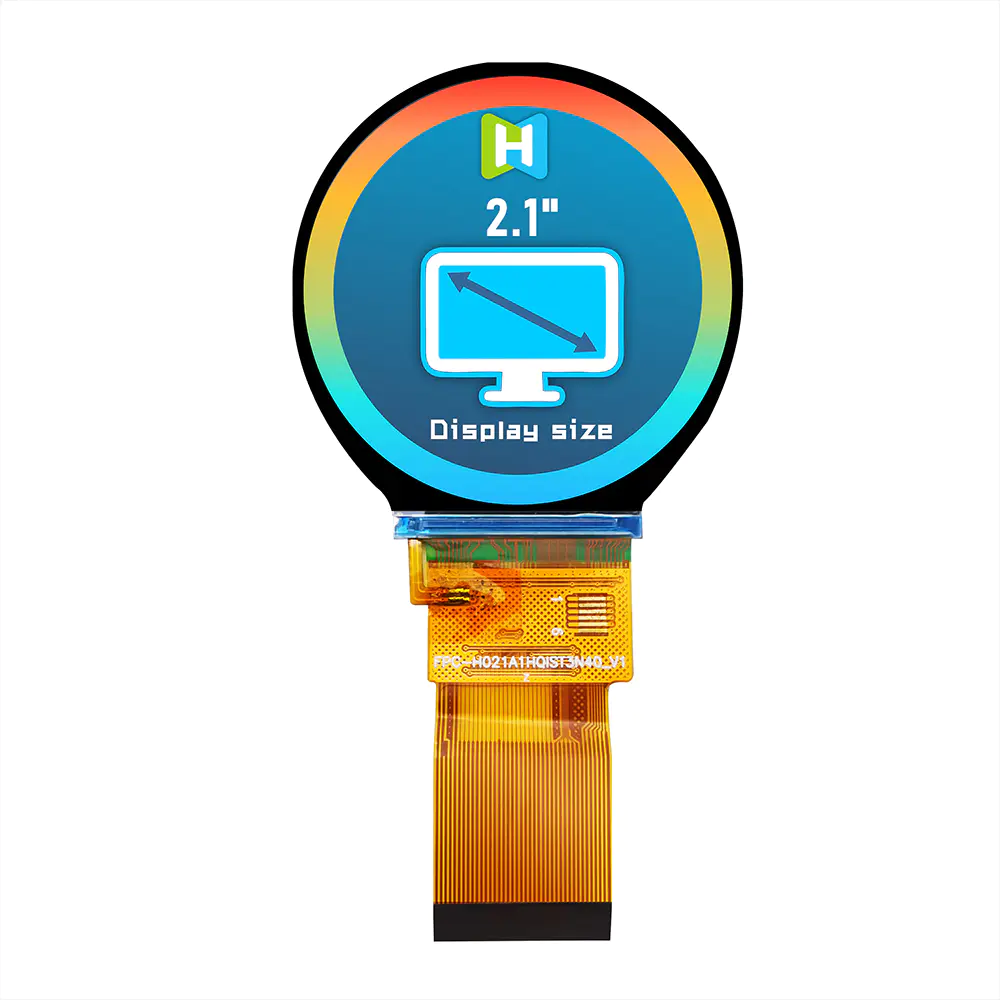

Window size (mm): 2.1"

Display size (mm): 2.1"

Effective size (mm): 53.28 *53.28

Product application: smart devices such as handheld instruments

Viewing angle:Full O'CLOCK

Backlight type or brightness: 550cd/m2

Number of connection PINs: FPC-40PIN

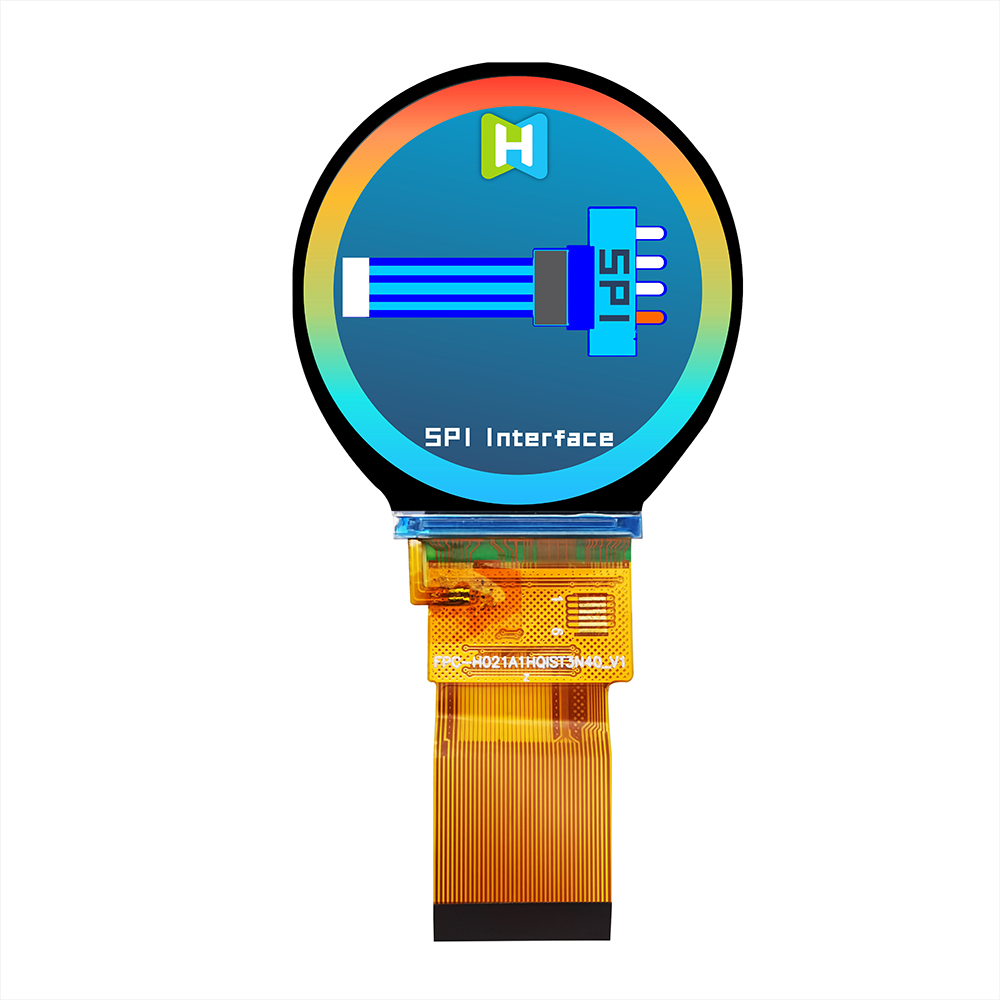

Interface: SPI/RGB

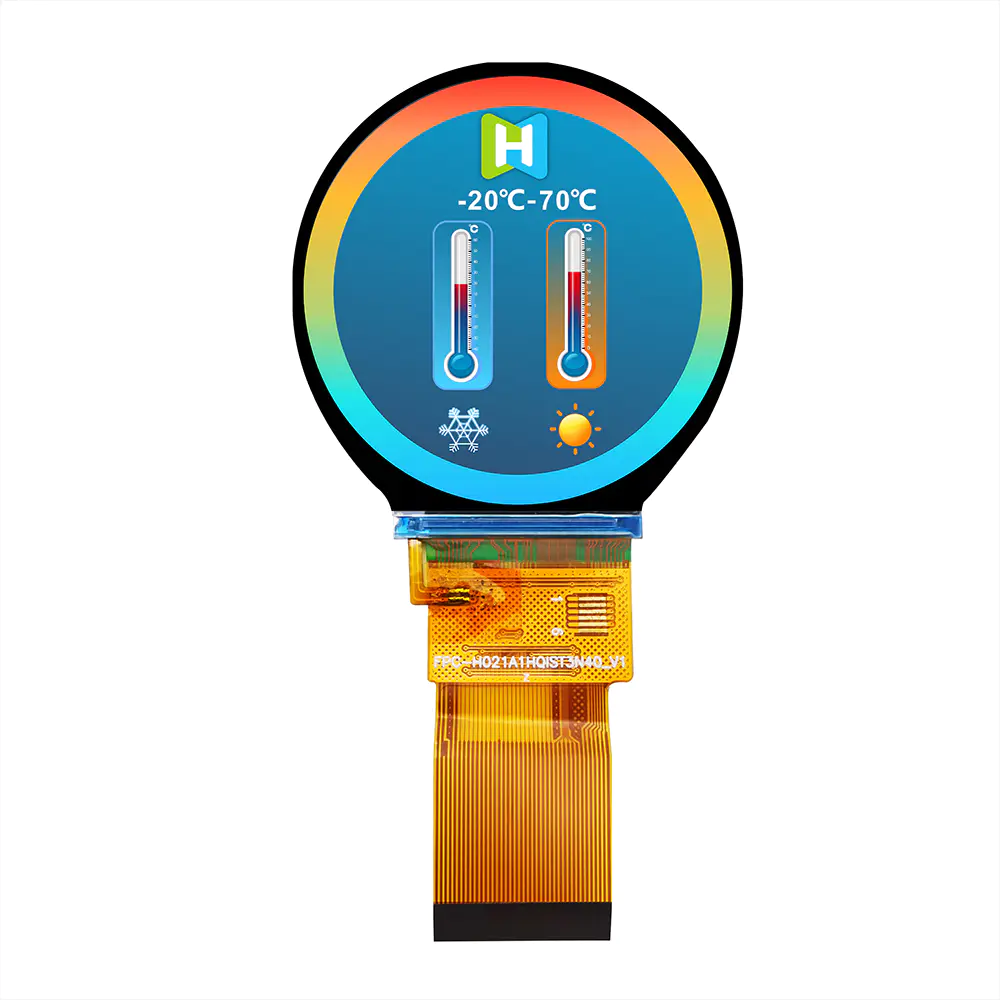

Working temperature: -20~70℃

Power supply voltage: 3.3V

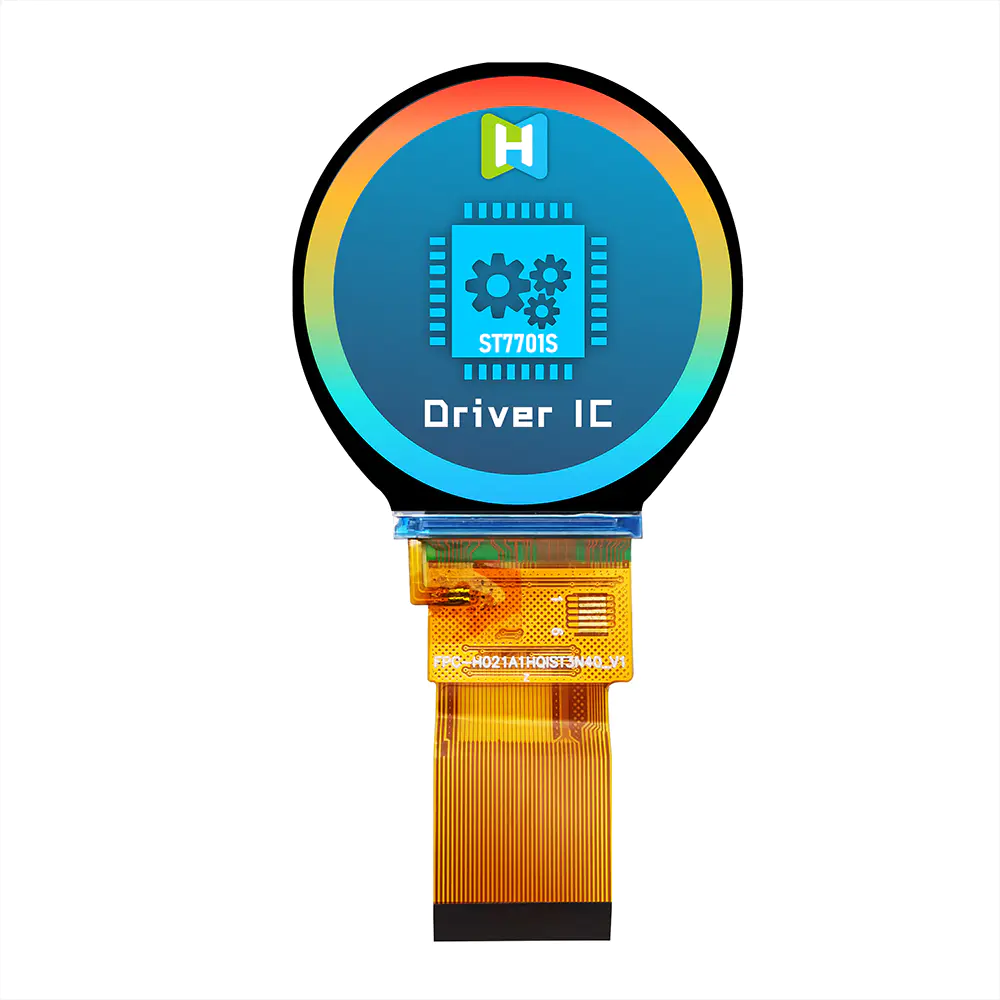

Driver chip model: ST7701S

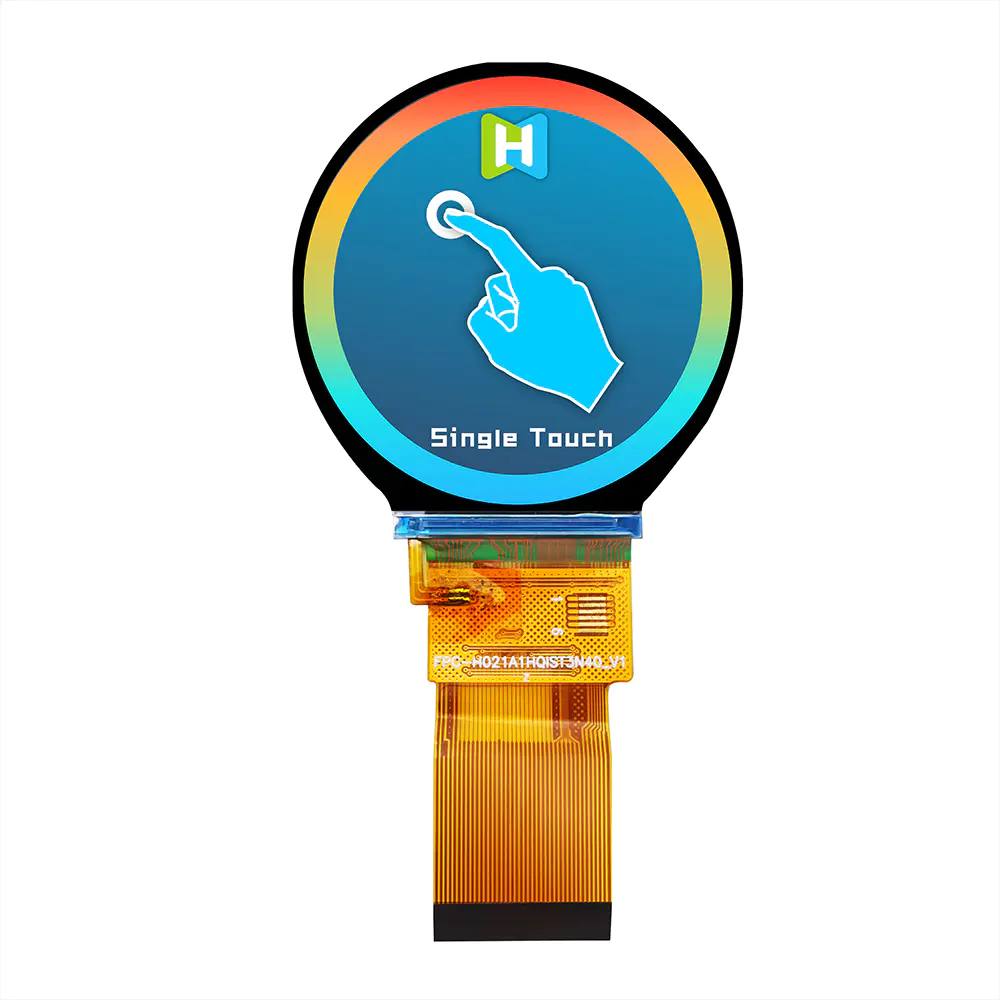

Touch driver IC:CST826

DRAWING
