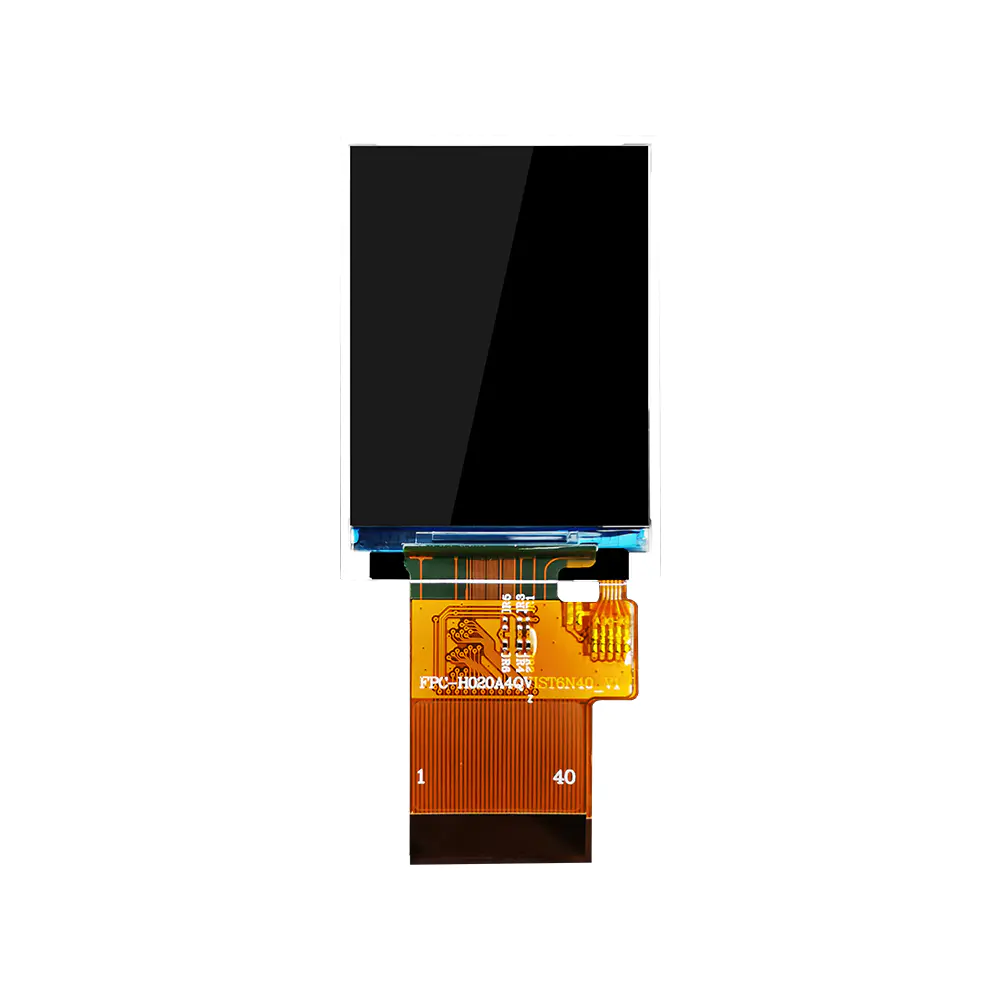

TFT-H020A4QVIST6N40 is a 2.0-inch full-color TFT LCD module with a resolution of 240x320 pixels and an aspect ratio of 2:3. The TFT module adopts ST7789V driver IC and supports MCU interface. The TFT module with IPS panel has the advantage of wide viewing angle (left 80 degrees/right 80 degrees/up 8
$0
Add to wish list
Quantity
+
Product details

Product Description TFT-H020A4QVIST6N40 is a 2.0-inch full-color TFT LCD module with a resolution of 240x320 pixels and an aspect ratio of 2:3. The TFT module adopts ST7789V driver IC and supports MCU interface. The TFT module with IPS panel has the advantage of wide viewing angle (left 80 degrees/right 80 degrees/up 80 degrees/down 80 degrees), the typical contrast ratio is 800:1, and the module brightness is up to 600 nits (typical value). The operating temperature range of the module is -30℃~+85℃, and the storage temperature range is -30℃~+85℃.



2.0 inch TFT, 240x320 resolution, TFT LCD screen, COG LCD screen, Shenzhen LCM, Shenzhen LCD, LCM, LCD, LCD module, LCD screen, LCD screen, LCD module, LCD module, backlight, LCD production Manufacturer, Xinhongtai, HOTLCD, COG, MONO TFT, LCD module



2.0 inch TFT /240*320 resoliution/full viewing angle/TFT-H020A4QVIST6N40

Product type: TFT vertical screen

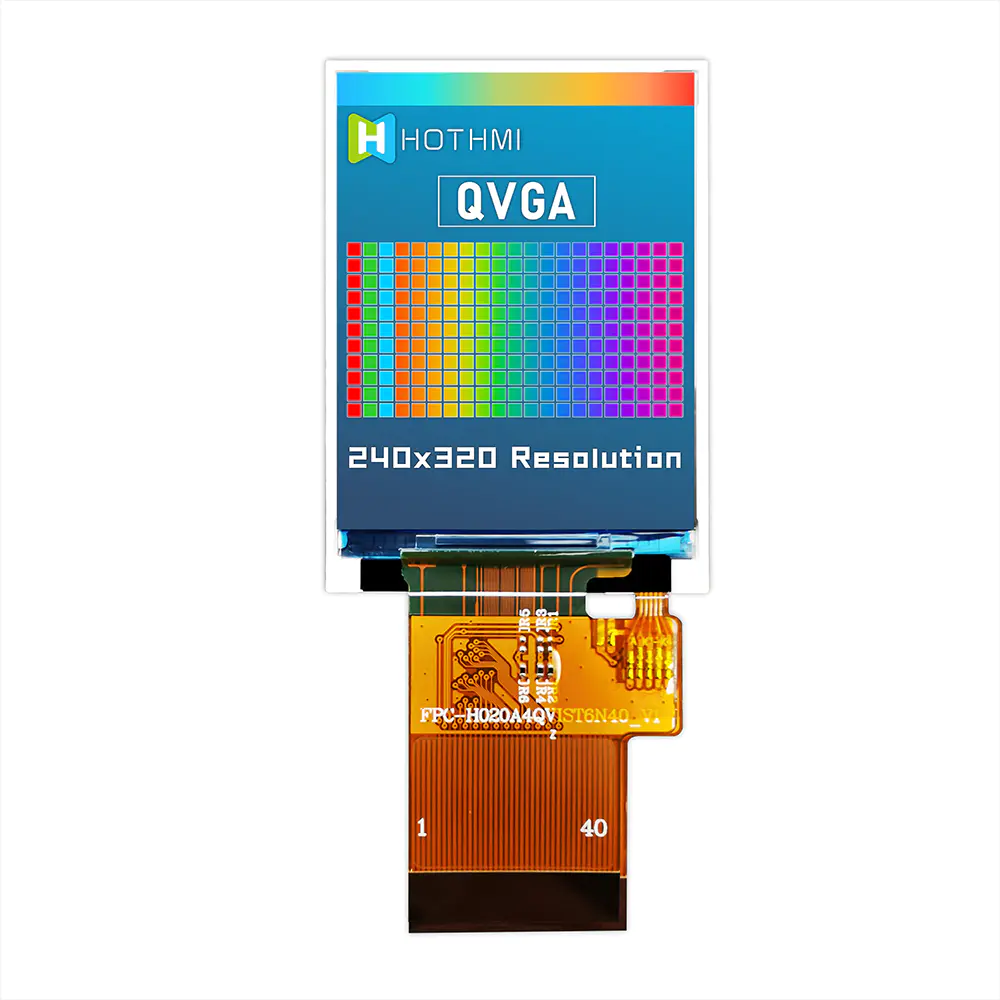

Display content: 240*320

Dimensions (mm): 35.70(H) ×51.20(V)× 2.30(D)

Window size (mm): 2.0"

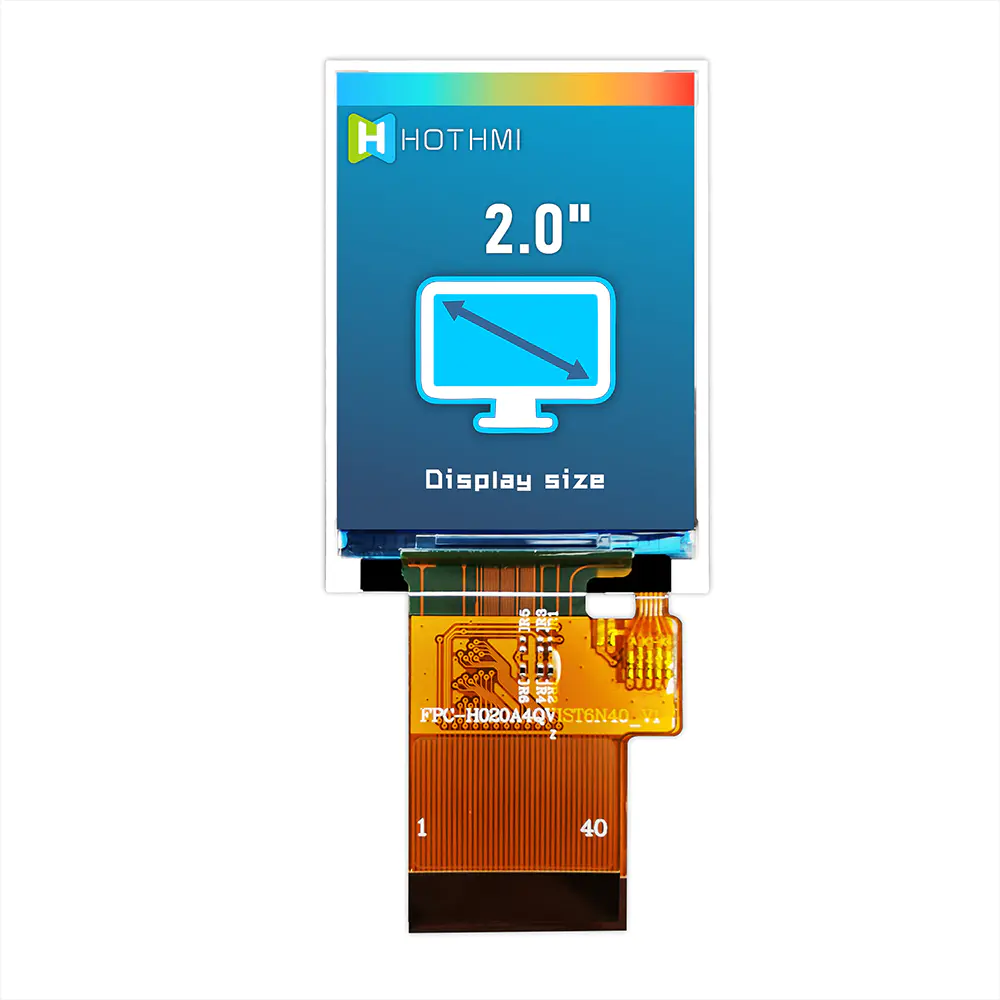

Display size (mm): 2.0"

Effective size (mm):  30.60(H) *40.80(V)

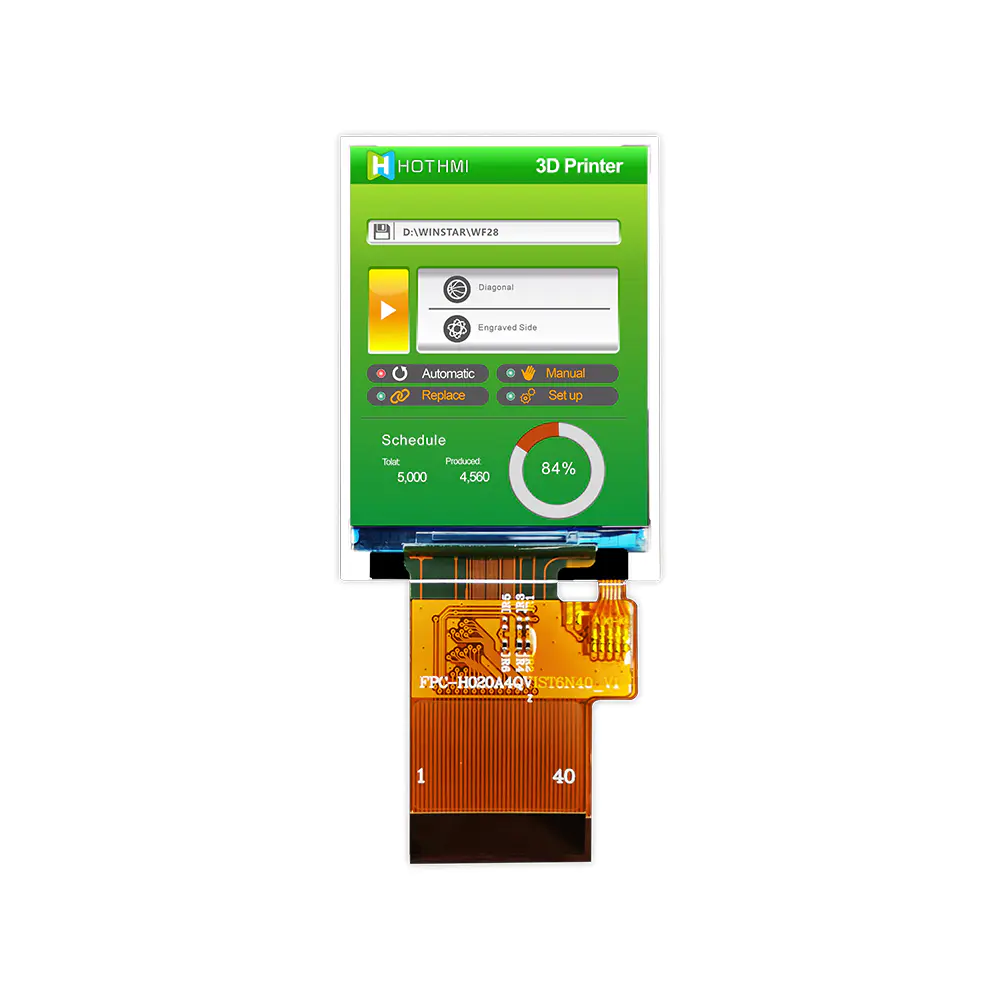

Product application: Handheld Instruments/Industrial Control/Medical/Home Appliances

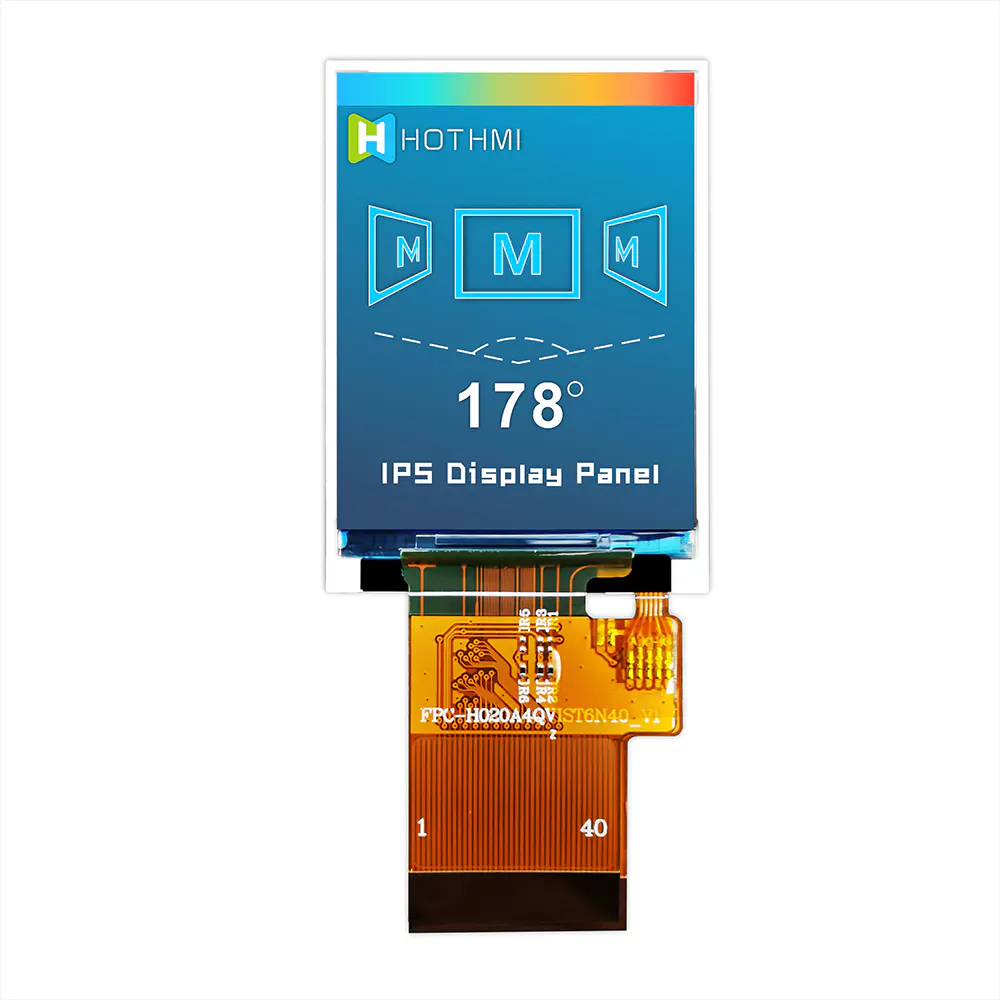

Viewing angle:full O'CLOCK

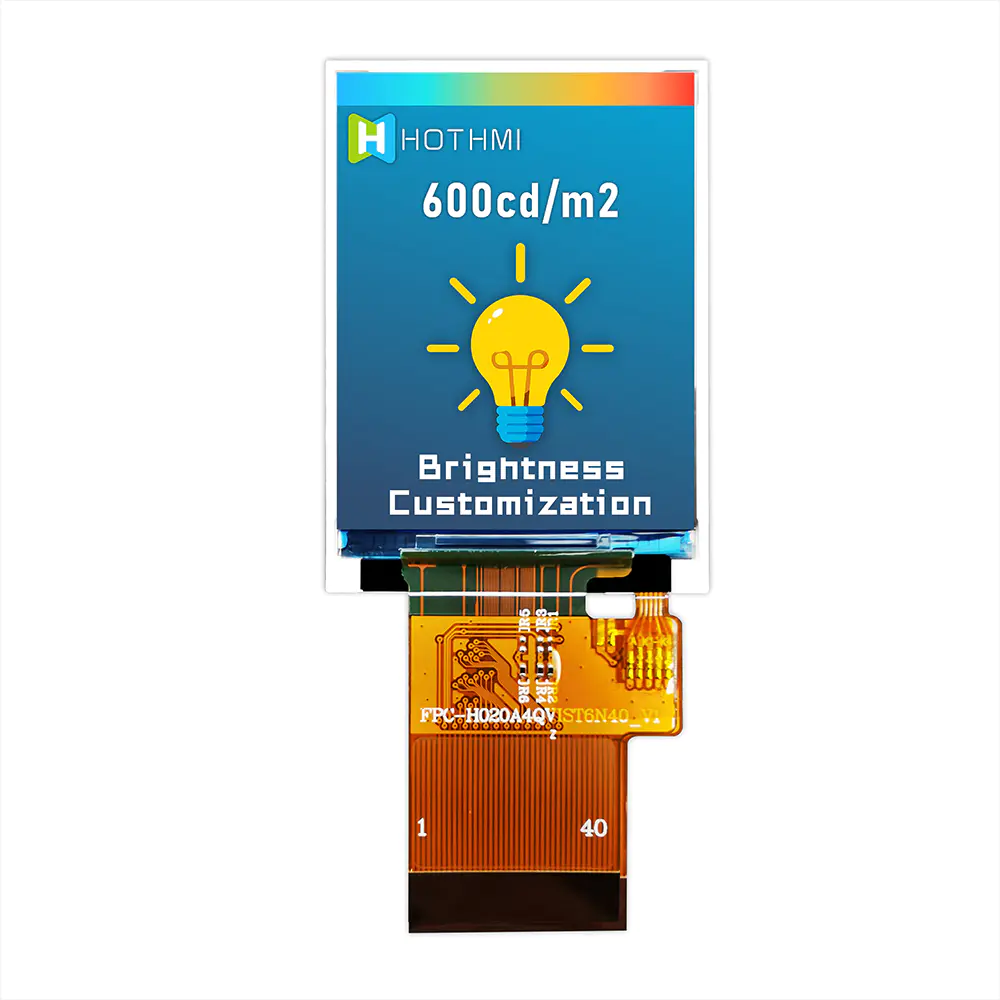

Backlight type or brightness: 600cd/m2

Number of connection PINs: FPC-40PIN

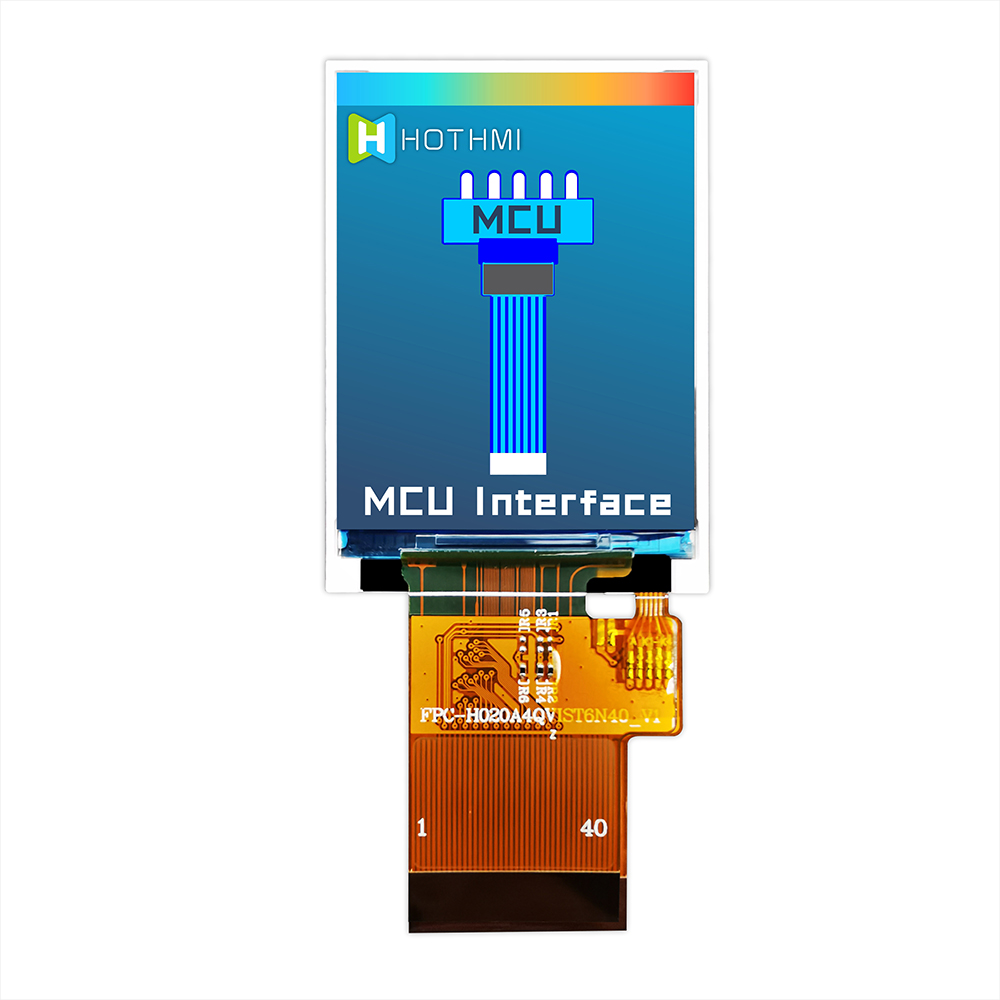

Interface: MCU

Working temperature: -30~85℃

Power supply voltage: 2.8V

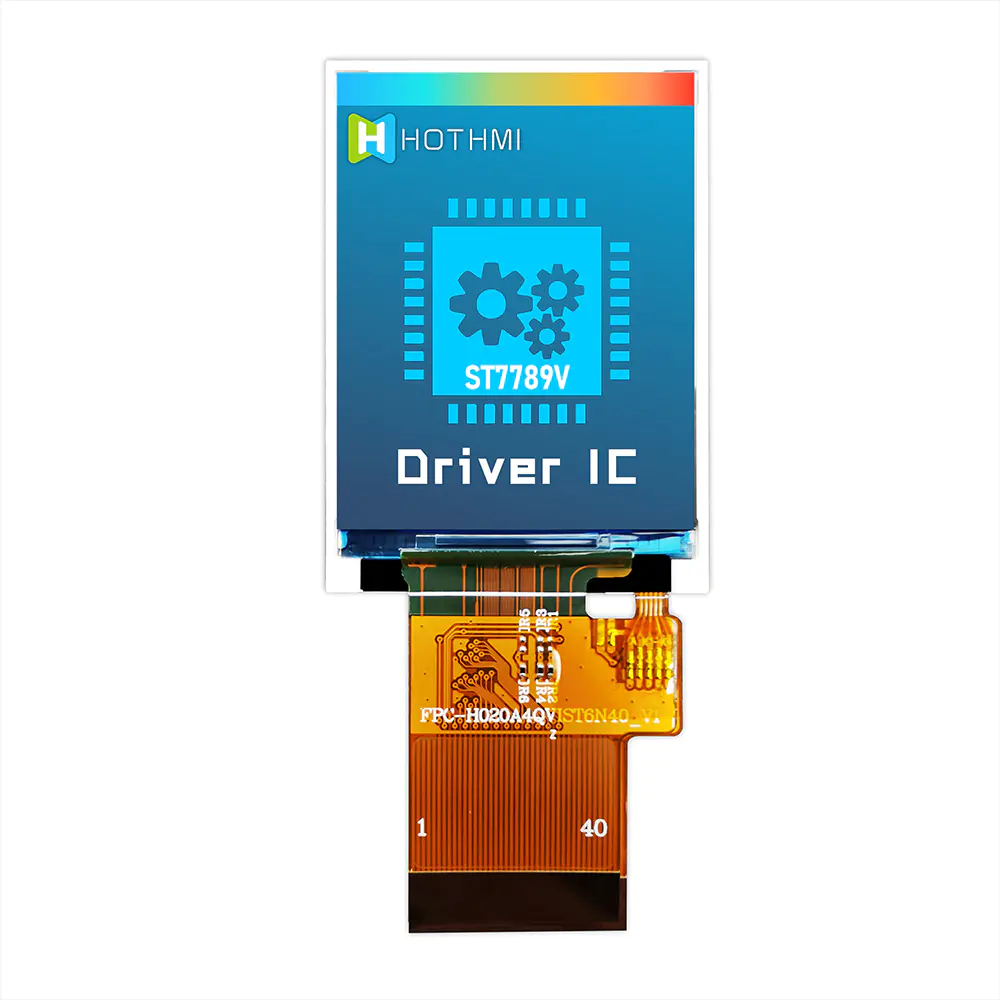

Driver chip model: ST7789V



DRAWING
