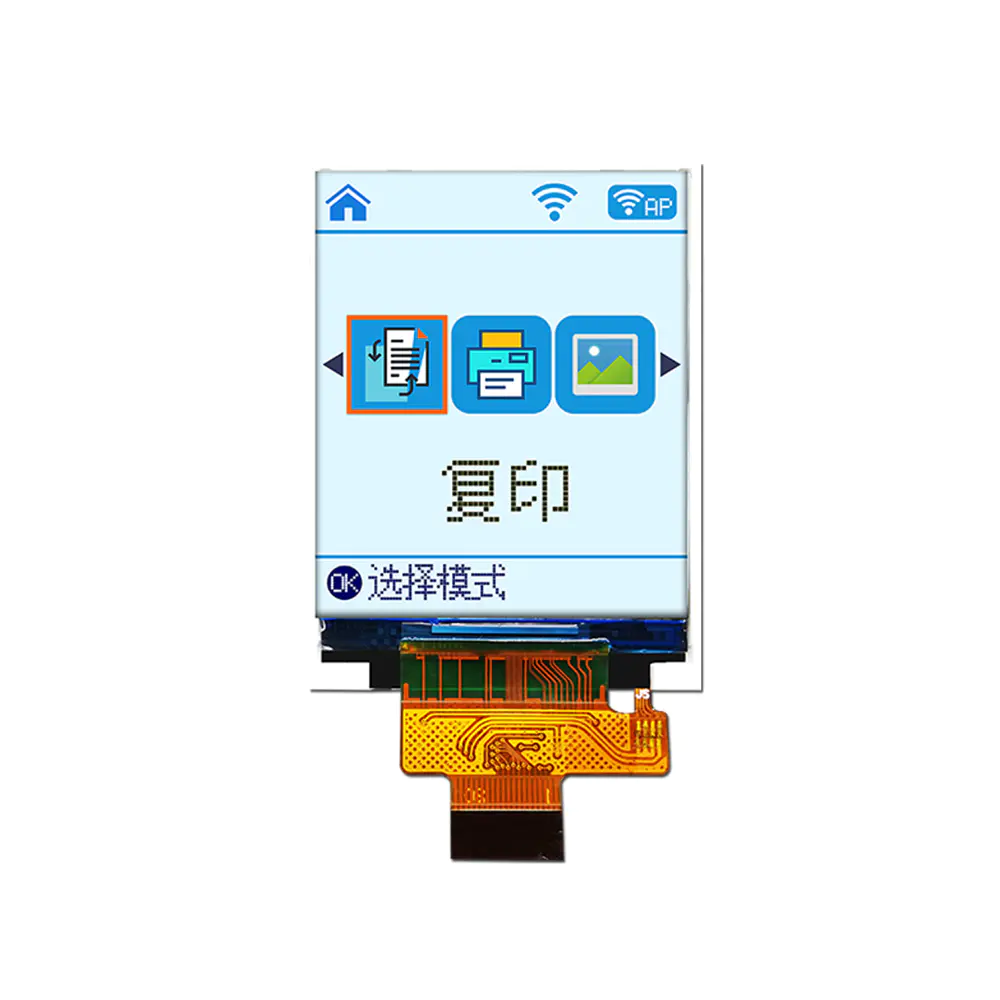

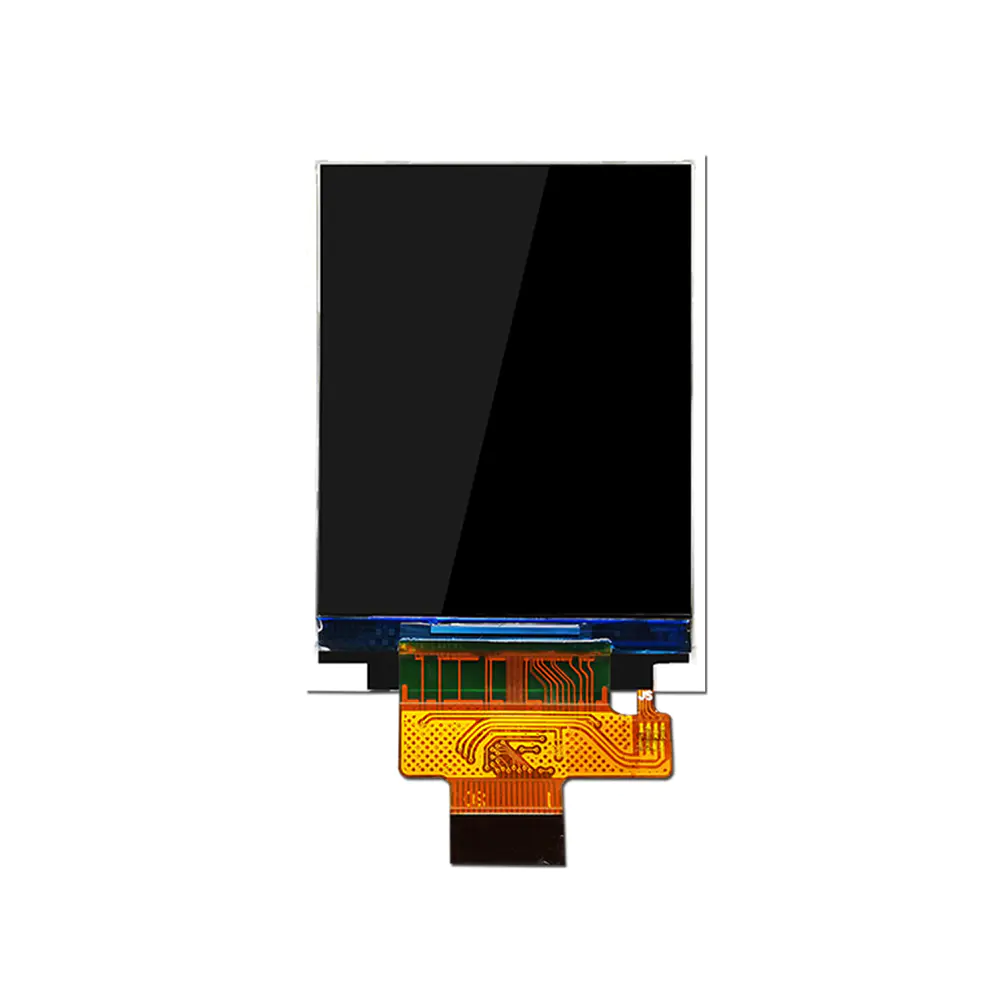

TFT-H020B5QCTST2N20 is a 2.0-inch TFT color LCD screen carefully designed by HOTLCD R&D team, 176*220 resolution, high image quality, wide viewing angle, 65K/262K true color, built-in ST7775R controller, support MCU interface, 20PIN external FPC can be connected Mainboard (optional connector), single power supply DC 2.8V power supply. The TFT module can be equipped with a touch screen and all materials are RoHS compliant. Widely used in various instruments, smart devices, analytical instruments, handheld instruments, driving recorders, etc.: 8051, PIC, AVR, ARDUINO, ARM, Raspberry Pi, etc.

2.0 inch TFT /176*220 resoliution/12H viewing angle/TFT-H020B5QCTST2N20

Product type: TFT vertical screen

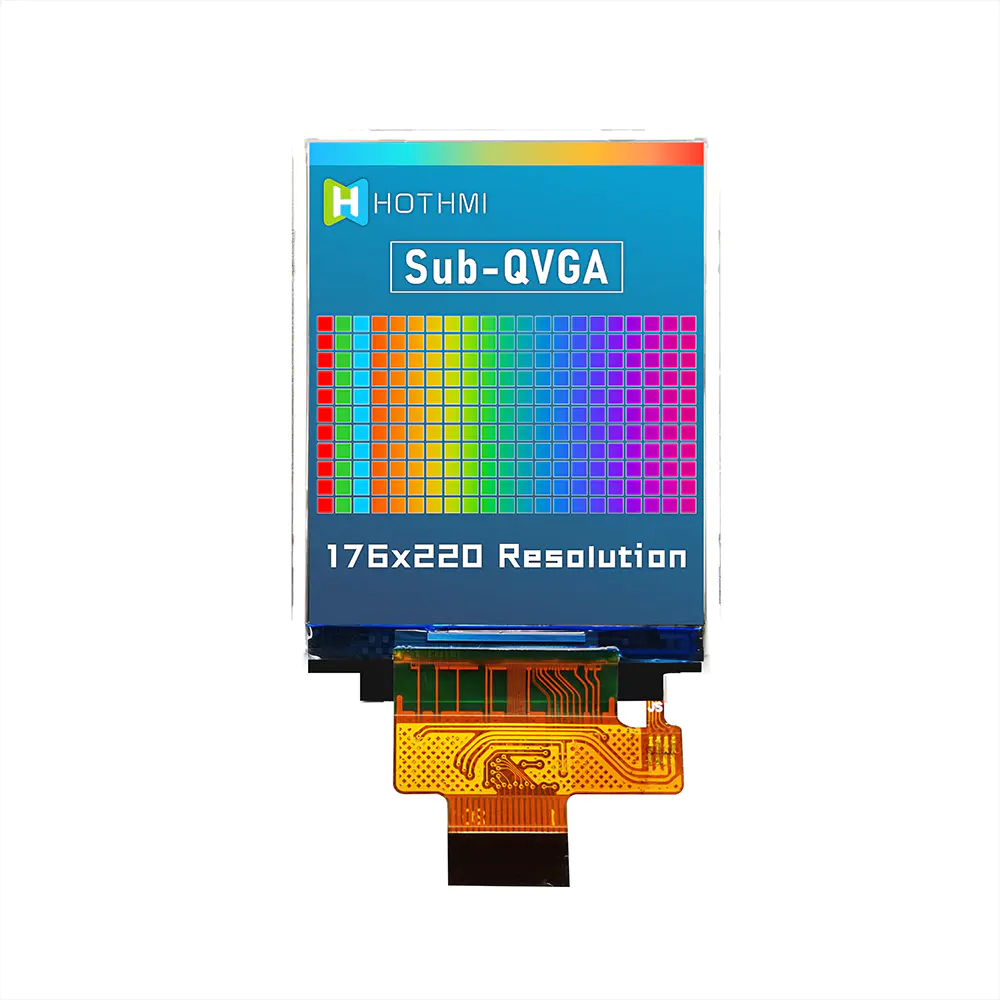

Display content: 176*220

Dimensions (mm): 37.68(H) ×51.30(V)× 2.35(D)

Window size (mm): 2.0"

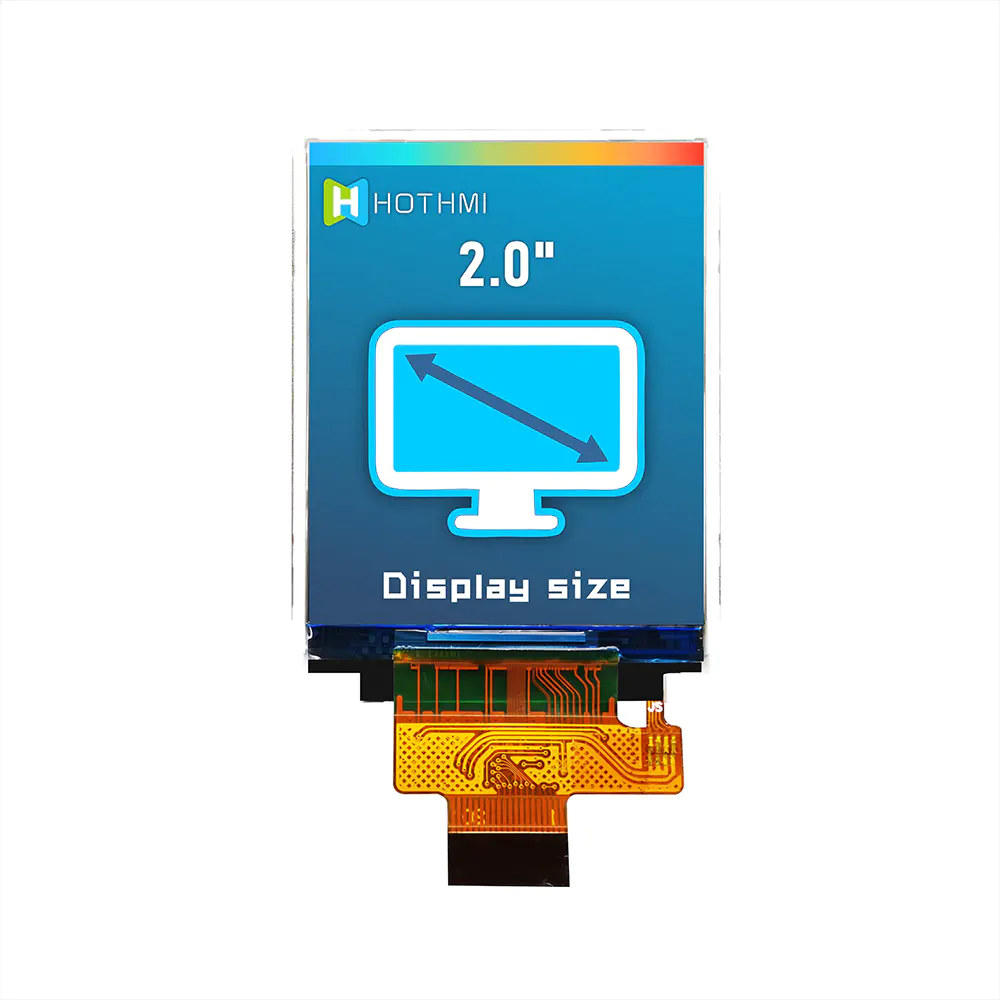

Display size (mm): 2.0"

Effective size (mm): 31.68(H) *39.60(V)

Product application: Handheld Instruments/Industrial Control/Medical/Home Appliances

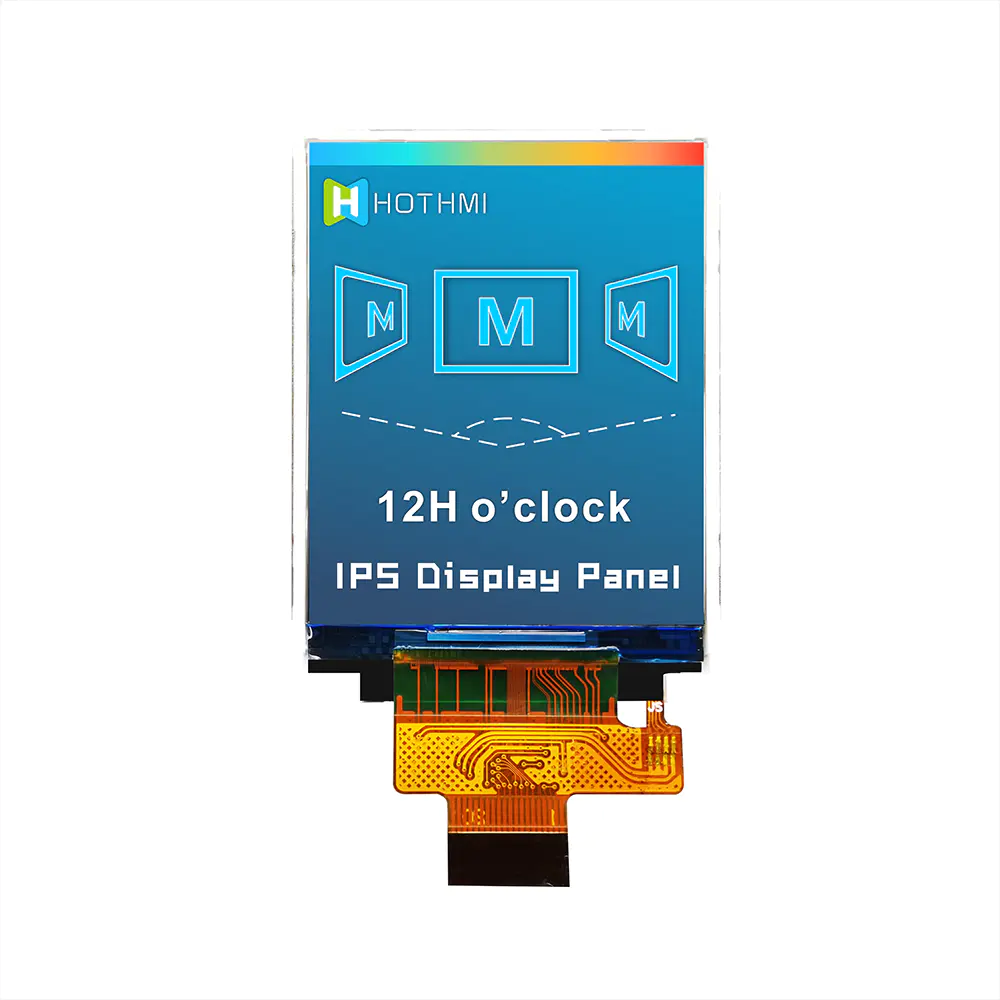

Viewing angle:12H O'CLOCK

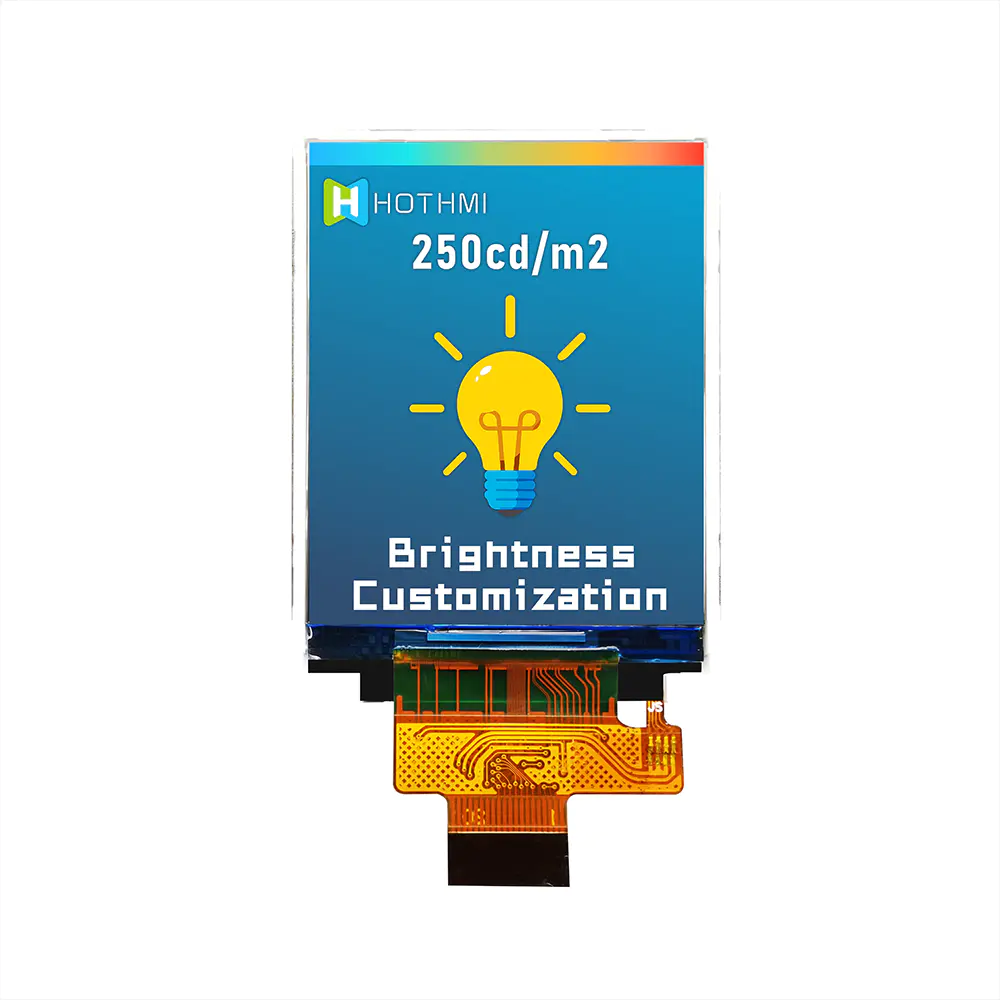

Backlight type or brightness: 250cd/m2

Number of connection PINs: FPC-20PIN

Interface: MCU

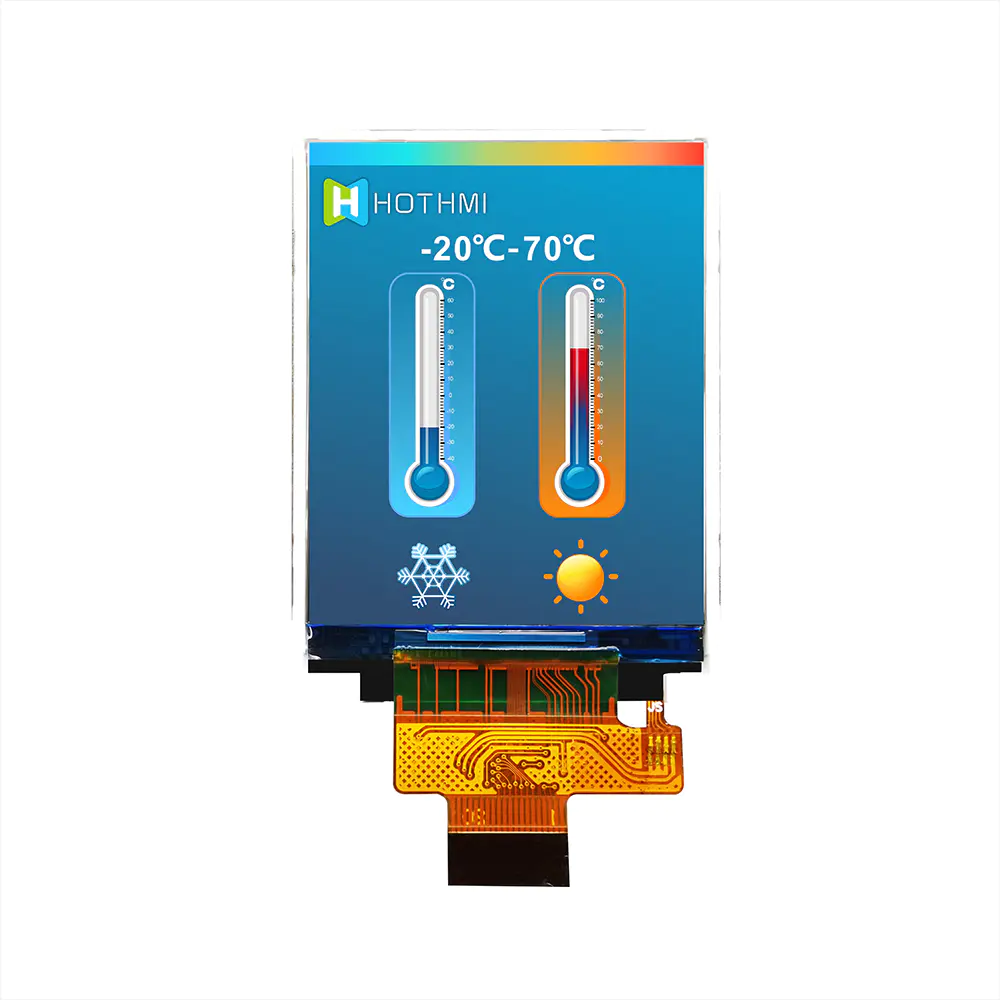

Working temperature: -20~70℃

Power supply voltage: 2.8V

Driver chip model: ST7775R

DRAWING
