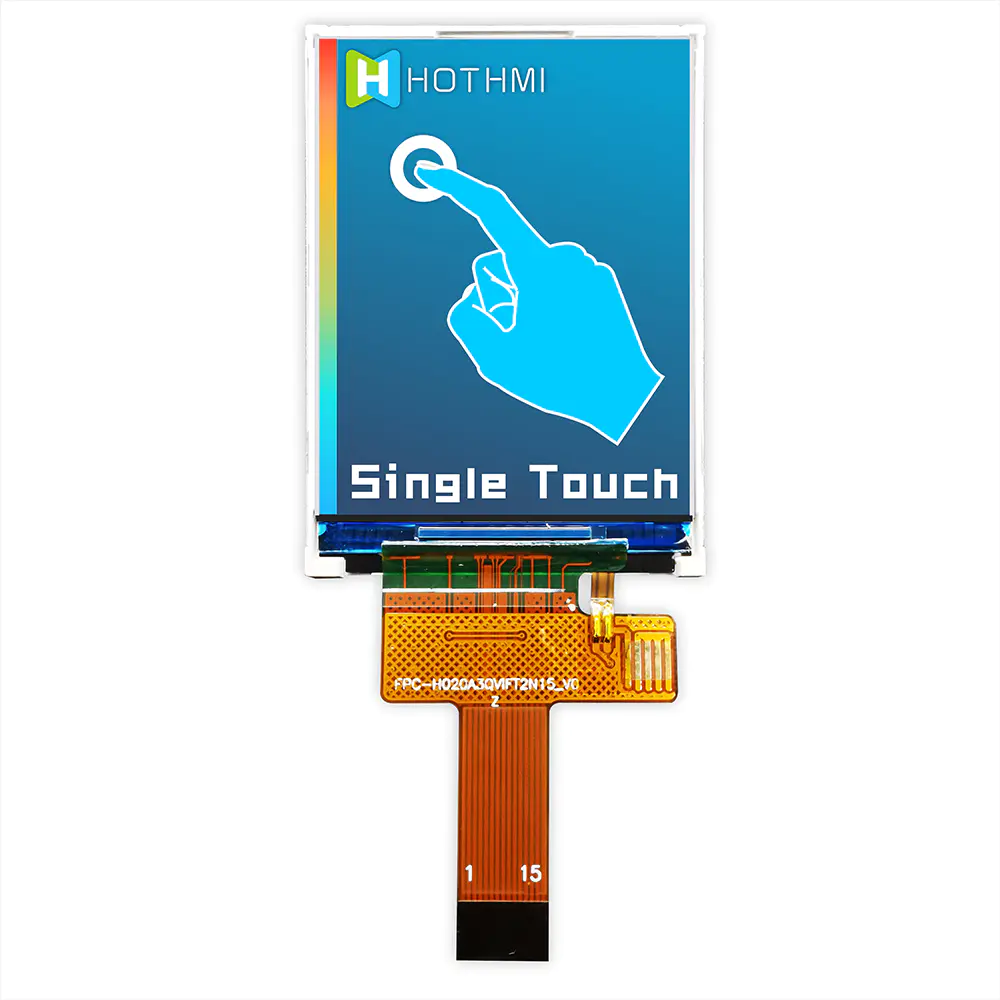

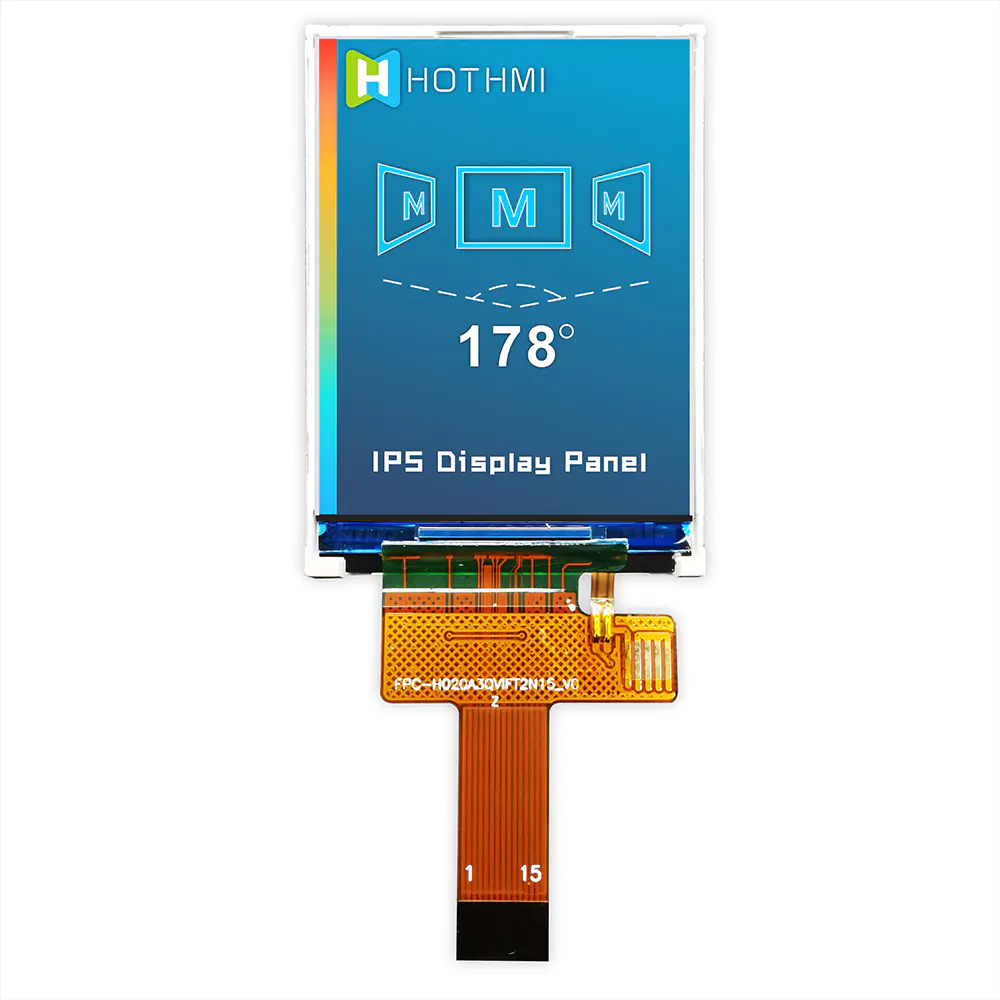

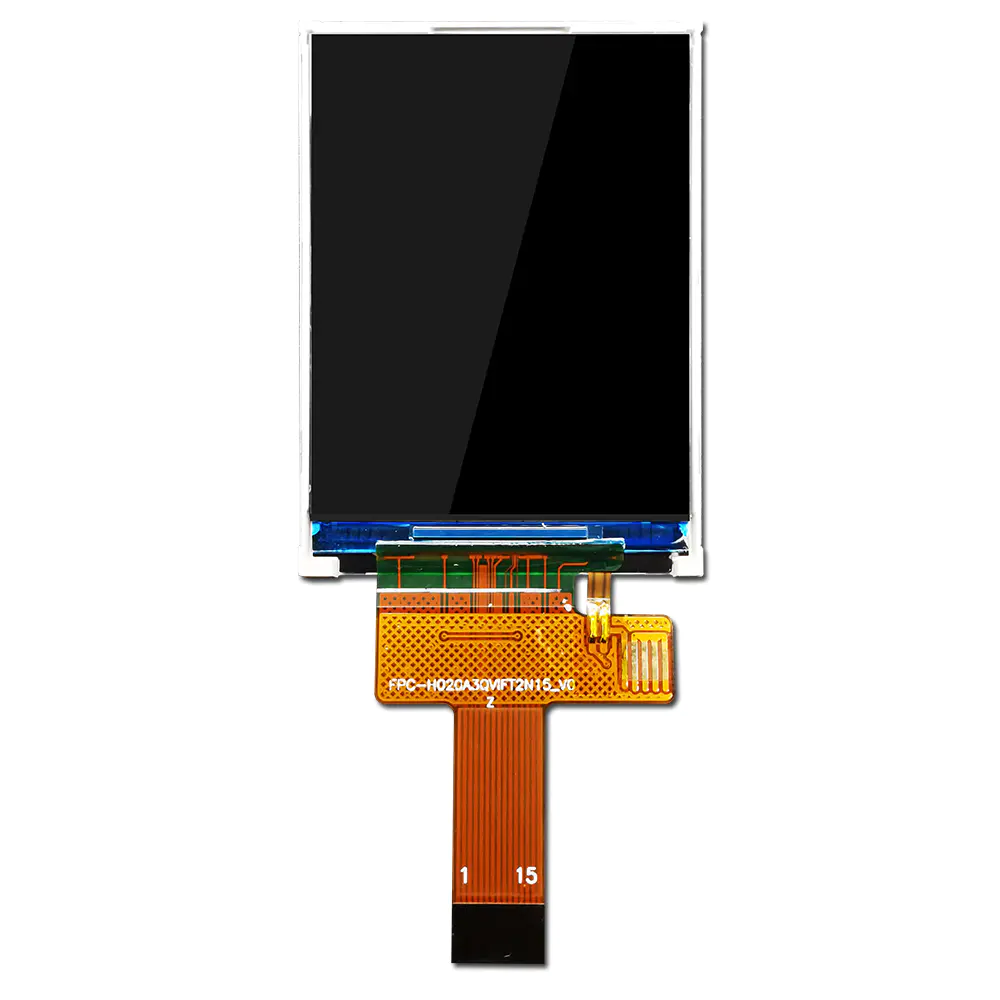

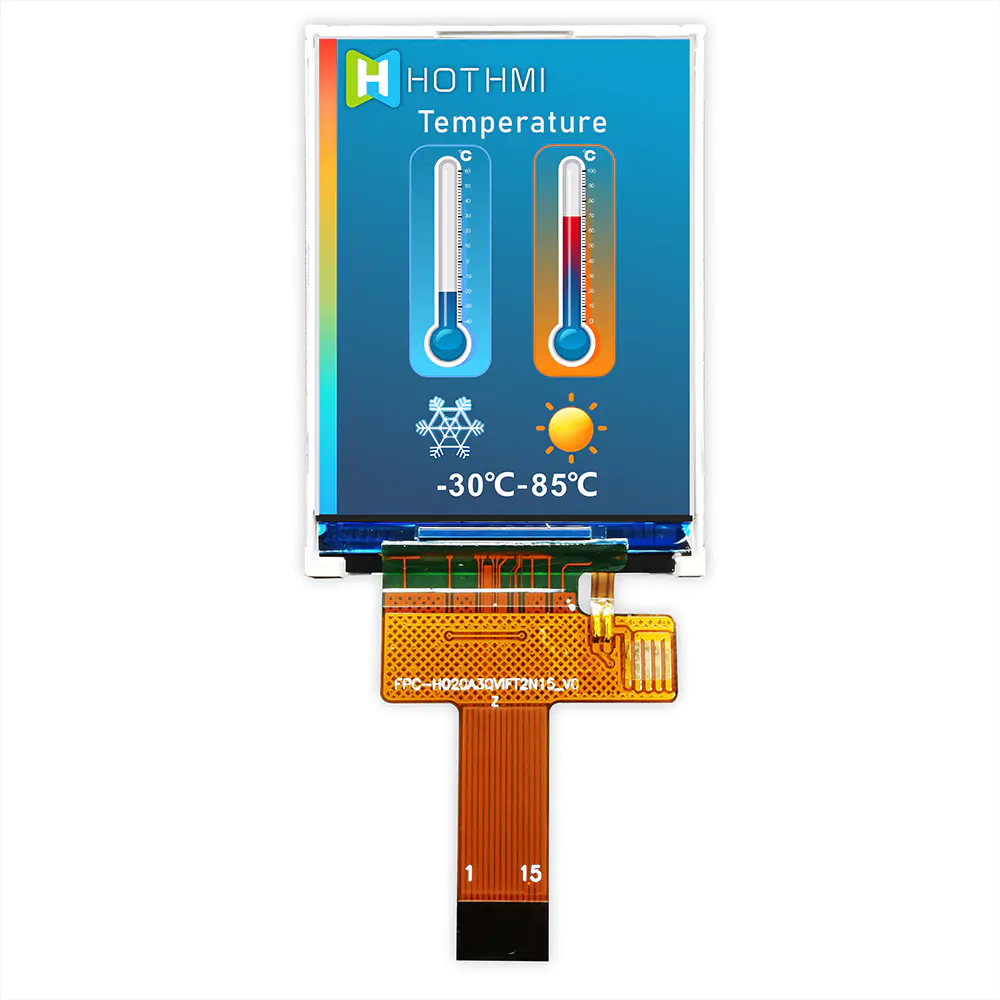

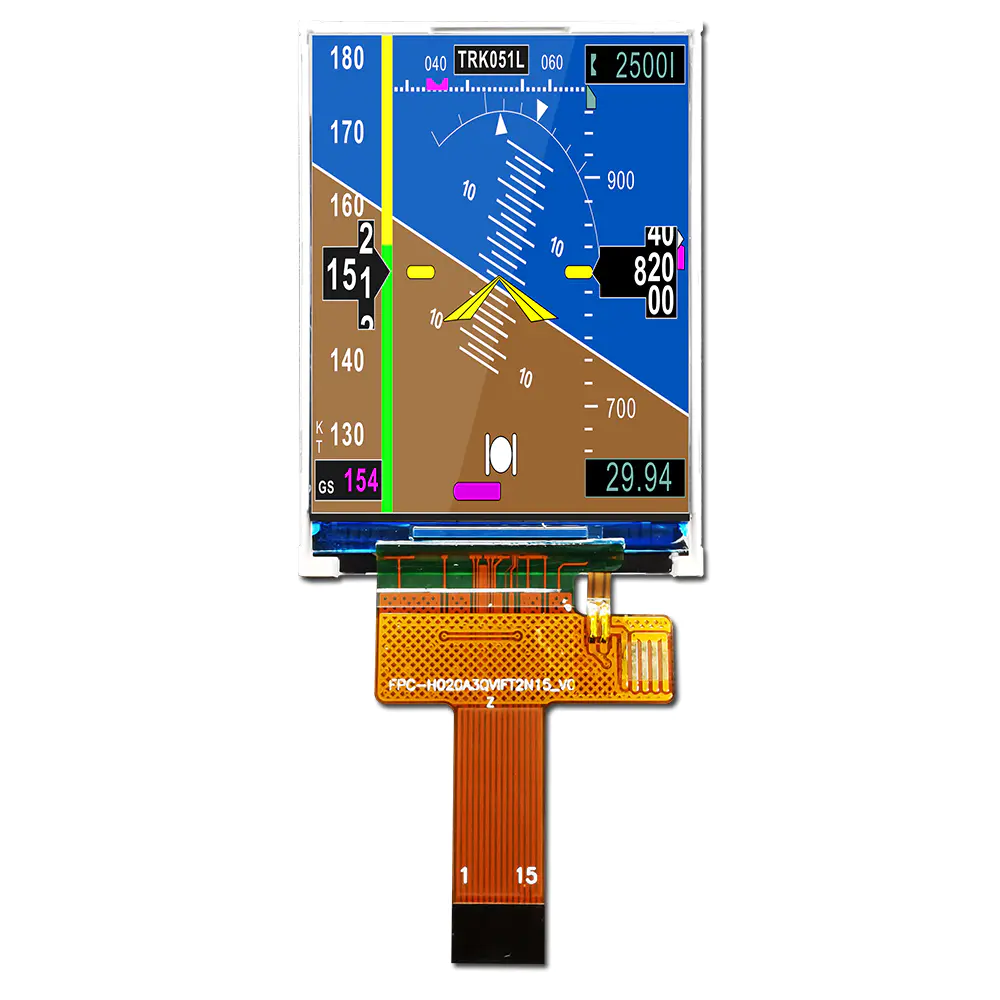

Product Description TFT-H020A3QVIFT6N15 is a 2-inch full-color IPS TFT LCD display module with a resolution of 240x320 pixels and an aspect ratio of 3:4. This TFT module uses JD9852 driver IC to support MIPI interface. TFT module with IPS panel has the advantage of wide viewing angle (left 80 degrees/right 80 degrees/up 80 degrees/down 80 degrees), the contrast ratio is Typical 800:1, and this module has a high brightness of 600 nits (Typical value). The working temperature range of the module is -30℃~+85℃, and the storage temperature range is -30℃~+85℃.
Model : 2.0 inch TFT /240*320 resoliution/highlight/Full View/MIPI interface/TFT-H020A3QVIFT6N15
Product type：TFT

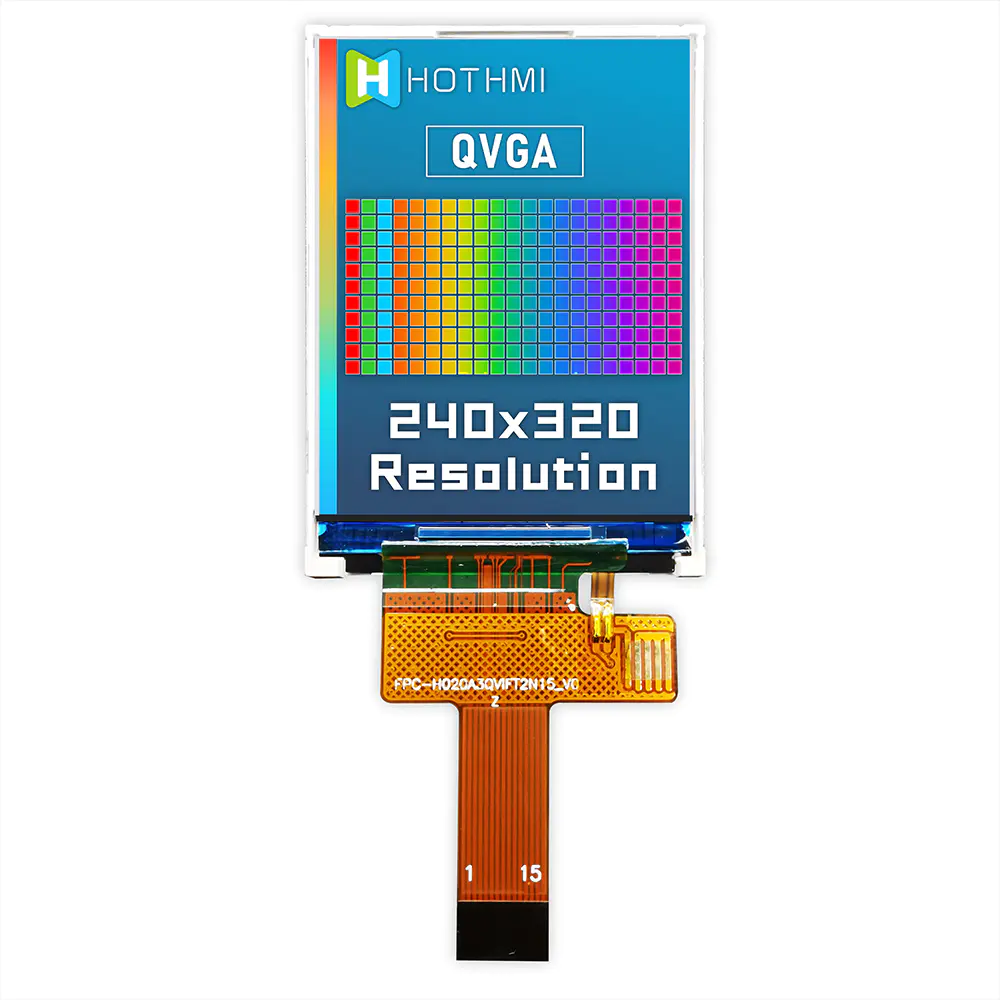

Show contents：240*320
Outline size(mm) ：35.50*51.00*2.10

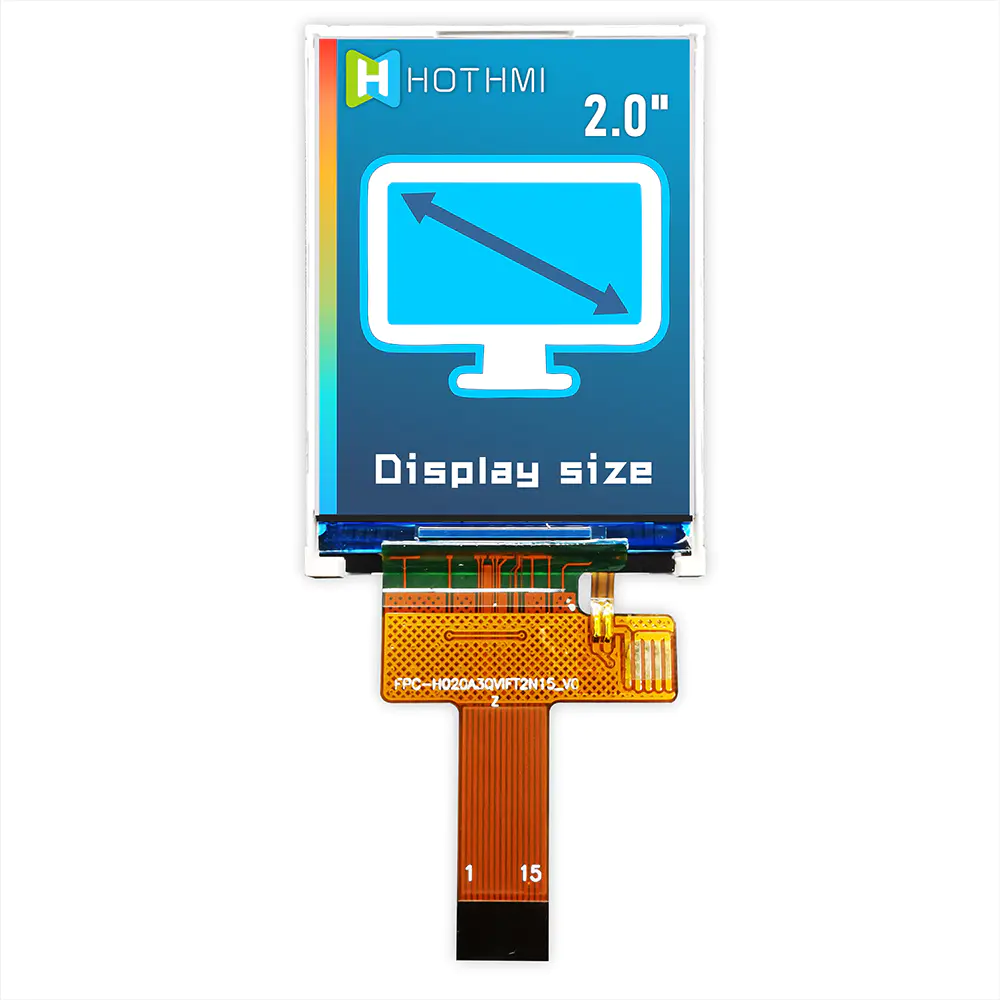

Size of View Window(mm)：2.0"
Display size(mm) ：2.0"
Visual angle：Full View

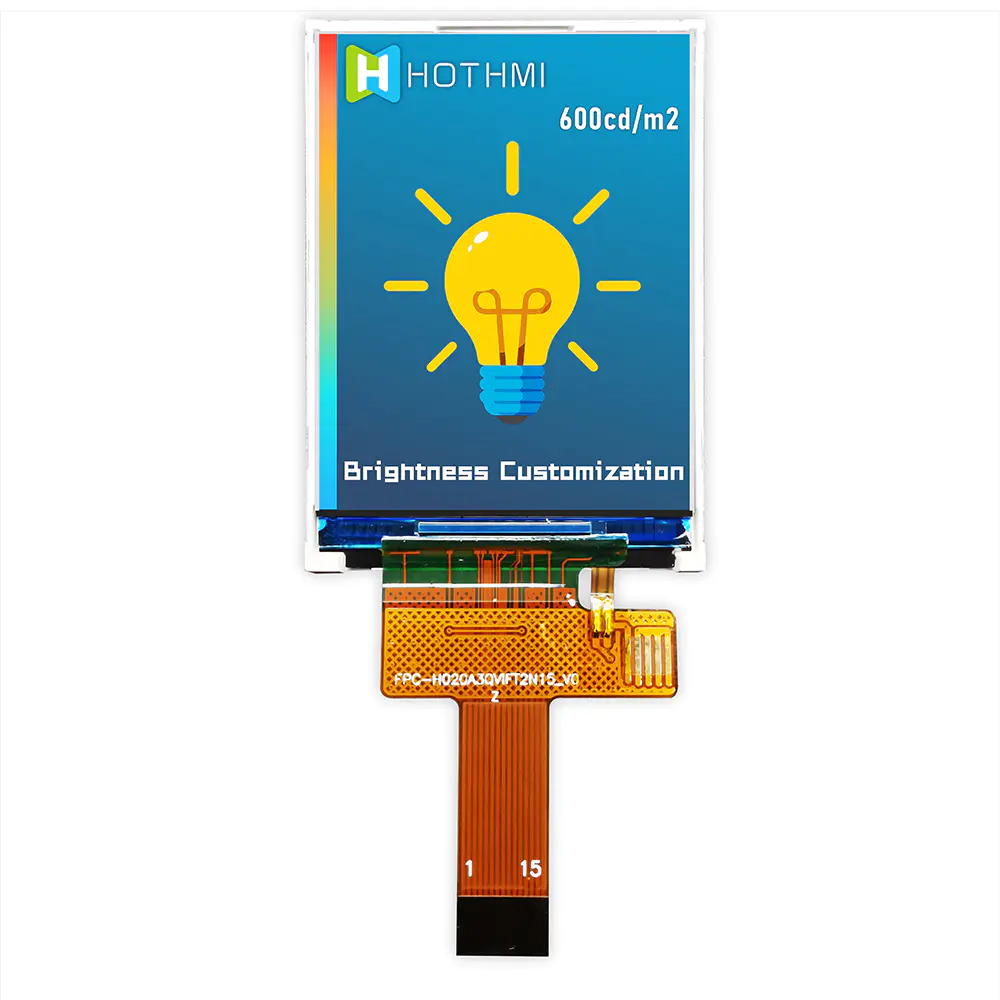

Backlight type or brightness：600cd/m2
Connection PIN Number：FPC-15PIN

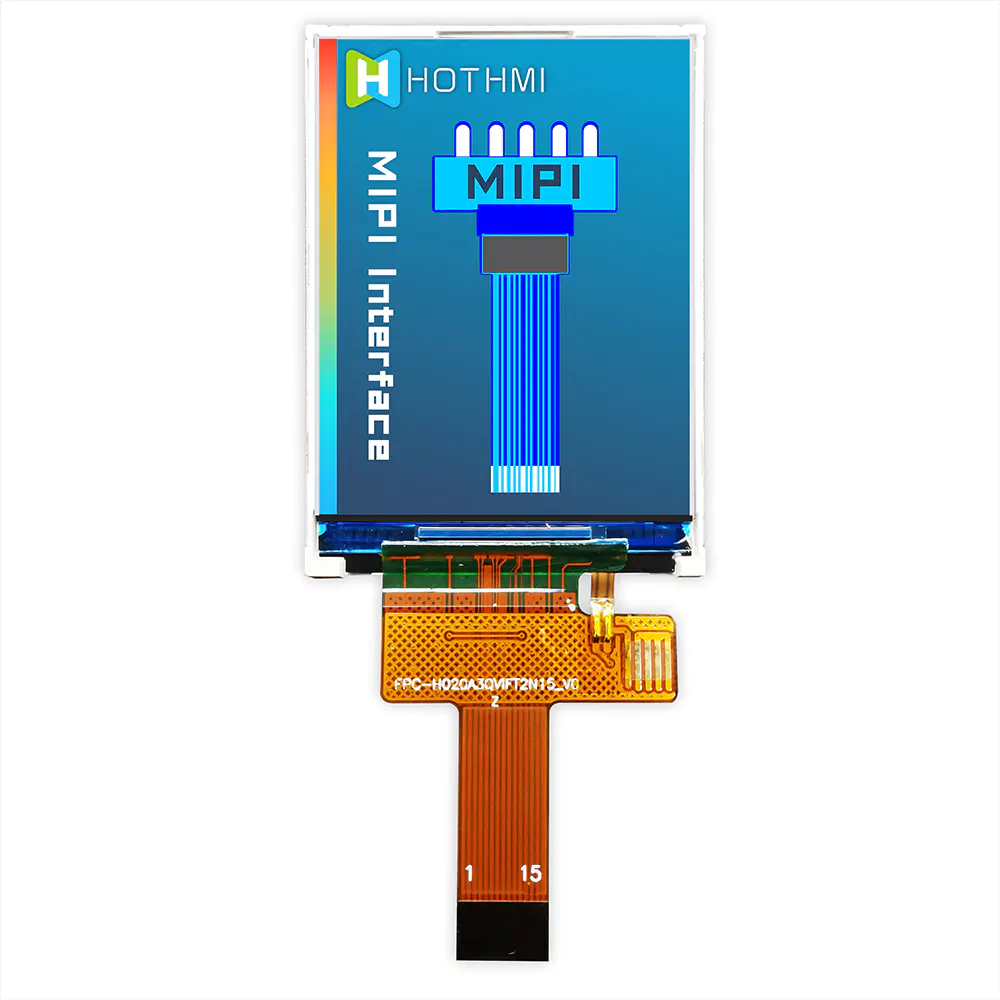

Interface mode：MIPI
Working temperature：-30~85℃
Power supply voltage：3.3V
Driver chip model：JD9852(TFT)
CAD Drawings:
