Product type：COG

Show contents：192*64

Outline size(mm) ：106.49*46.66*5.2

Size of View Window(mm)：102.89*36.06

Display size(mm) ：97.486*32.462

Point spacing(mm)：0.508*0.458

Visual angle：6H

Backlight type or brightness：WHITE

Connection PIN Number：FPC36PIN

Interface mode：MCU/8bit

Working temperature：-20~70℃

Power supply voltage：3.3V

Driver chip model：IST3020

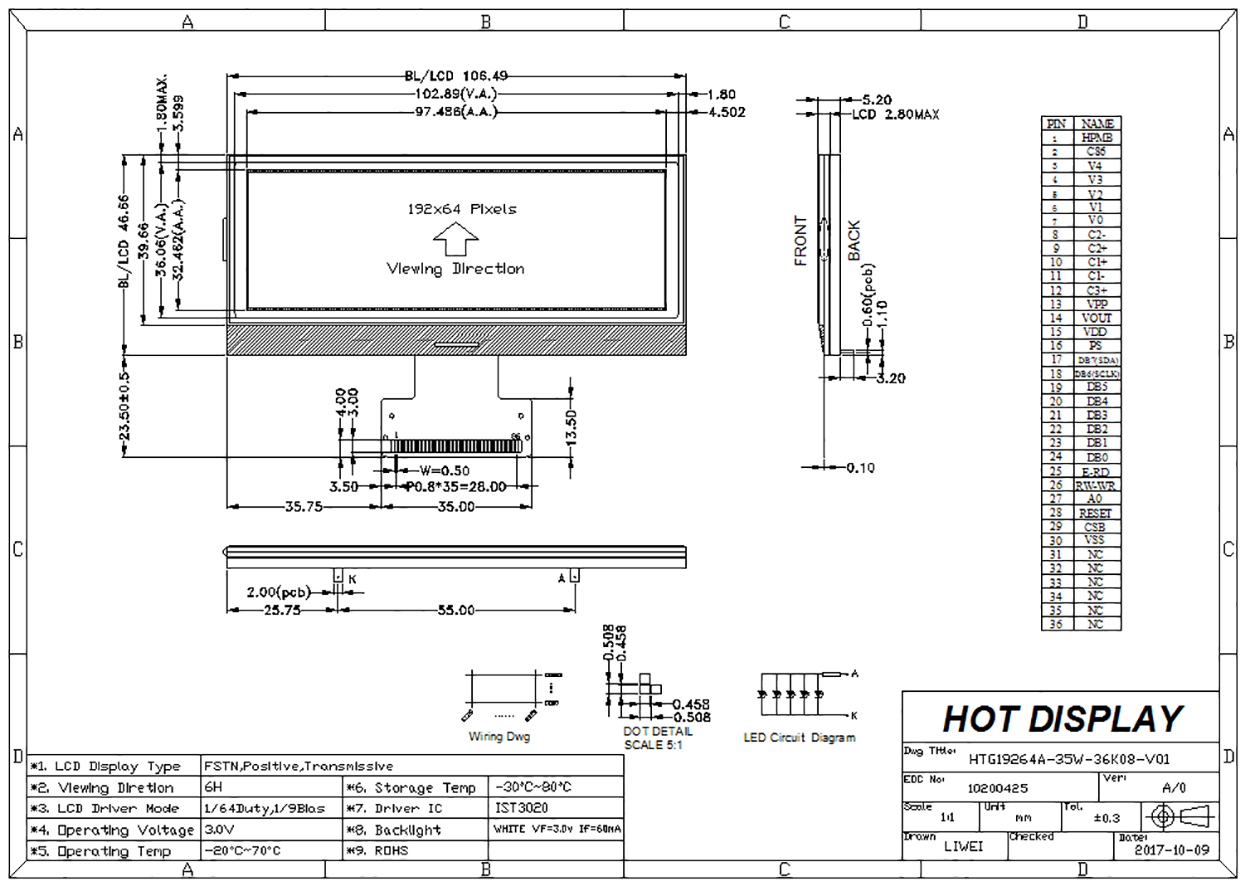

CAD Drawings:
