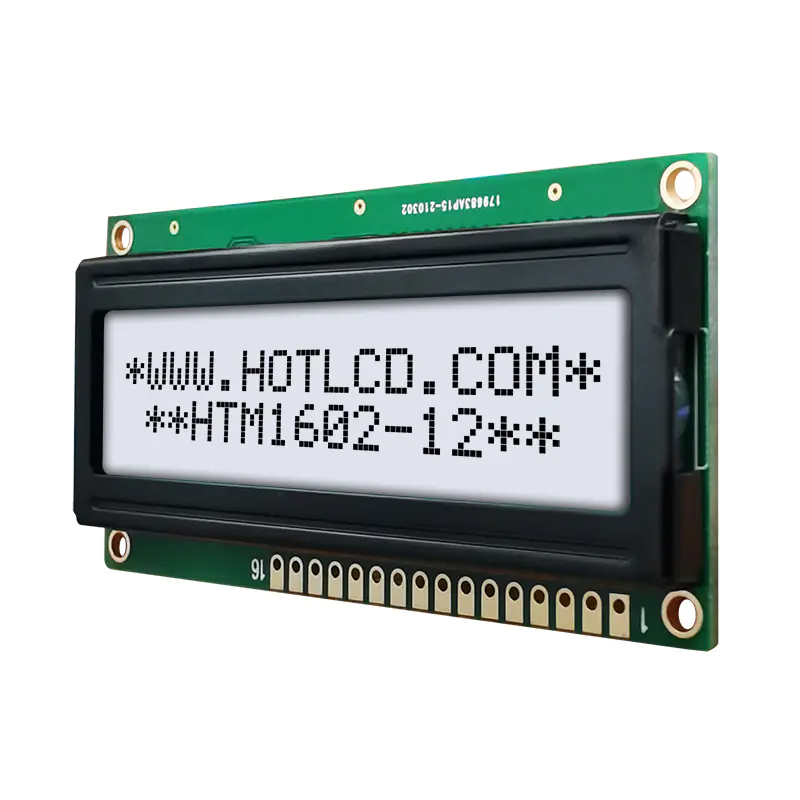

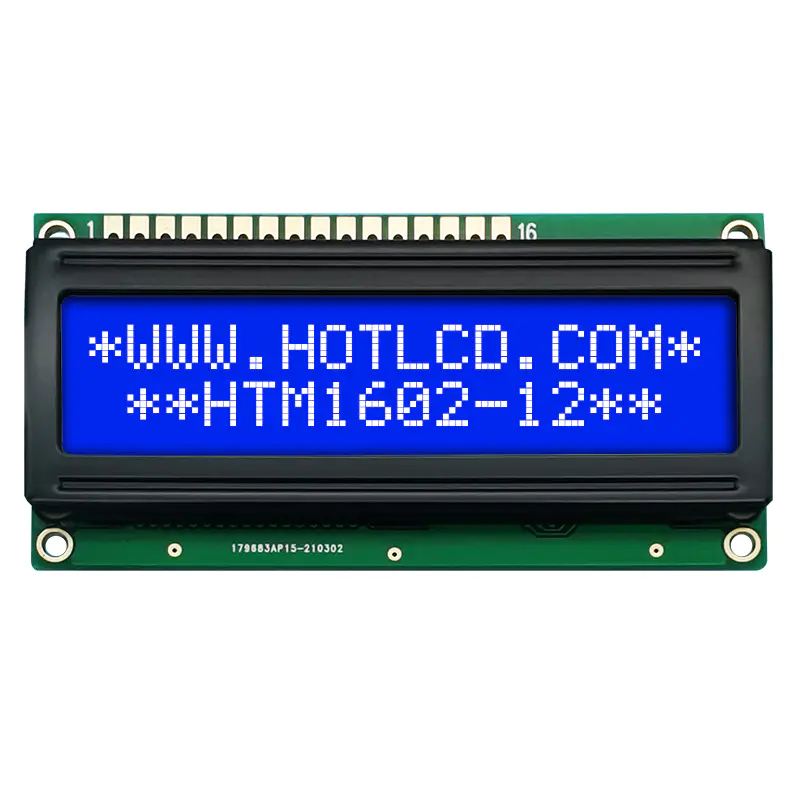

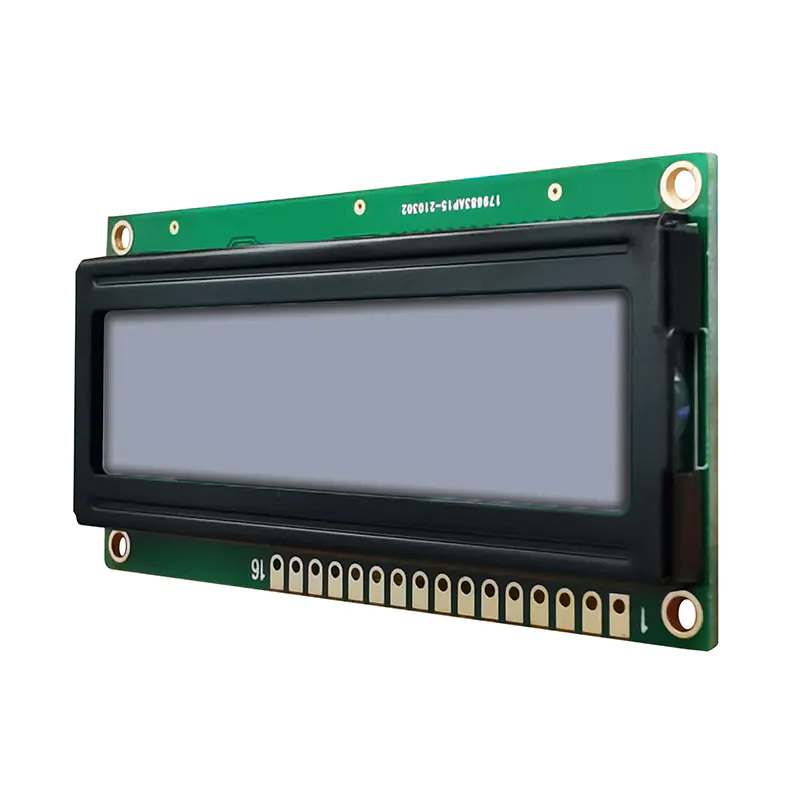

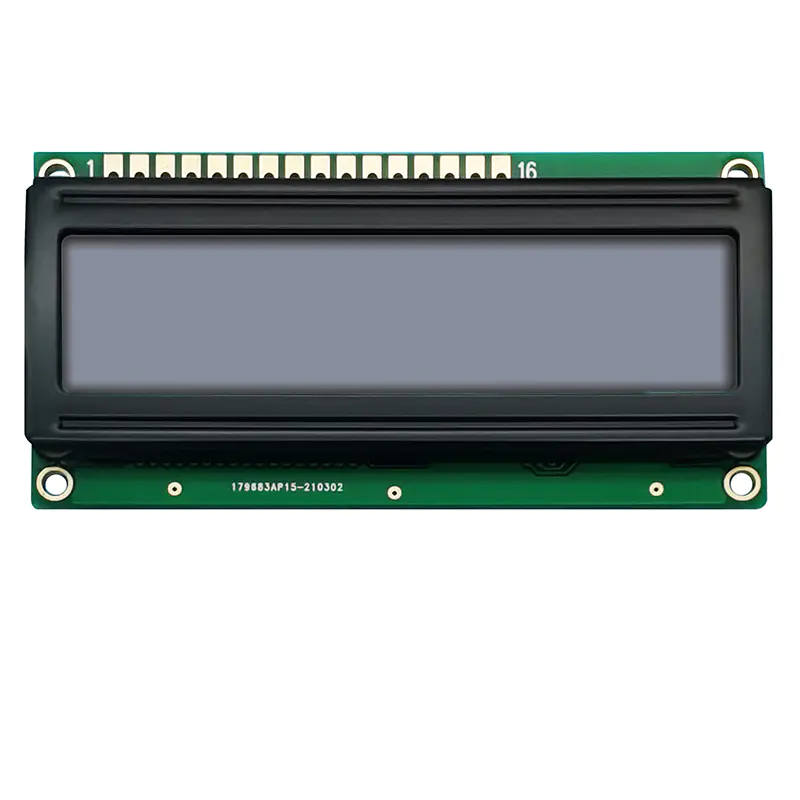

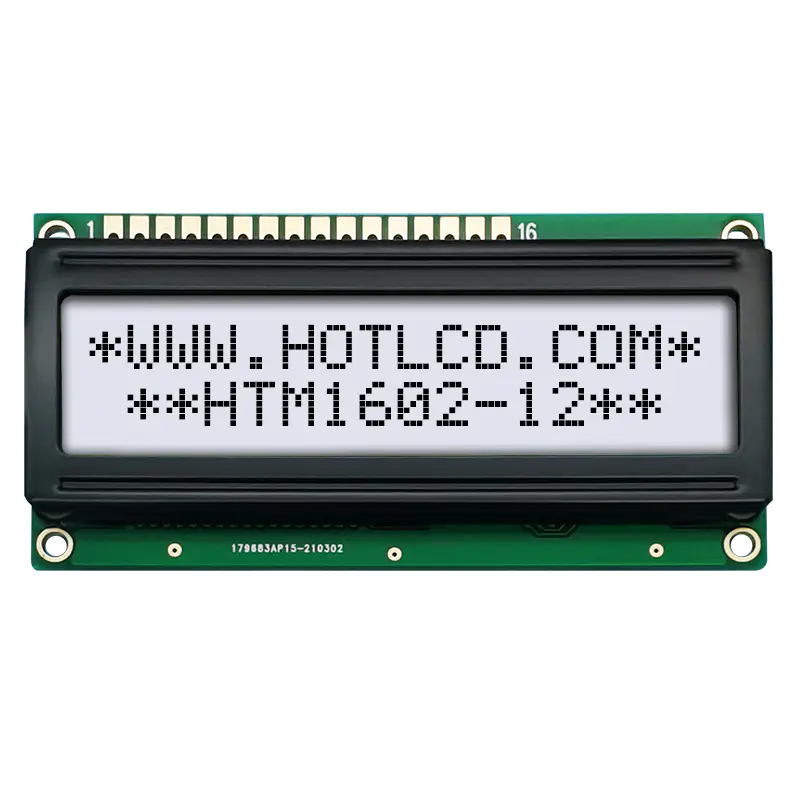

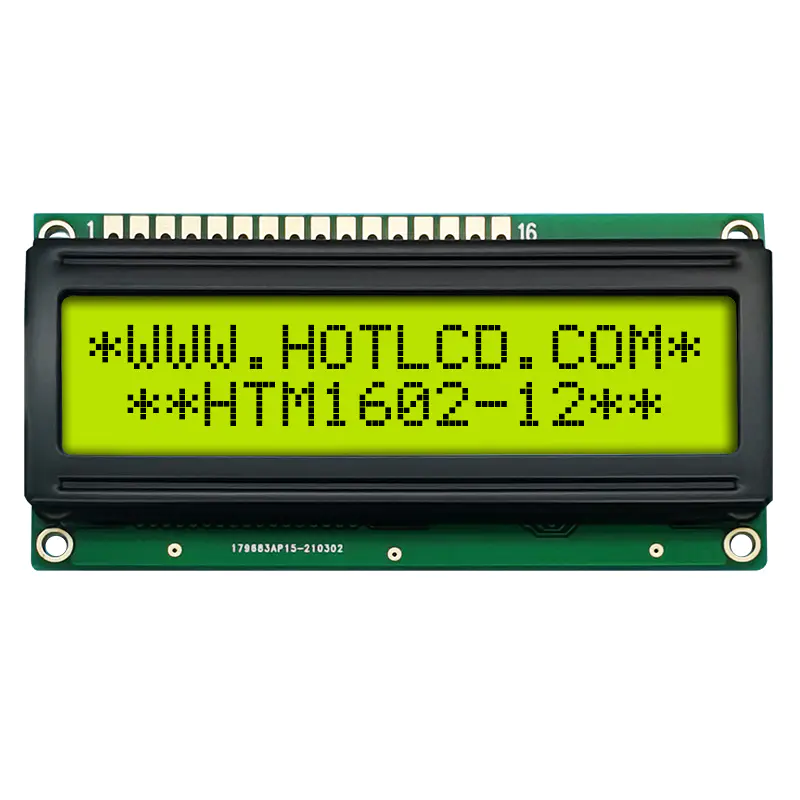

Product type：Character LCM

Show contents：16*2Character

Outline size(mm) ：72.0*36.0*10.1

Size of View Window(mm)：64.5*16.0

Display size(mm) ：56.2*11.5

Point spacing(mm)：0.6*0.7

Visual angle：6H

Backlight type or brightness：WHITE

Connection PIN Number：16PIN

Interface mode：MCU/8bit

Working temperature：-20~70℃

Power supply voltage：5.0v

CAD Drawings:
