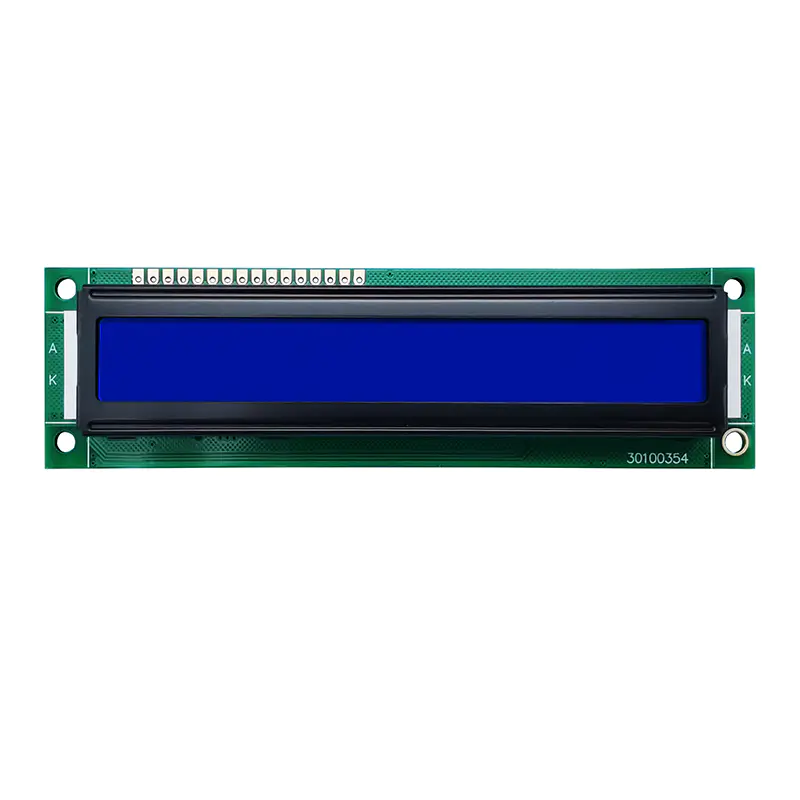

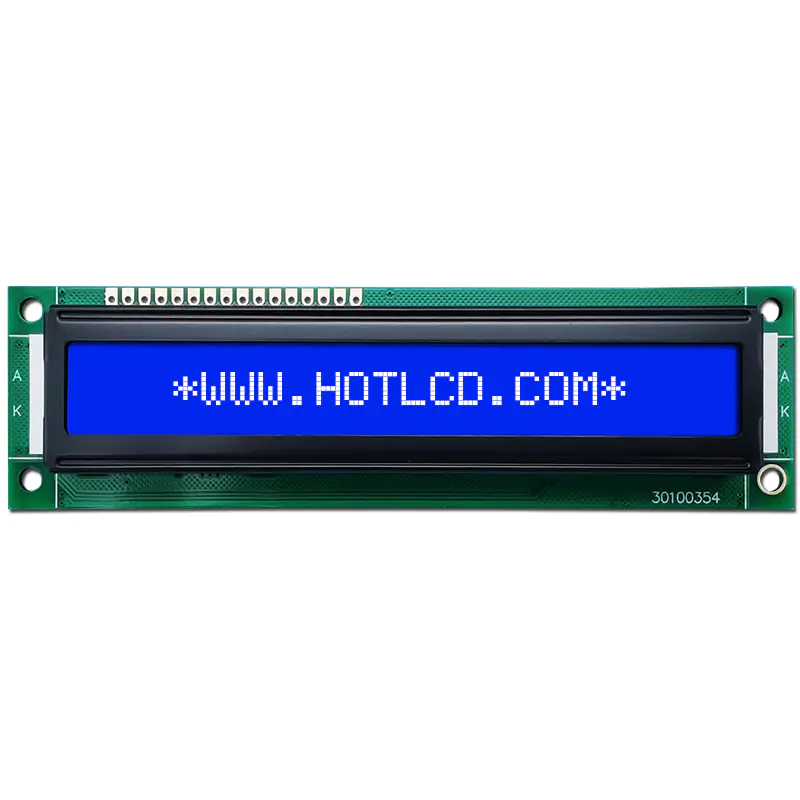

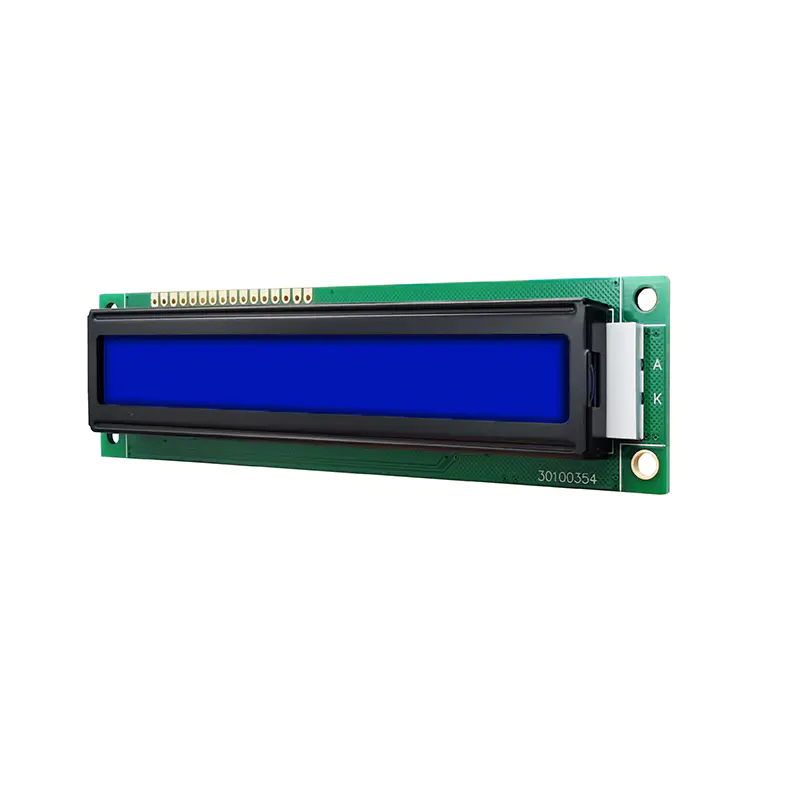

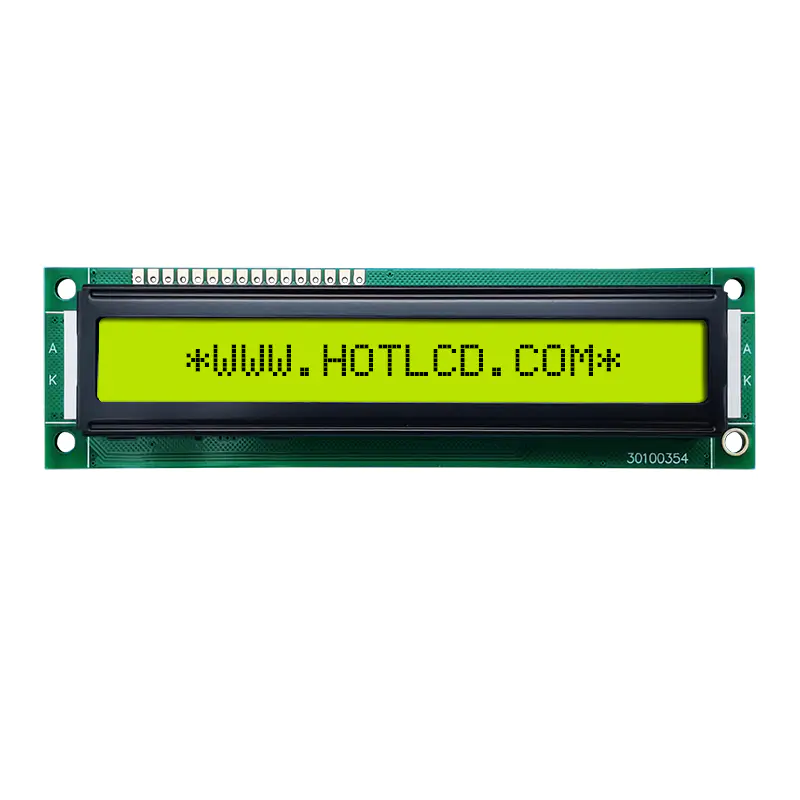

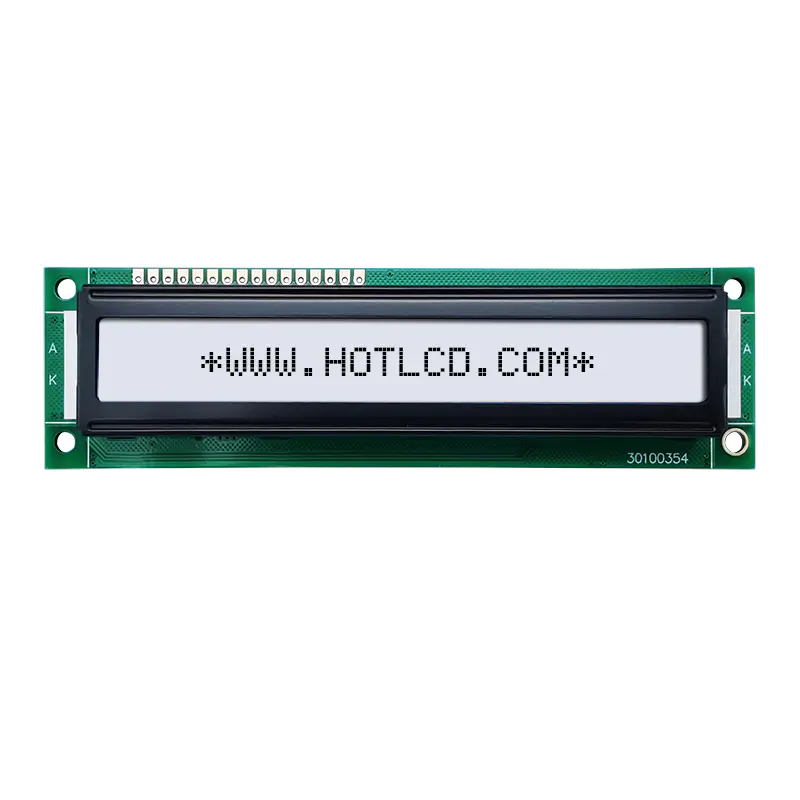

Product type：Character LCM

Show contents：16*1Character

Outline size(mm) ：122.0*33.0*11.3

Size of View Window(mm)：99.0*13.0

Display size(mm) ：94.73*9.56

Point spacing(mm)：0.17*0.17

Visual angle：6H

Backlight type or brightness：WHITE

Connection PIN Number：16PIN

Interface mode：MCU/8bit

Working temperature：-10~60℃

Power supply voltage：5.0v


CAD Drawings:
