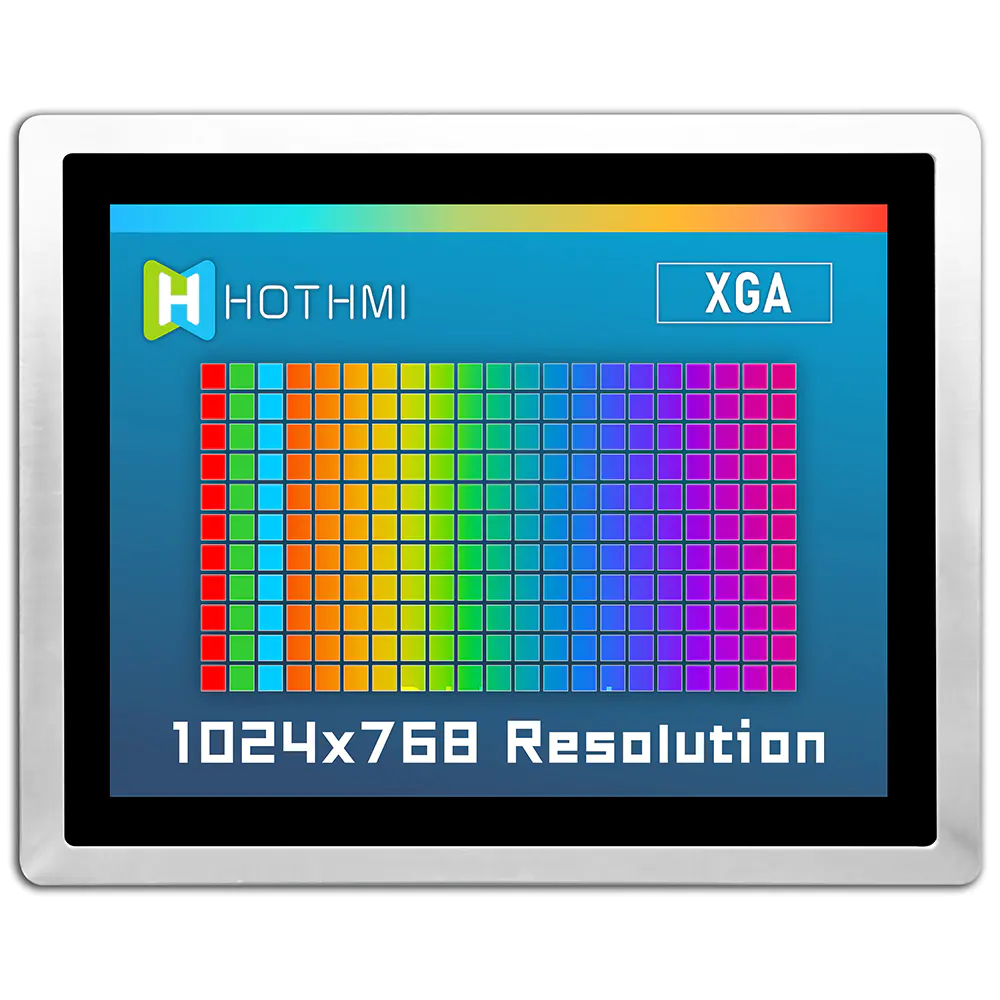

TFT150T71XGHDVUSDC is a high-brightness 15-inch IPS TFT-LCD monitor supporting HDMI signal interface. The resolution of this TFT module is XGA 1024x768. This module control board is designed to support HDMI signal interface (only DVI) and 40-pin GPIO connector, this design can make the use of Raspbe
US$0
Add to wish list
With USB Capacitive Touch
With USB Capacitive Touch
Quantity
+
Product details

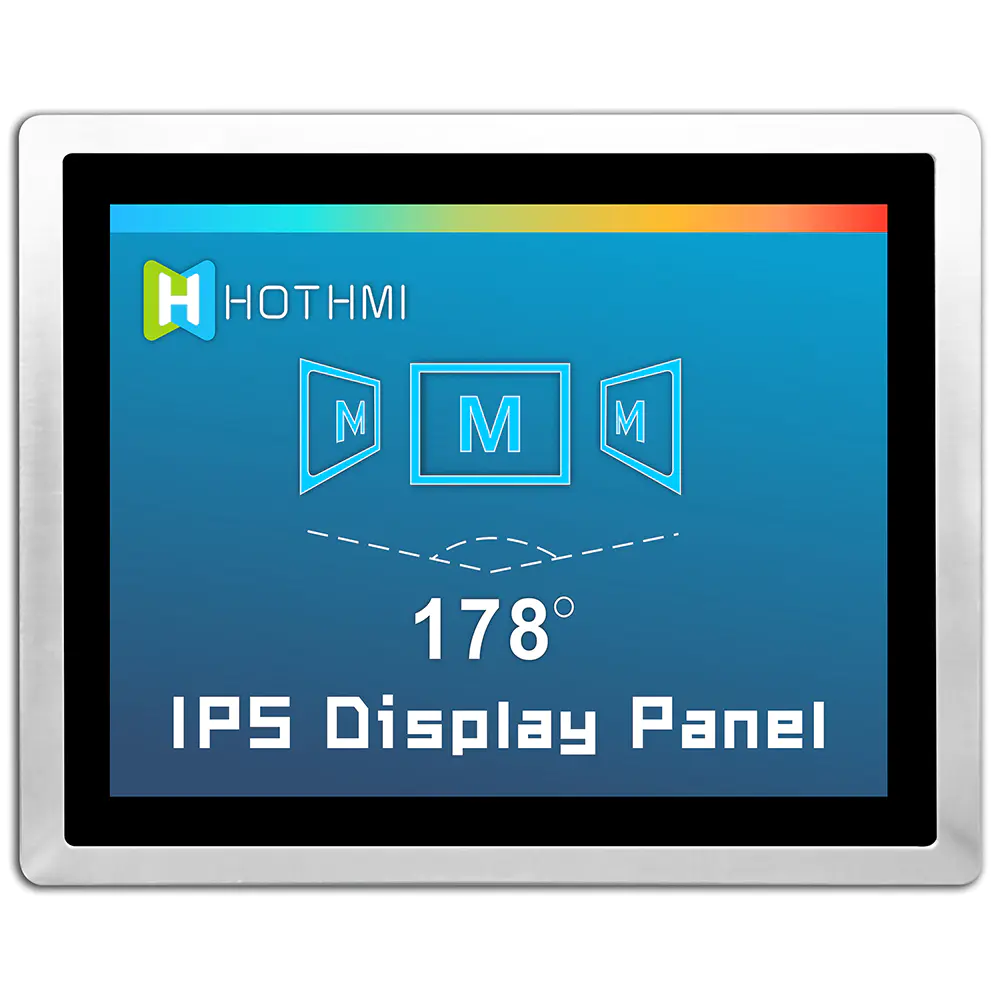

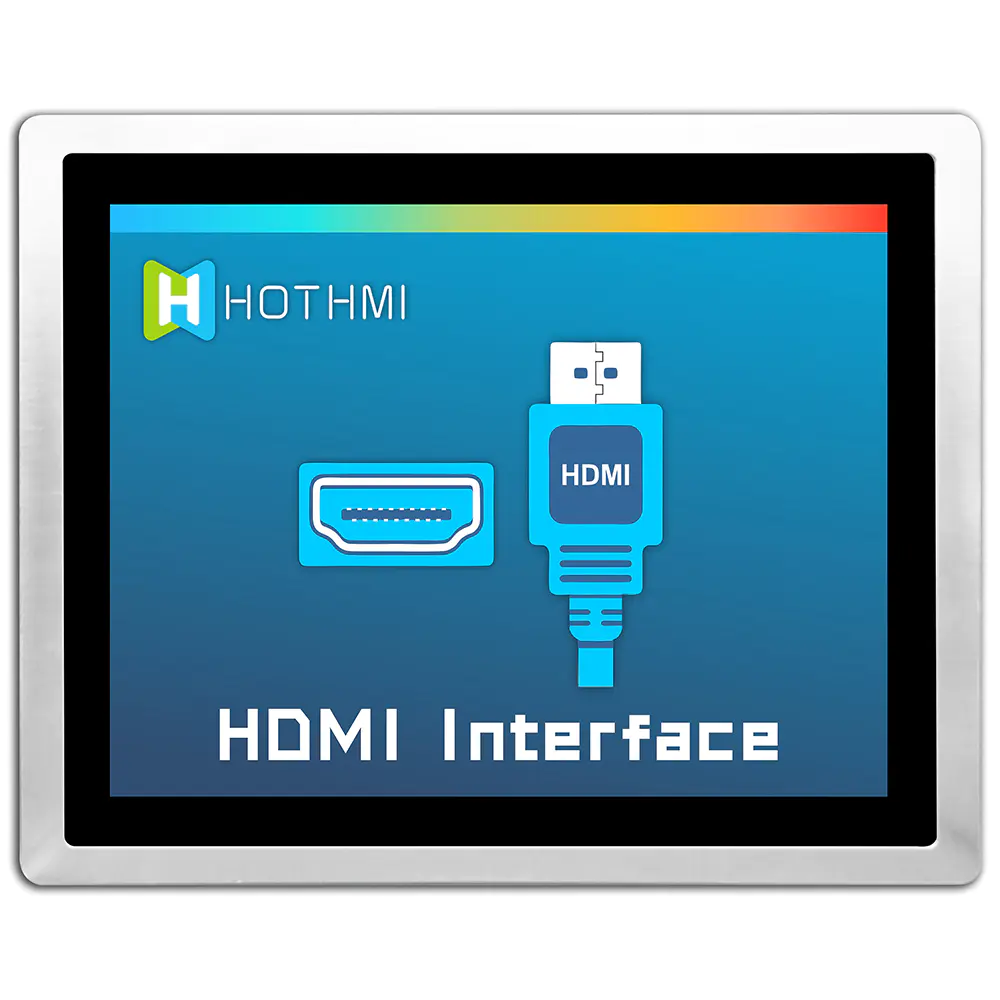

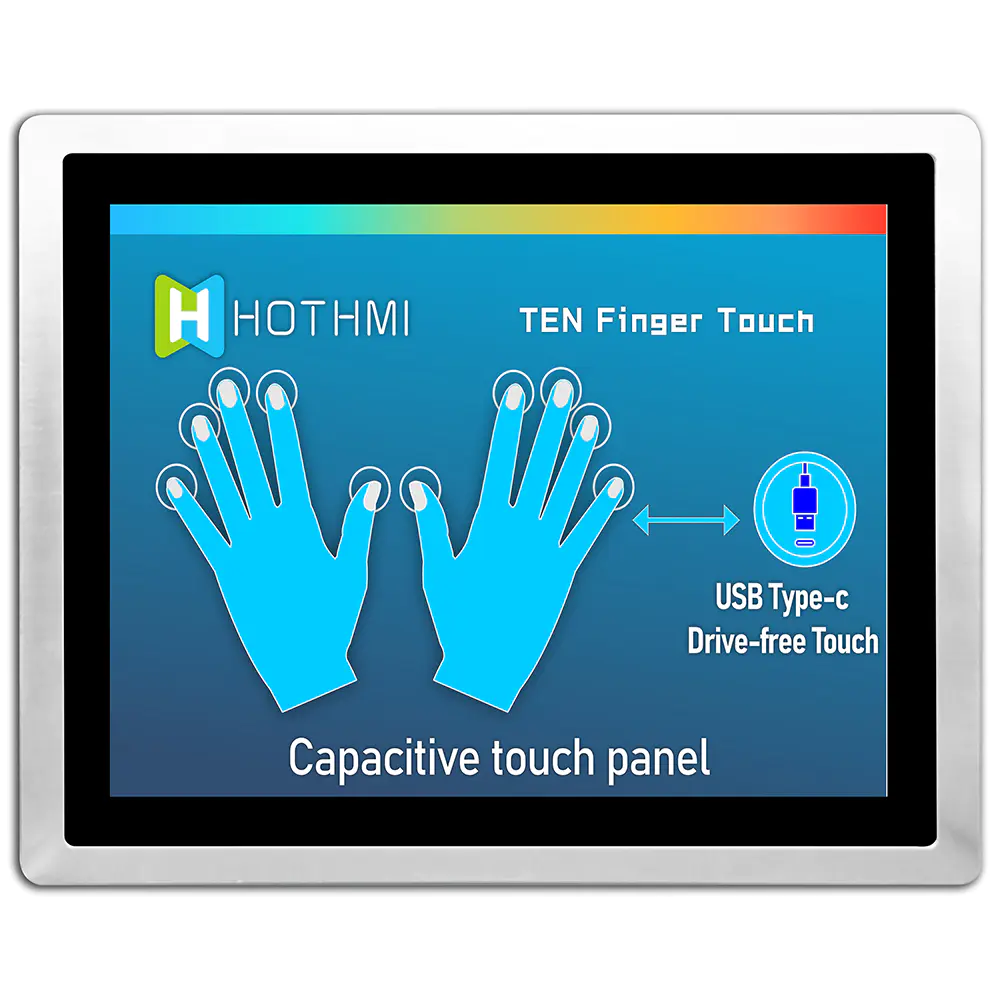

TFT150T71XGHDVUSDC is a high-brightness 15-inch IPS TFT-LCD monitor supporting HDMI signal interface. The resolution of this TFT module is XGA 1024x768. This module control board is designed to support HDMI signal interface (only DVI) and 40-pin GPIO connector, this design can make the use of Raspberry Pi (Raspberry Pi) developers more convenient to use. TFT150T71XGHDVUSDC adopts IPS technology to make the viewing angle wider, the typical value is up: 80 / down: 80 / left: 80 / right: 80 degrees, and the TFT module built-in TFP401 controller IC can support HDMI signal interface (only DVI), this This module features a high brightness of 350 cd/m2 (typ.) and a contrast ratio of 1,000:1 (typ.), The TFT150T71XGHDVUSDC is a model equipped with a projected capacitive touch panel (PCAP), which can support a USB interface. This IC can support 1-finger/2-finger or other touch indices. TFT150T71XGHDVUSDC module adopts bright glass surface, LCM module (VDD) voltage is 9V-24V. The working temperature range is 20℃~+70℃; the storage temperature range is -30℃~+80℃. This module supports Embedded System of HDMI signal interface, The TFT150T71XGHDVUSDC uses a 15-inch IPS TFT panel, with a wide viewing angle and high-brightness backlight. The screen is also equipped with a high resolution of 1024x768. The module has a fast response speed and is compatible with most development software. It is very suitable for various product applications, especially Human-machine interface or POS system, etc. Also, please note that this model does not include USB and HDMI cables.





Model : 15.0" inch HDMI display + USB cap touch /1024x768 resoliution/highlight/Full View/HDMI/VGA interface/TFT150T71XGHDVUSDC


Product type:TFT

Show contents:1024x768

Outline size(mm) :376.00*298.00*51.00

Size of View Window(mm):15.0"

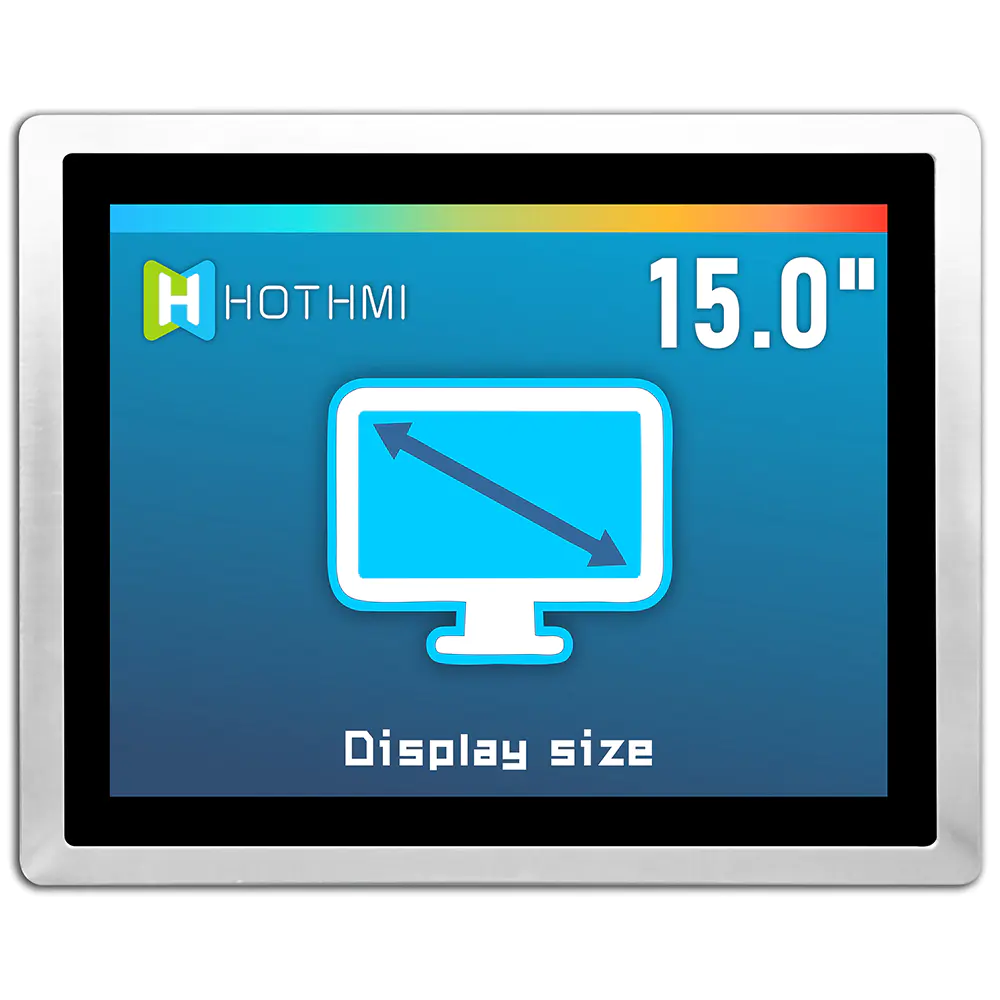

Display size(mm) :15.0"

Visual angle:Full View

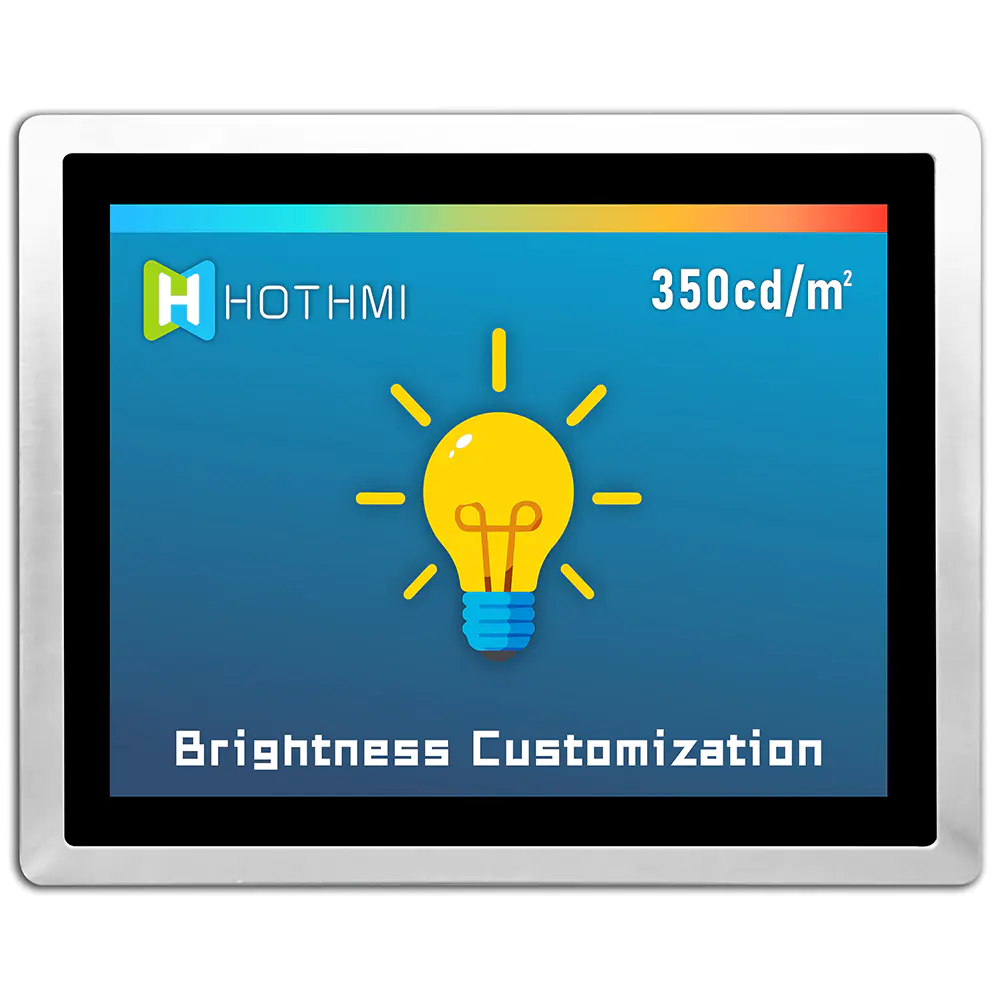

Backlight type or brightness:350cd/m2

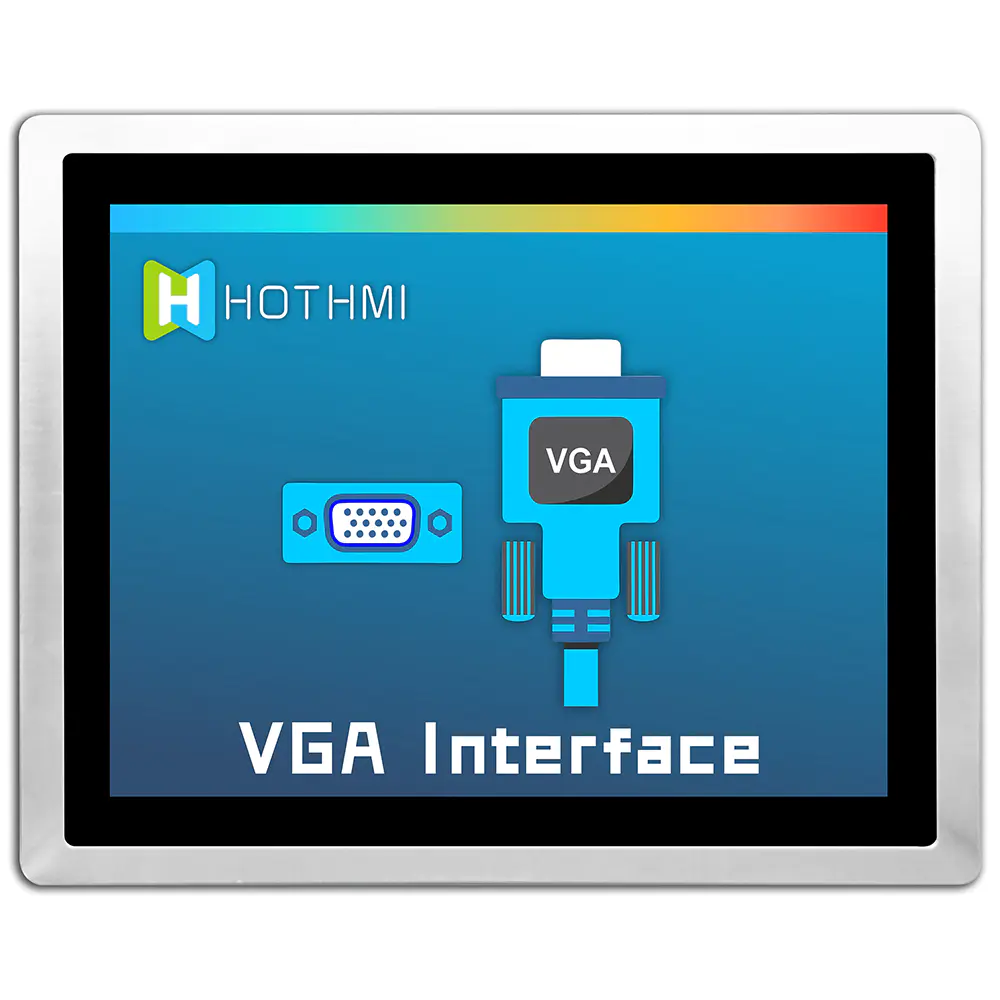

Interface mode:HDMI/VGA/USB

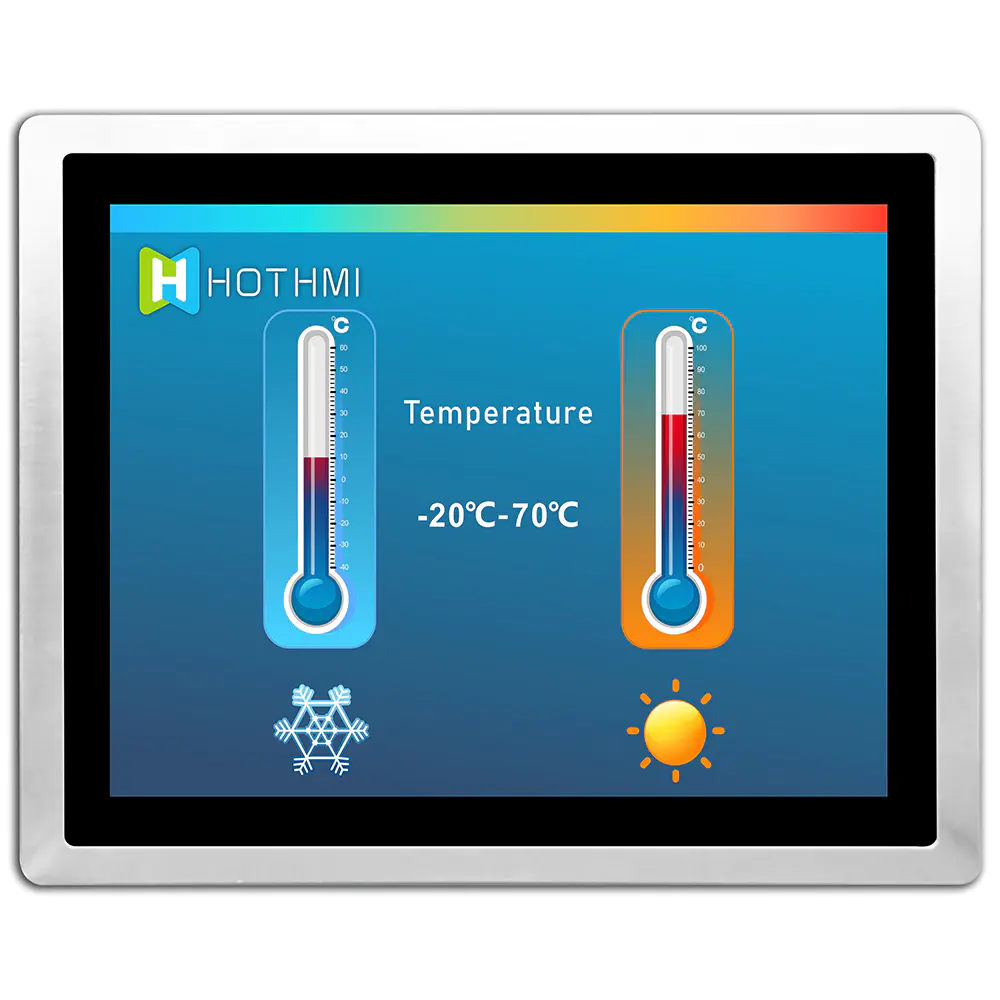

Working temperature:-20~70℃

Power supply voltage:9-24V



CAD Drawings:
