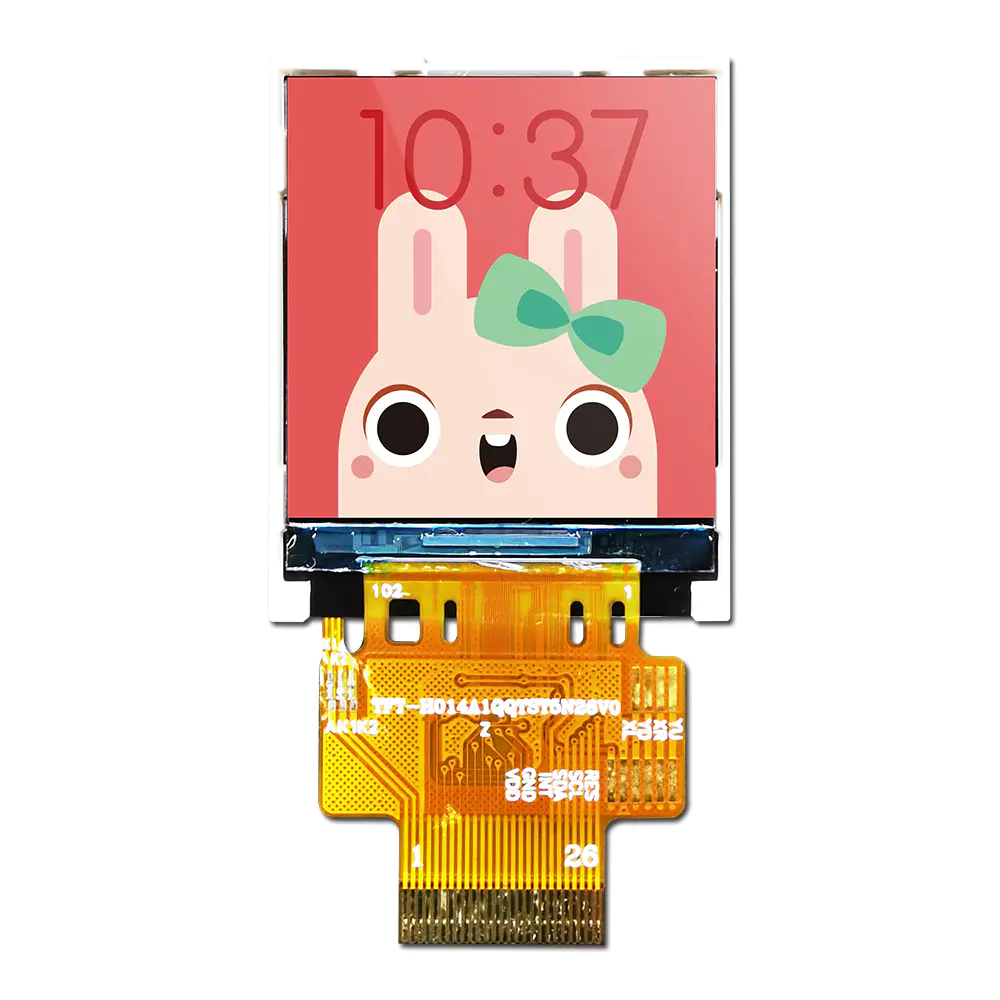

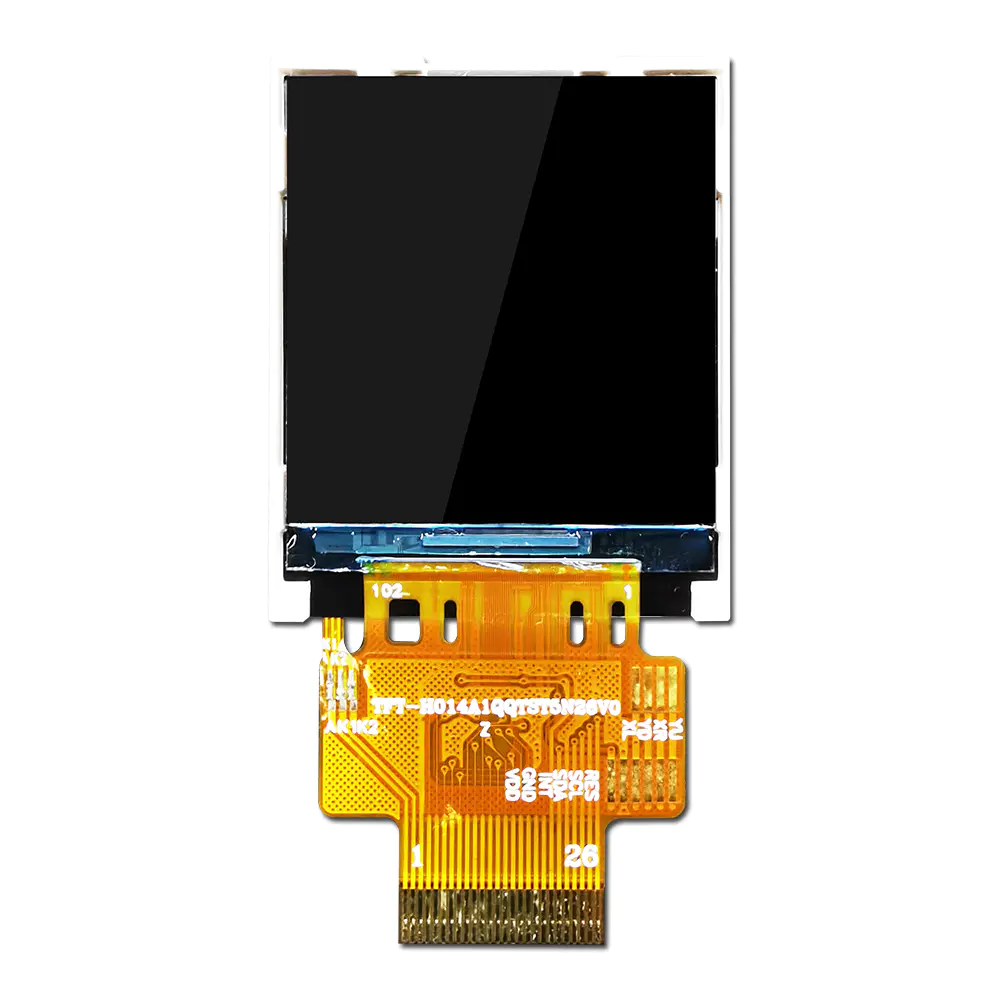

Product Description TFT-H014A1QQTST5N26 is a 1.44-inch full-color TFT LCD display module with a resolution of 128x128 pixels and an aspect ratio of 1:1. The TFT module adopts ST7735S driver IC and supports MCU interface. The TFT module with IPS panel has the advantage of wide viewing angle (left 80 degrees/right 80 degrees/up 80 degrees/down 80 degrees), the typical contrast ratio is 800:1, and the module brightness is up to 500 nits (typical value). The working temperature range of the module is -20℃~+70℃, and the storage temperature range is -30℃~+80℃.
1.44 inch TFT color screen /128*128 resolution /12H White LED /MCU interface /TFT-H014A1QQTST5N26/used in handheld instruments

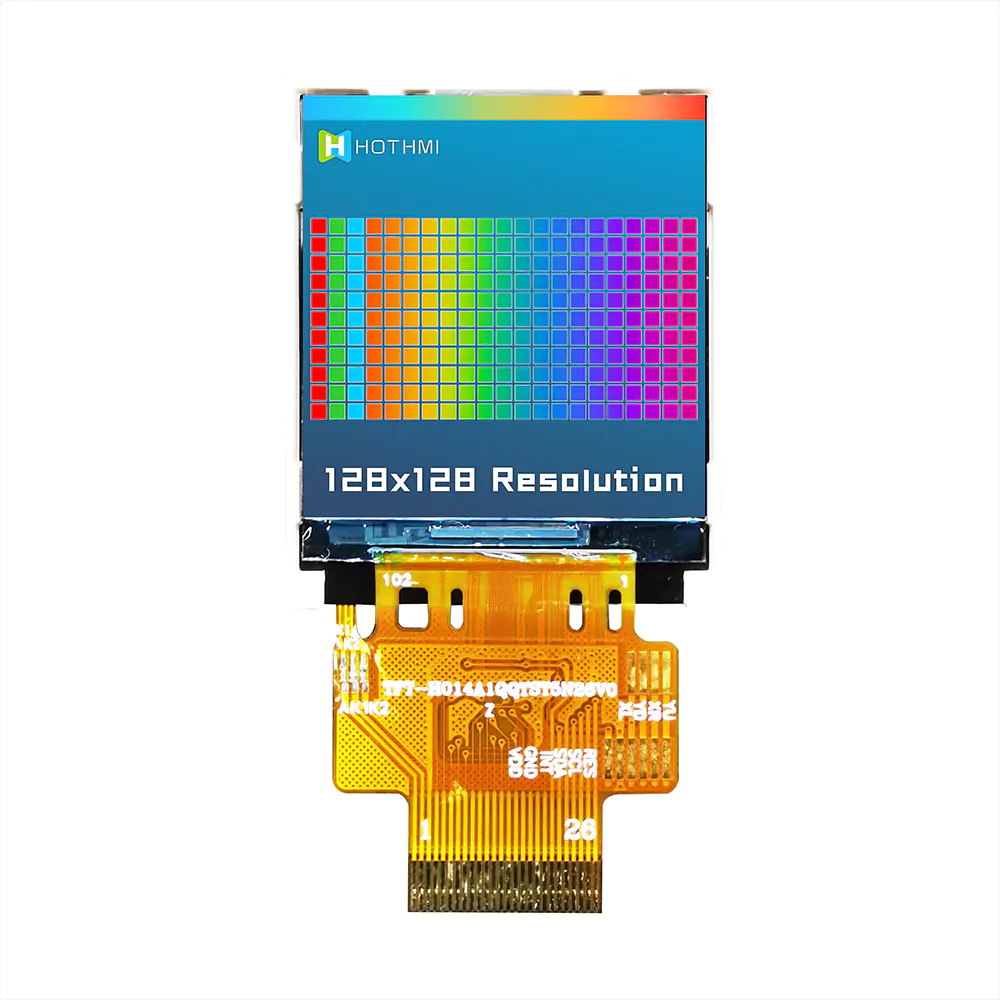

Show contents：128*128
Outline size(mm) ：29.5*36.5*2.55
Size of View Window(mm)：1.44"

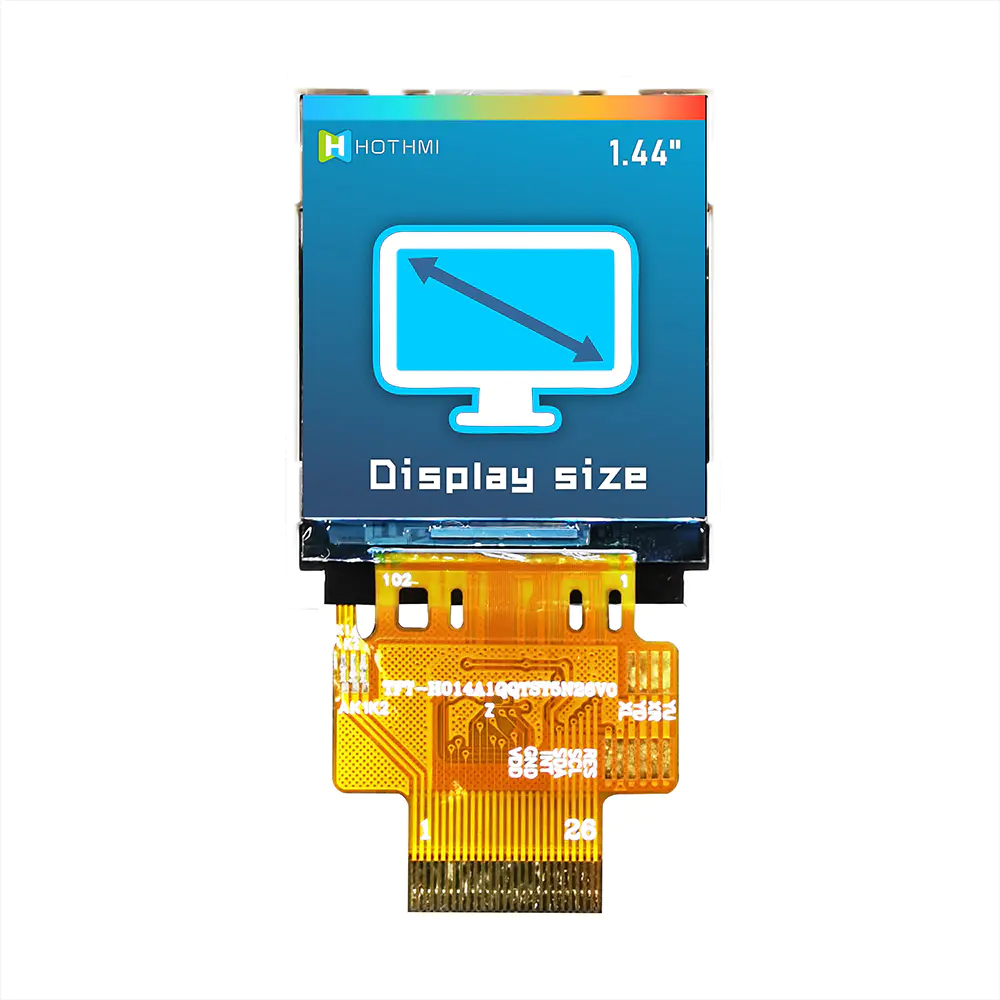

Display size(mm) ：1.44"
Effective size(mm)：25.498*26.496
Product application：Instruments and meters, smart watches

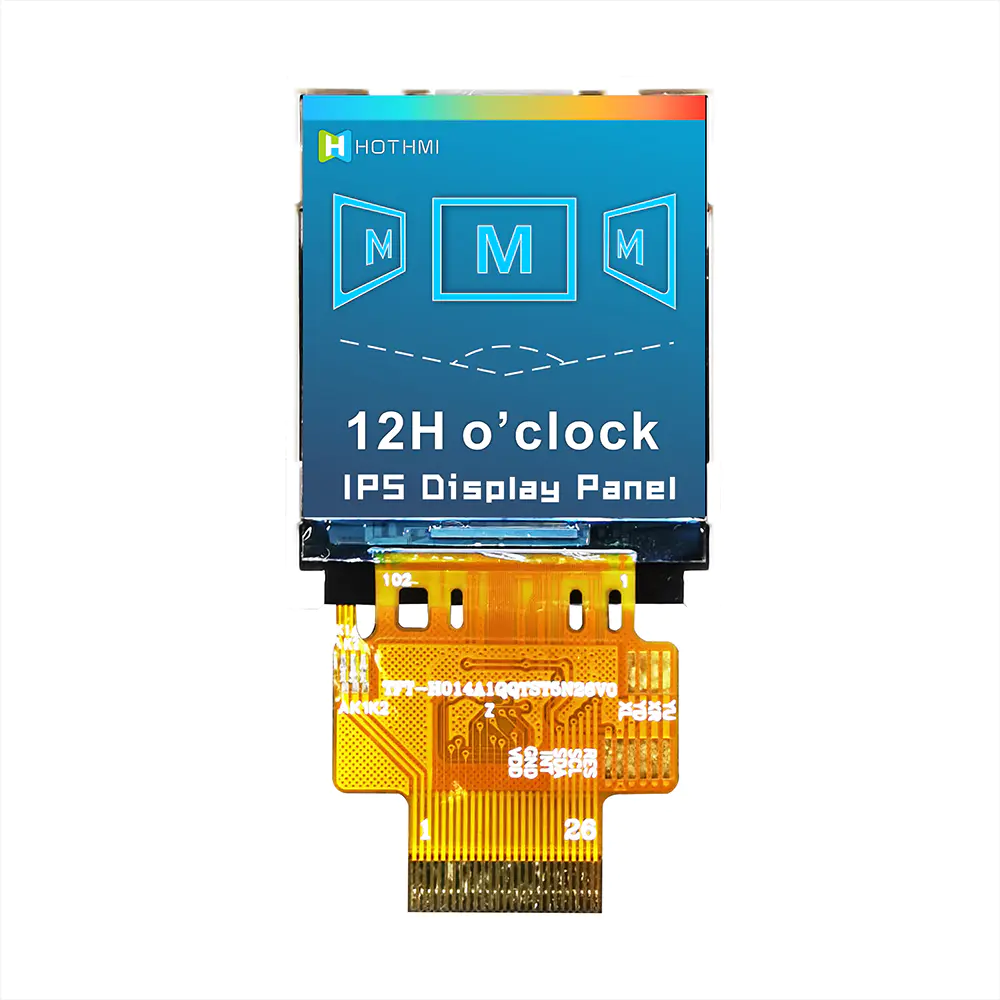

Visual angle：12OClock（U70/D60/L70/R70）

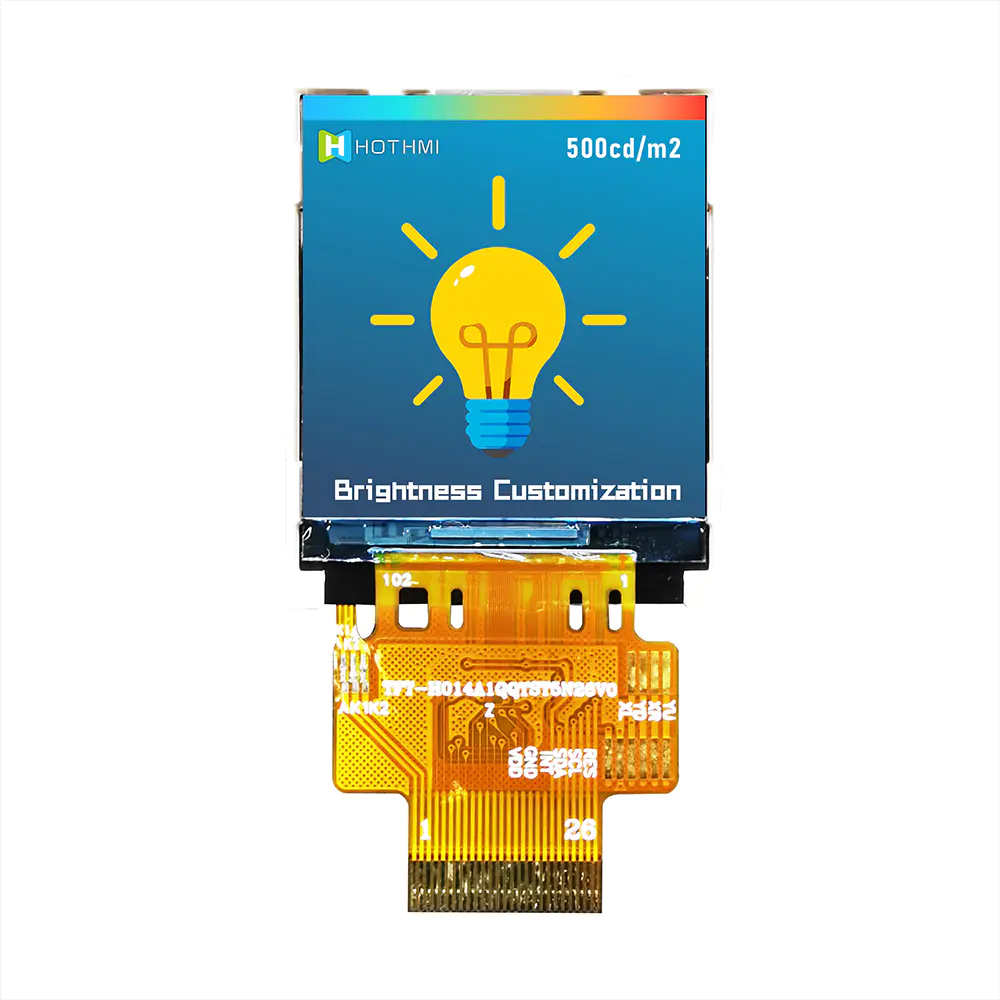

Backlight type or brightness：500cd/m2
Connection PIN Number：26PIN0.5
Interface mode：MCU

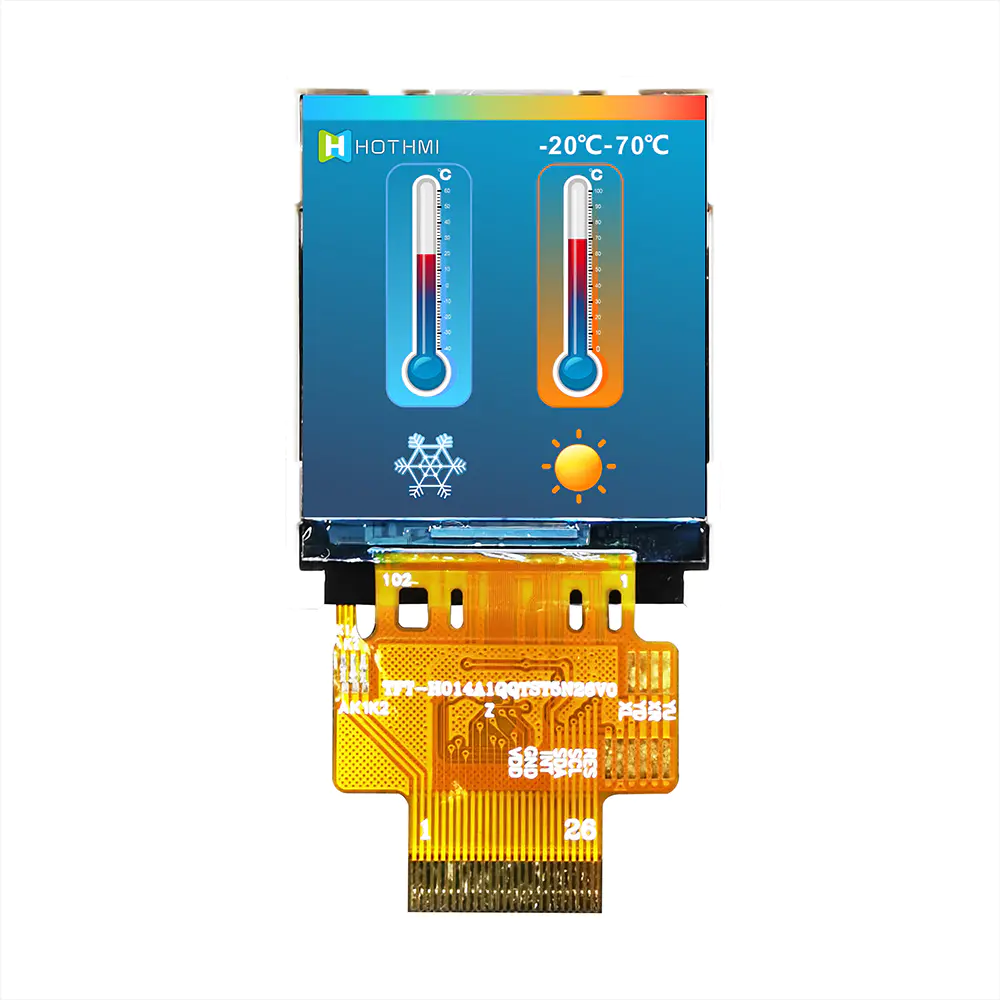

Working temperature：-20~70℃
Power supply voltage：2.8V
Driver chip model：ST7735S
DRAWING
