Product details
Product Description

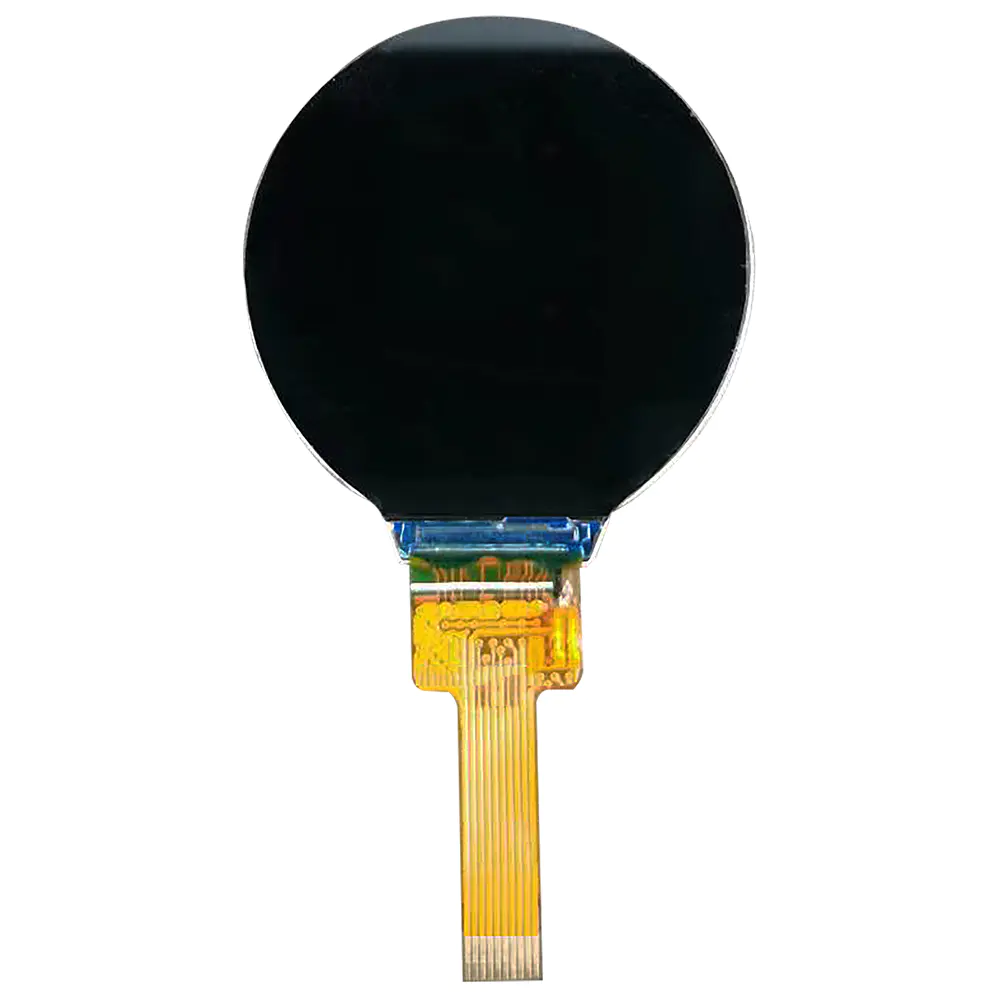

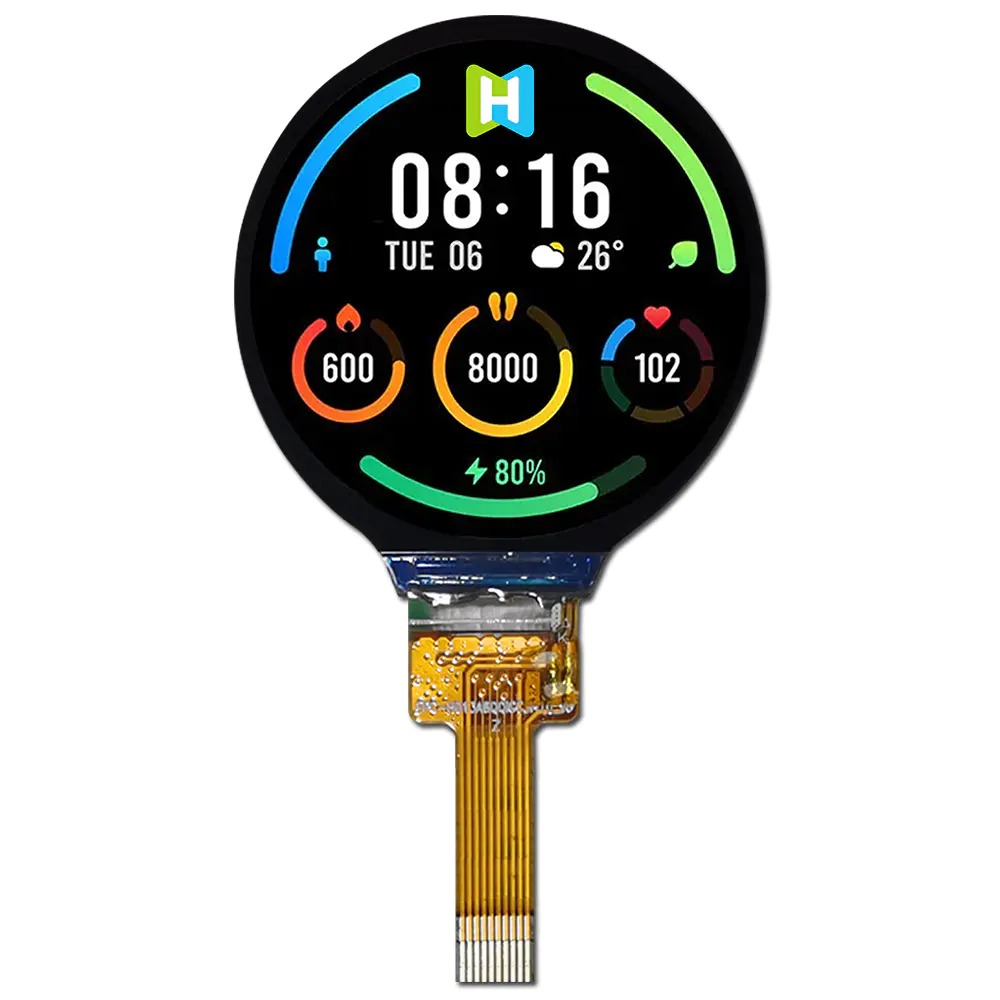

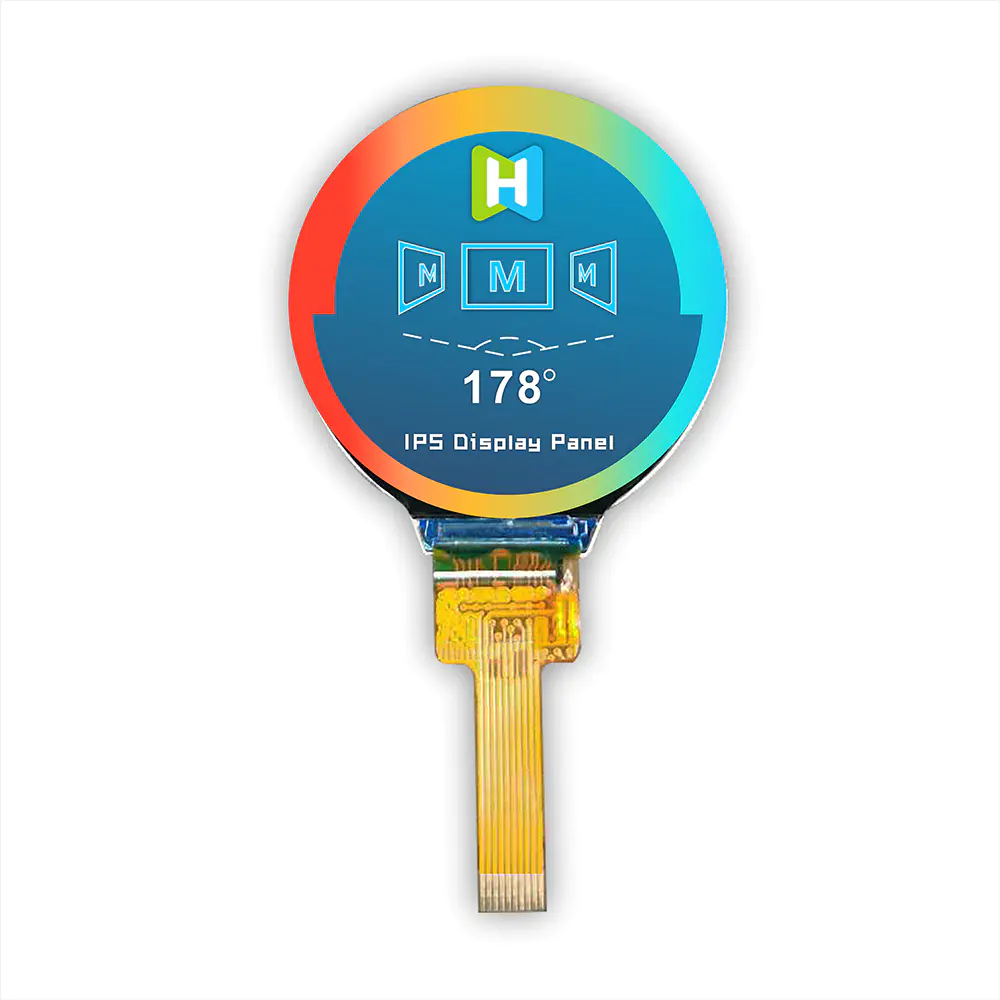

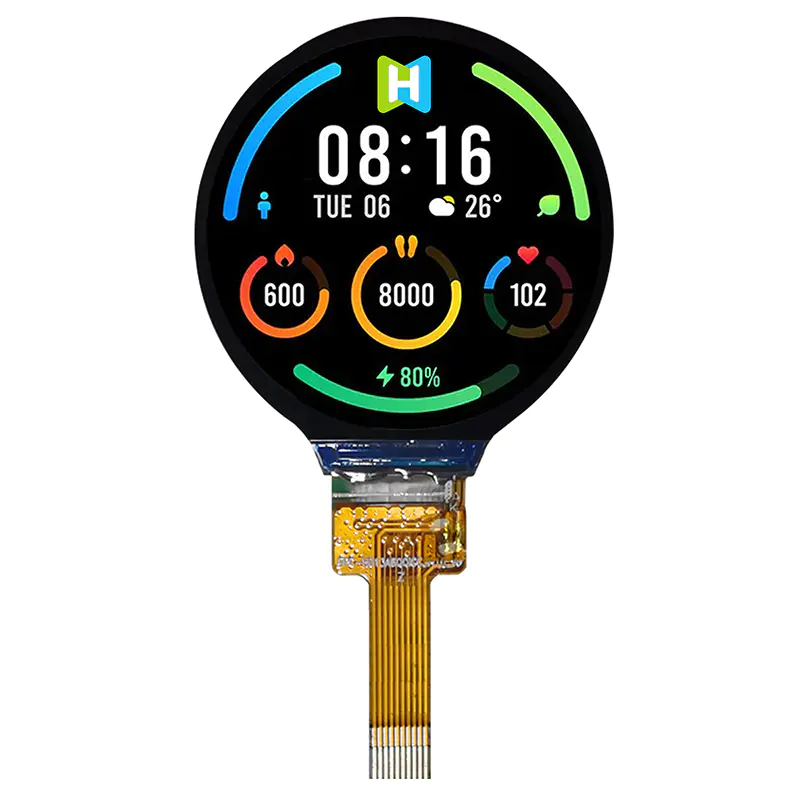

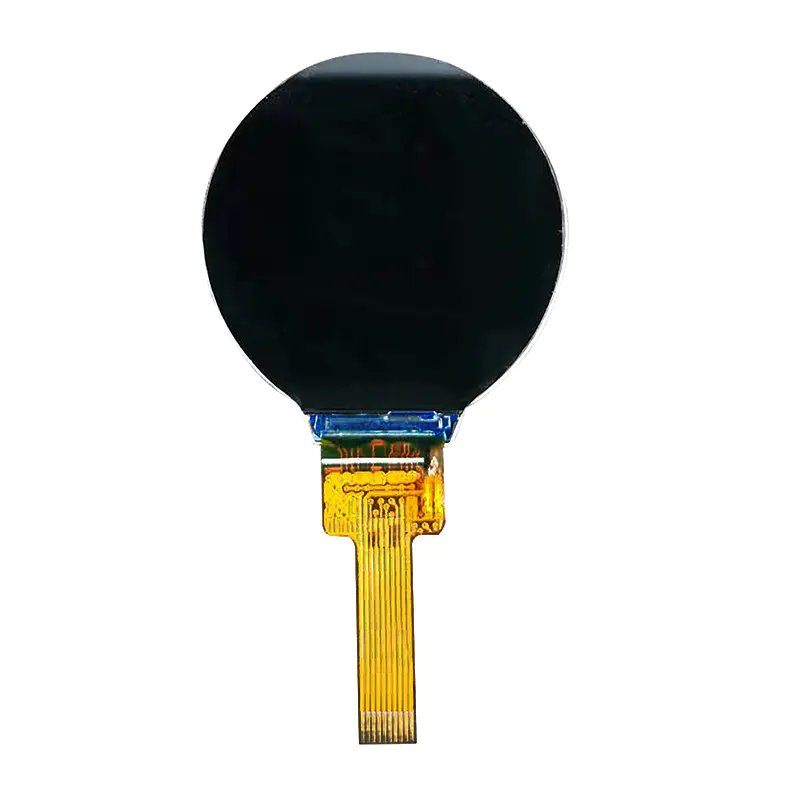

The TFT-H013A6QQIGC7N10 is a 1.3-inch diameter circular IPS TFT-LCD display with a resolution of 240x240 pixels. This circular TFT display plus IPS panel, built-in GC9A01 driver IC, communicates through the SPI interface. TFT-H013A6QQIGC7N10 adopts IPS panel with higher contrast ratio and wider viewing angle, viewing angle left: 80/right: 80/up: 80/down: 80 degrees (typical value), contrast ratio 1,000:1 (typical value), brightness 750 nits (Typical) with anti-glare finish. The LCM power supply voltage of this module is 2.7V~3.3V, and the typical value is 2.8V. The working temperature range of the module is -20℃~+70℃, and the storage temperature range is -30℃~+80℃. This model module is suitable for devices such as smart instruments, wearables, etc. It is also ideal for home automation products, white goods and video systems.
Model : 1.3''TFT/240*240Resolution/4L-SPI/TFT-H013A6QQIGC7N10_V0

Product type:TFT

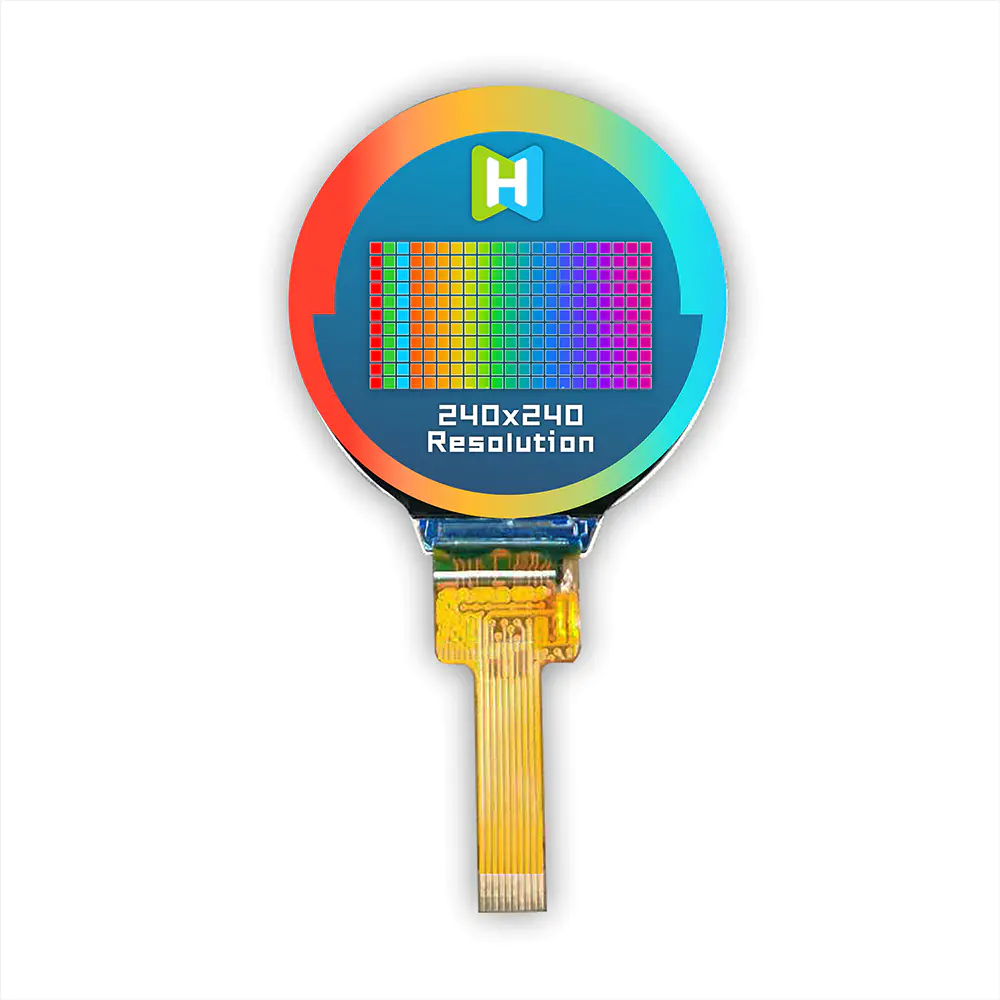

Show contents:240*240

Outline size(mm) :35.6*38.1*1.6

Size of View Window(mm):1.3"

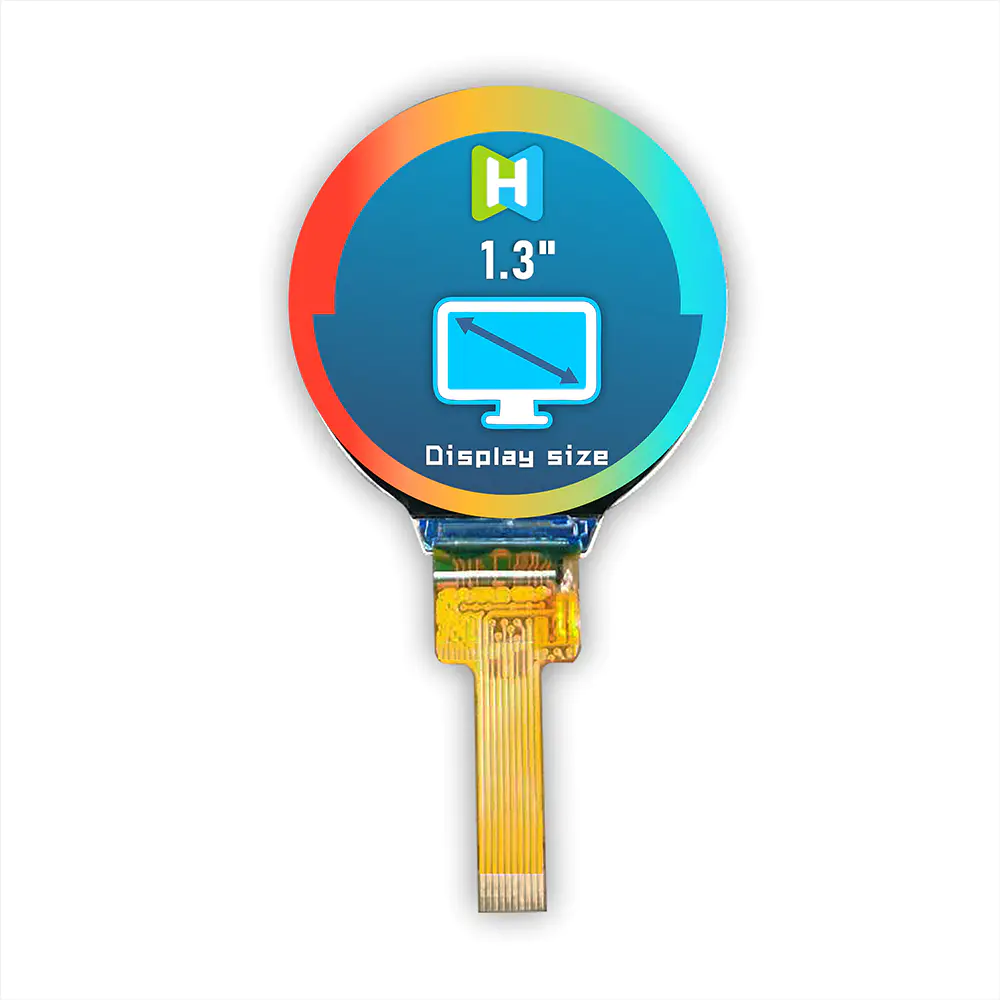

Display size(mm) :1.3"

Visual angle:Full View

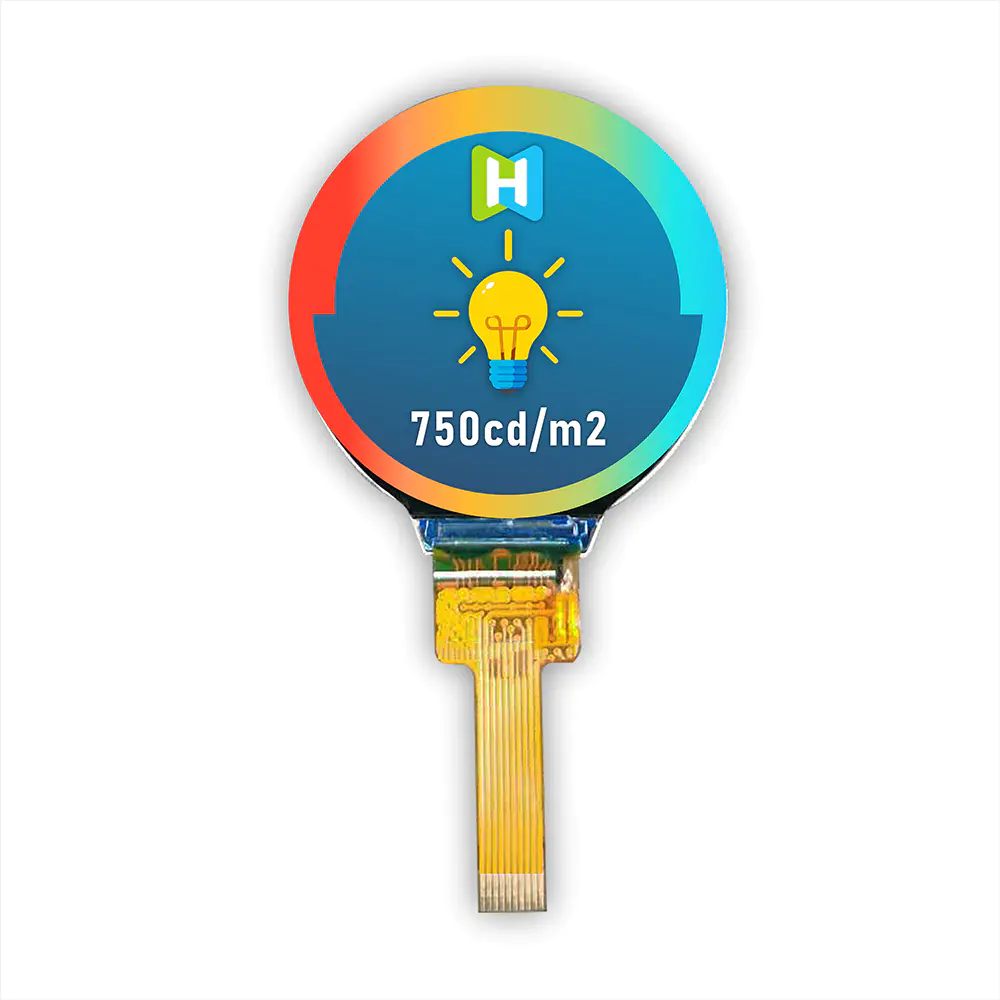

Backlight type or brightness:750cd/m2

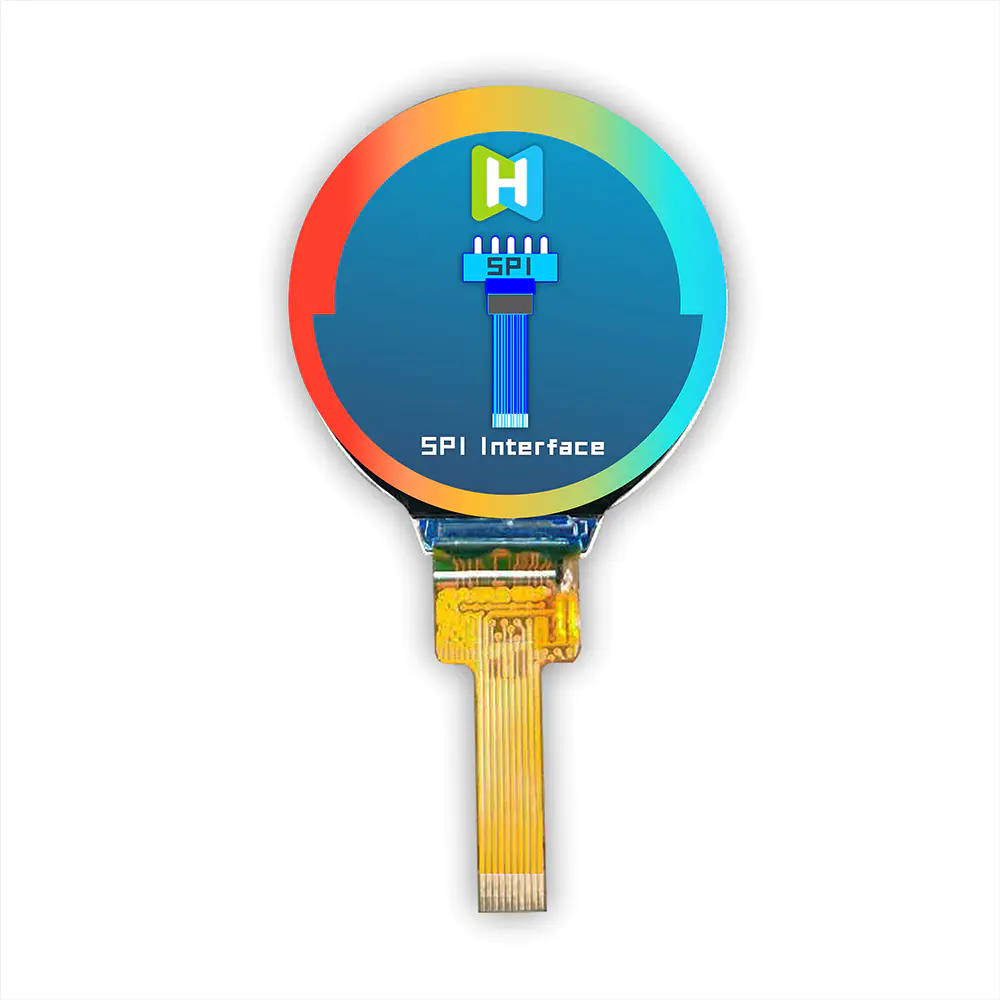

Interface mode:SPI

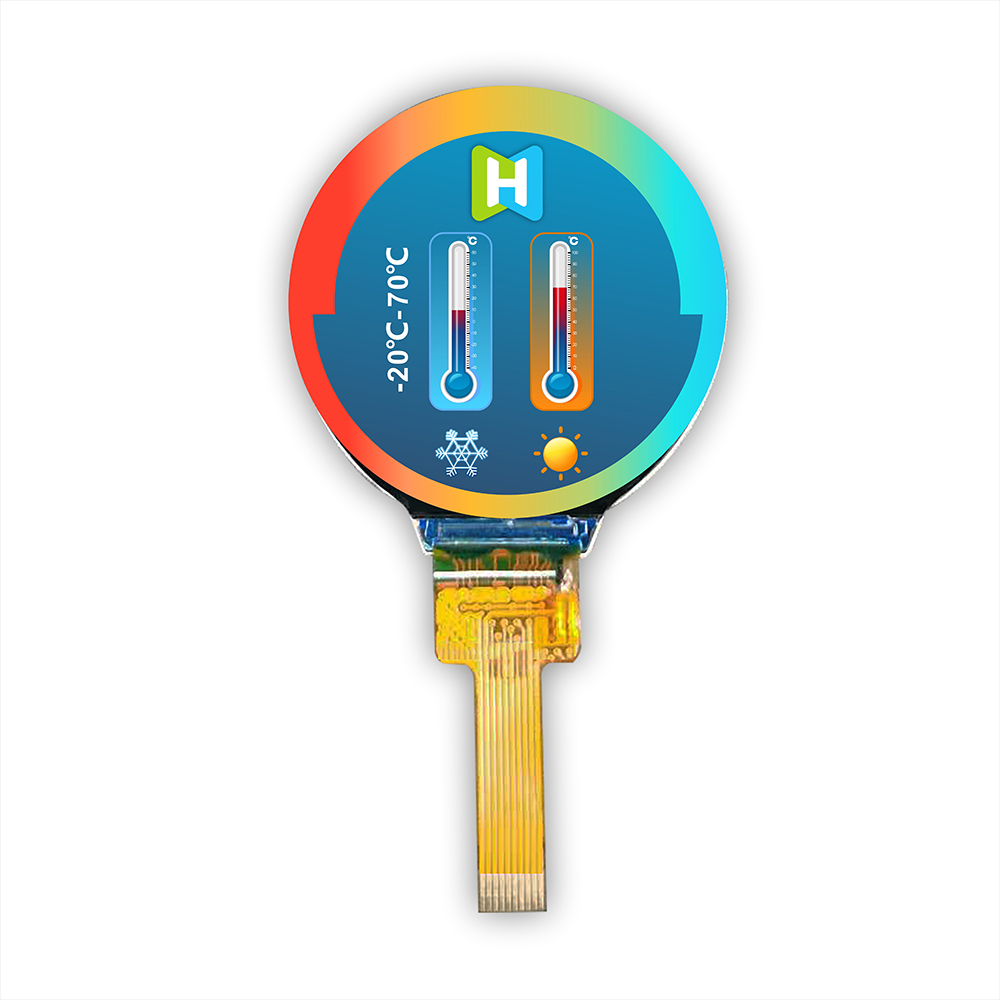

Working temperature:-20~70℃

Power supply voltage:2.8v
Driver chip model:GC9A01
CAD Drawings:
