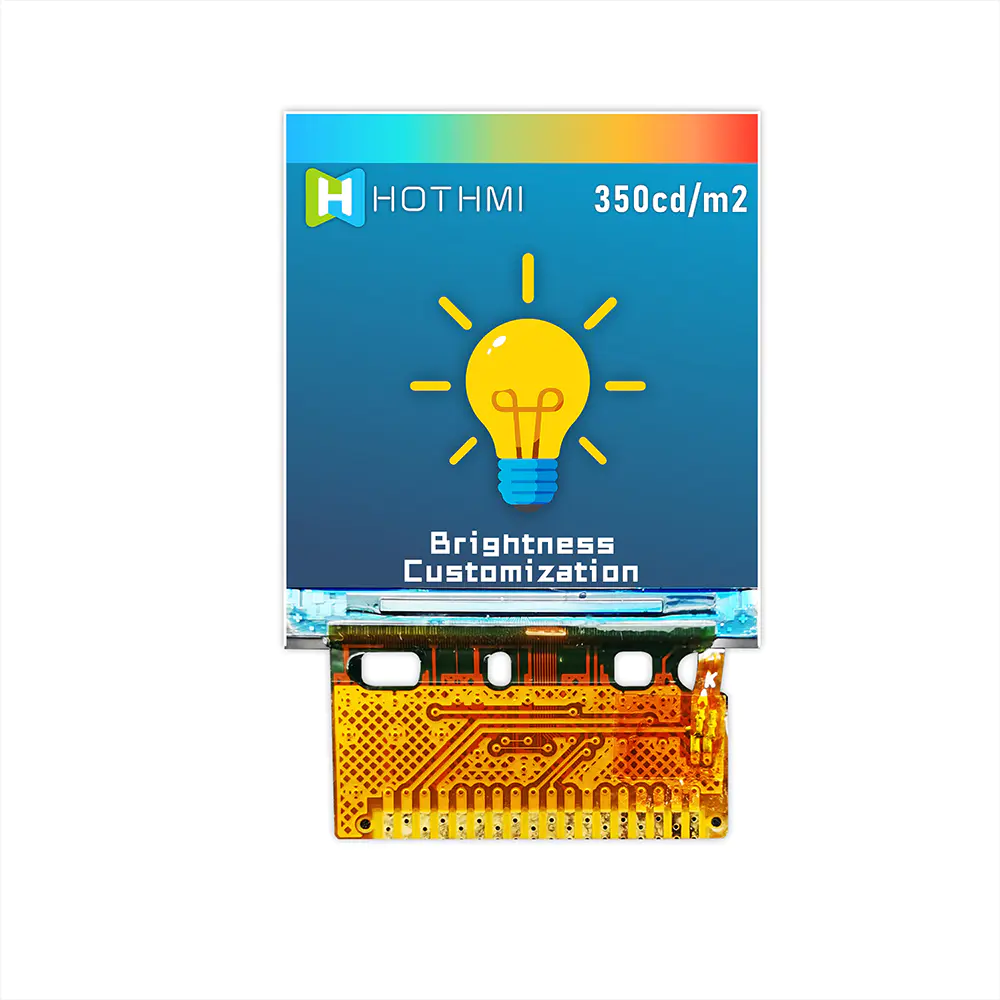

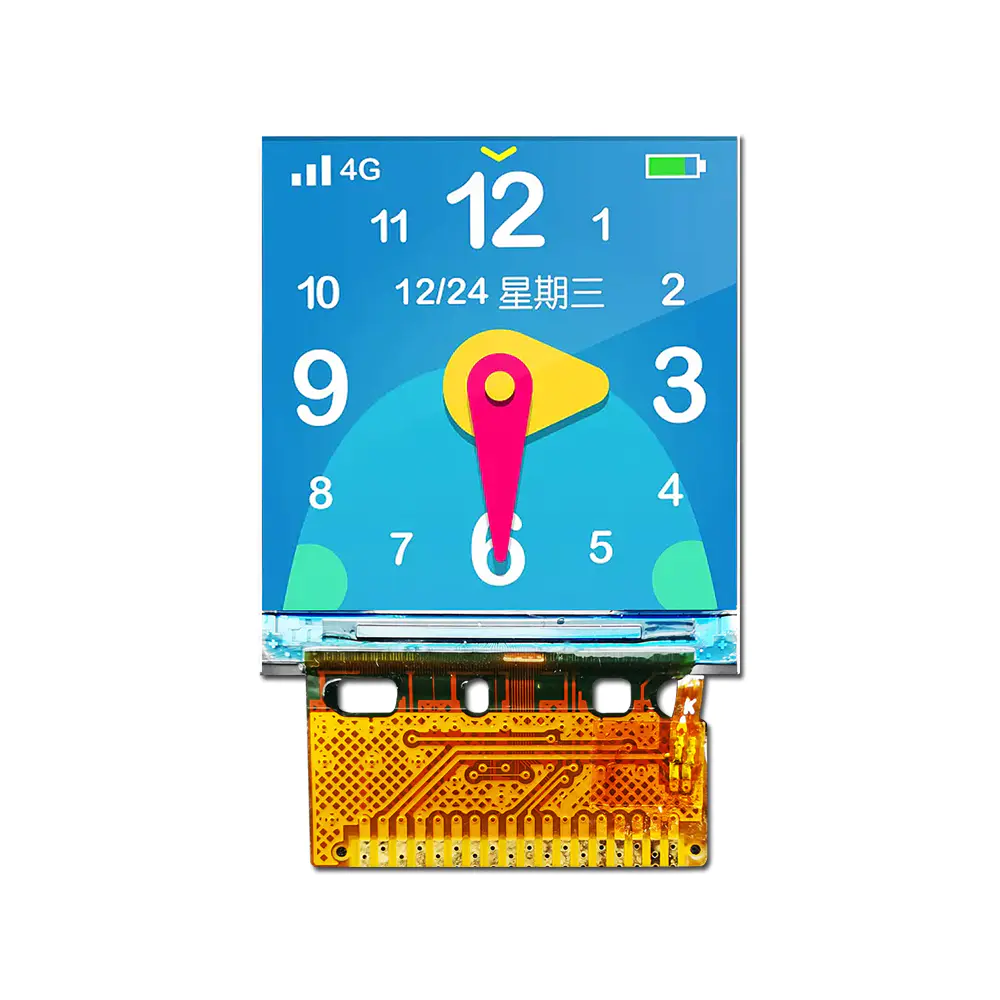

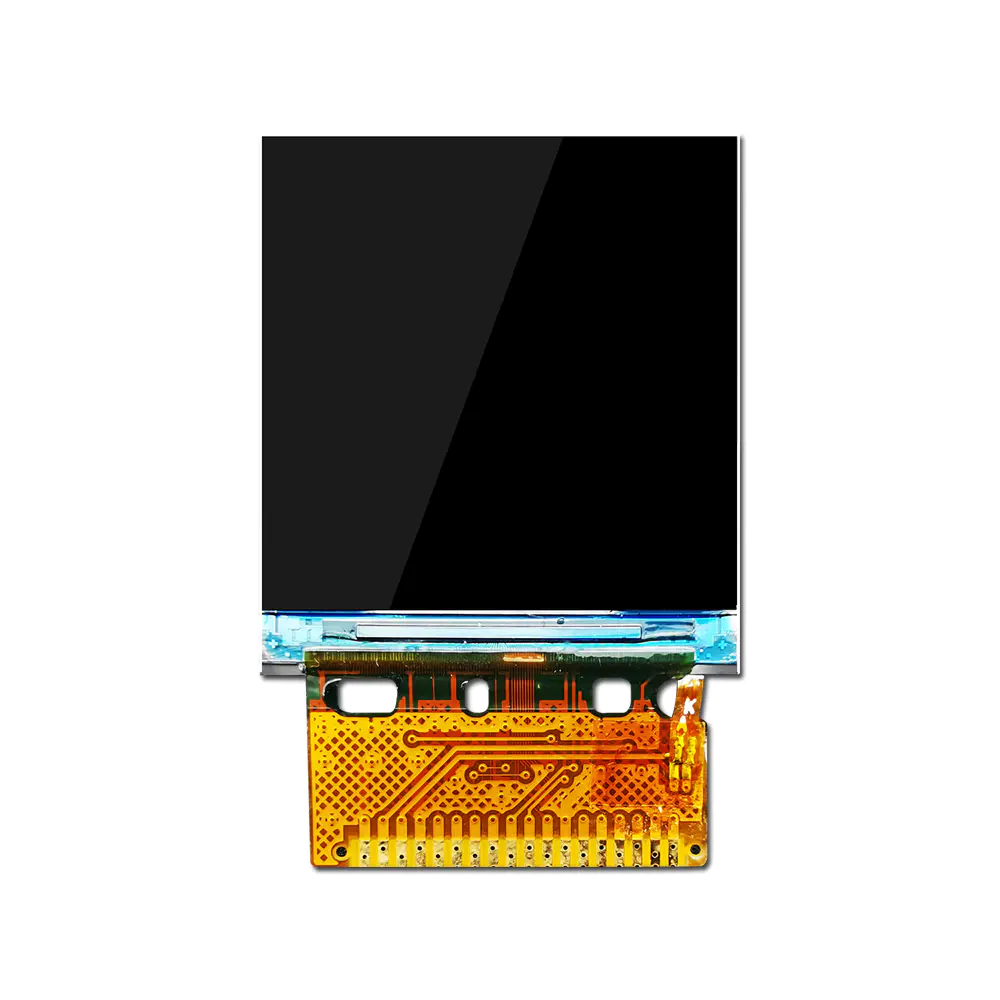

Product Description TFT-H013C4QQIST3N18 is a 1.3-inch full-color TFT LCD module with a resolution of 240x240 pixels and an aspect ratio of 1:1. The TFT module adopts ST7789H2 driver IC and supports SPI interface. The TFT module with IPS panel has the advantage of wide viewing angle (left 80 degrees/right 80 degrees/up 80 degrees/down 80 degrees), the typical contrast ratio is 800:1, and the module brightness is as high as 350 nits (typical value). The working temperature range of the module is -20℃~+70℃, and the storage temperature range is -30℃~+80℃.

1.3 inch TFT color screen /240*240 resolution /full viewing angle IPS process /SPI interface /TFT-H013C4QQIST3N18

Product type：TFT

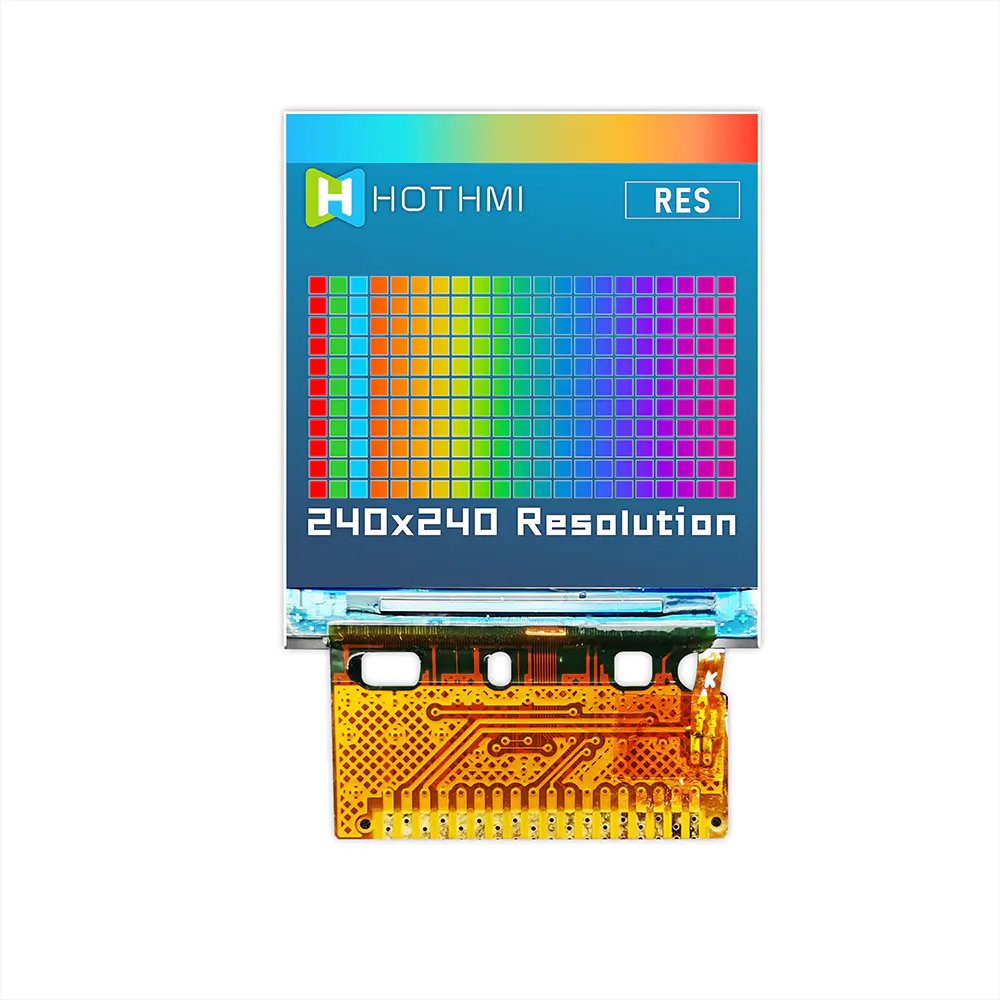

Show contents：240*240

Outline size(mm) ：26.6*29.6*2.3

Size of View Window(mm)：1.3"

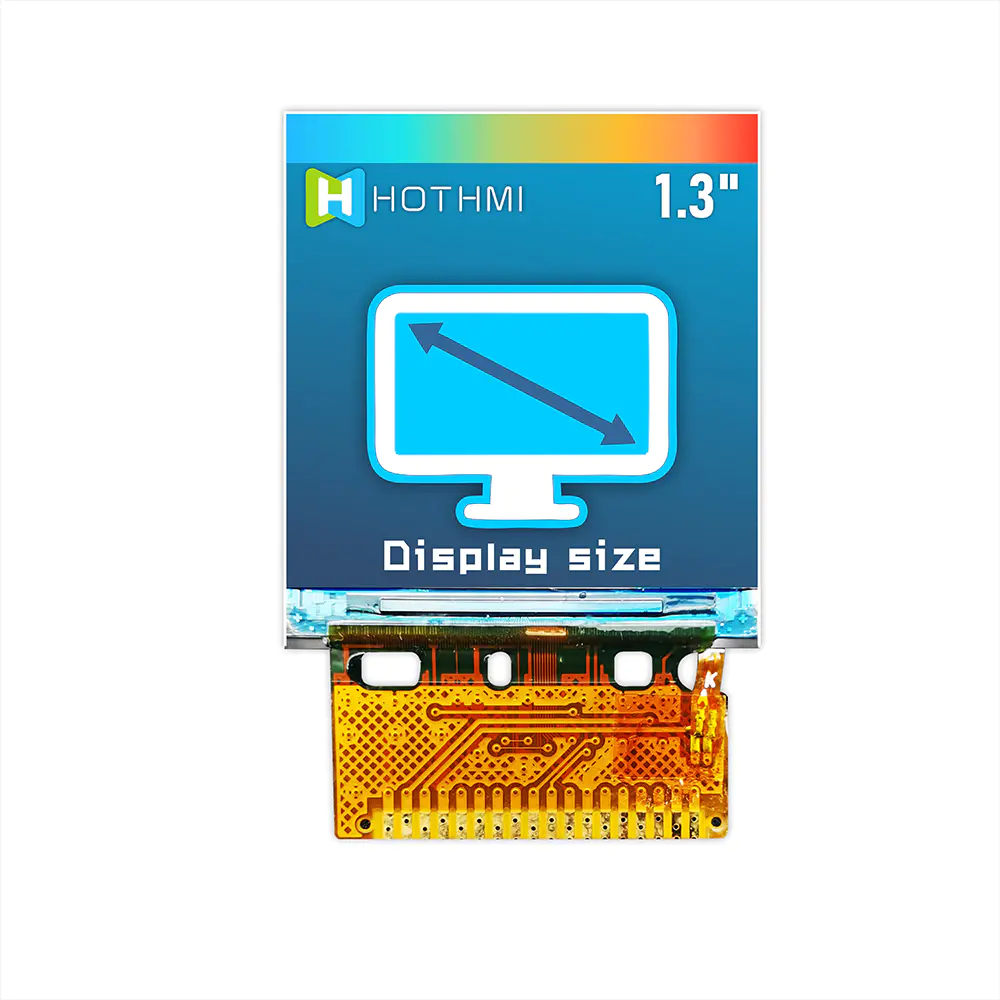

Display size(mm) ：1.3"

Effective size(mm)：23.4*23.4

Product application：Instruments and meters, smart watches

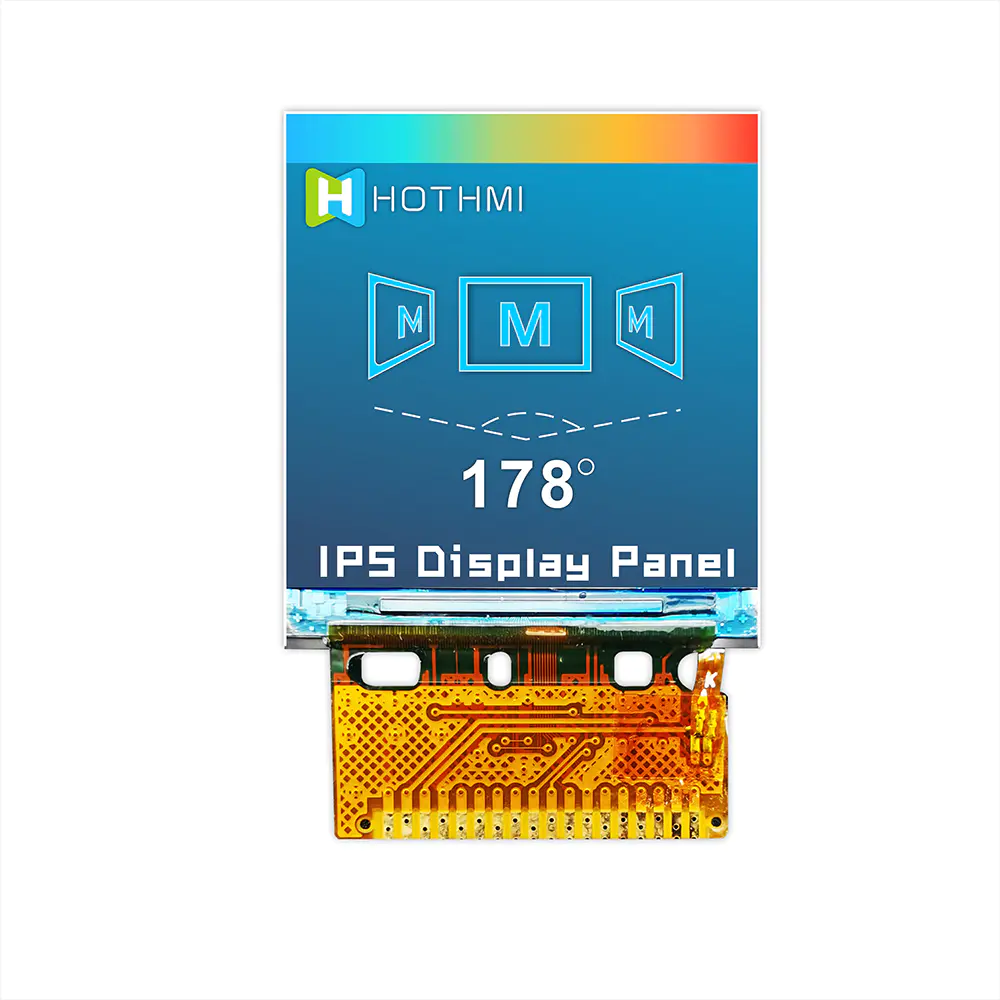

Visual angle：Full O'Clock (U80/D80/L80/R80)

Connection PIN Number：18PIN

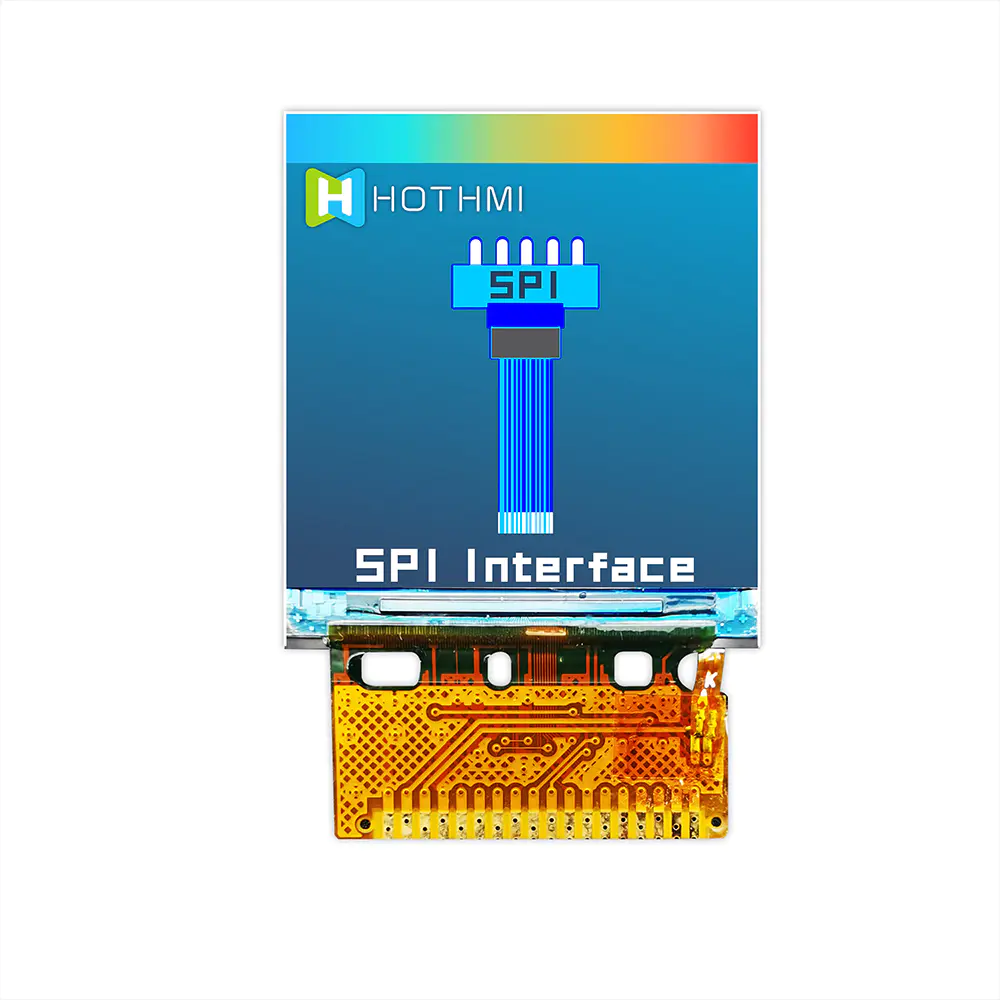

Interface mode：SPI

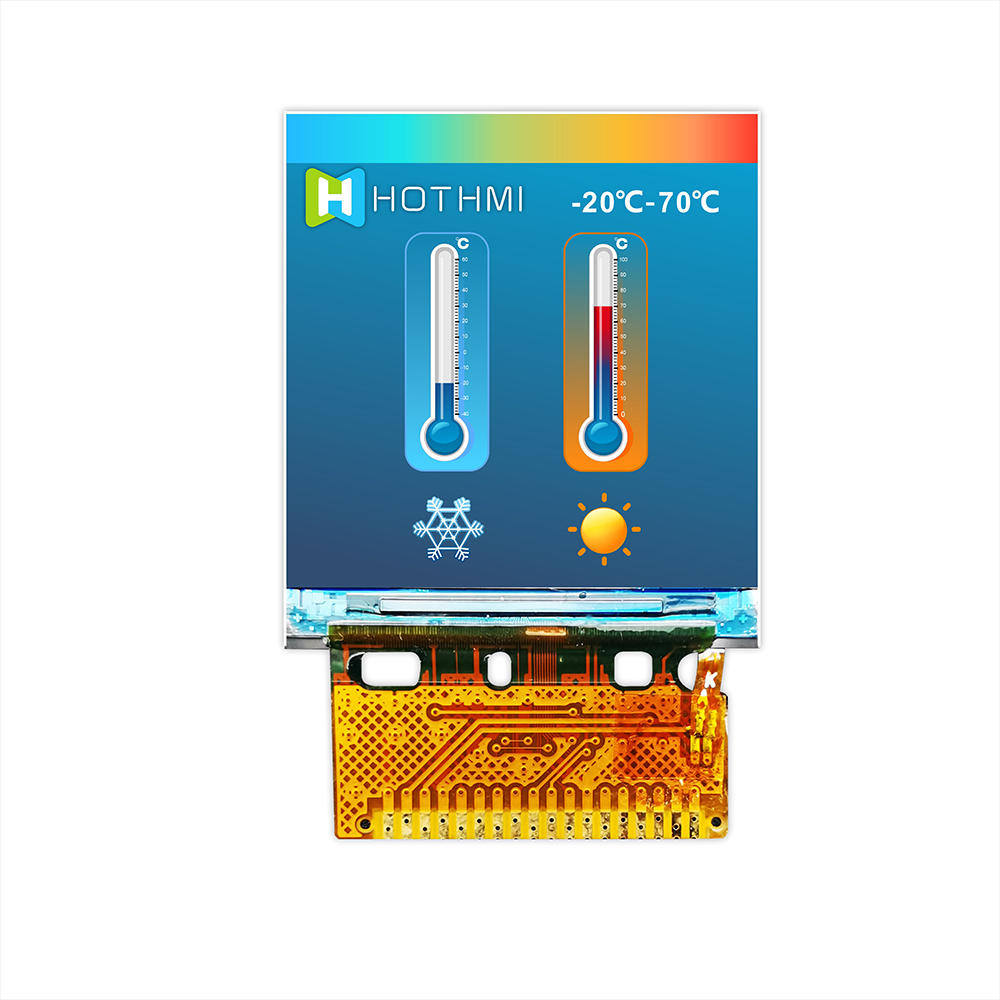

Working temperature：-20~70℃

Power supply voltage：2.8V

Driver chip model：ST7789H2
