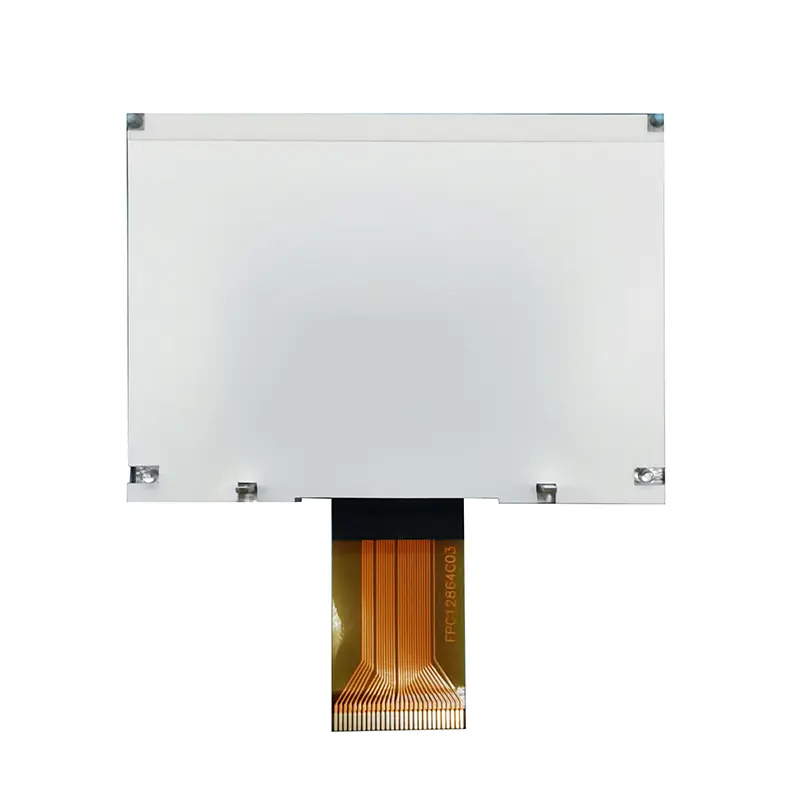

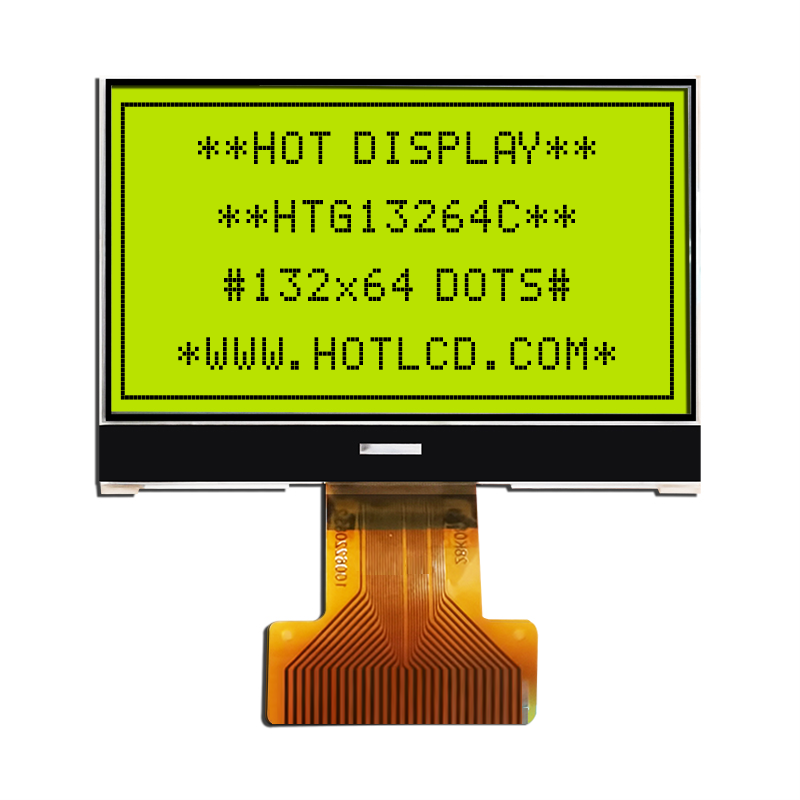

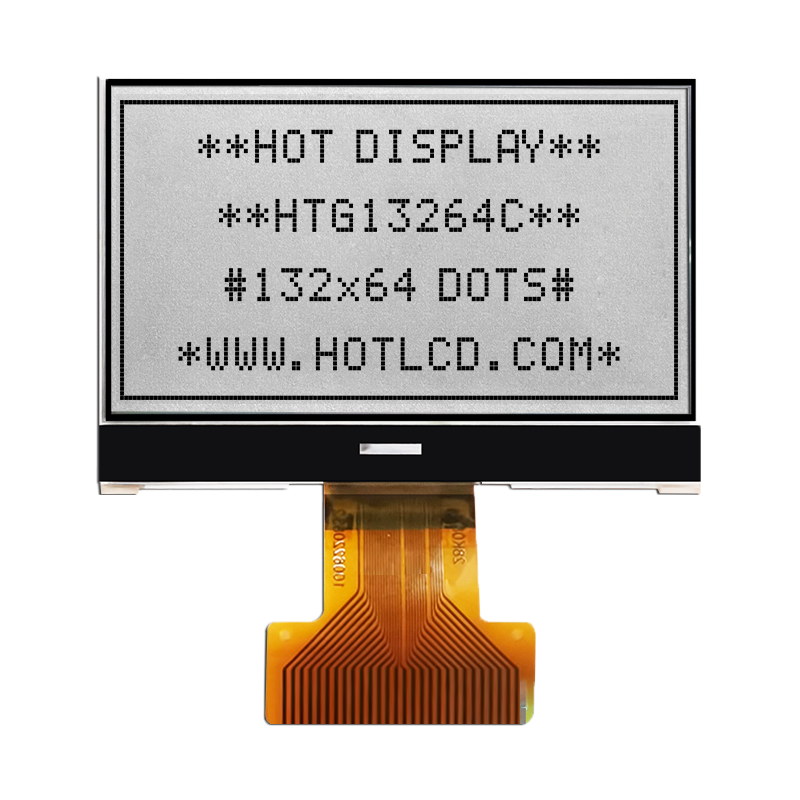

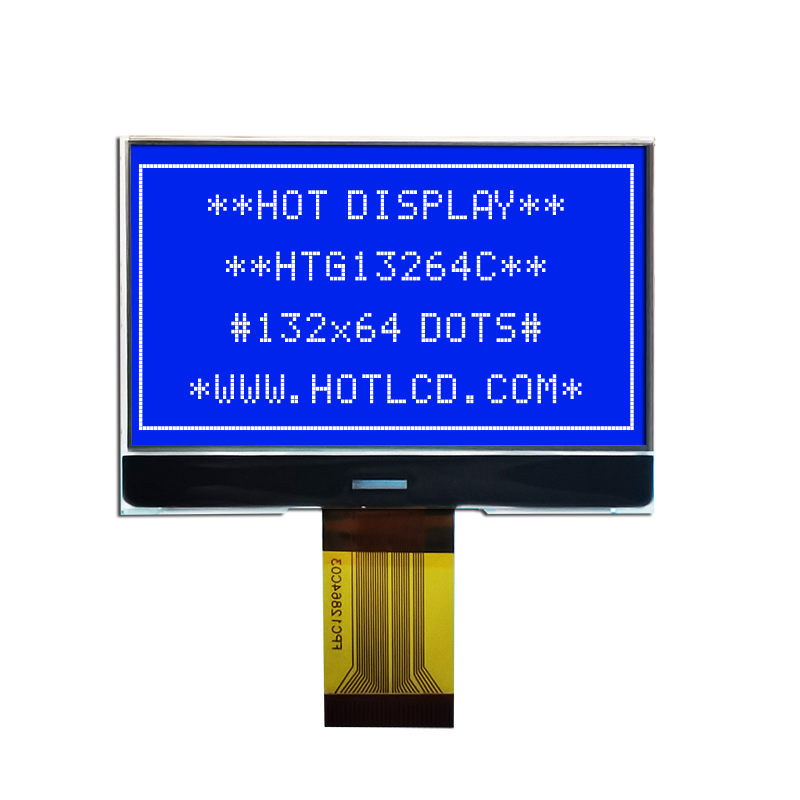

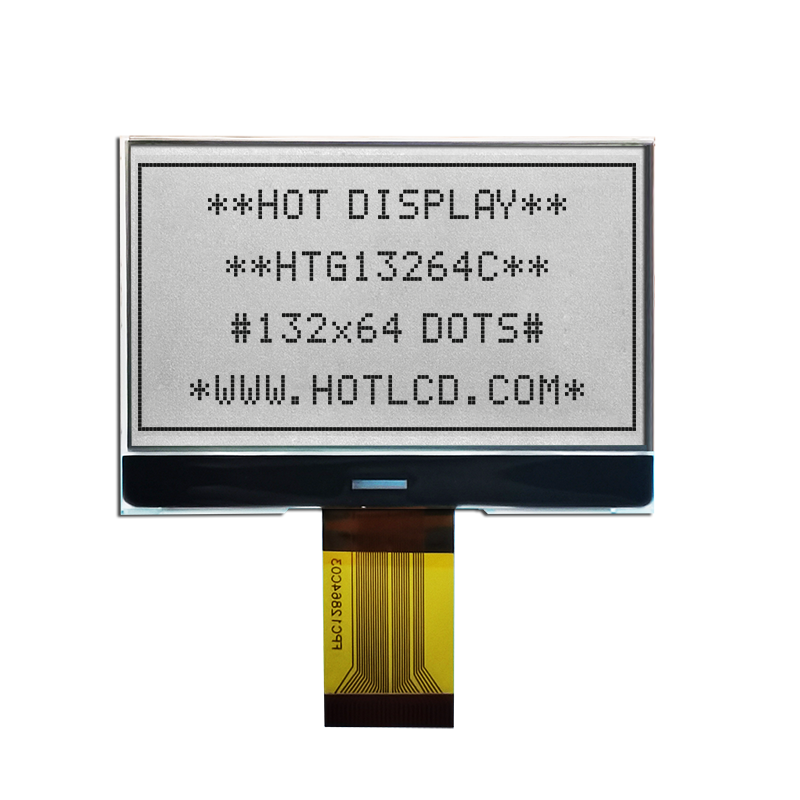

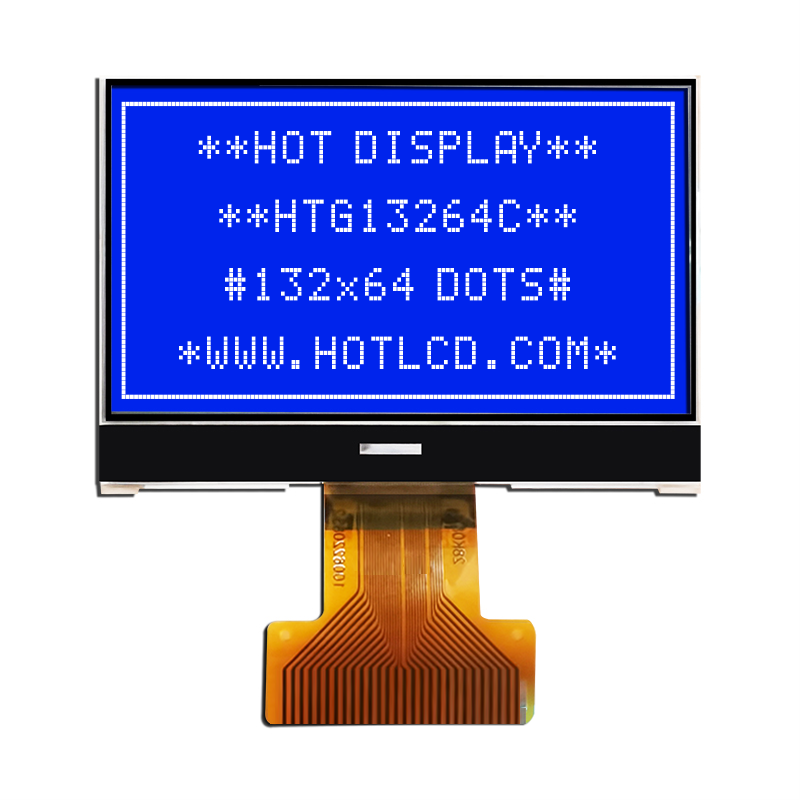

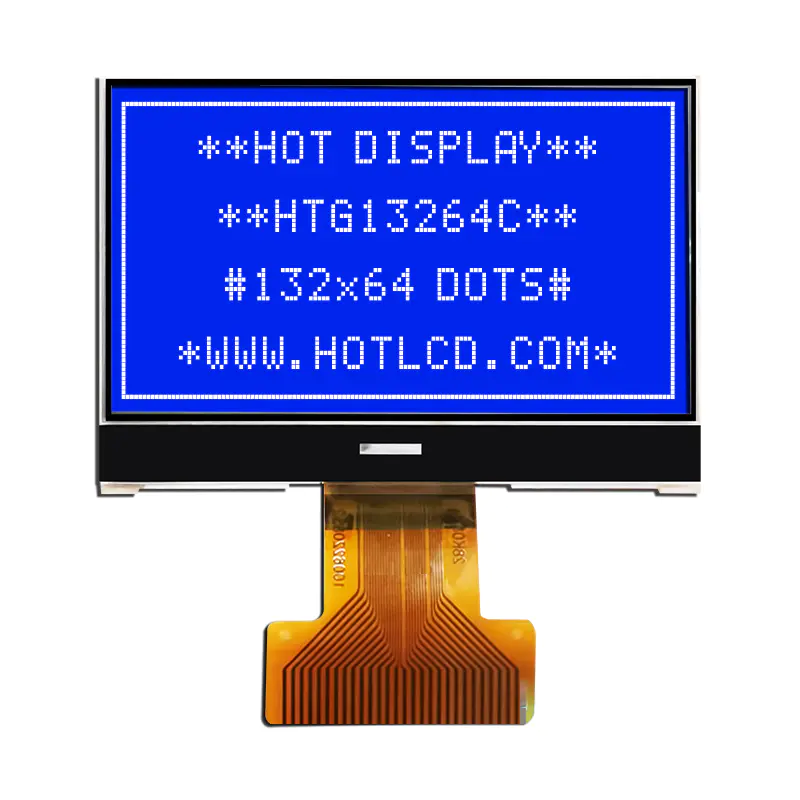

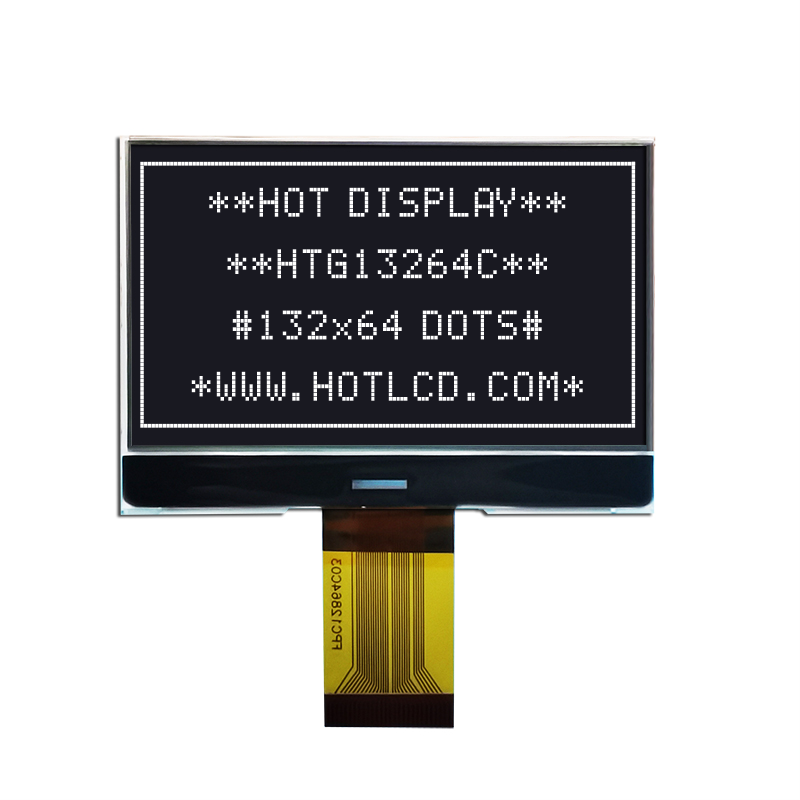

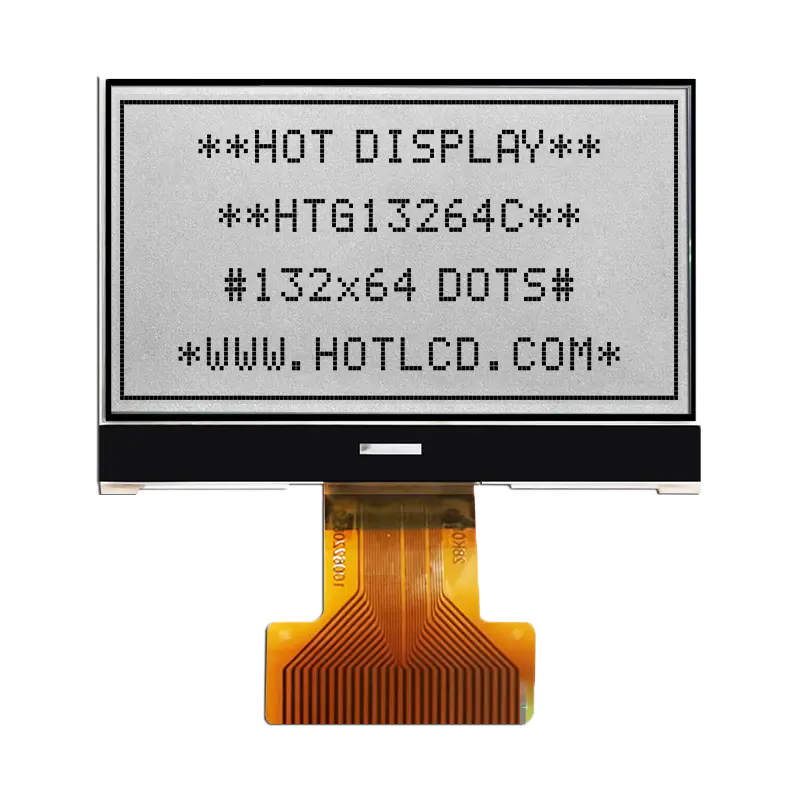

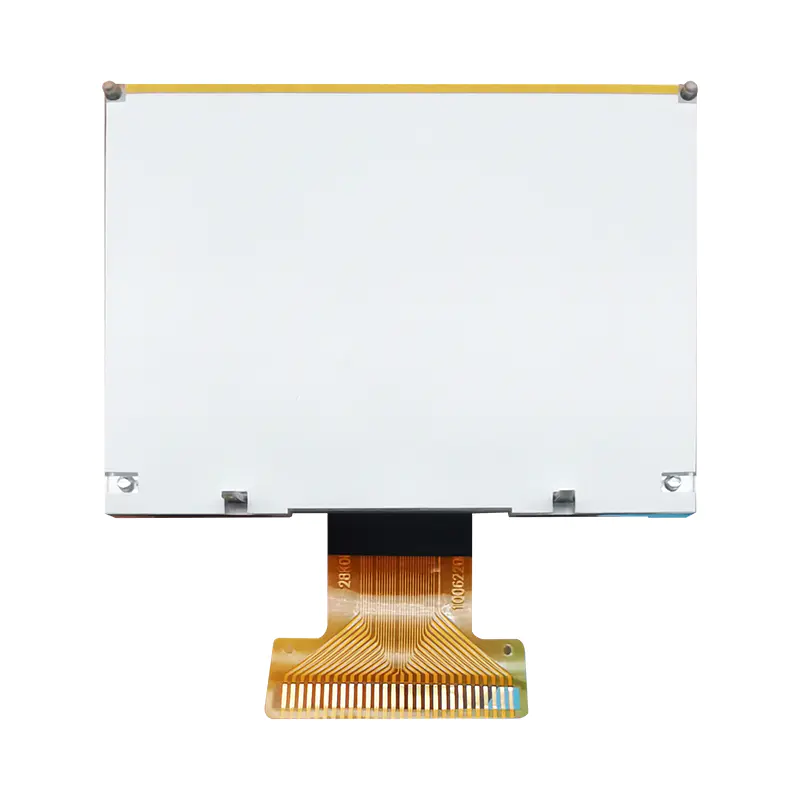

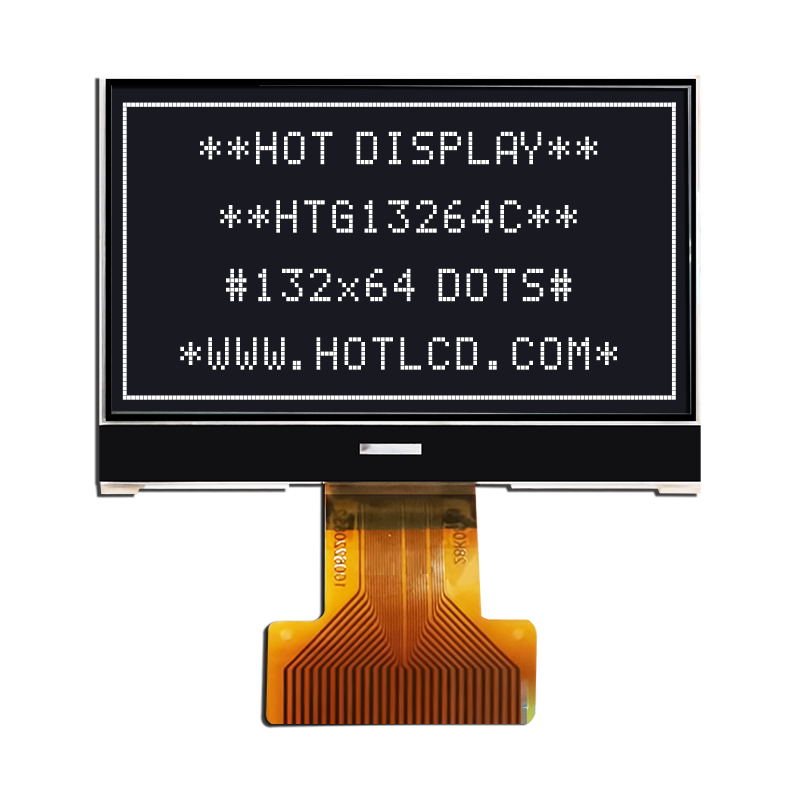

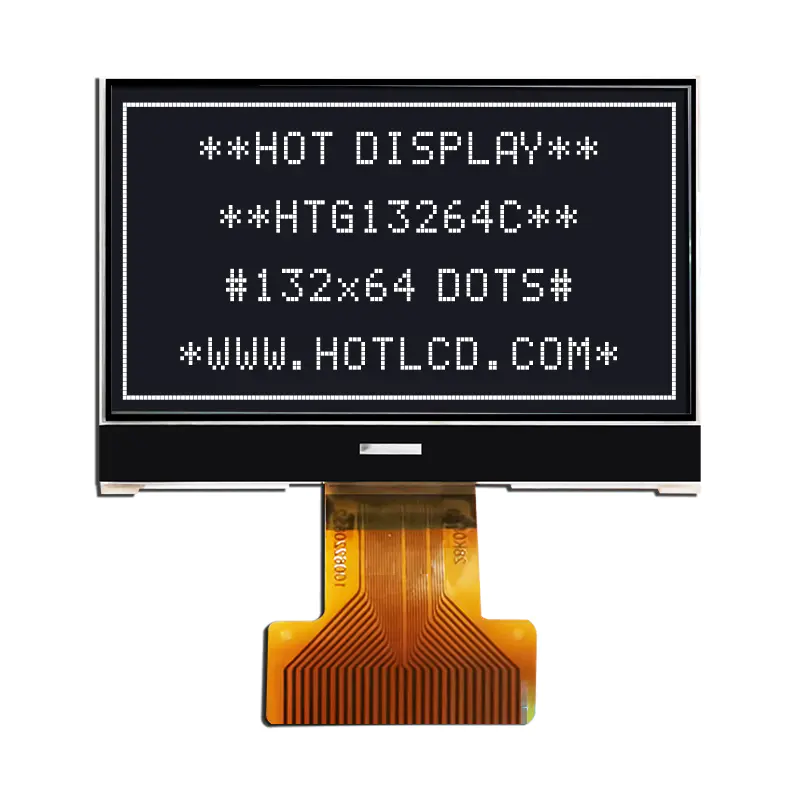

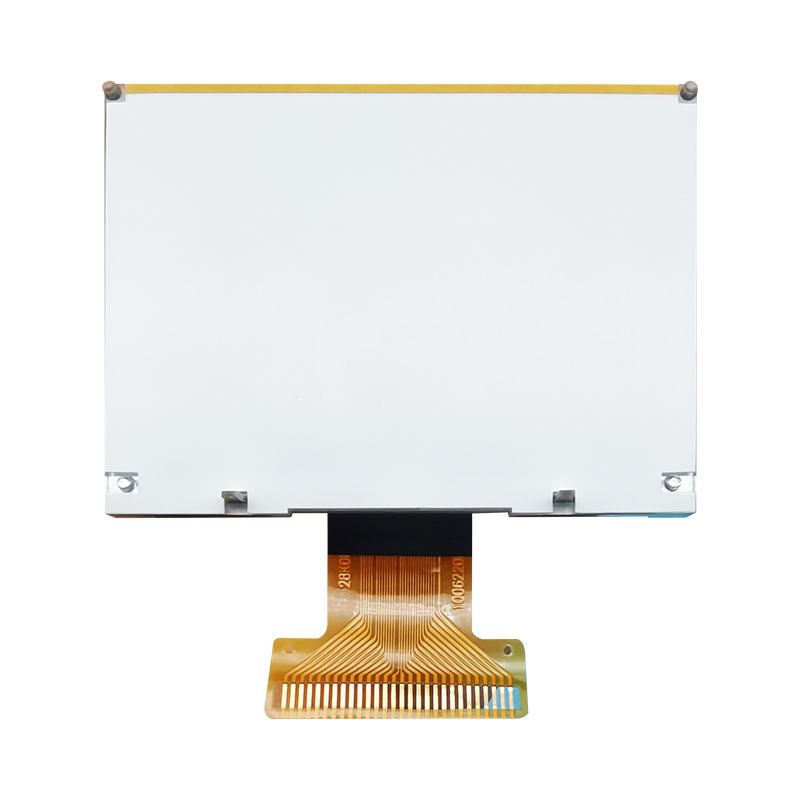

Product type：COG

Show contents：132*64

Outline size(mm) ：57.5*41.7*2.0

Size of View Window(mm)：54.0*30.2

Display size(mm) ：48.81*26.21

Point spacing(mm)：0.41*0.37

Visual angle：6H

Backlight type or brightness：白光

Connection PIN Number：FPC-28PIN

Interface mode：MCU/8bit

Working temperature：-20~70℃

Power supply voltage：3.3v

Driver chip model：ST7565R
