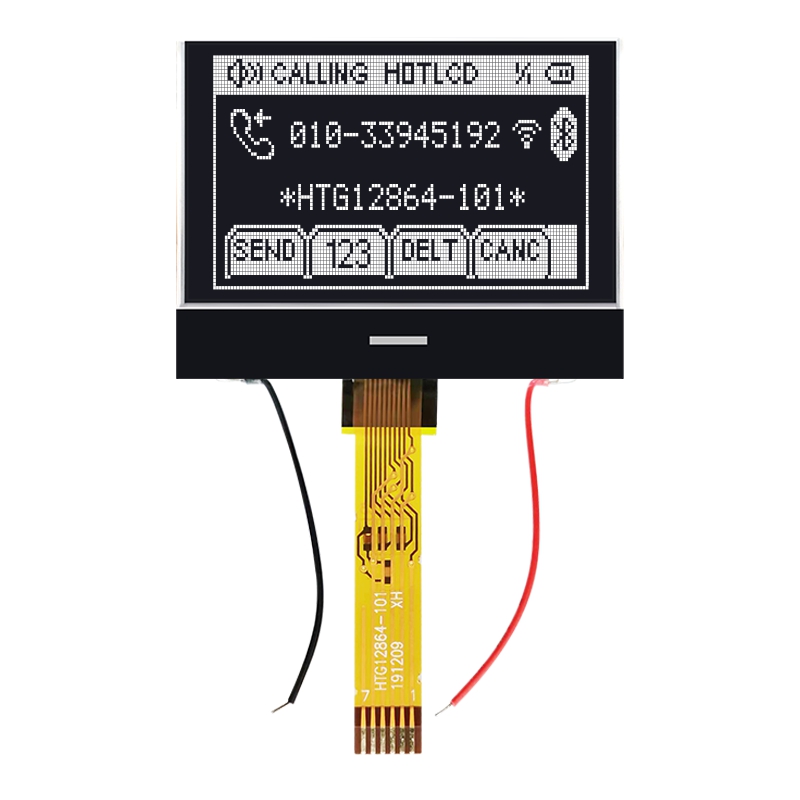

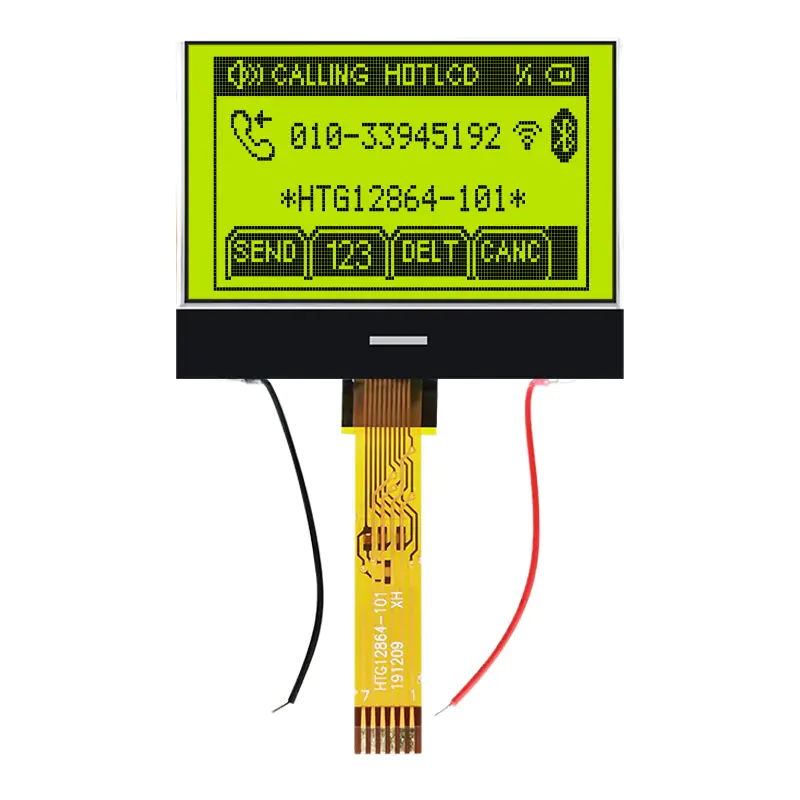

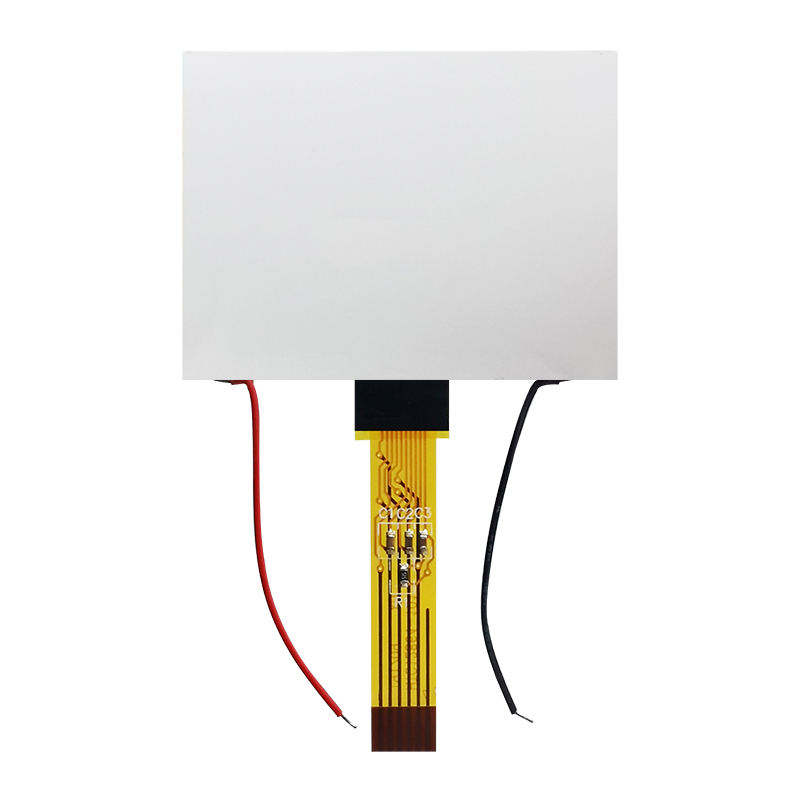

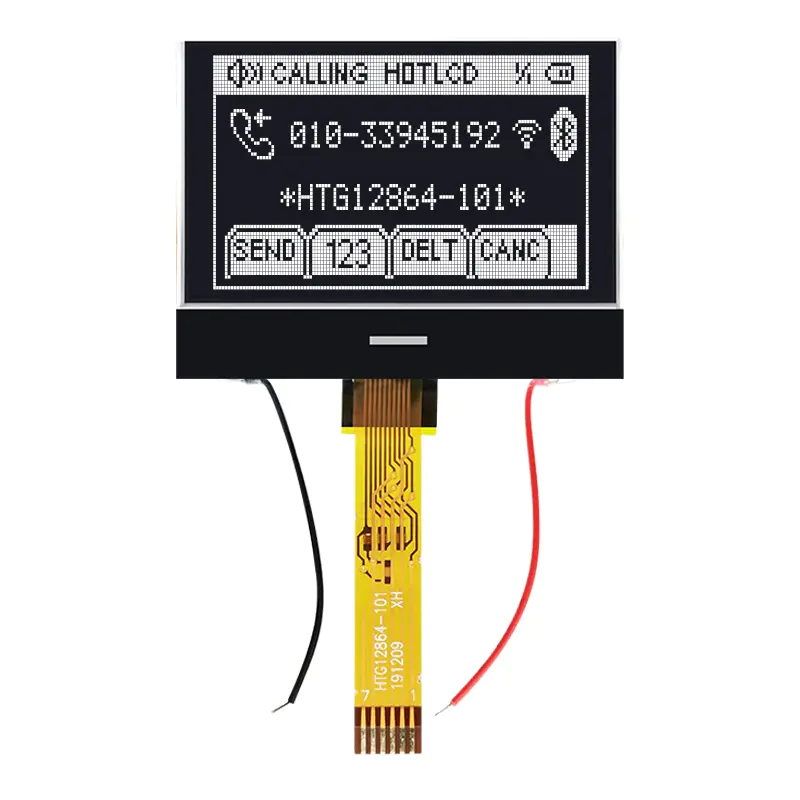

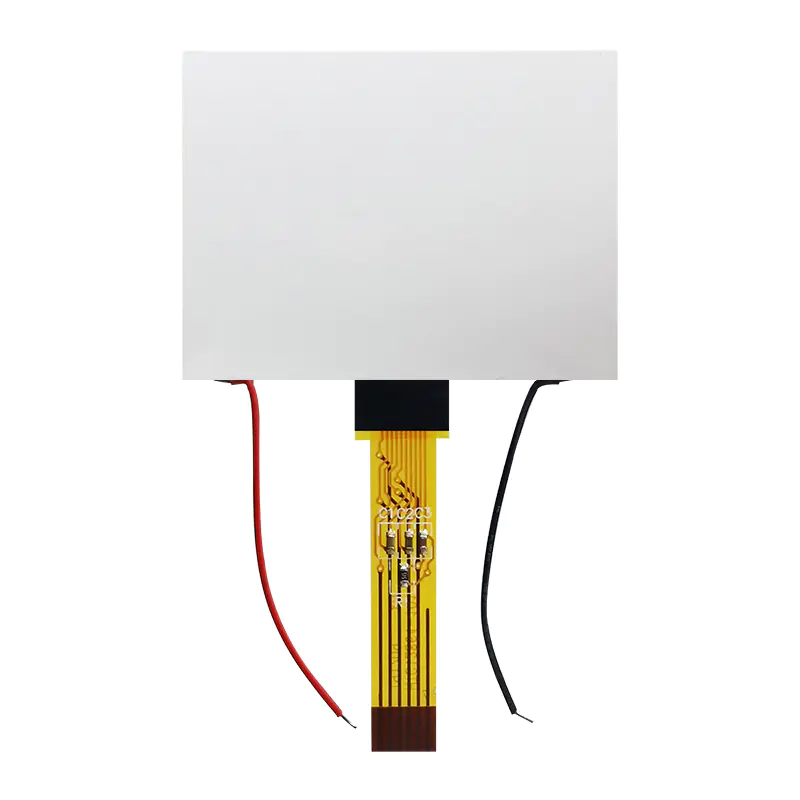

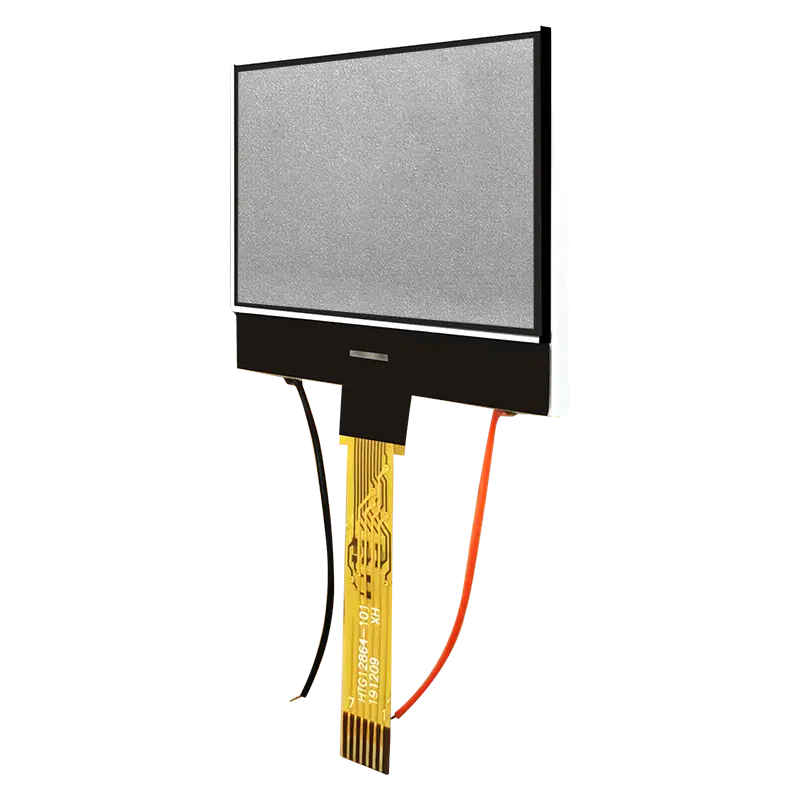

Product type：COG

Show contents：12864

Outline size(mm) ：48.0*36.0*3.8

Size of View Window(mm)：44.0*25.0

Display size(mm) ：39.66*19.82

Point spacing(mm)：0.31*0.31

Product application：industrial control

Visual angle：6H

Backlight type or brightness：白光

Connection PIN Number：FPC-6PIN

Interface mode：I2C

Special instructions：For other flow instruments such as radar level meter

Working temperature：3.0V

Power supply voltage：3.0V

Driver chip model：US1601S

CAD Drawings:
