Product type：COG

Show contents：128*64

Outline size(mm) ：49.0*35.5*2.8

Size of View Window(mm)：45.2*26.9

Display size(mm) ：40.92*24.38

Point spacing(mm)：0.38*0.32

Visual angle：6H

Backlight type or brightness：白光

Connection PIN Number：FPC-28PIN

Interface mode：MCU/8bit

Working temperature：-20~70℃

Power supply voltage：3.3v

Driver chip model：ST7565R

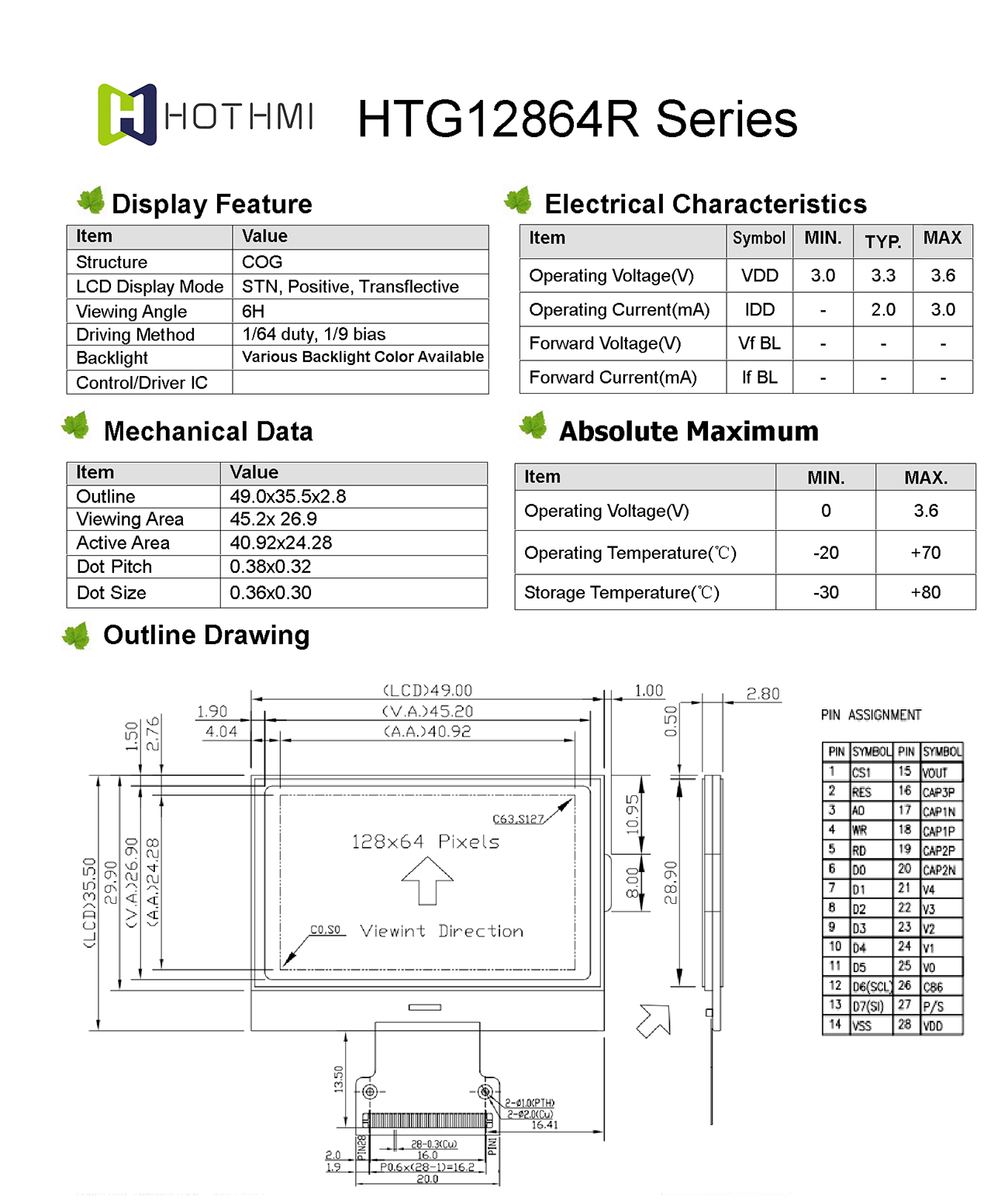

CAD Drawings:
