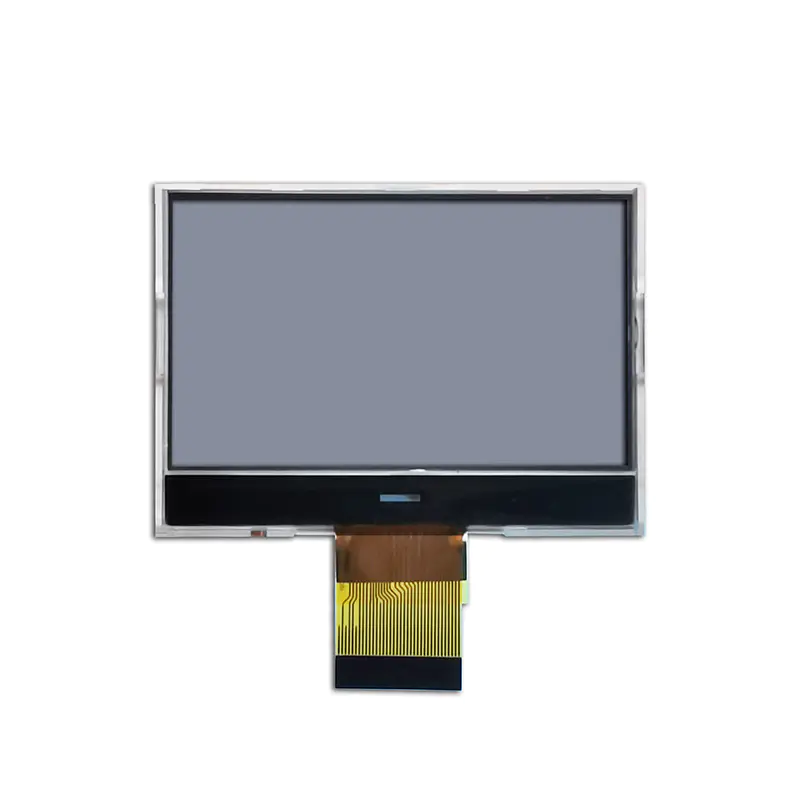

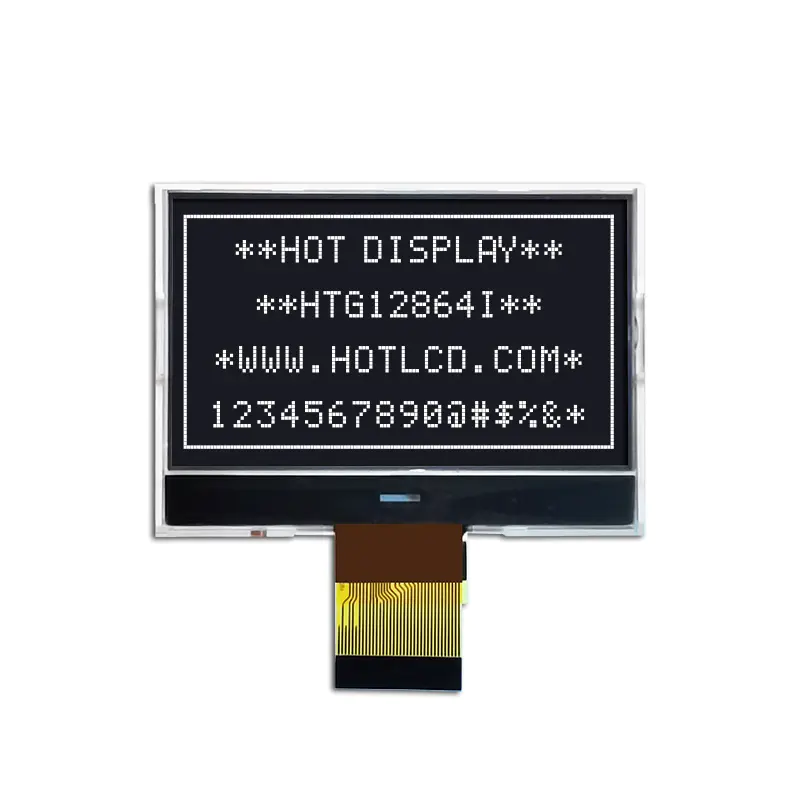

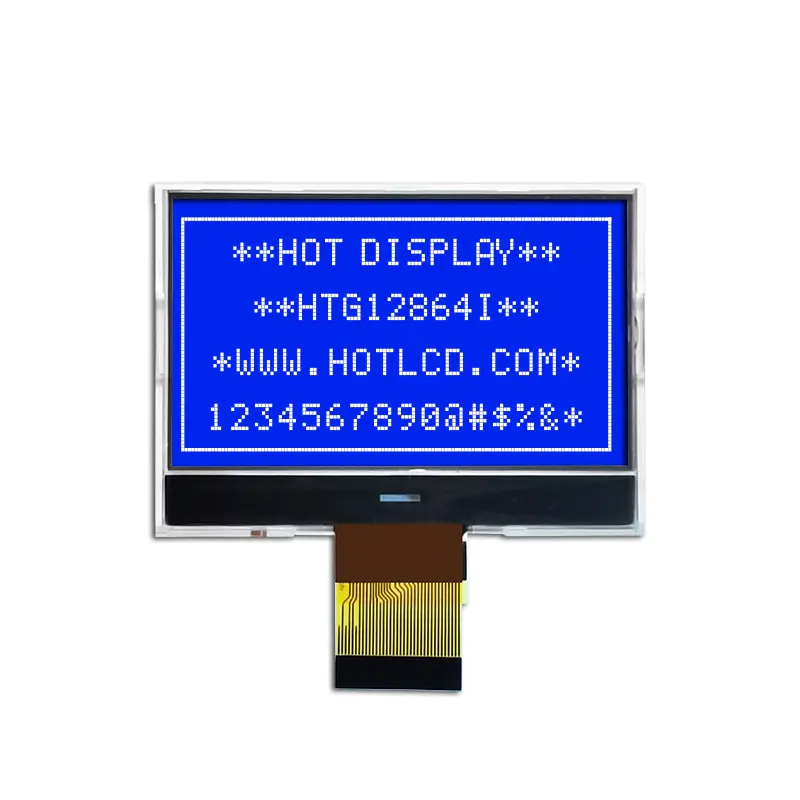

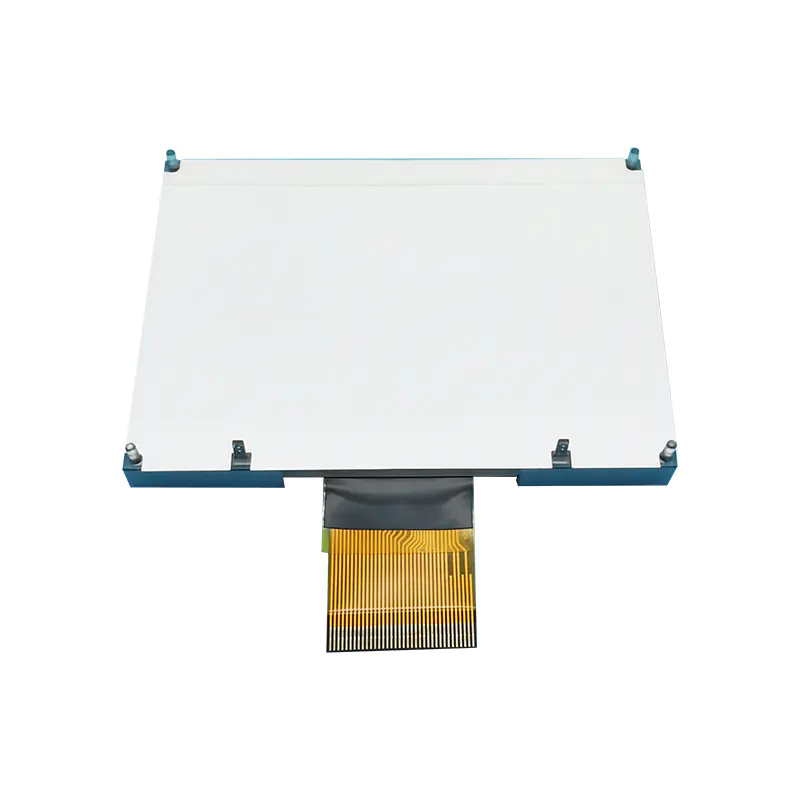

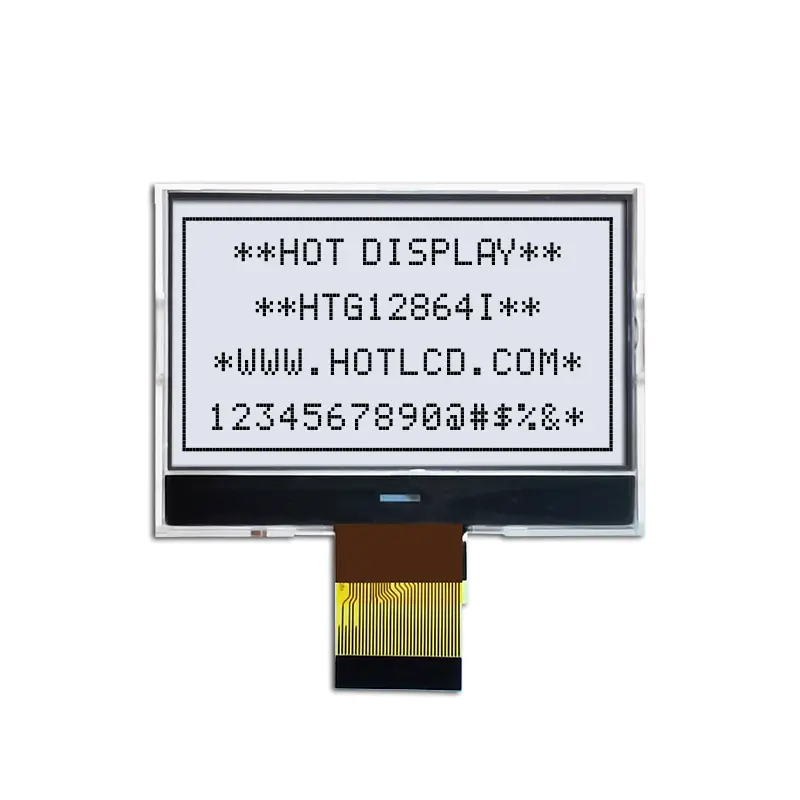

128*64 COG LCD Graphic/HTG12864I
128*64 COG LCD Graphic/HTG12864I
128*64 COG LCD Graphic/HTG12864I
128*64 COG LCD Graphic/HTG12864I
128*64 COG LCD Graphic/HTG12864I
128*64 COG LCD Graphic/HTG12864I
128*64 COG LCD Graphic/HTG12864I
128*64 COG LCD Graphic/HTG12864I
128*64 COG LCD Graphic/HTG12864I
128*64 COG LCD Graphic/HTG12864I
128*64 COG LCD Graphic/HTG12864I
$6.99
Add to wish list
Quantity
+
Product details
Model : 128*64 COG LCD Graphic/HTG12864I

Product type:COG

Show contents:128*64

Outline size(mm) :69.1*50.0*2.8

Size of View Window(mm):65.5*38.0

Display size(mm) :60.775*32.935

Point spacing(mm):0.475*0.515

Visual angle:6H

Backlight type or brightness:WHITE

Connection PIN Number:FPC-36PIN

Interface mode:MCU/8bit

Working temperature:-20-70℃

Power supply voltage:3.3v

Driver chip model:ST7565R

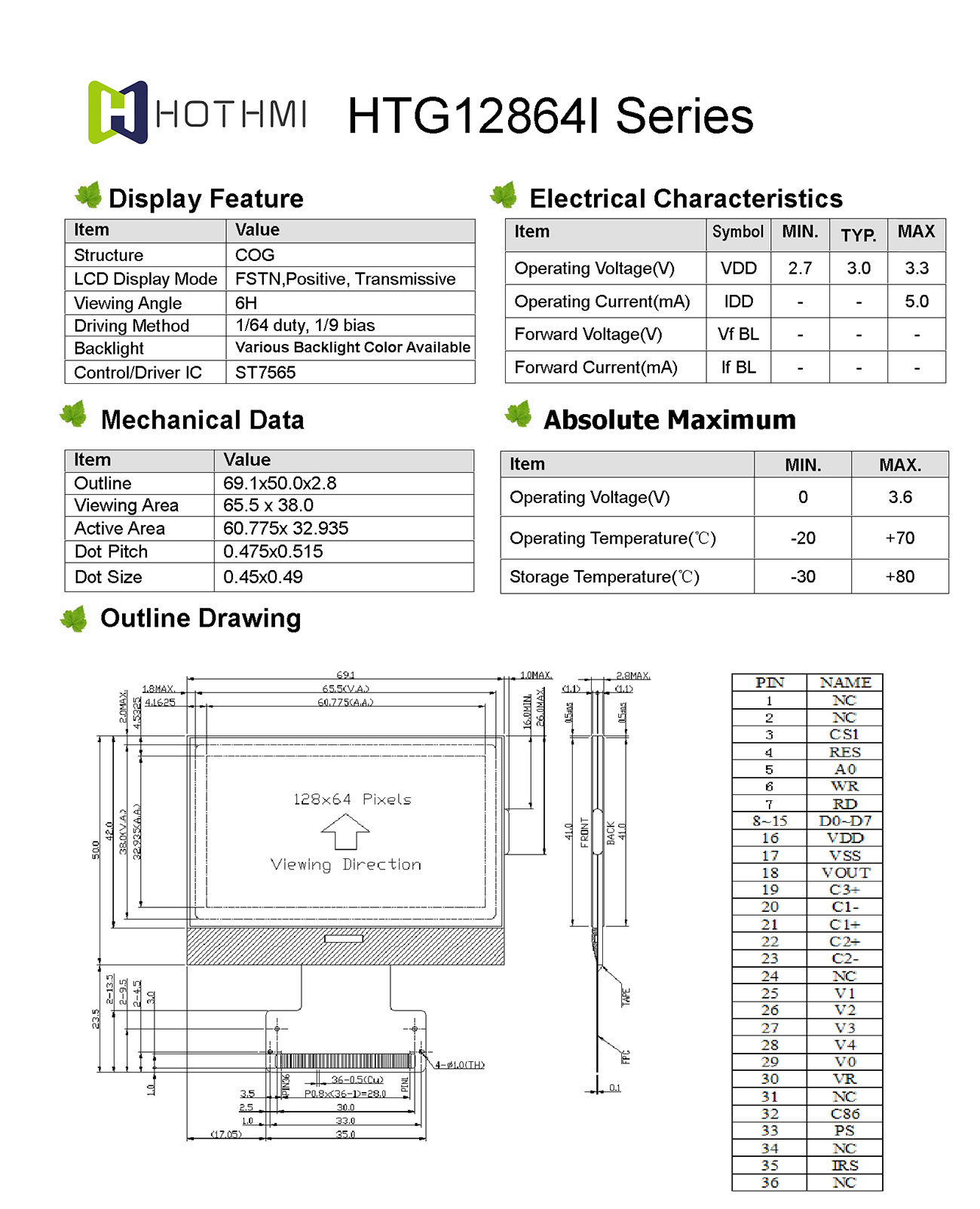

CAD Drawings
