$5.99
Add to wish list
Quantity
+
Product details
Model : 128*64 COG LCD Graphic/HTG12864C

Product type:COG

Show contents:128*64

Outline size(mm) :40.8*33.1*4.15

Size of View Window(mm):36.0*23.5

Display size(mm) :33.26*20.46

Point spacing(mm):0.26*0.32

Visual angle:6H

Backlight type or brightness:WHITE

Connection PIN Number:FPC-28PIN

Interface mode:MCU/8bit

Working temperature:-20~70℃

Power supply voltage:3.3v

Driver chip model:ST7565R

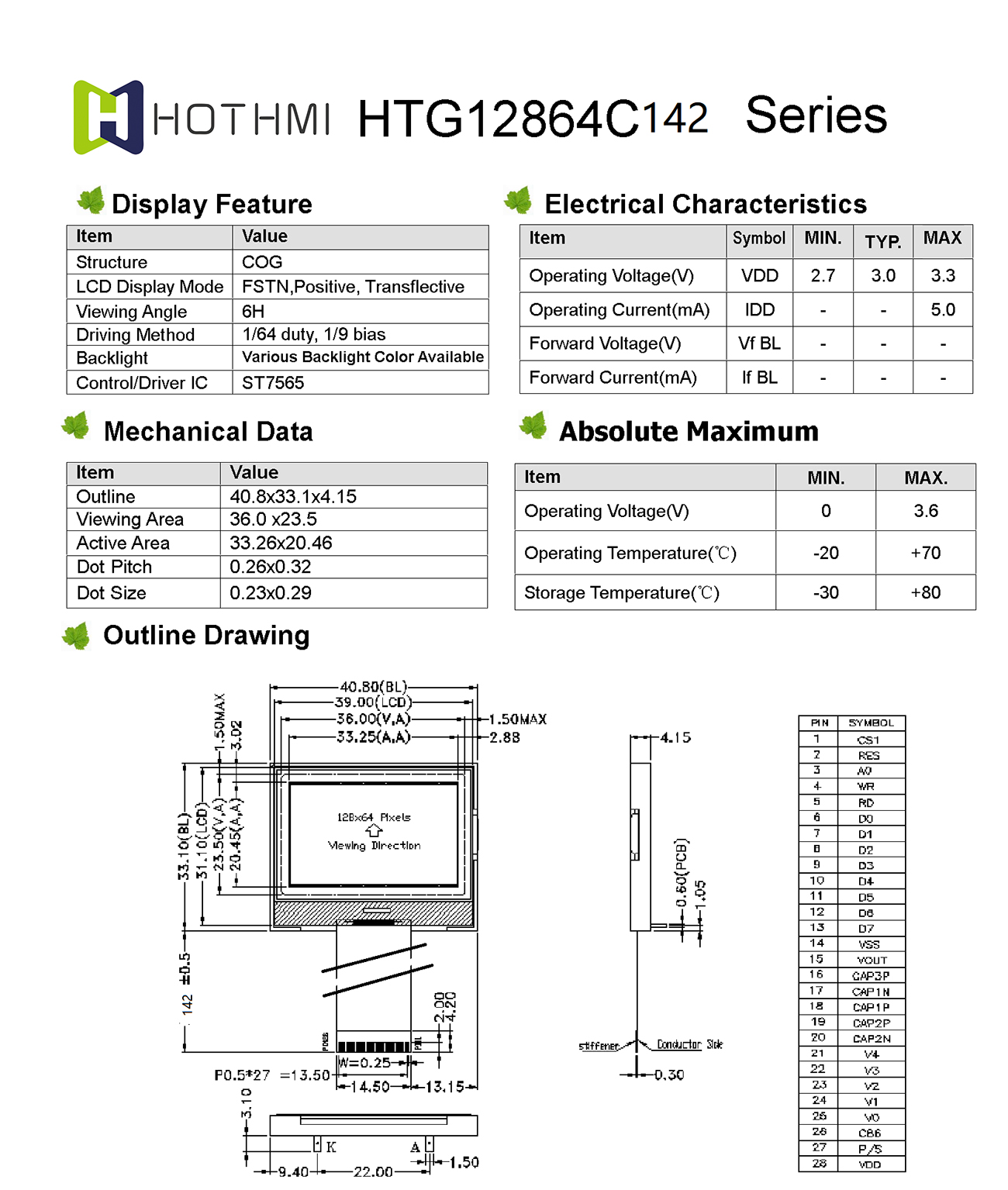

CAD Drawings:
