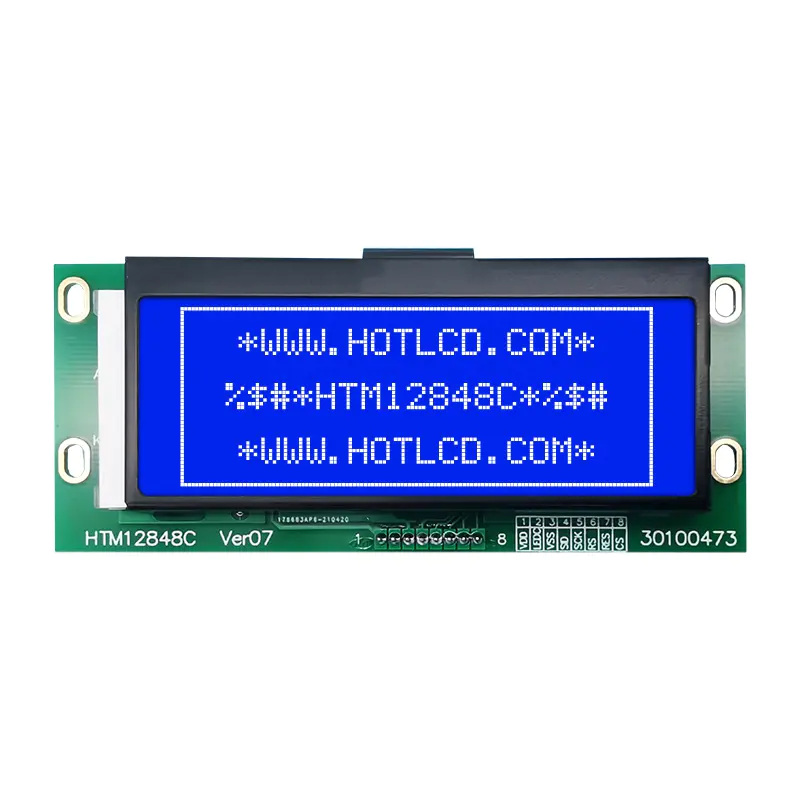

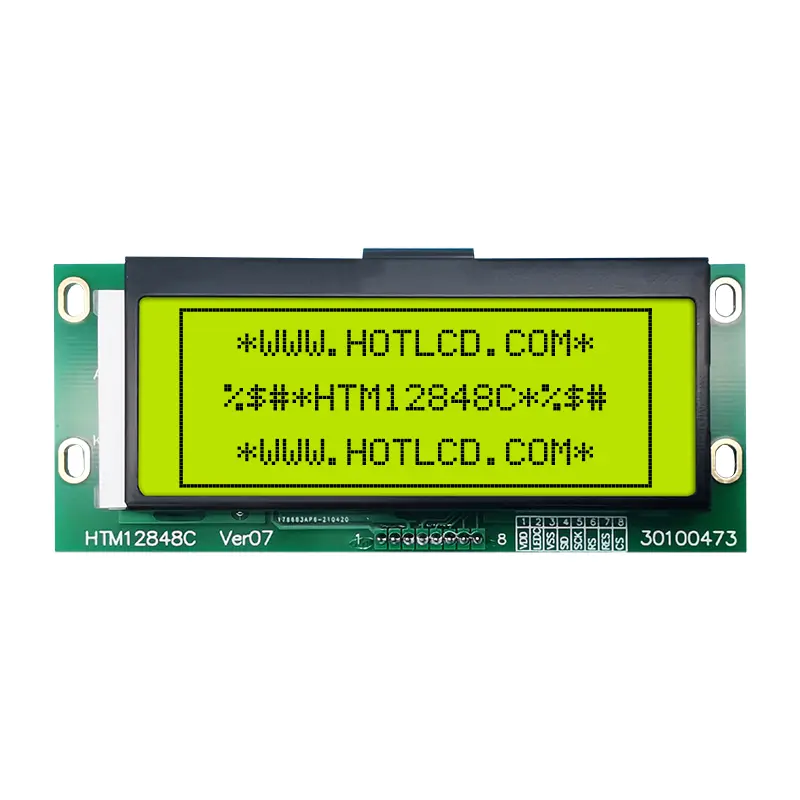

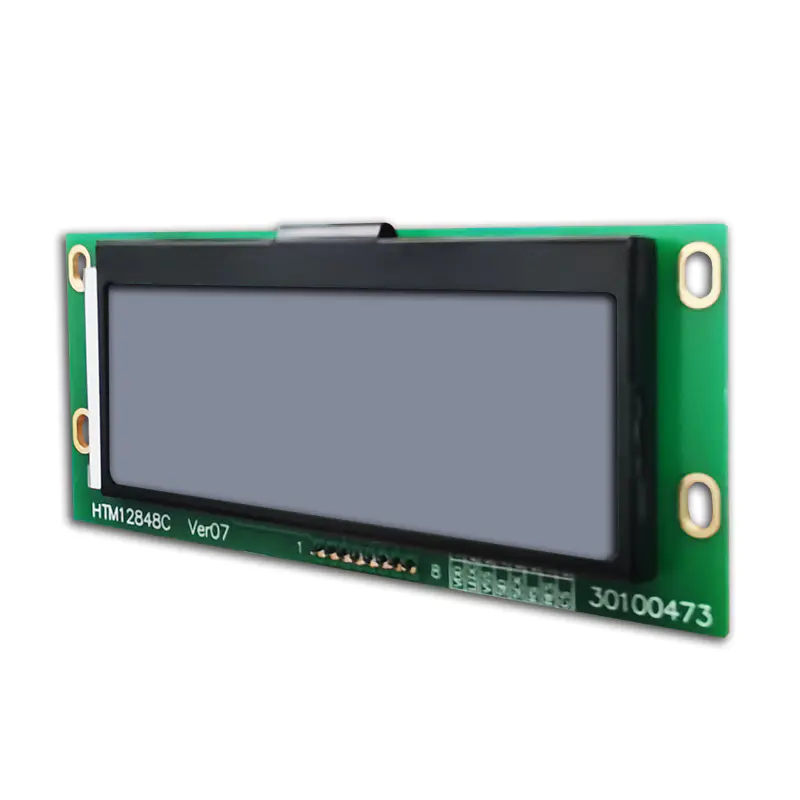

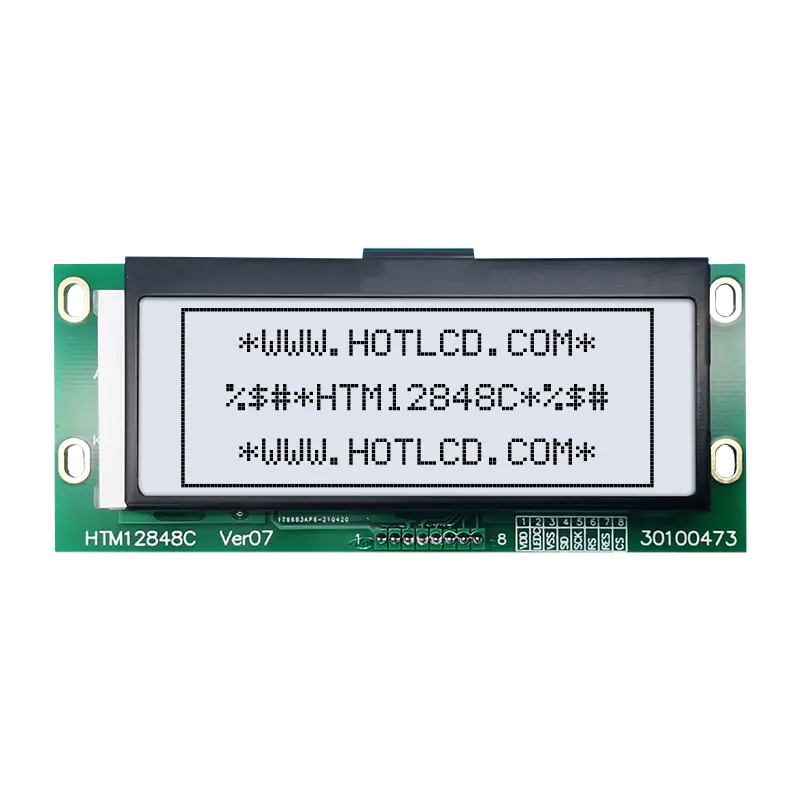

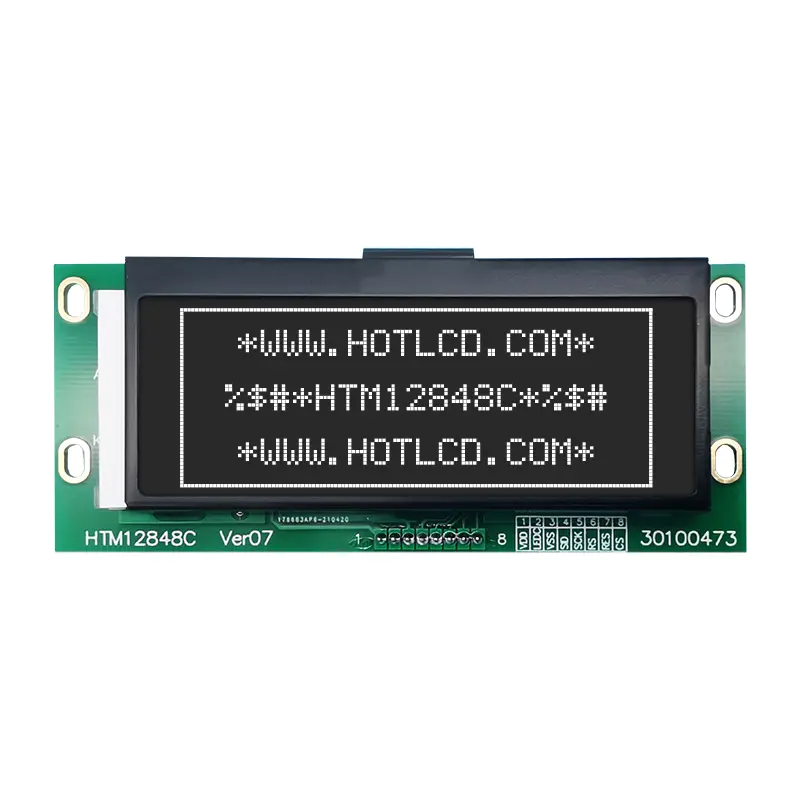

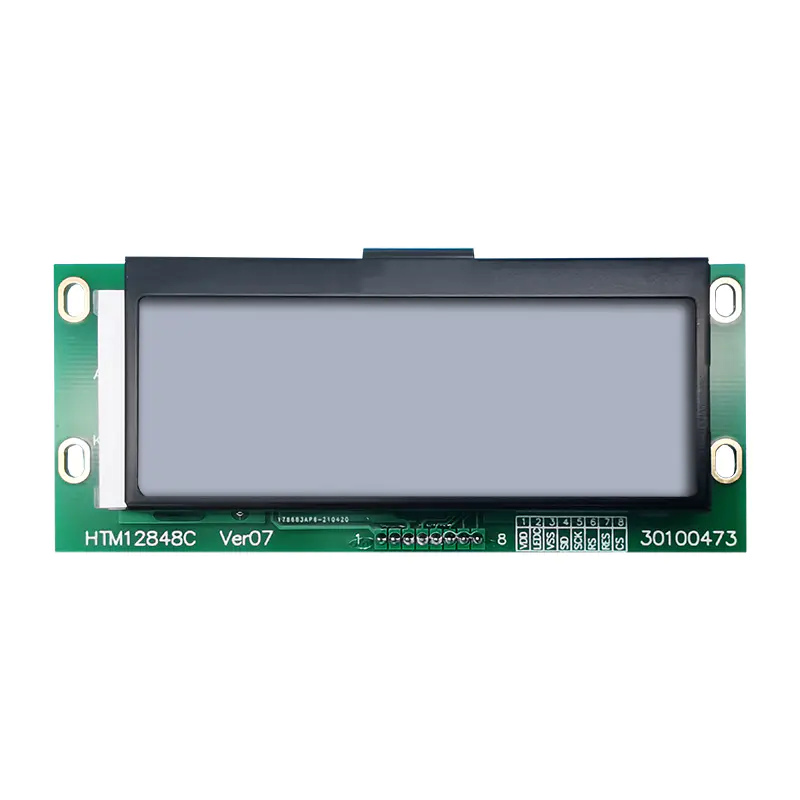

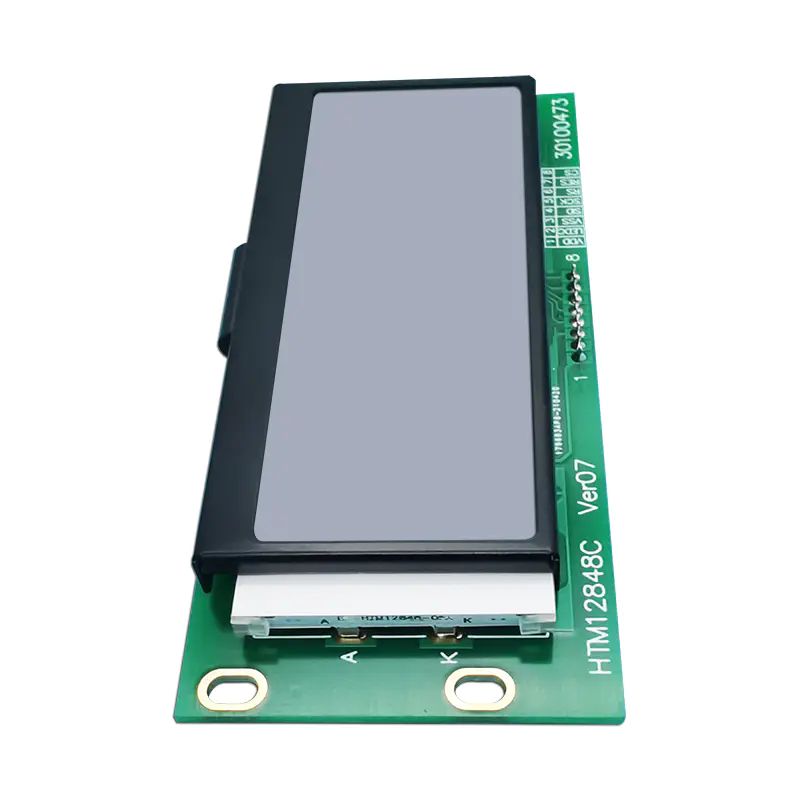

128*48 LCM Graphic/HTM12848C
128*48 LCM Graphic/HTM12848A
US$7.19
- US$7.39
Color
Quantity
–
+
Product details
Model : 128*48 LCM Graphic/HTM12848A
Product type:Graphic LCM
Show contents:128*48
Outline size(mm) :100.3*45.0*12.5
Size of View Window(mm):75.8*29.0
Display size(mm) :66.52*24.92
Point spacing(mm):0.52*0.52
Visual angle:6H
Backlight type or brightness:WHITE
Connection PIN Number:8PIN
Interface mode:SPI
Working temperature:-20~80℃
Power supply voltage:3.3v
Driver chip model:ST7565R

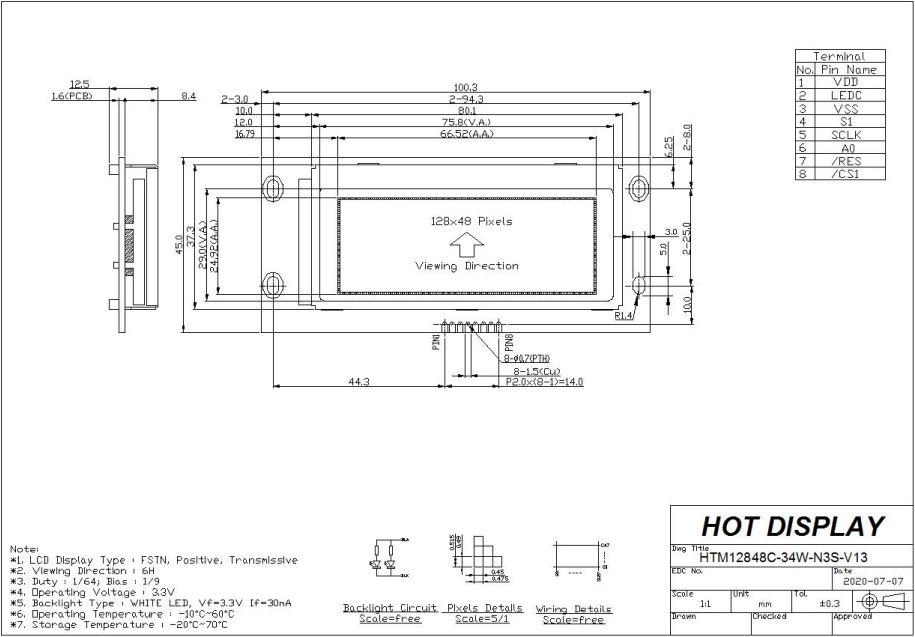

CAD Drawings:
