$5.99
Add to wish list
Quantity
+
Product details

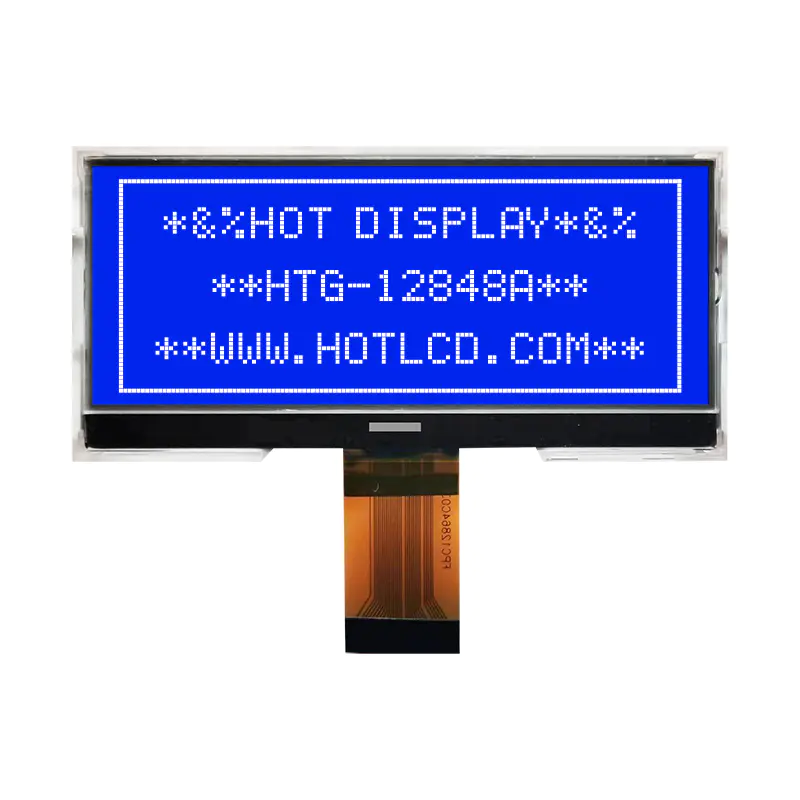

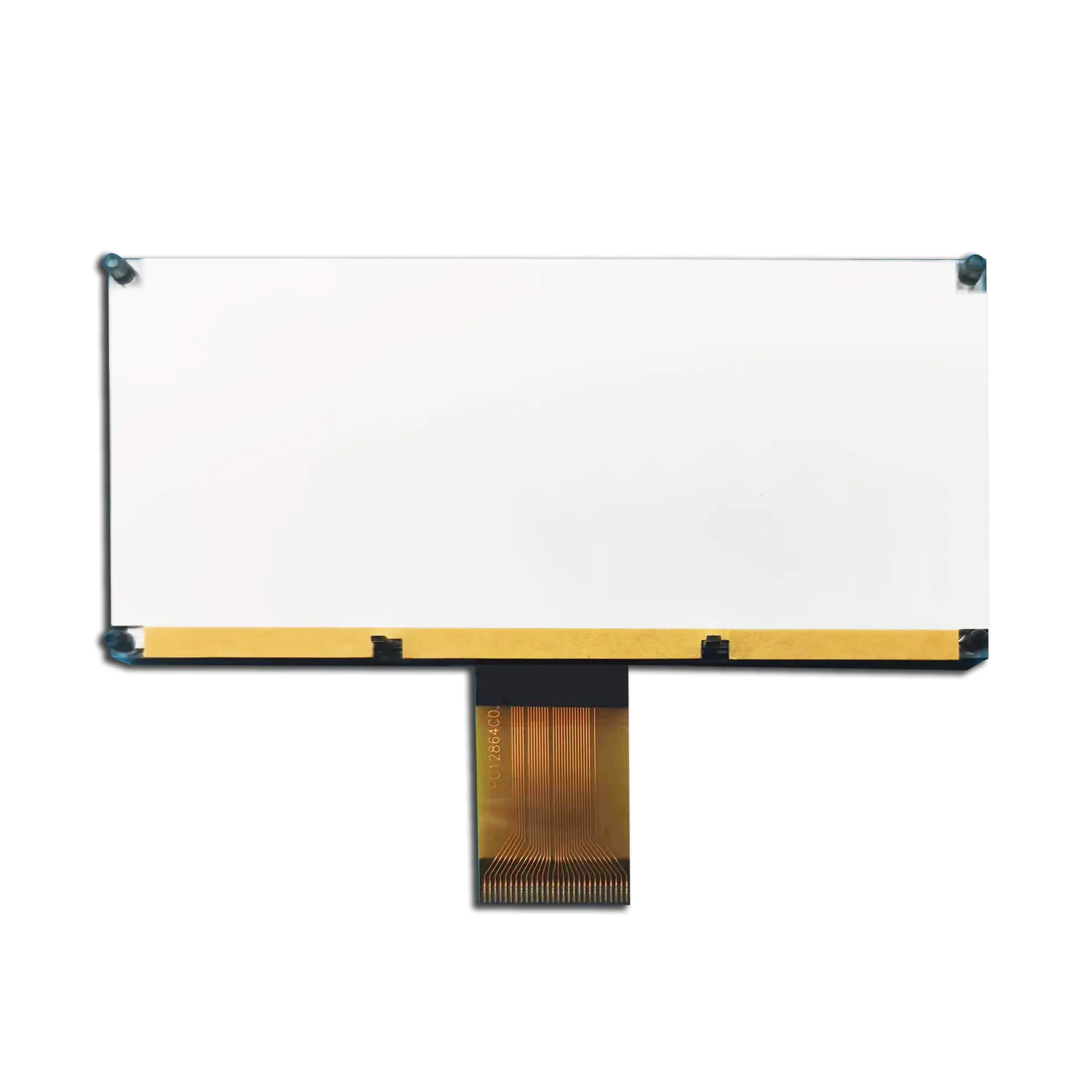

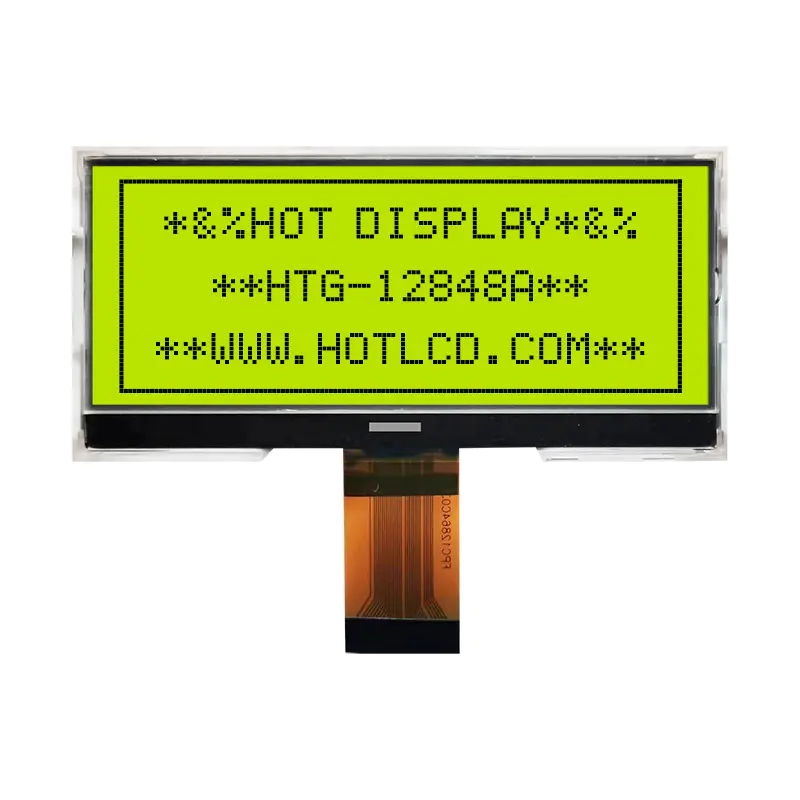

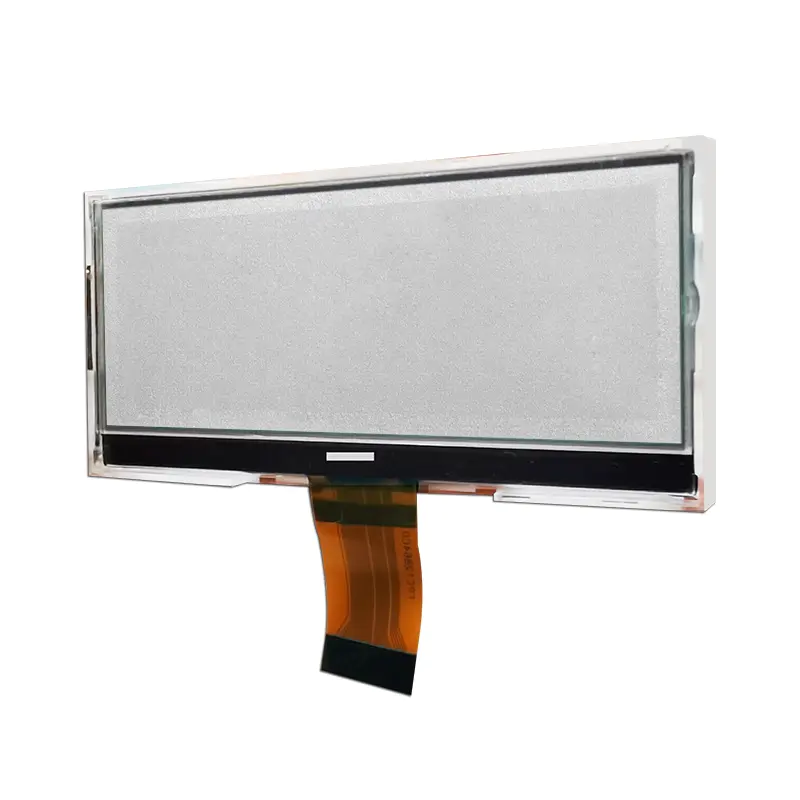

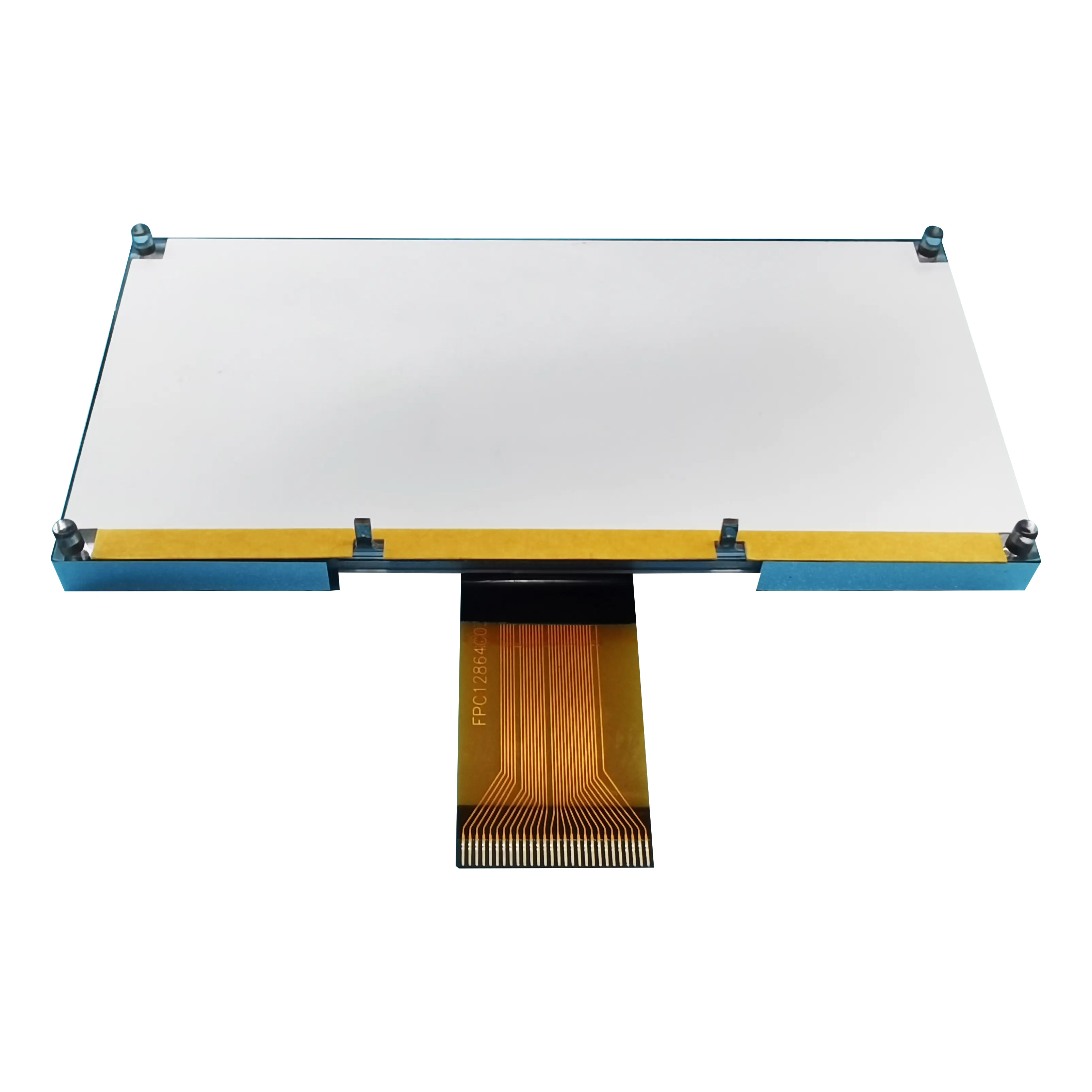

Model : 128*48 COG LCD Graphic/HTG12848A

Product type:COG

Show contents:128*48

Outline size(mm) :81.1*38.3*4.9

Size of View Window(mm):75.3*28.3

Display size(mm) :66.52*24.92

Point spacing(mm):0.52*0.52

Visual angle:6H

Backlight type or brightness:WHITE

Connection PIN Number:FPC-28PIN

Interface mode:MCU/8bit

Working temperature:-20~70℃

Power supply voltage:3.3v

Driver chip model:ST7565R

CAD Drawings:
