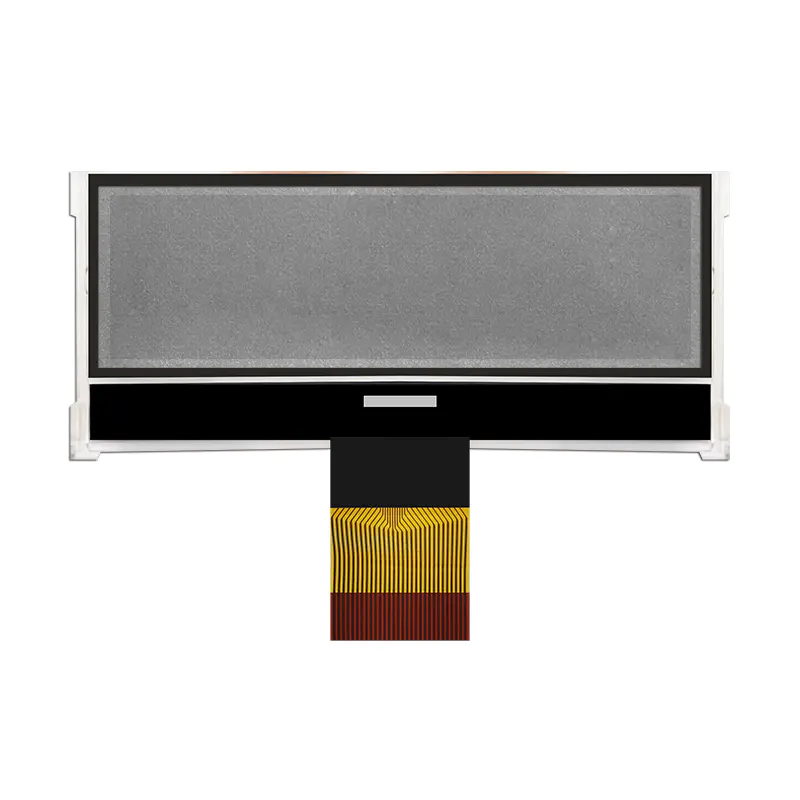

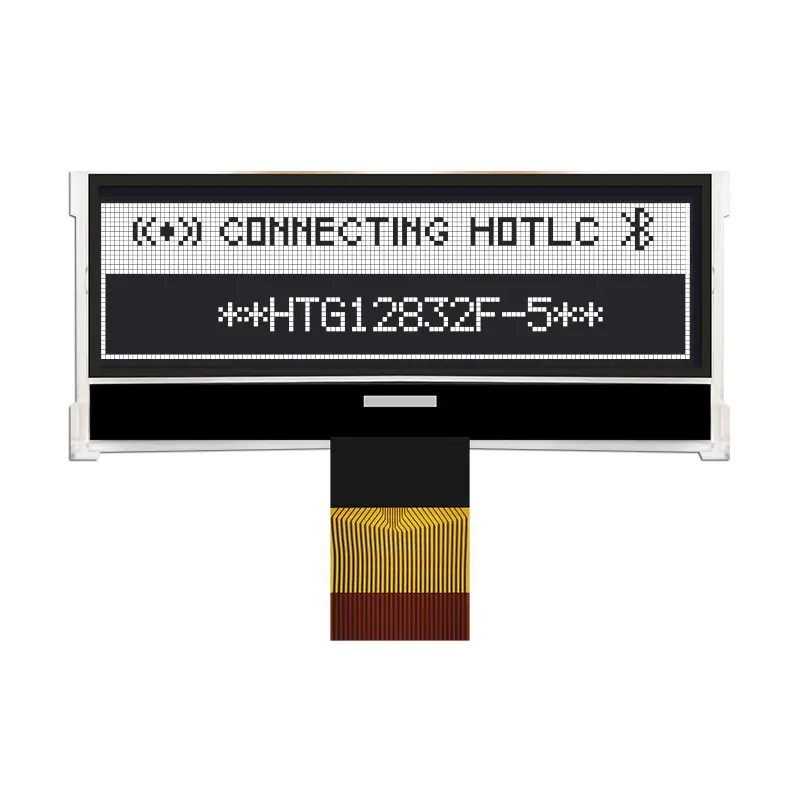

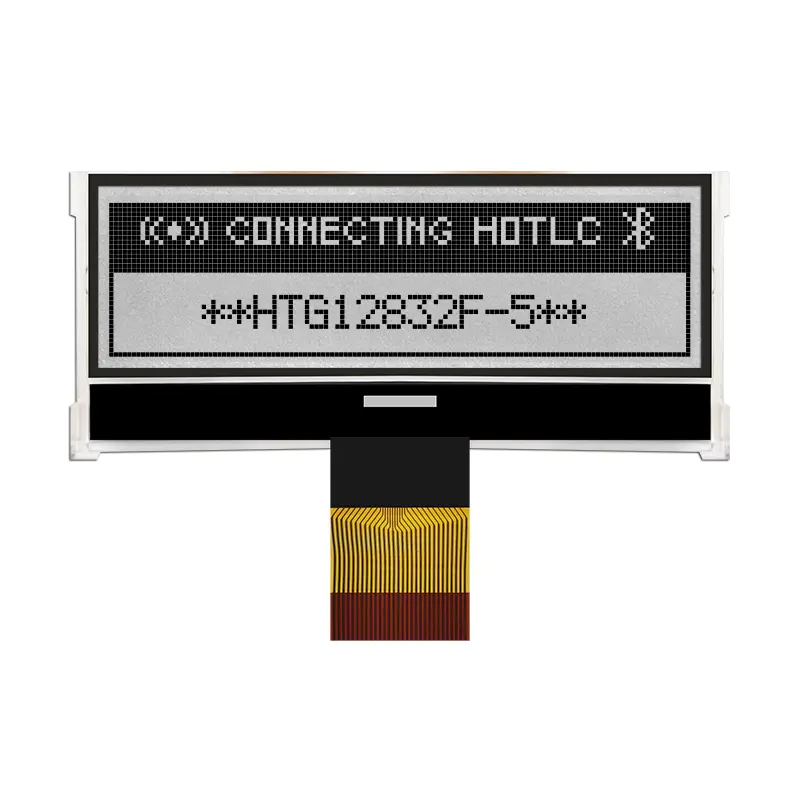

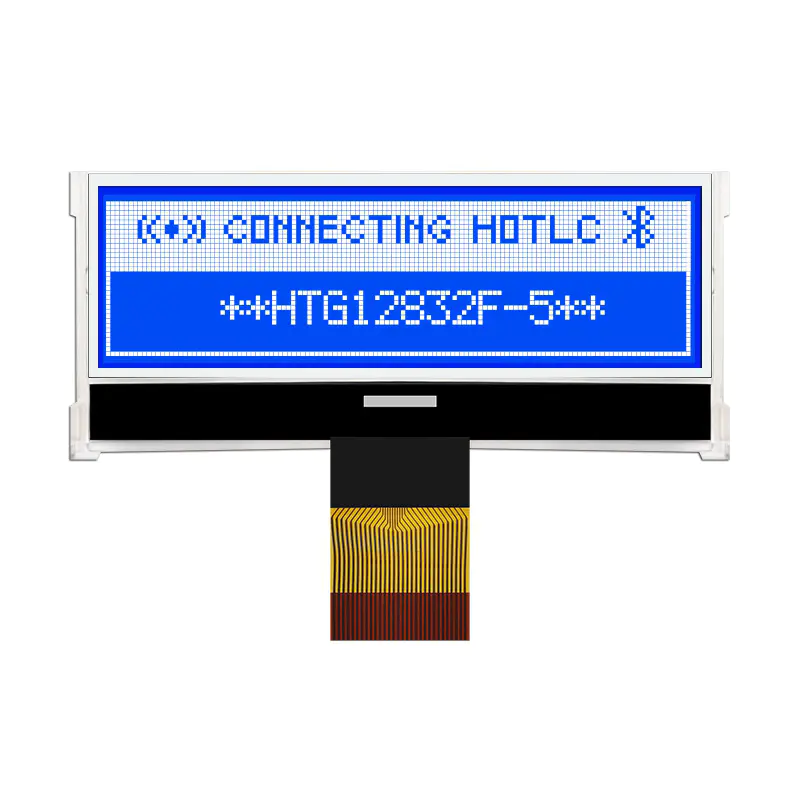

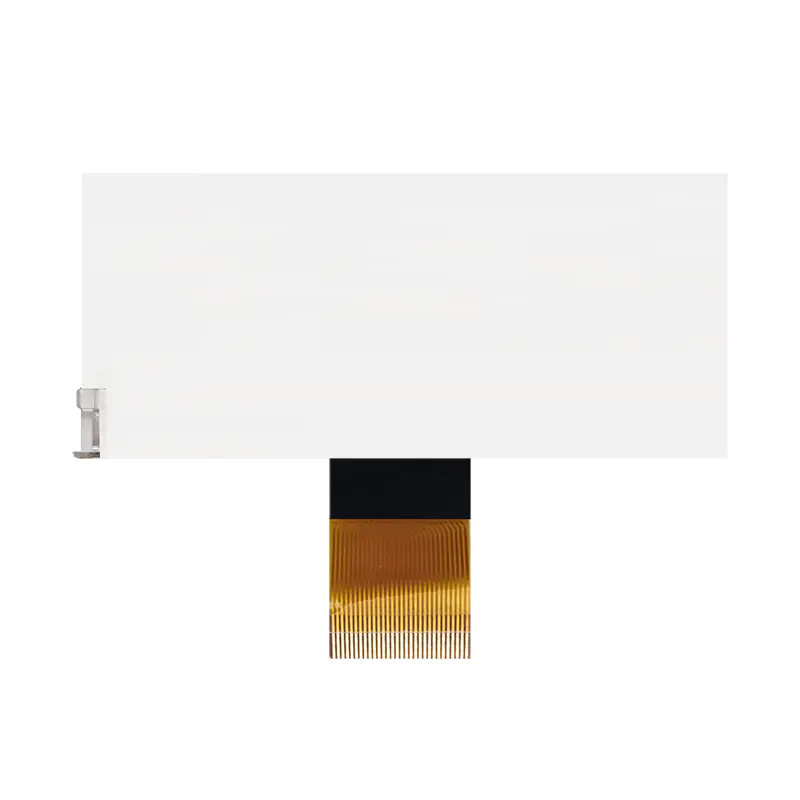

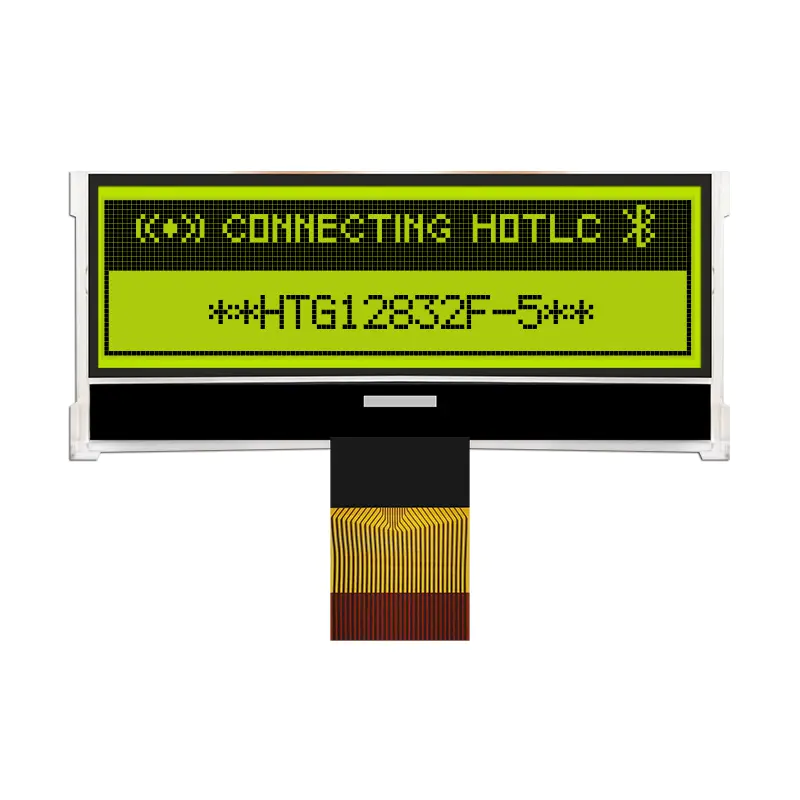

128*32 COG dot matrix LCD screen/Internet phone display screen/HTG12832F-5
128*32 COG dot matrix LCD screen/Internet phone display screen/HTG12832F-5
US$5.99
Quantity
–
+
Product details
Model : 128*32 COG dot matrix LCD screen/Internet phone display screen/HTG12832F-5
Product type：COG
Show contents：128*32
Outline size(mm) ：63.0*27.5*2.0
Size of View Window(mm)：59.0*17.5
Display size(mm) ：56.033*14.526
Point spacing(mm)：0.438*0.455
Product application：online telephone
Visual angle：12H
Backlight type or brightness：white light
Interface mode：online telephone
Working temperature：-20~70℃
Power supply voltage：3.3V
Driver chip model：ST7565R
CAD Drawings:
