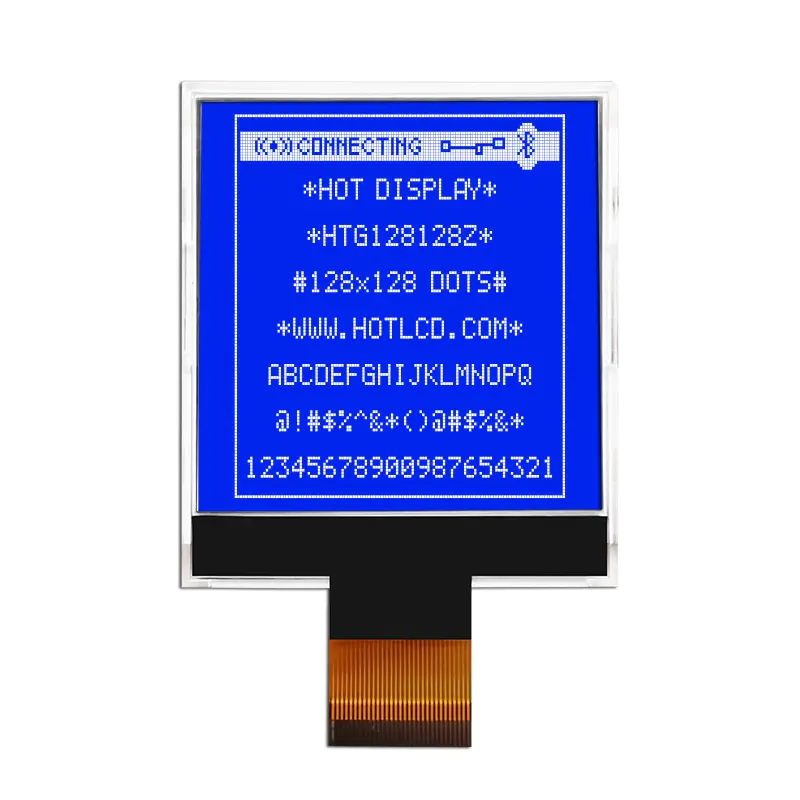

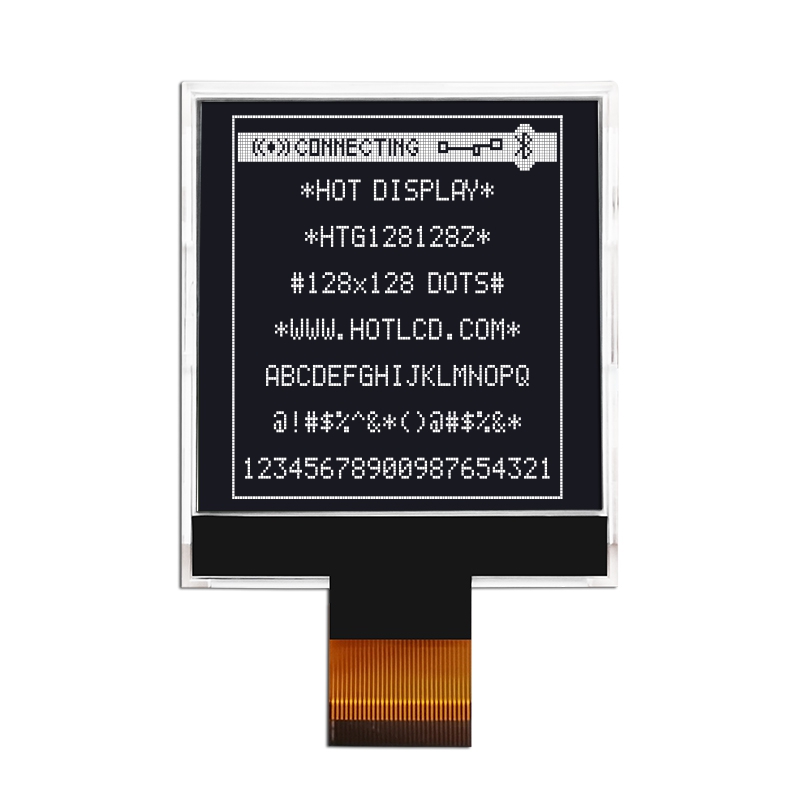

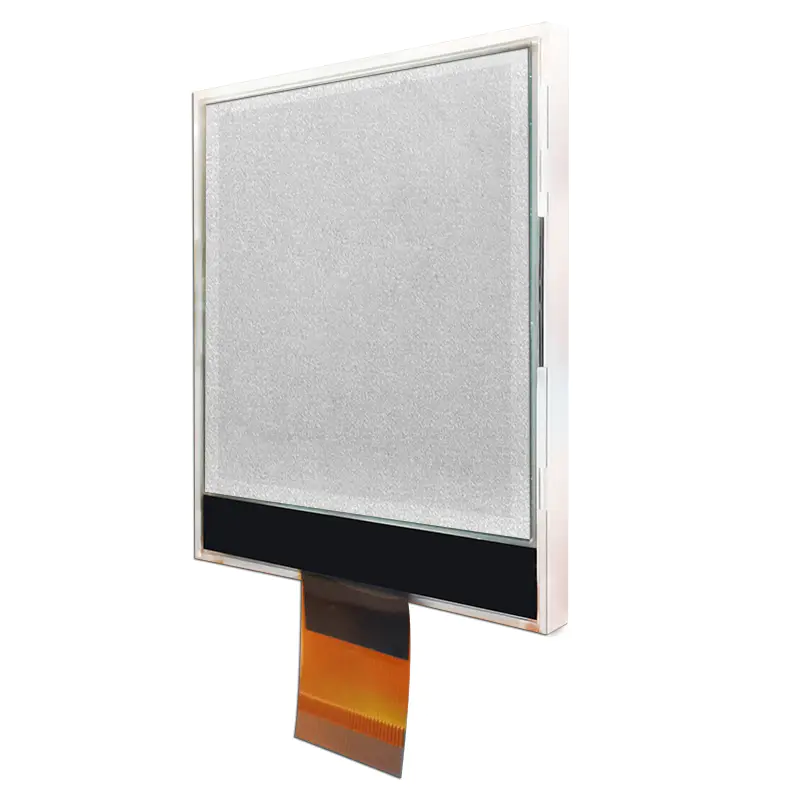

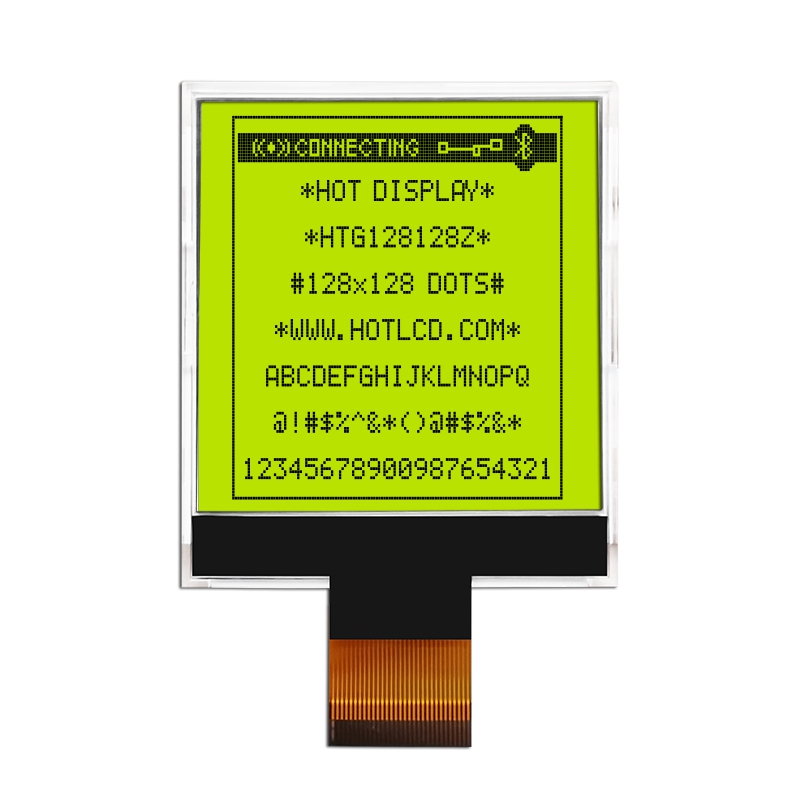

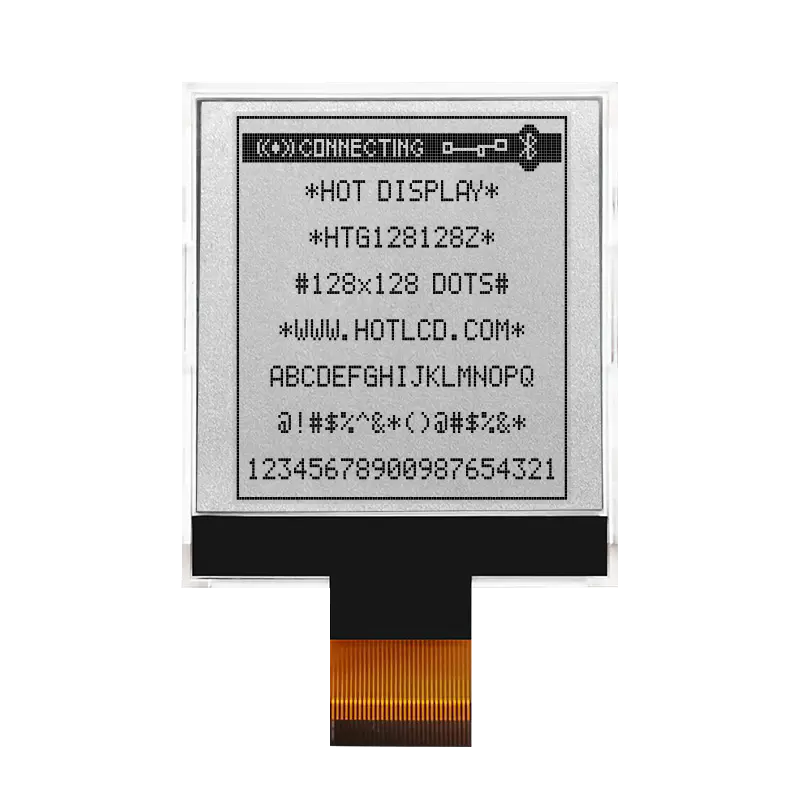

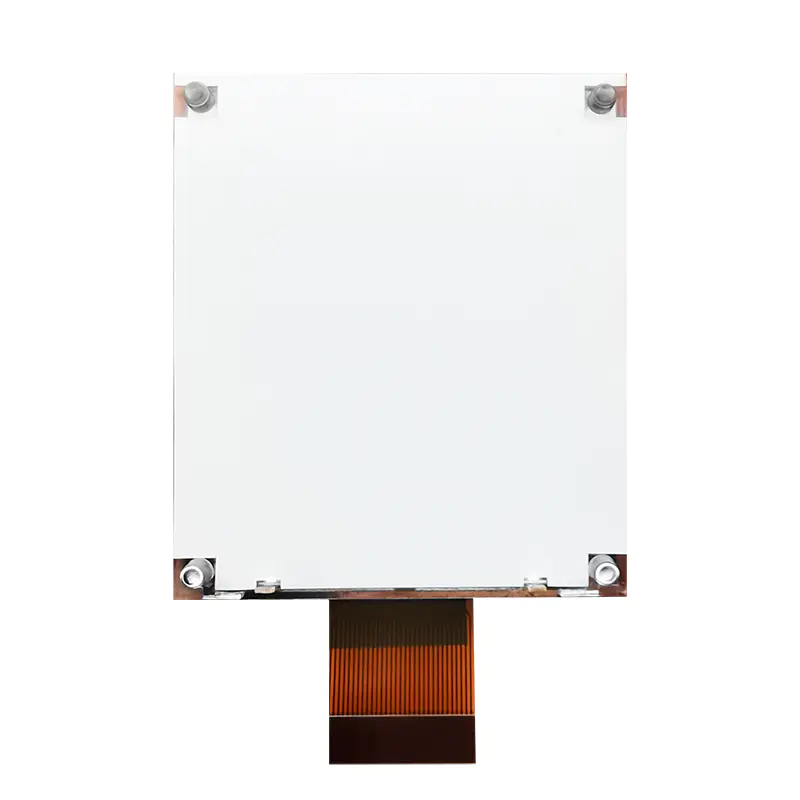

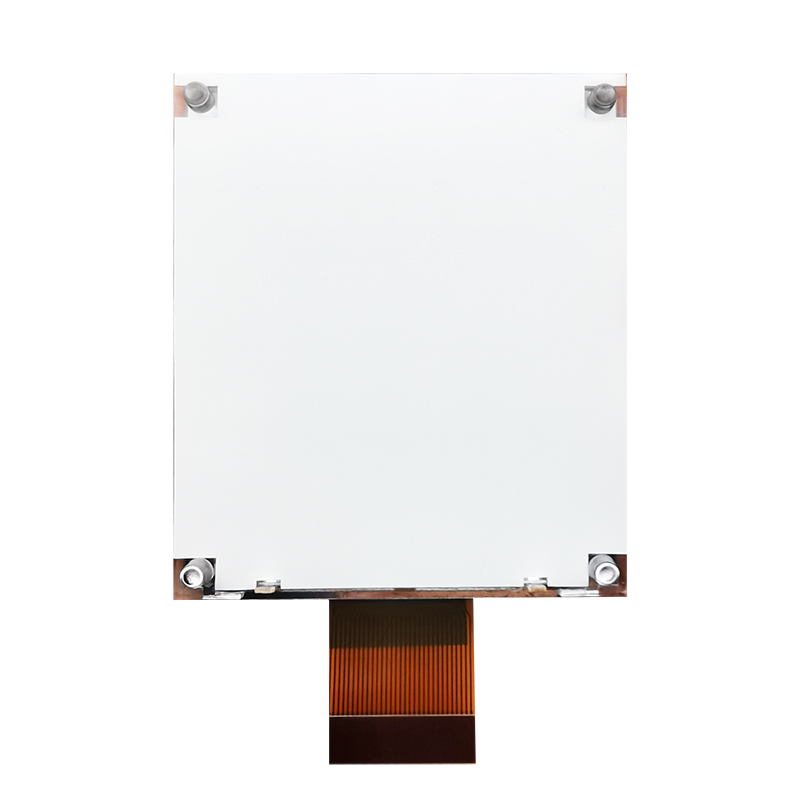

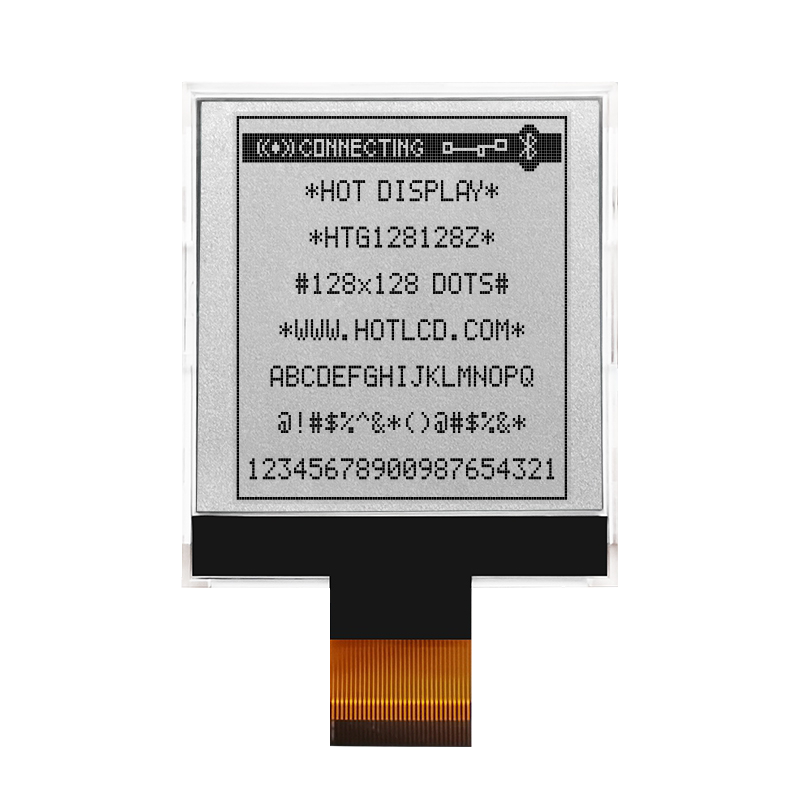

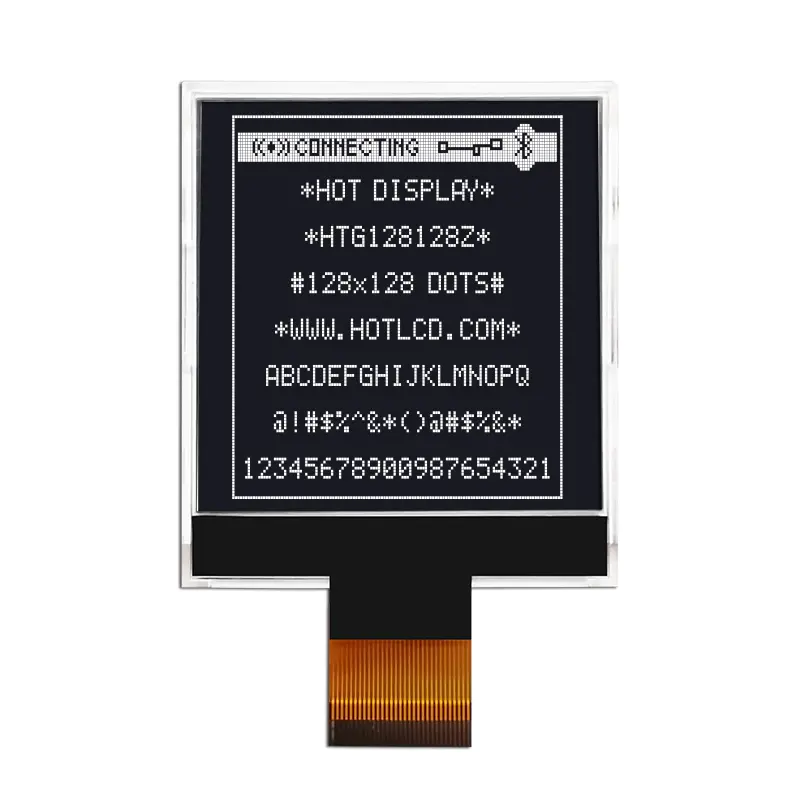

Product type：COG

Show contents：128*128

Outline size(mm) ：55.2*46.5*1.7

Size of View Window(mm)：46.04*39.64

Display size(mm) ：42.21*35.81

Point spacing(mm)：0.33*0.28

Visual angle：6H

Backlight type or brightness：blue

Connection PIN Number：FPC-31PIN

Interface mode：MCU/8bit

Working temperature：-20~70℃

Power supply voltage：3.3v

Driver chip model：SSD1848Z

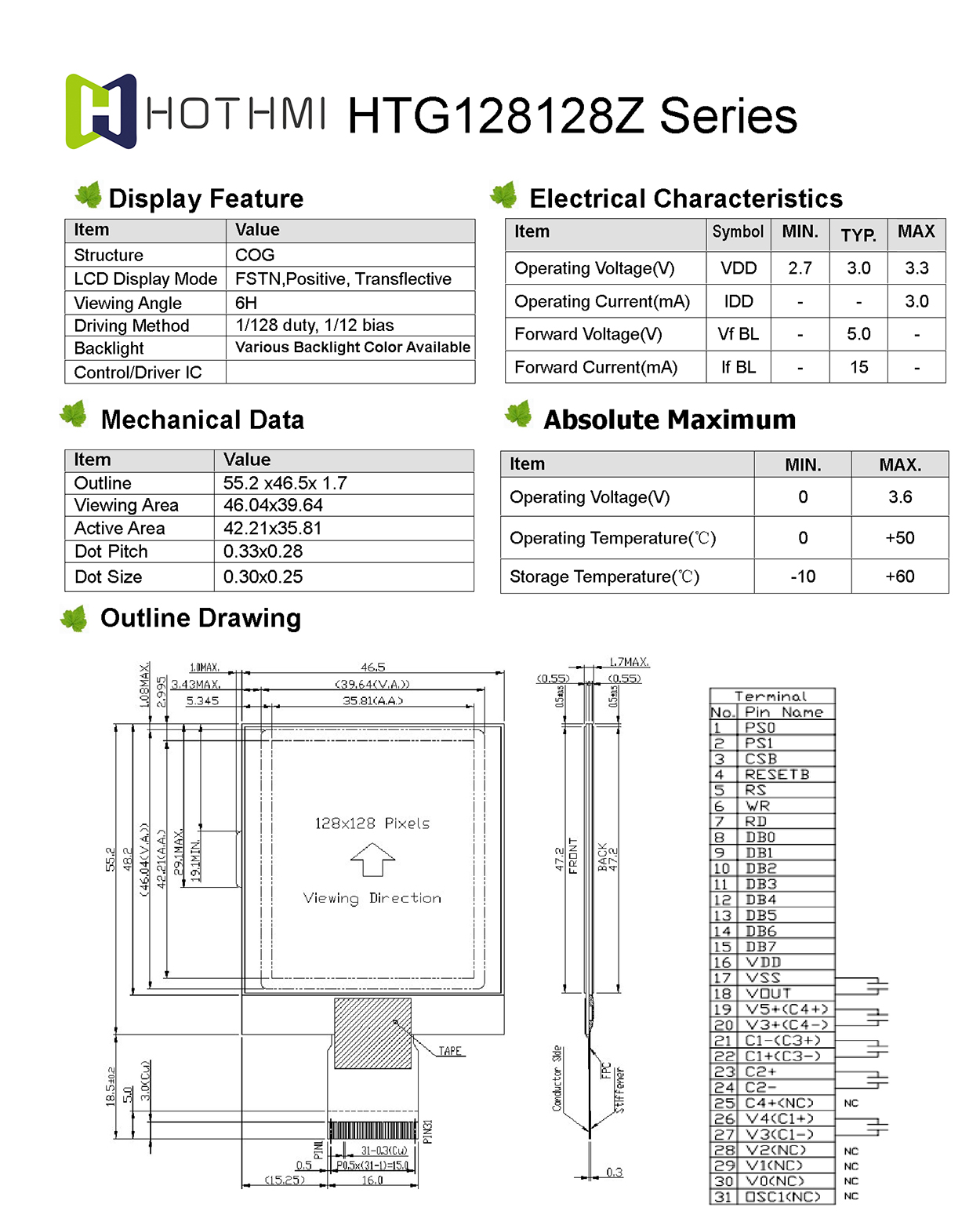

CAD Drawings:
