TFT123T61FHHDVUSDC is a high-brightness 12.3-inch IPS TFT-LCD monitor supporting HDMI signal interface. The resolution of this TFT module is 1920x720. This module control board is designed to support HDMI signal interface (only DVI) and 40-pin GPIO connector, this design can make the use of Raspber
US$0
Add to wish list
With USB Capacitive Touch
With USB Capacitive Touch
without USB touch
without USB touch
Quantity
+
Product details

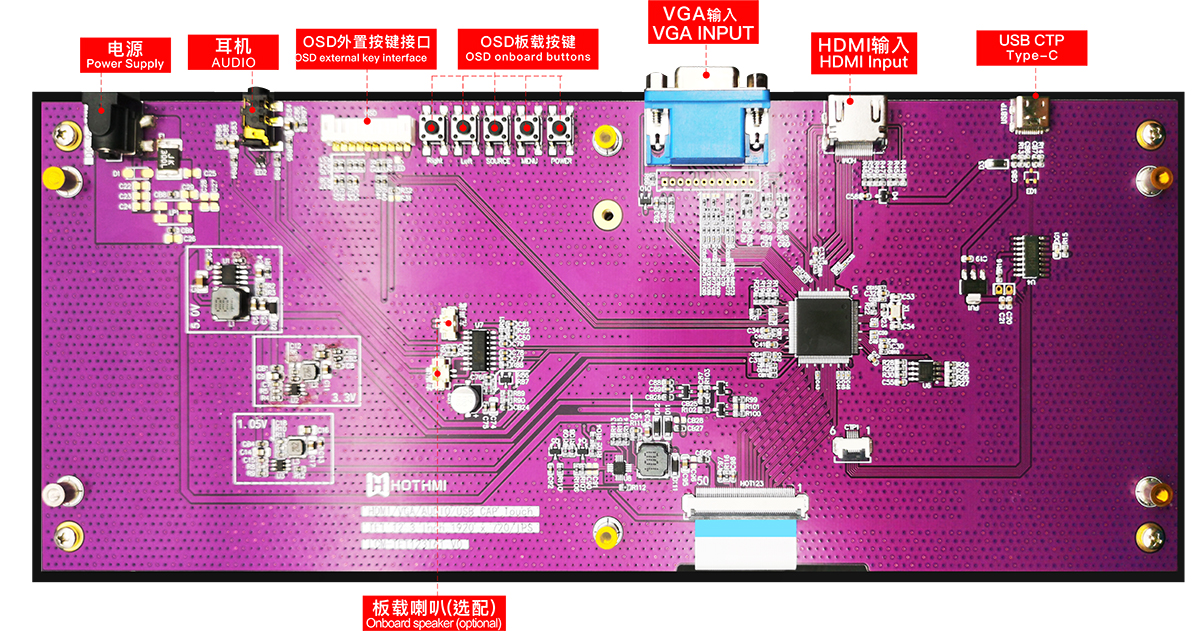

TFT123T61FHHDVUSDC is a high-brightness 12.3-inch IPS TFT-LCD monitor supporting HDMI signal interface. The resolution of this TFT module is  1920x720. This module control board is designed to support HDMI signal interface (only DVI) and 40-pin GPIO connector, this design can make the use of Raspberry Pi (Raspberry Pi) developers more convenient to use. TFT-123T61FHHDVUSDC adopts IPS technology to make the viewing angle wider, the typical value is up: 80 / down: 80 / left: 80 / right: 80 degrees, and the TFT module built-in TFP401 controller IC can support HDMI signal interface (only DVI), this This module features a high brightness of 750 cd/m2 (typ.) and a contrast ratio of 1,000:1 (typ.), TFT-123T61FHHDVUSDC is a model equipped with a projected capacitive touch panel (PCAP), which can support a USB interface. This IC can support 10 finger or other touch indices. TFT-123T61FHHDVUSDC module adopts bright glass surface, LCM module (VDD) voltage is 12V-24V. The working temperature range is 20℃~+70℃; the storage temperature range is -30℃~+80℃. This module supports Embedded System of HDMI signal interface, The TFT-123T61FHHDVUSDC uses a 12.3-inch IPS TFT panel, with a wide viewing angle and high-brightness backlight. The screen is also equipped with a high resolution of 1920x720. The module has a fast response speed and is compatible with most development software. It is very suitable for various product applications, especially Human-machine interface or POS system, etc. Also.

Model : 12.3" inch HDMI display + USB cap touch /1920x720 resoliution/highlight/Full View/HDMI/VGA interface/
Model : 15.0" inch HDMI display + USB cap touch /1024x768 resoliution/highlight/Full View/HDMI/VGA interface/TFT123T61FHHDVUSDC


Product type:TFT

Resolution:1920x720

Outline size(mm) :328.128*142.128*30.10

Size of View Window(mm):12.3"

Display size(mm) :12.3"

Visual angle:Full View

Backlight type or brightness:750cd/m2

Interface mode:HDMI/VGA/USB

Working temperature:-20~70℃

Power supply voltage:12-24V

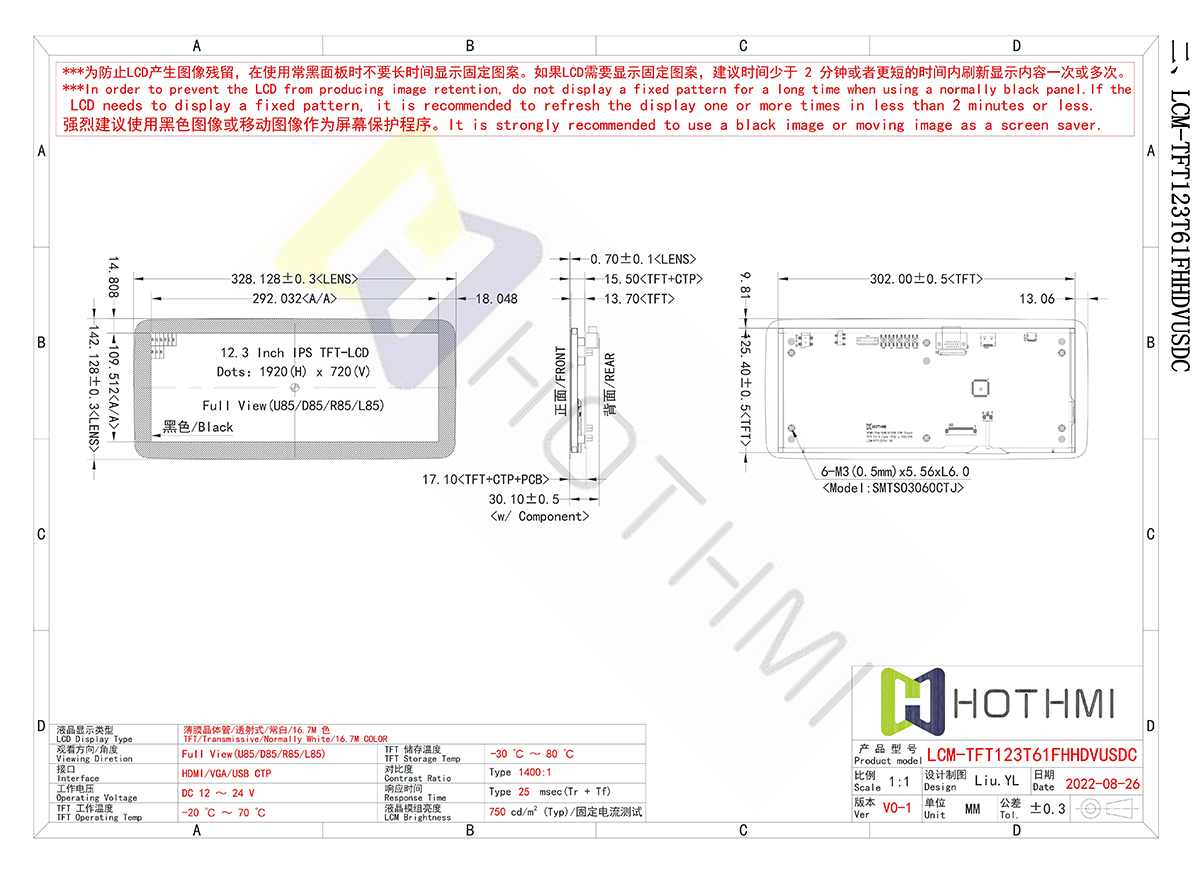

CAD Drawings:
