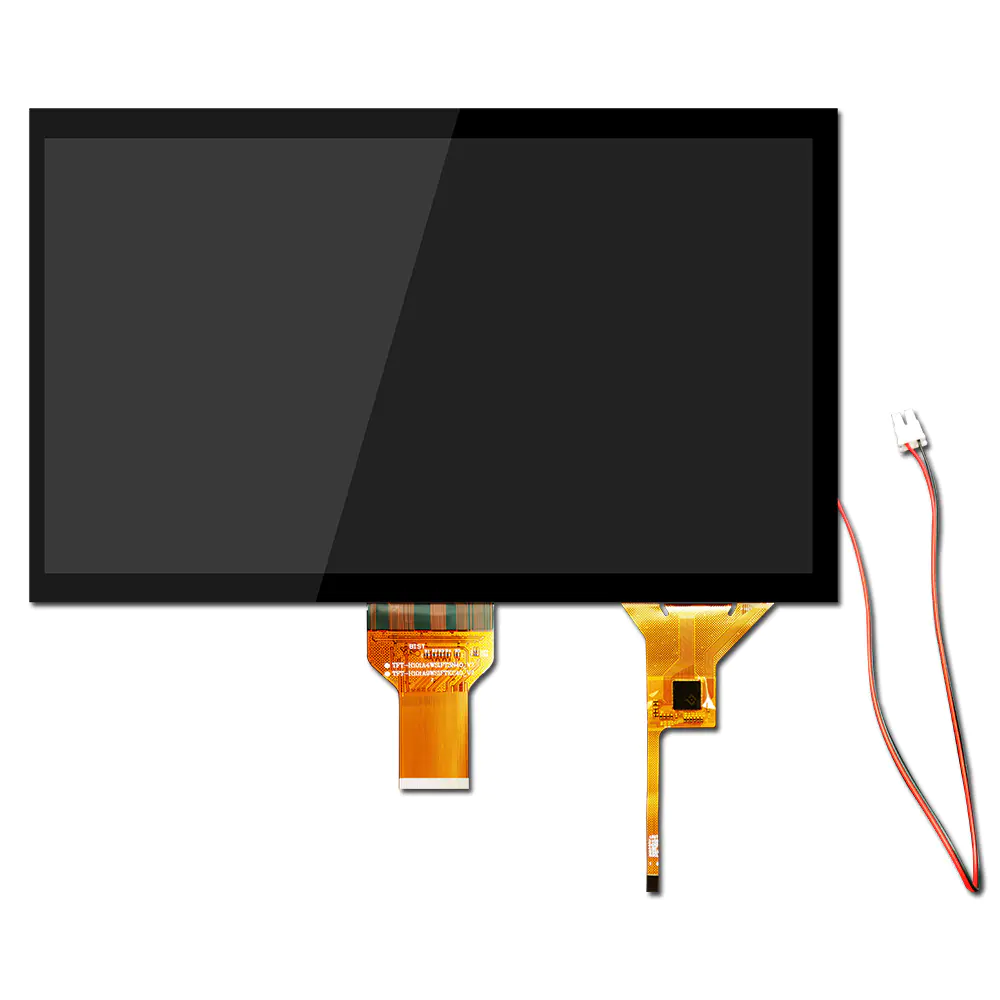

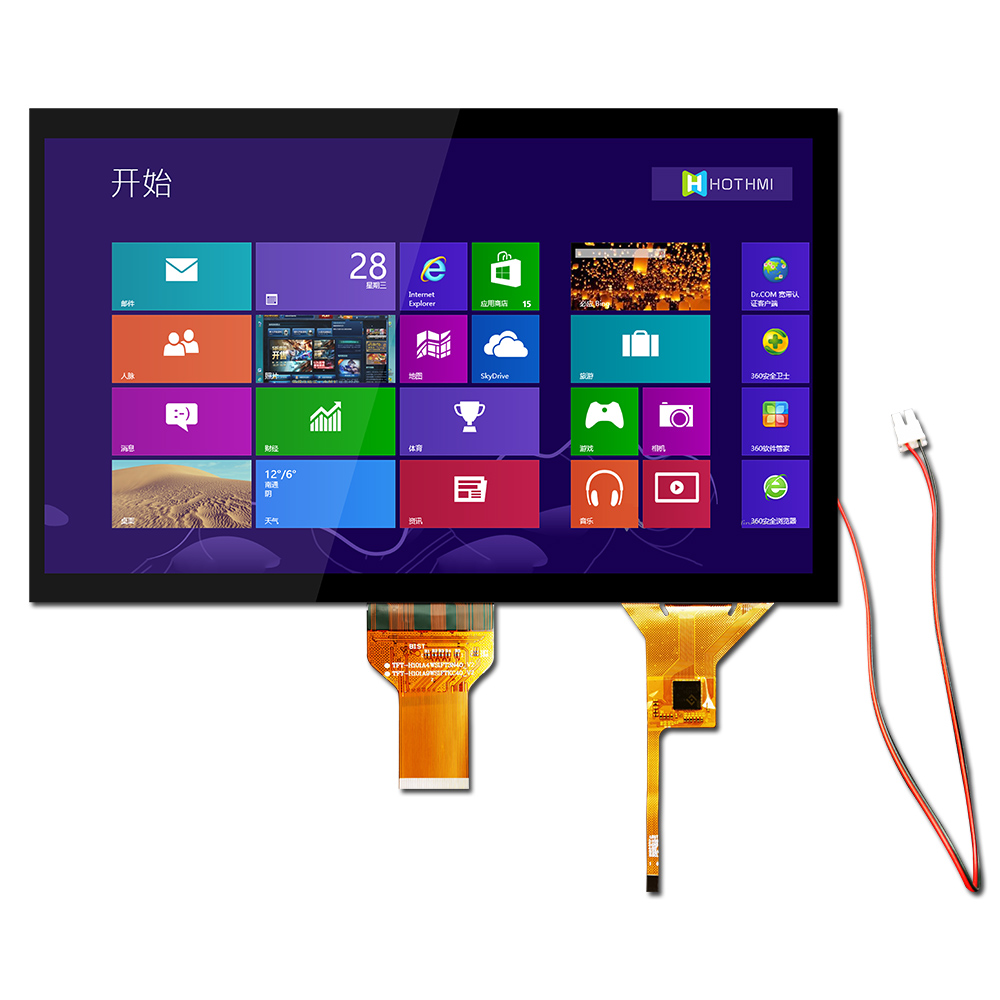

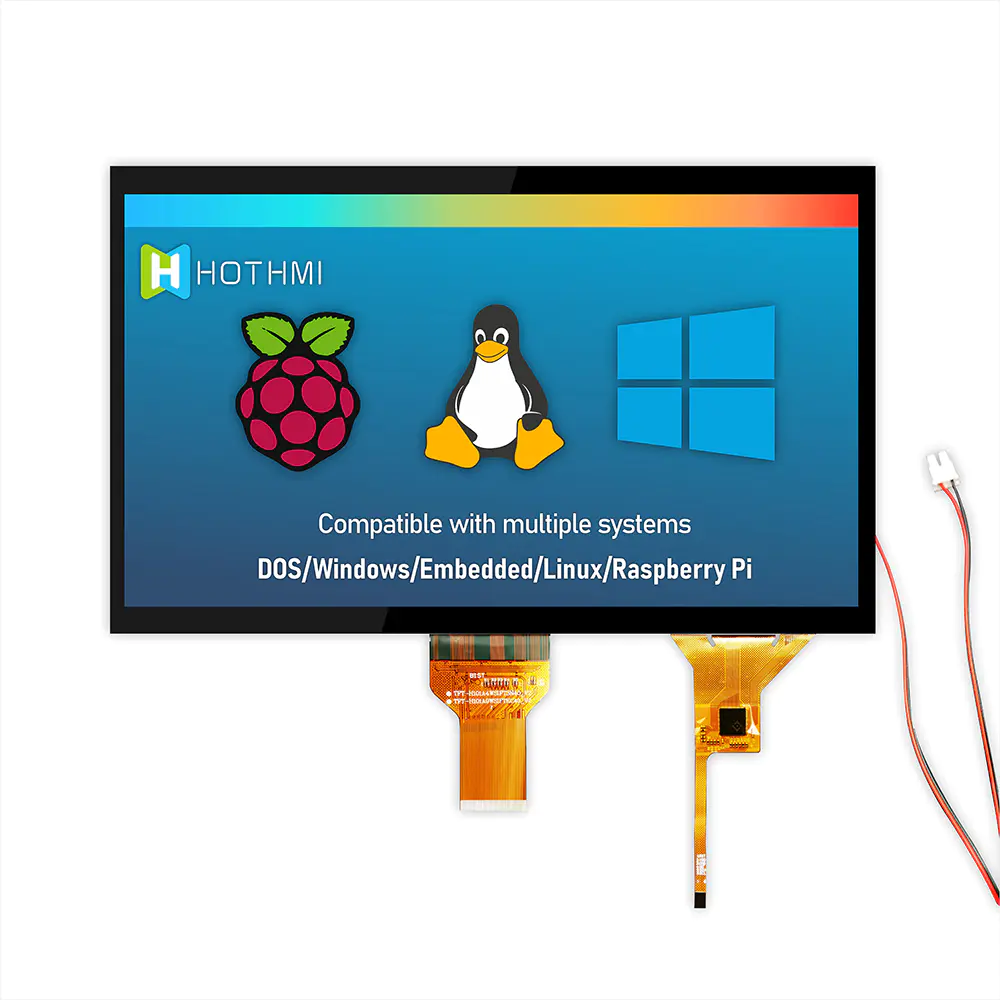

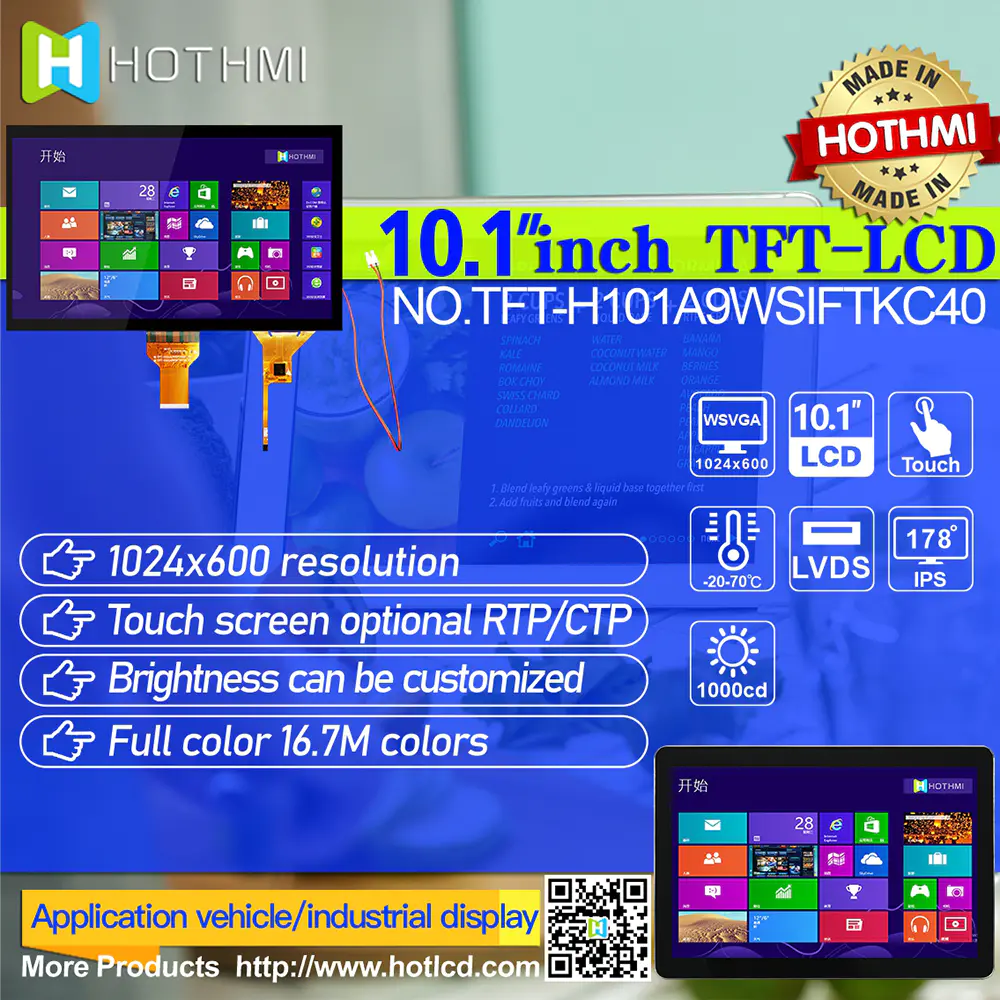

Product Description The TFT-H101A9WSIFTKC40 is a 10.1-inch wide temperature IPS TFT-LCD monitor with a projected capacitive touch screen with a resolution of 1024x600 pixels. The module has built-in EK79001+EK73215 driver IC and supports LVDS interface. TFT-H101A9WSIFTKC40 adopts IPS panel, which has the advantage of wider viewing angle, left: 80/right: 80/up: 80/down: 80 degrees (typical), contrast ratio 800:1 (typical), brightness 1000 nits (typical) value), glare panel, 16:9 aspect ratio. The touch screen has built-in GT9271 IC, which supports I2C interface and multi-touch function. The H101A9 model has a projected capacitive touch panel (PCAP), but no touch panel option (TFT-H101A9WSIFTKN40). The supply voltage (VCC) of the TFT-H101A9WSIFTKC40 is 3.0V to 3.6V, with a typical value of 3.3V. It can work in temperatures from -20°C to +70°C and storage temperatures from -30°C to +80°C.

Model: 10.1 inch TFT LCD vertical screen/1024*600 resolution/IPS/industrial grade/LVDS interface/TFT-H101A9WSIFTKC40

Product type: TFT vertical screen

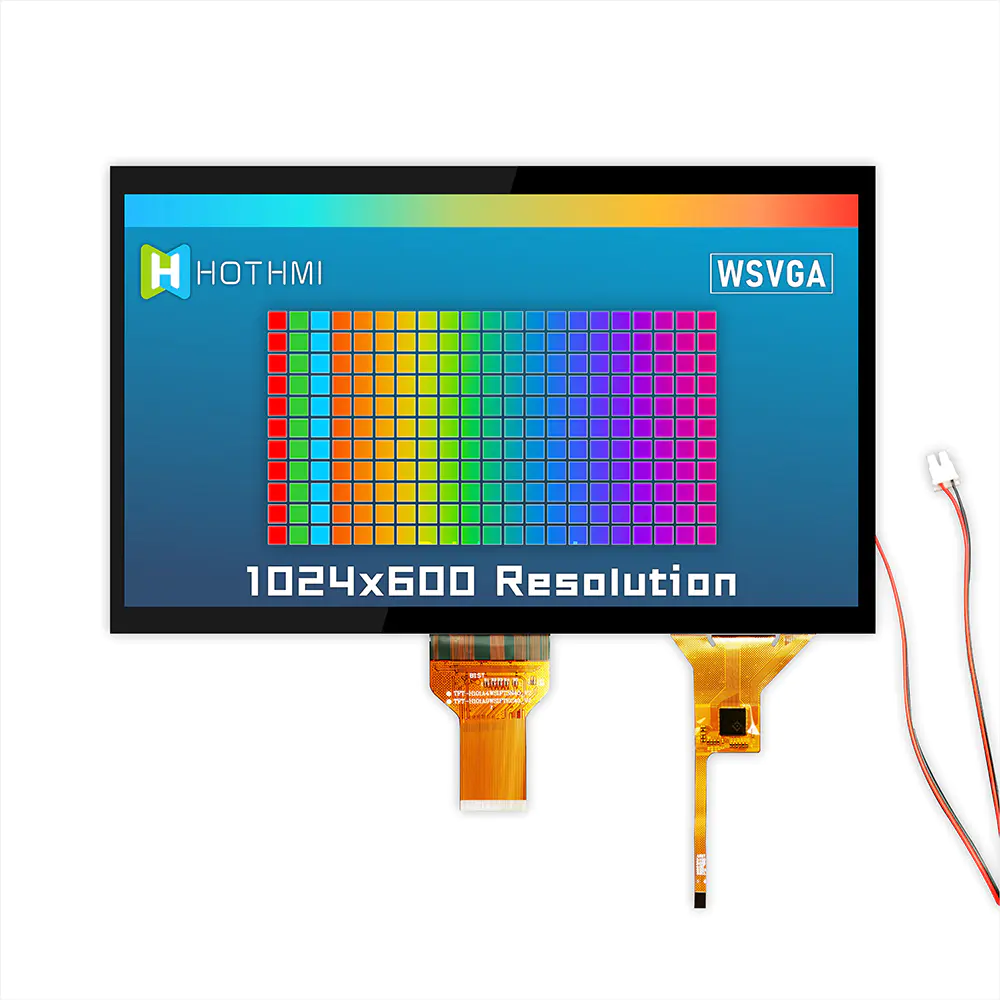

Display content: 1024*600

Dimensions (mm): 235.00 * 143.00 * 6.95

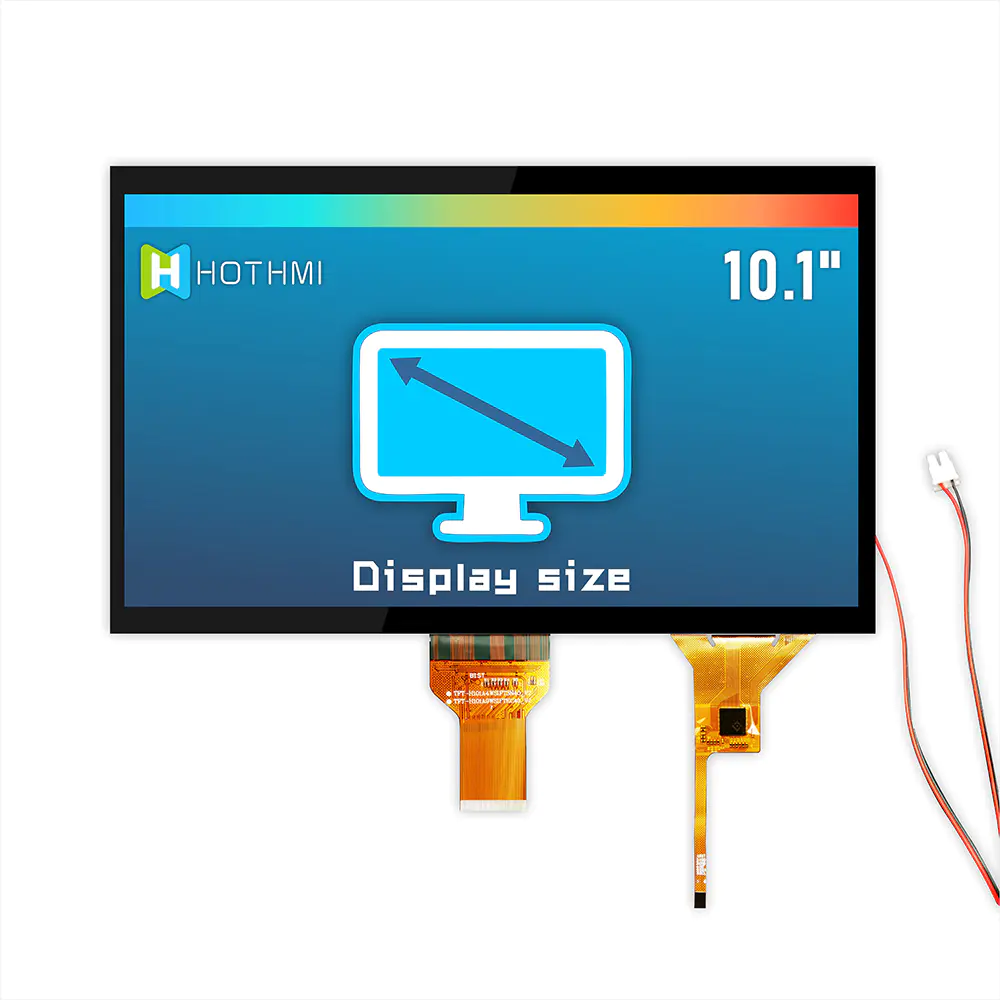

Window size (mm): 10.1"

Display size (mm): 10.1"

Effective size (mm): 222.72* 125.28

Product application: intelligent equipment such as vehicle/industrial control/digital home appliances

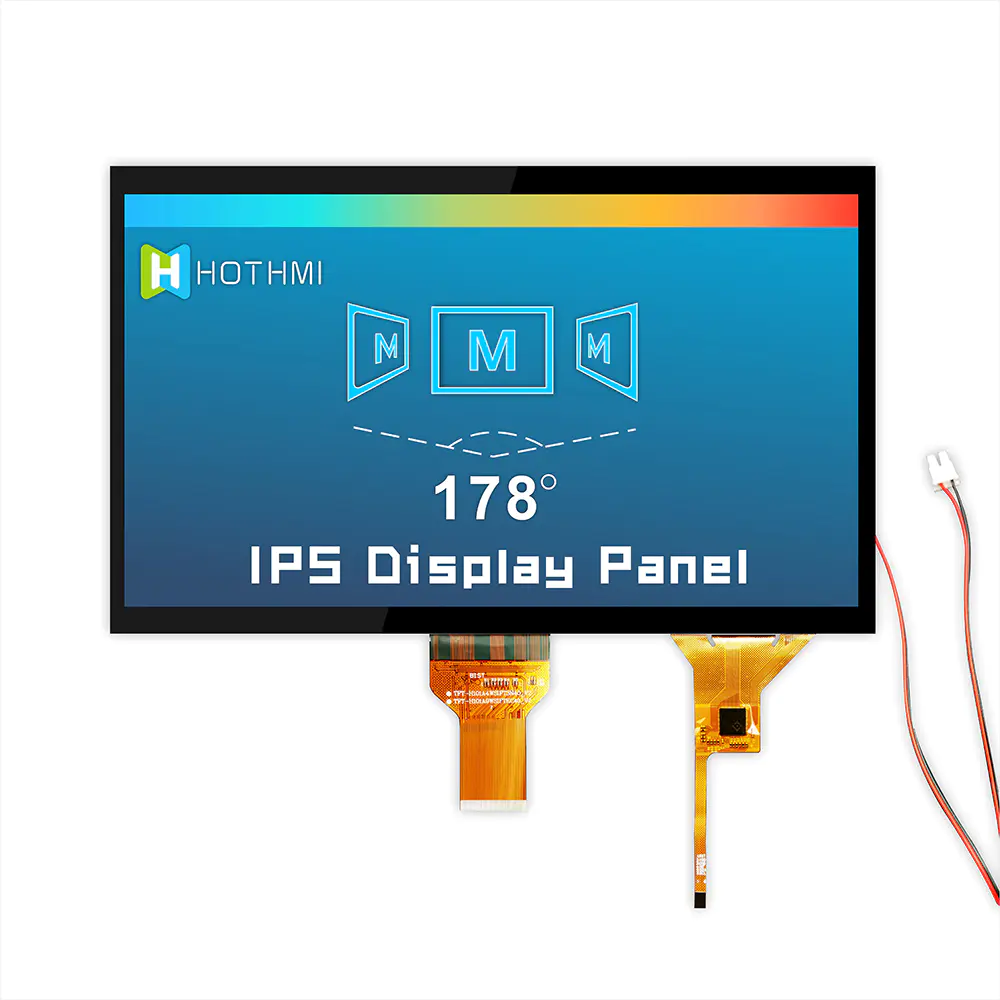

Viewing angle: full viewing angle

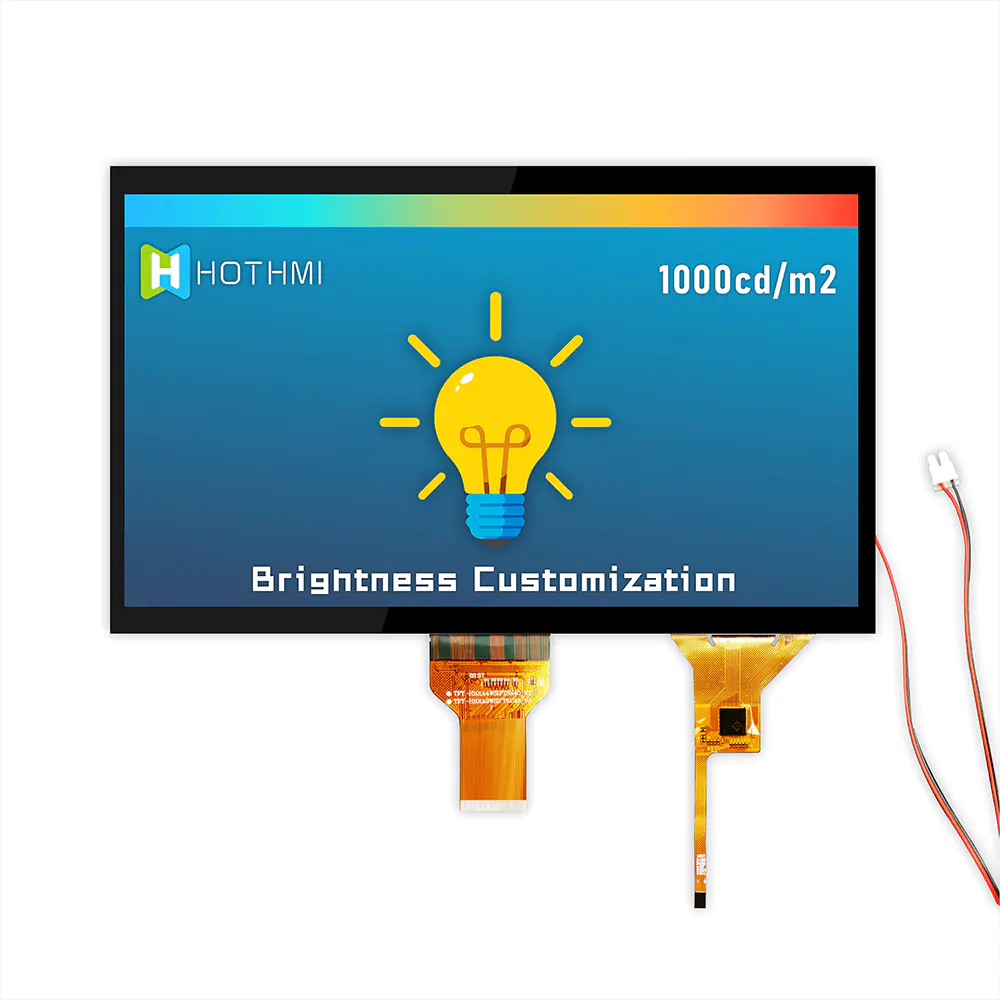

Backlight type or brightness: 1000cd/m2

Number of connection PINs: FPC-40PIN

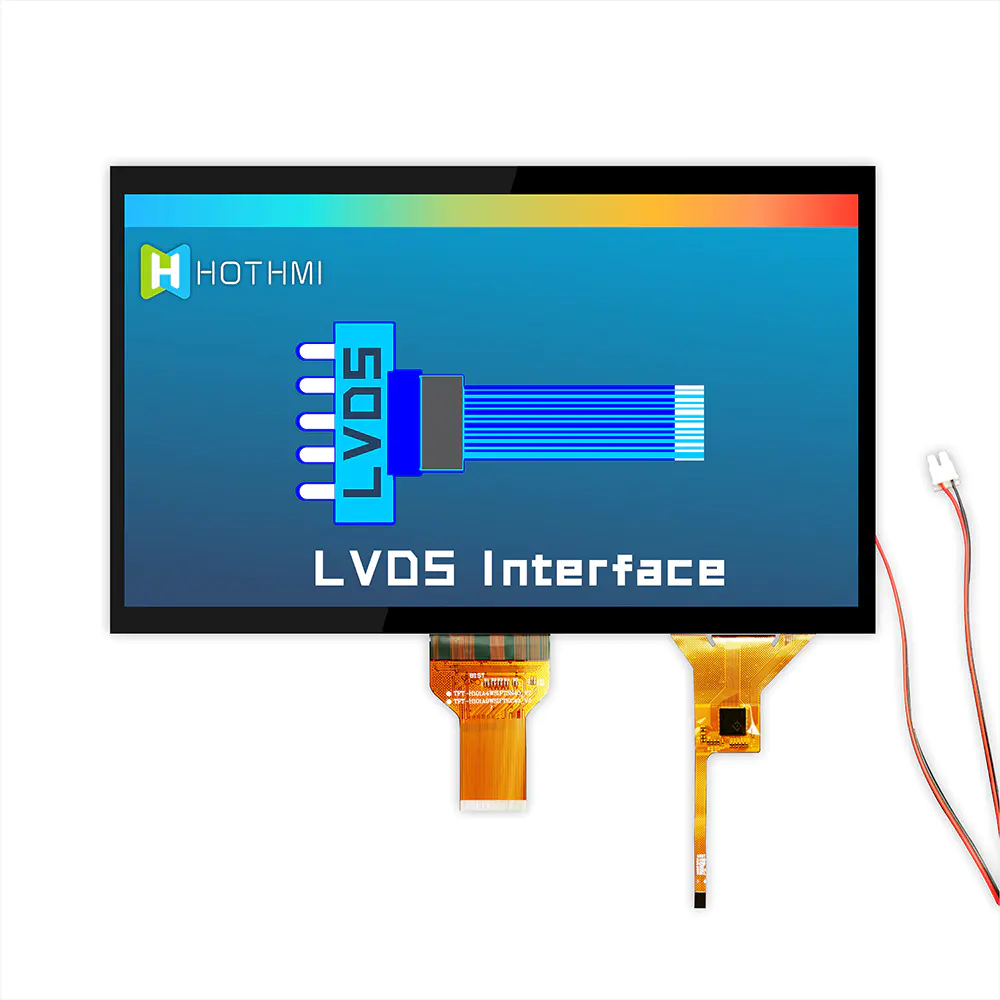

Interface: LVDS

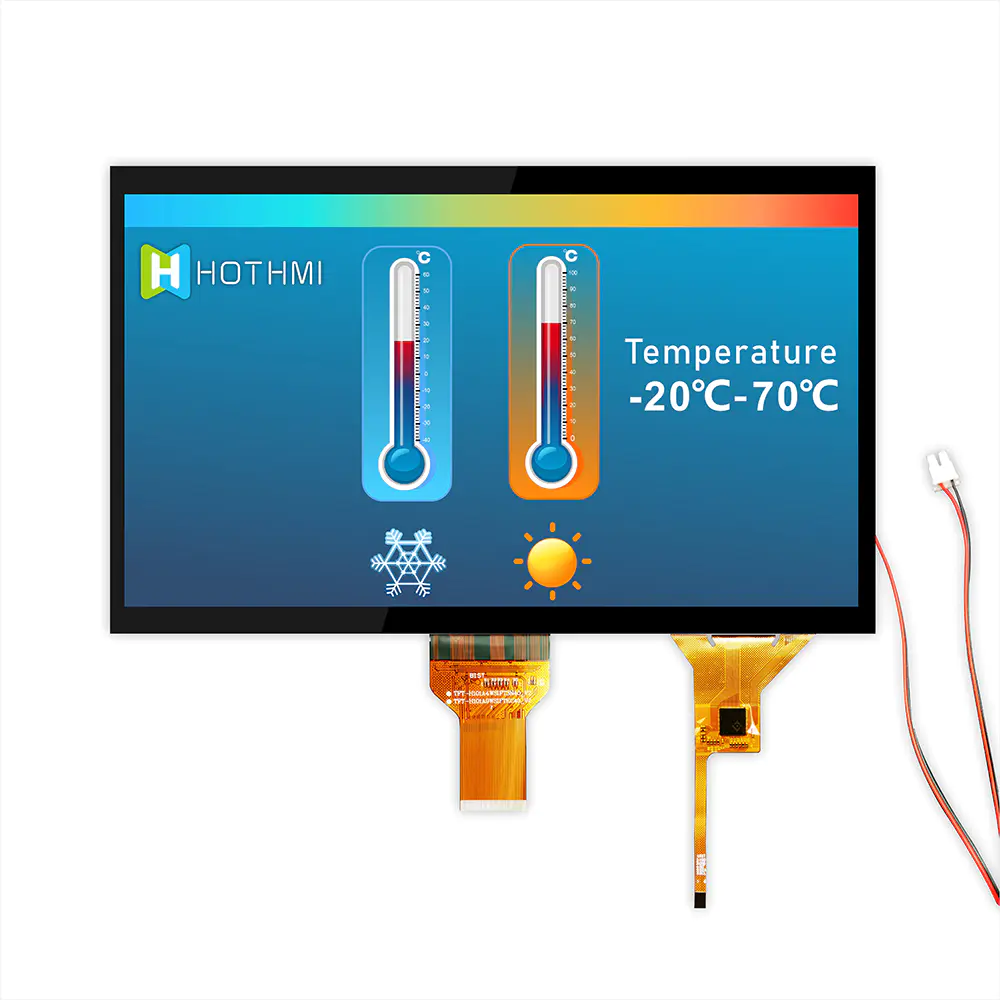

Working temperature: -20~70℃

Power supply voltage: 3.3V

Driver chip model: EK79001+EK73215

Touch driver IC: GT9271

DRAWING
