Product Description

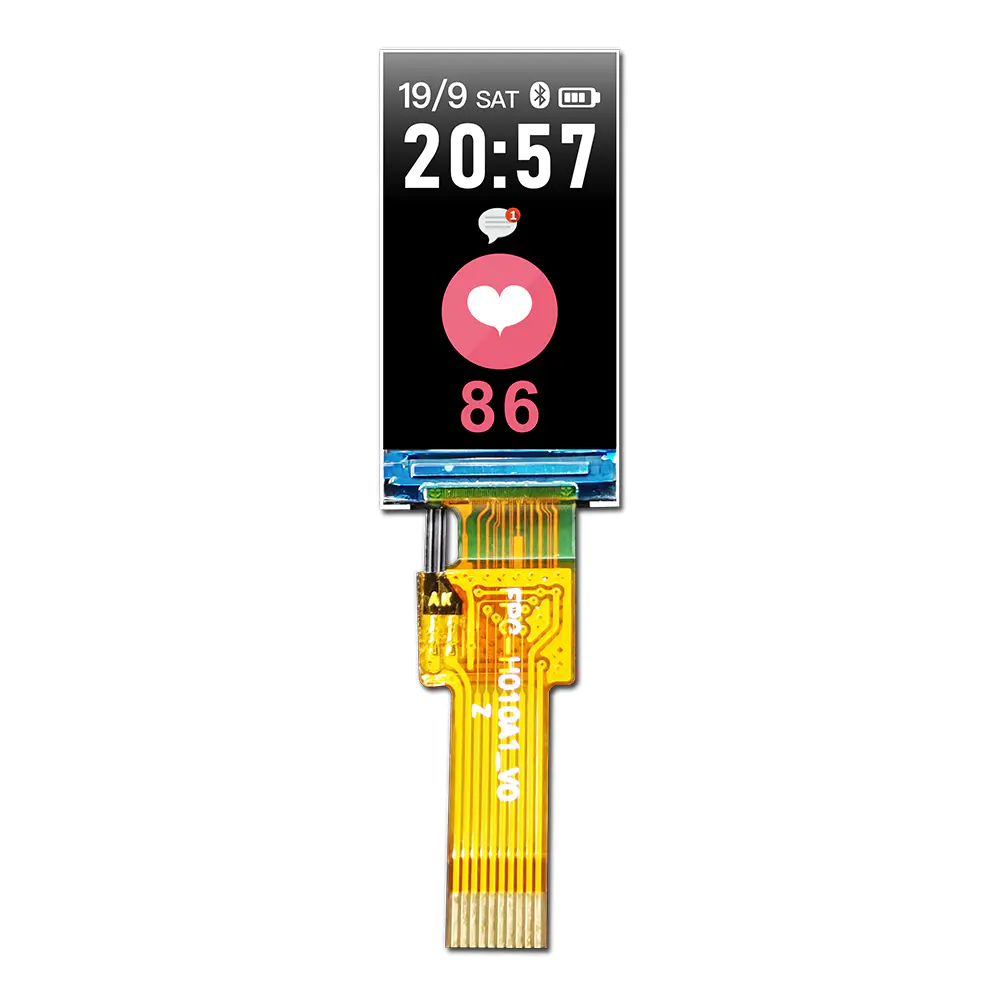

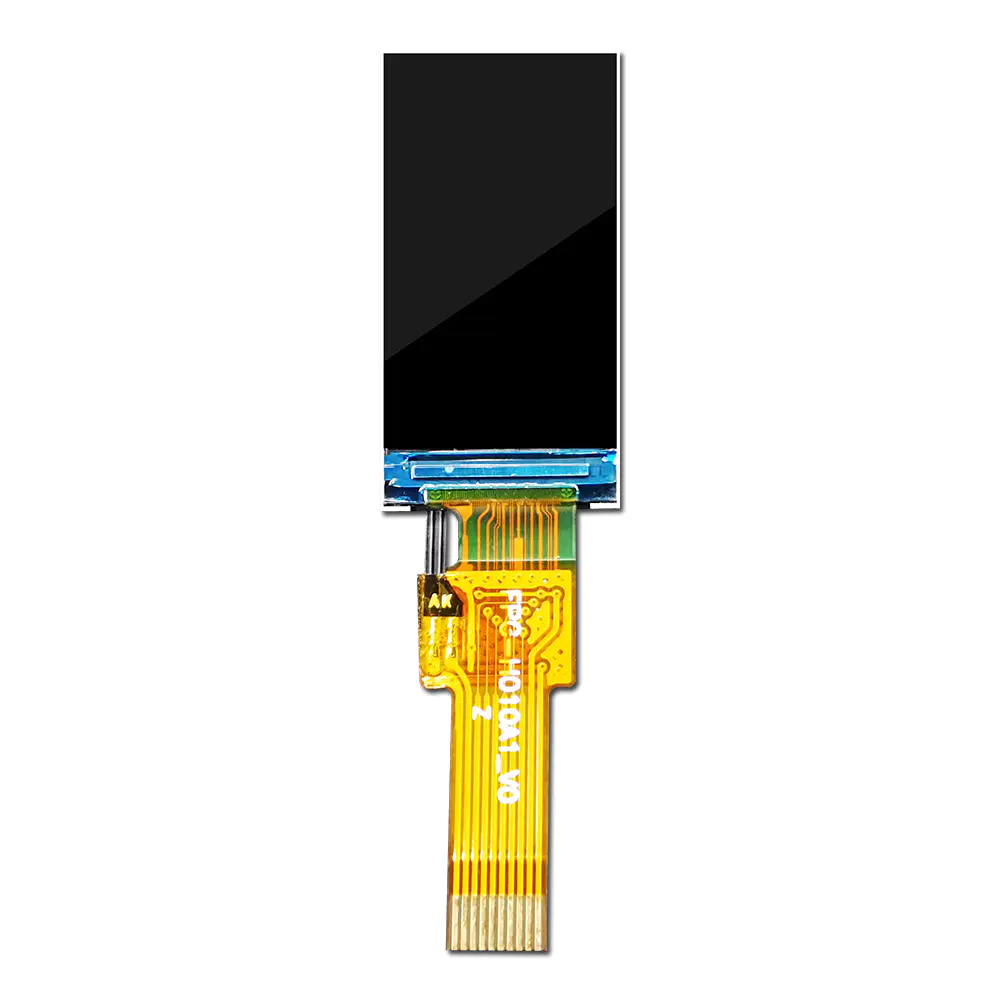

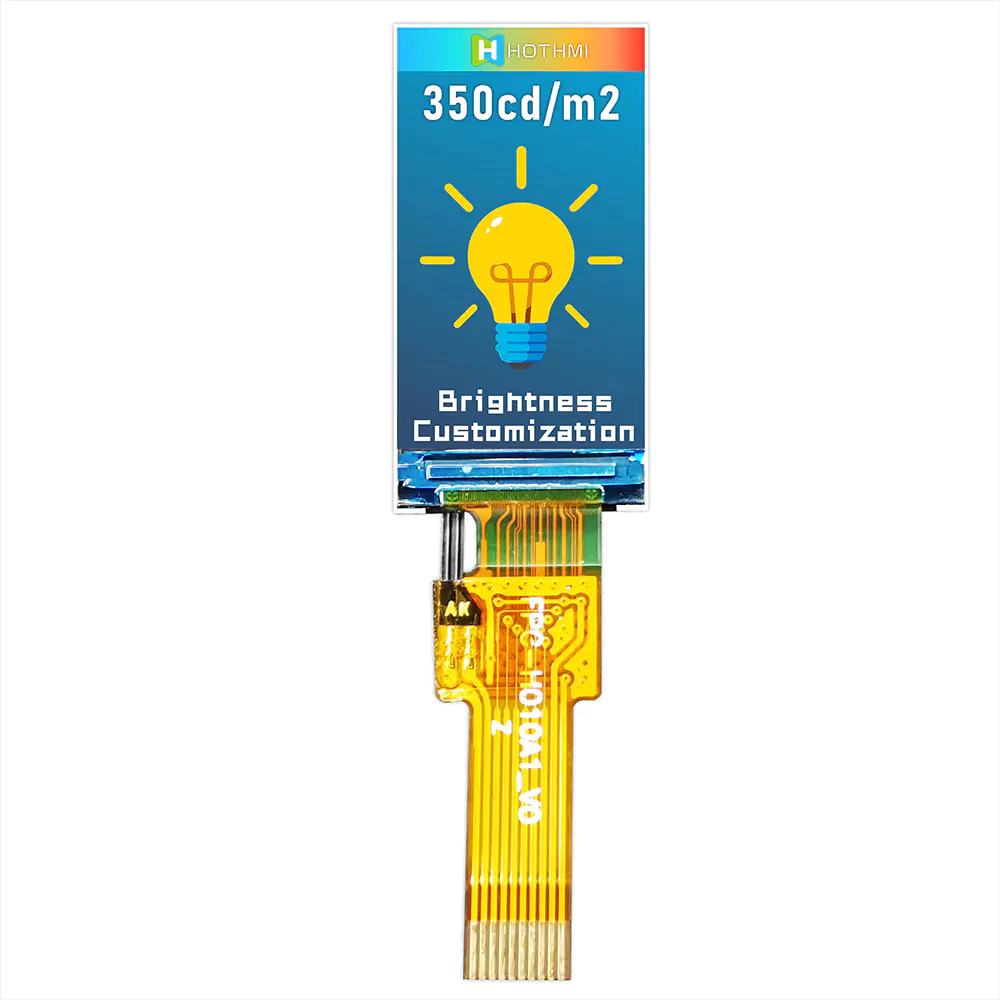

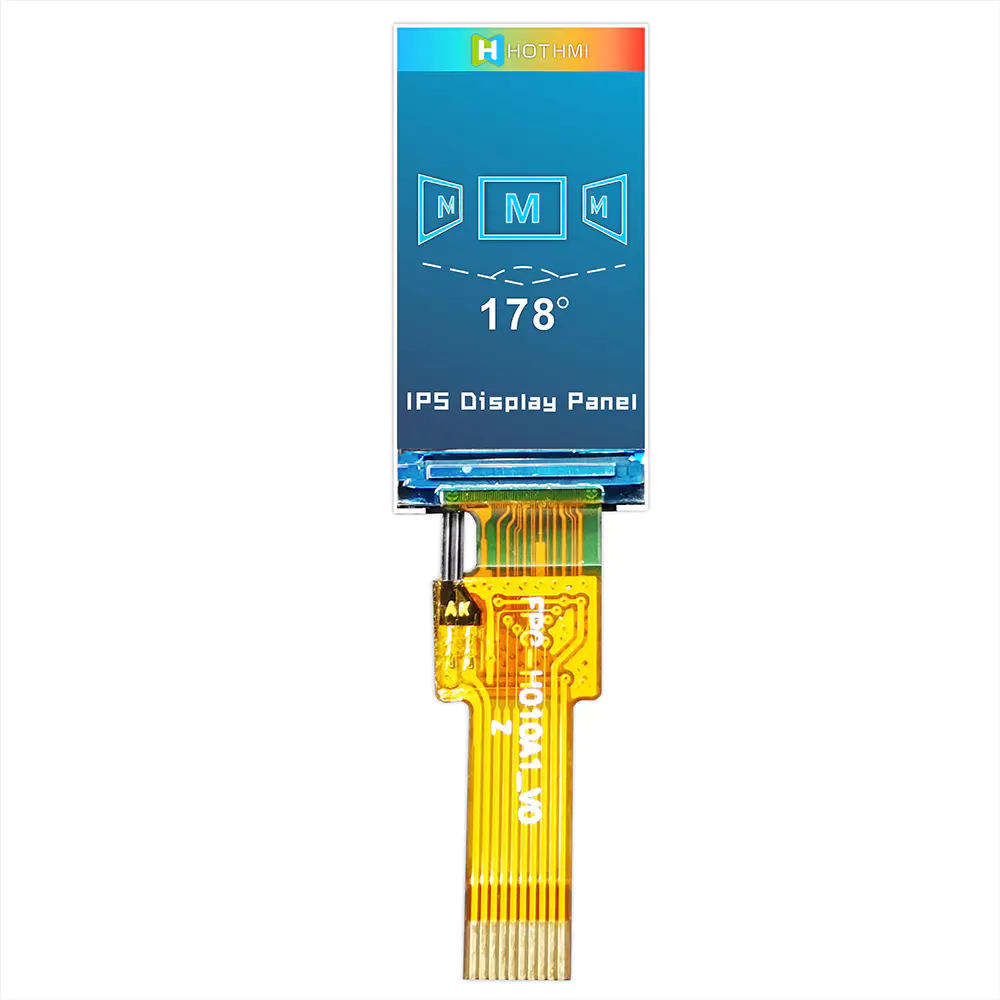

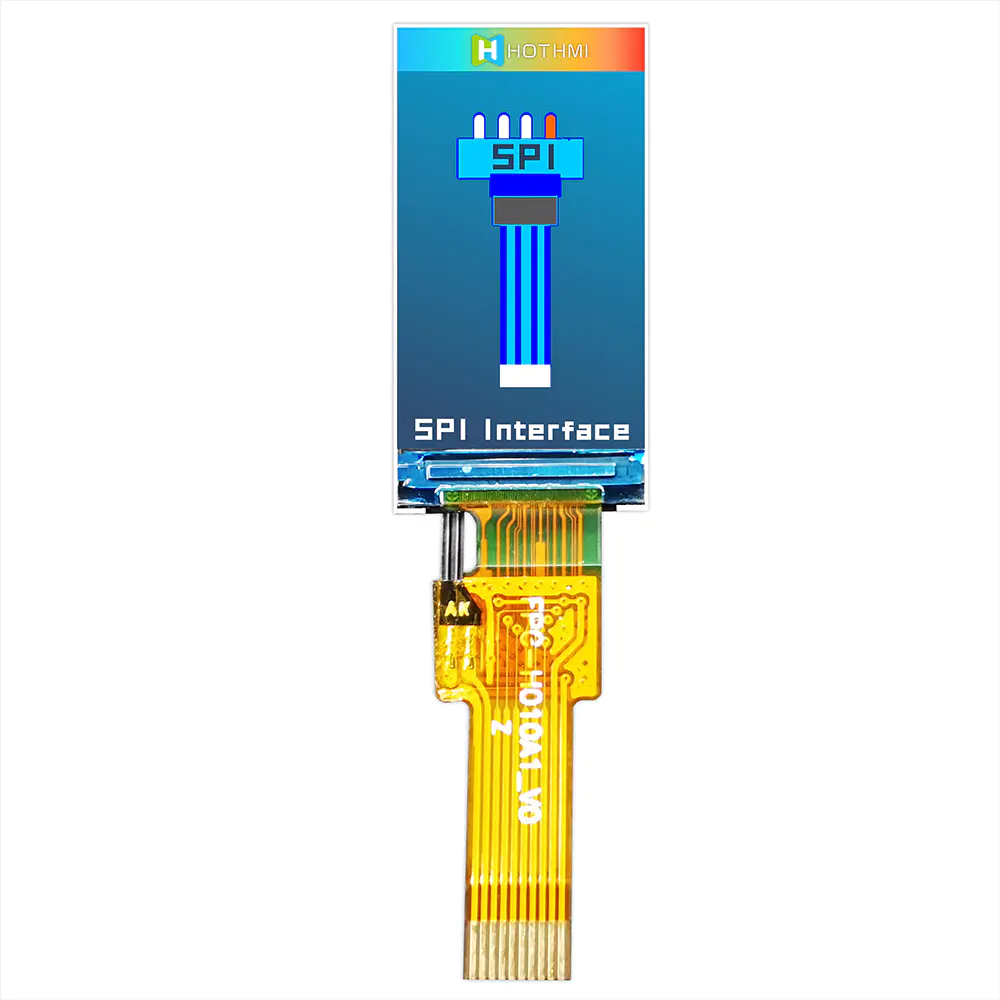

TFT-H010A11AIST4N10 is a 1.0-inch full-color TFT LCD module with a resolution of 80x160 pixels and an aspect ratio of 1:2. The TFT module adopts ST7735S driver IC and supports SPI interface. The TFT module with IPS panel has the advantage of wide viewing angle (left 80 degrees/right 80 degrees/up 80 degrees/down 80 degrees), the typical contrast ratio is 800:1, and the module brightness is up to 400 nits (typical value). The working temperature range of the module is -20℃~+70℃, and the storage temperature range is -30℃~+80℃.

1.0 inch TFT color screen /80*160 resolution /full viewing angle IPS process /SPI interface /TFT-H010A11AIST4N10

Product type：TFT

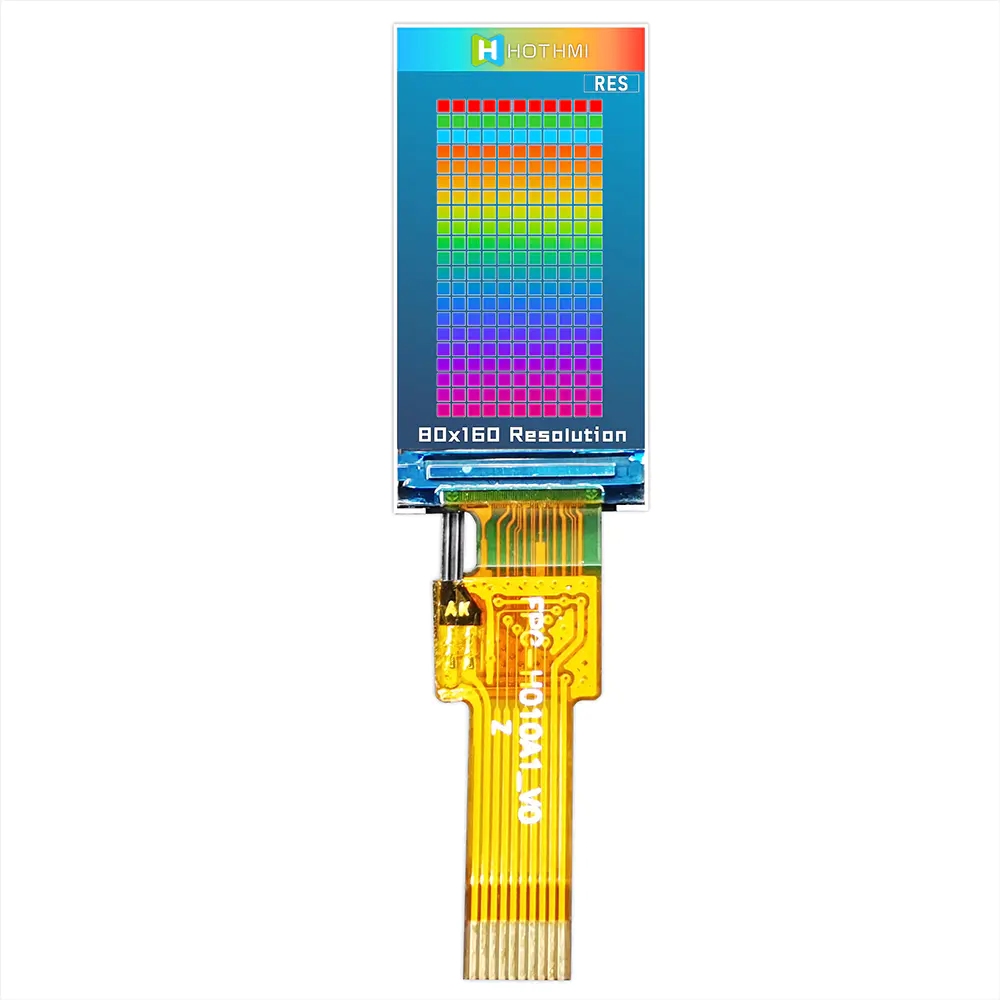

Show contents：80*160

Outline size(mm) ：13.50* 27.95* 2.03

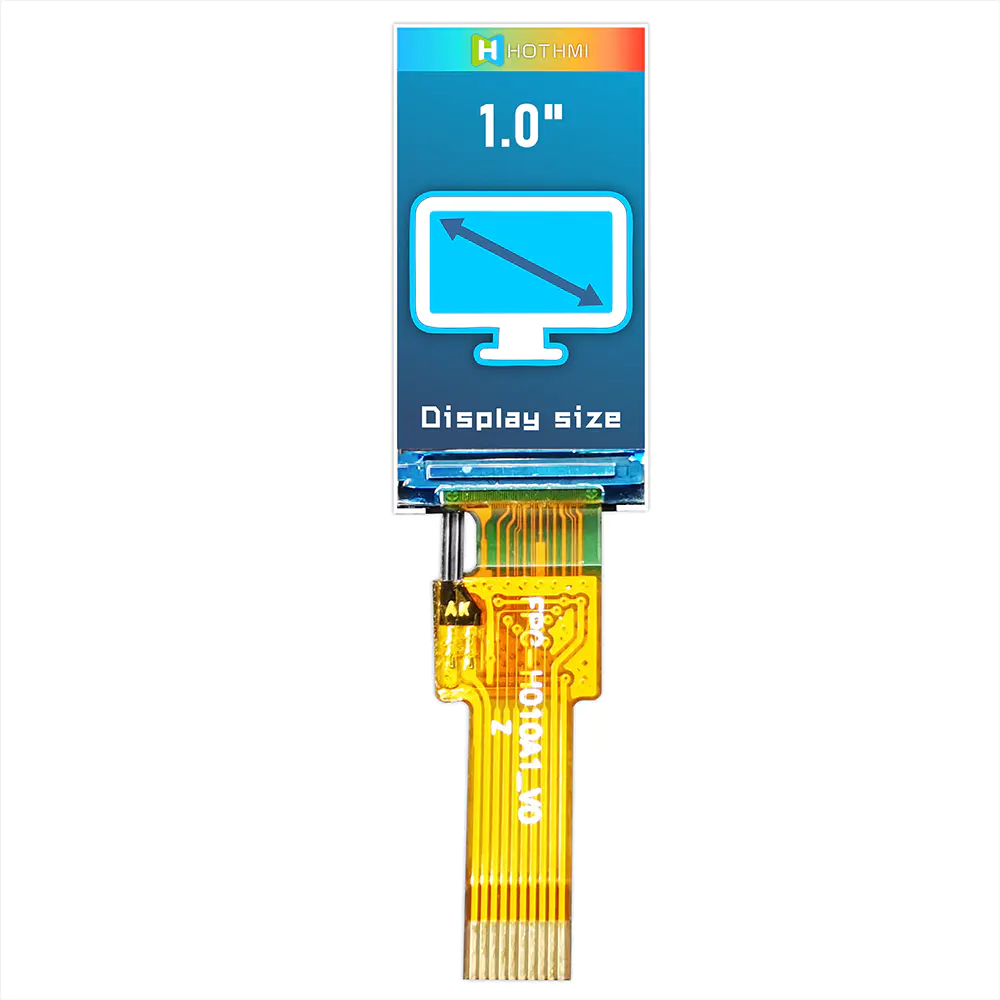

Size of View Window(mm)：1.0"

Display size(mm) ：1.0"

Effective size(mm)：10.80*21.696

Product application：Instruments and meters, smart watches

Visual angle：Full O'Clock (U80/D80/L80/R80)

Connection PIN Number：10PIN

Interface mode：SPI

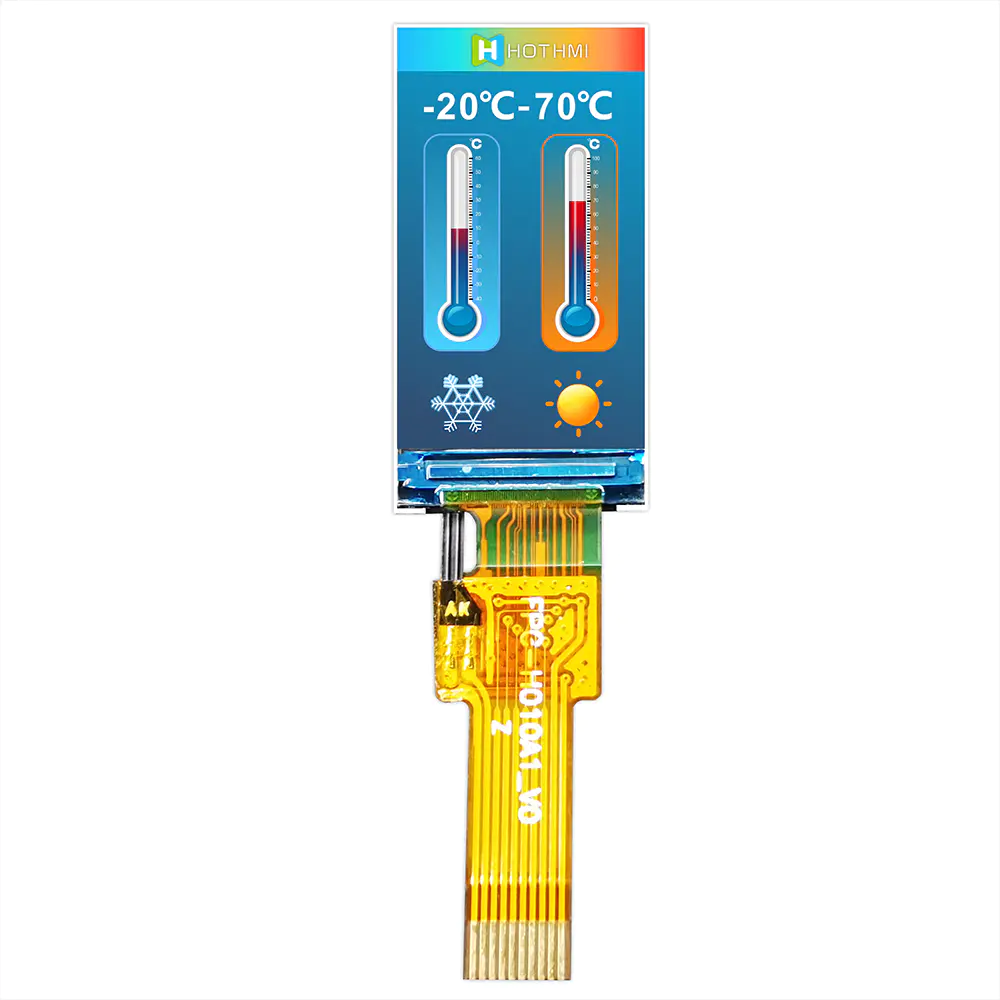

Working temperature：-20~70℃

Power supply voltage：2.8V

Driver chip model：ST7735S
