7.0-inch Intelligent Liquid Crystal Module

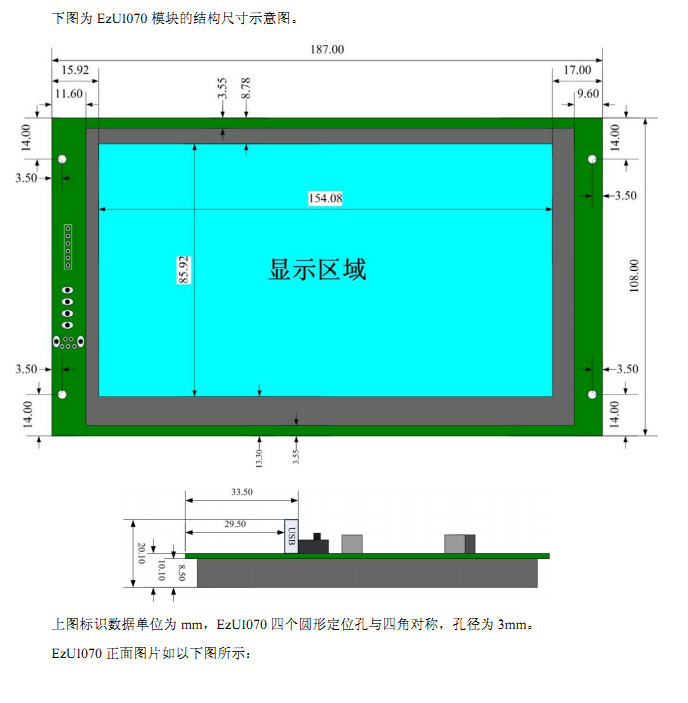

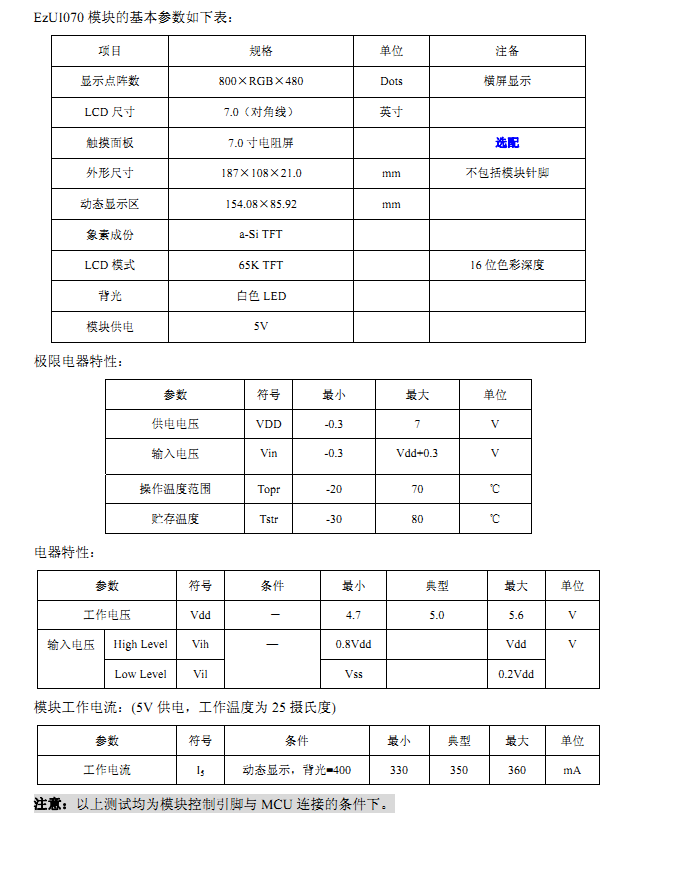

The EzUI070 intelligent LCD module is a 7.0-inch color TFT display with 800×480 dot matrix and 16-bit color depth. The module has 128M bytes of resource memory inside. The module requires 5V DC power supply.
The external interface of the module is a serial UART (TTL level) interface, the interface is simple and easy to operate; and various MCUs can perform convenient and simple interface operations. The biggest feature of the EzUI series modules is that they are easy to use and feature-rich, and users can use them easily. Users can use the interface development tool software (EzUITool) to design, edit, control, and respond to the human-machine interface. Copy the resource files generated by the tool software into the EzUI series module to achieve the required human-computer interaction interface. Designed without the need for programming control of the microcontroller or other controller. To meet the needs of users with special requirements, the EzUI series modules retain most of the display control commands , so that users can more freely control the module display. The EzUI070 module is one of the basic EzUI series modules, and 070 means the display size is 7 inches. The EzUI series modules integrate a self-contained GUI system based on a TFT display and a touch screen (optional for the touch screen), and the interface development tool software (EzUITool) can achieve the goal of user interface design without code.
1 UART serial interface (TTL level, optional RS232 level interface) mode, support 9600~115200bps;
2 The standard version of the module has a built-in 128M bytes of resource memory;
3 resistance touch screen options;
4 standard RTC real-time clock module;
5 Support module USB interface debugging (module onboard USB port can be debugged in the computer virtual output port);
6 module comes with 6×10, 8×16, 10×20, 16×32 dot ASCII code western font library;
7 Support basic drawing instructions (painting points, lines, rectangles, circles, string display, bitmap display, etc.);
8 resource memory support GBK2312 second-level Chinese character library, BIG5 font library, BMP bitmap, ASCII western font library, etc.;
9 support area button control, multiple attribute configuration, control message response configurable;
10 Support bitmap button control, multiple attribute configuration, control message response configurable;
11 Support numerical control (integer, floating point number), multiple attribute configuration, support numerical input;
12 Support string control (both Chinese and English), multiple attribute configuration, support Chinese and English string input;
13 Support drop-down selection control, control message response can be configured;
14 Support waveform control, allowing up to four waveform lines in the same ID number control;
15 support progress bar control, control message response can be configured;
16 support bitmap animation control, control message response configurable;
17 Support time display and date display control.
