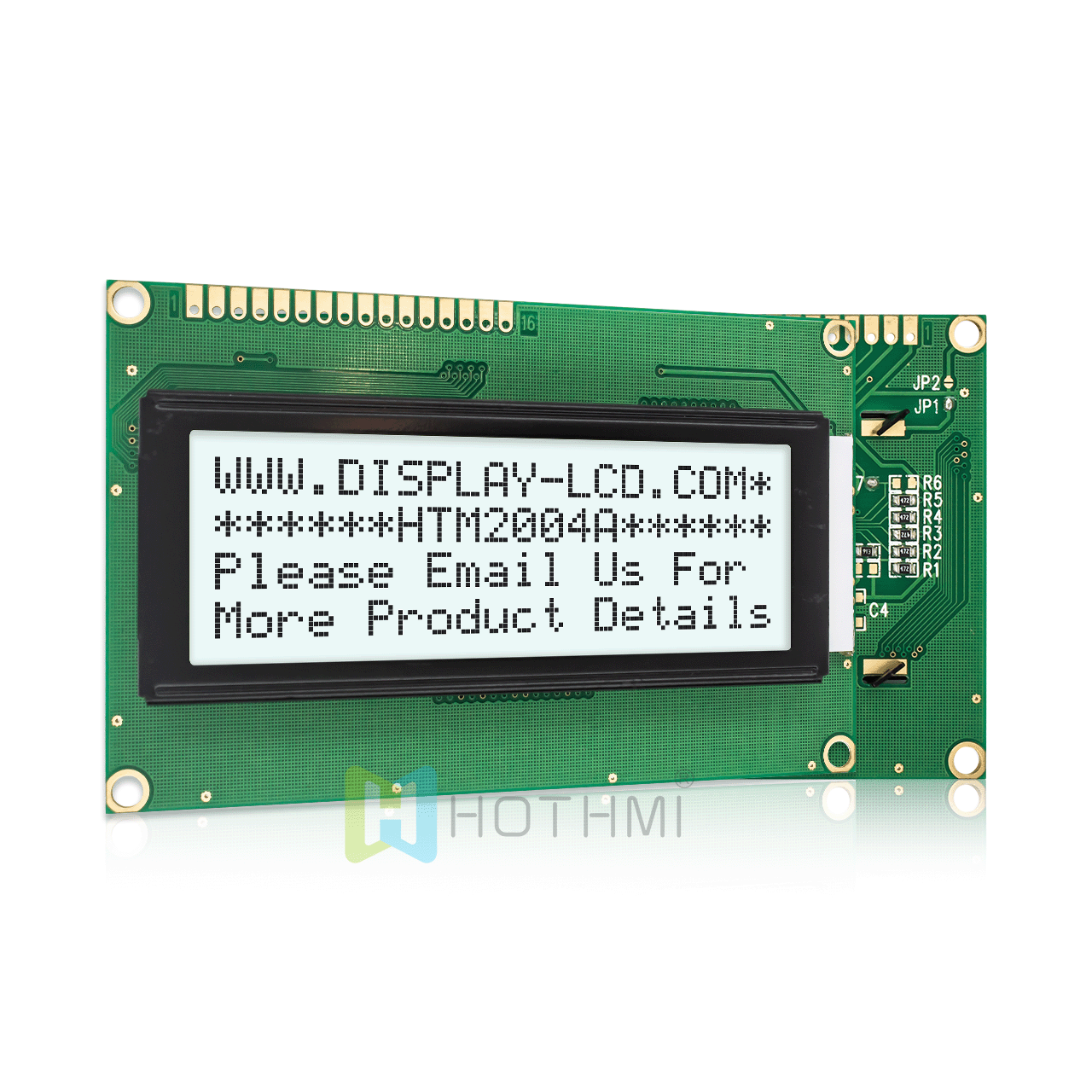

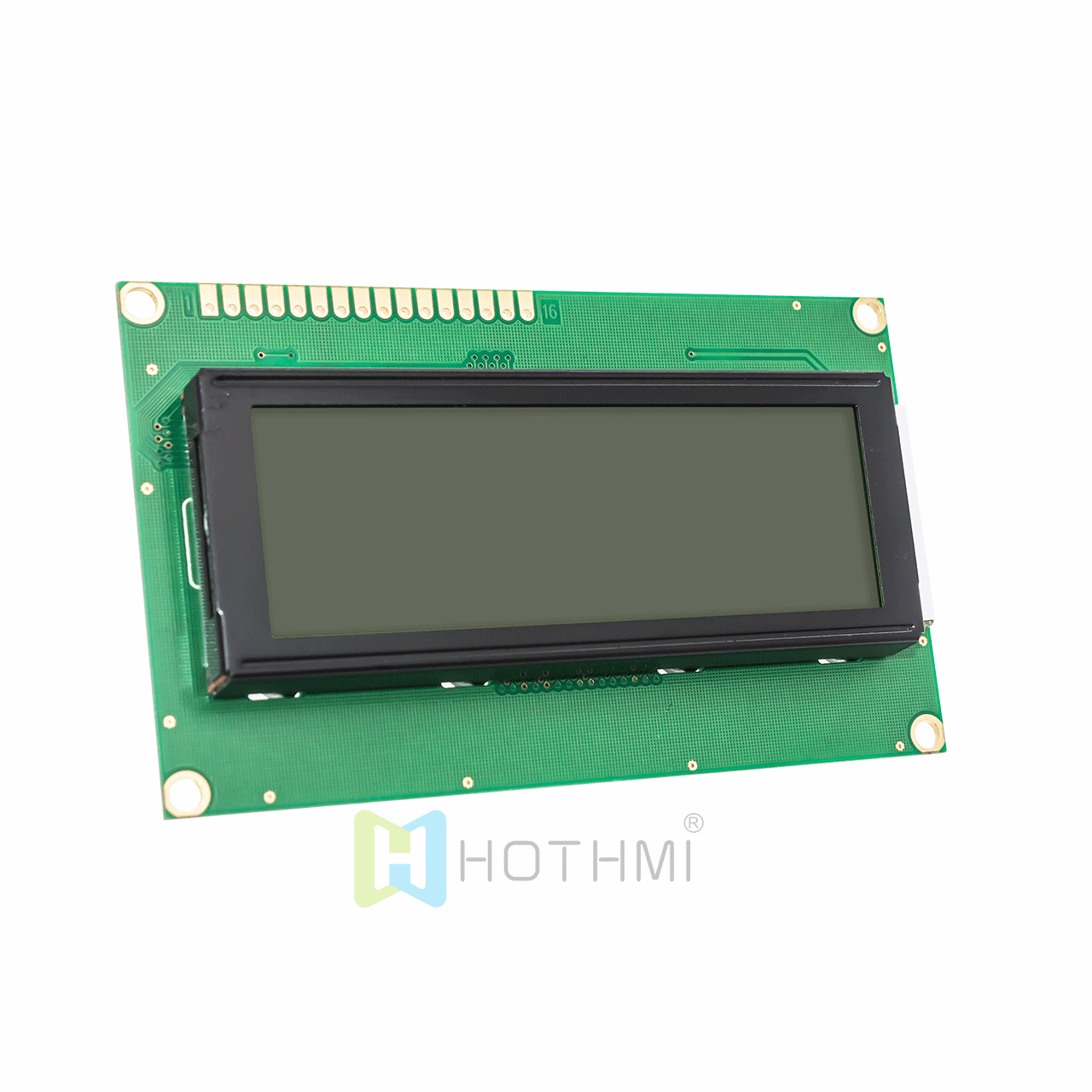

HTM-2004A-31W-A5P | 3.3v/5.0v | 20x4 | Monochrome character LCD | FSTN + | With white side backlight | Arduino display | Transflective | Adruino | Gray characters on white background
HOT Display is a 20-character wide, 4-row COB (with board) character LCD module, compact size, metal pin connection, ST7066u controller, single LED white backlight, easily dimmed by resistor or PWM, FSTN gray LCD front display, Gray text on white, high contrast, wide operating temperature range, wide viewing angle, Rohs compliant, built-in character set supports English/Japanese text, see ST7066U datasheet for complete character set.It can be controlled through 8051, Adruino. It can be used in any embedded system, industrial equipment, security, medical and handheld devices.
Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require. |
PCB Modifications: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application. |
Backlight color customization: The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference. |
Font library customization: Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc. |
Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure. |
